10 Pcs Precision Planetary Gear Stepper Motor Micro 2-Phase 4-Wire Stepping Motor Linear Metal Screw Slider A
Brand Typecat
Ny
122,37 kr.
Lignende produkter, vi tror du vil kunne lide
Vil du have, at vi giver dig besked, når den er tilbage?
Beskrivelse og detaljer
Oversigt
- Note: This motor is 2-phase 4-wire stepper motor, it requires an additional stepper driver and pulse signal to operate.
- micro two phase four wire stepper motor with a precision planetary gearbox, which drives the driver's pole to push the metal slide and move up and down. This is very miniature and precisely controllable miniature linear motor designed for adjusting the lens on mobile phones.

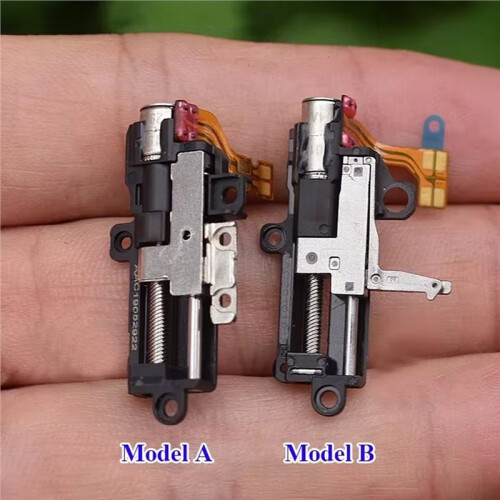

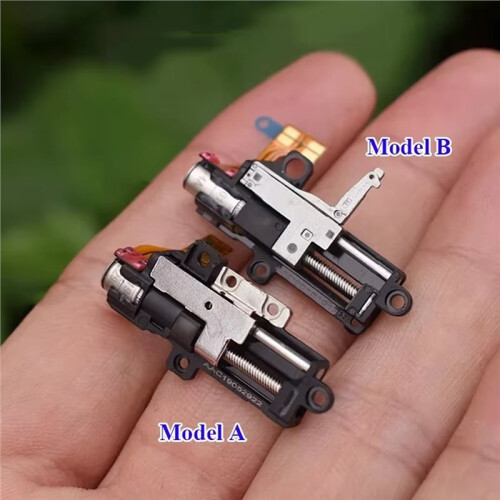

- There are two models of stepper motors, the model A motor diameter is 5mm, motor height is 6.5mm. The effective stroke of the slide is 8mm, and 2500 pulses are required to complete the stroke.
- The model B motor diameter is 4.3mm, motor height is 8.3mm.The effective stroke of the slide is 8mm, and 1750 pulses are required to complete the stroke. At the top of the screw, there is a super miniature ball bearing.
- Lifting motor
10 Pcs Precision Planetary Gear Stepper Motor Micro 2-Phase 4-Wire Stepping Motor Linear Metal Screw Slider A Beskrivelse
Note: This motor is 2-phase 4-wire stepper motor, it requires an additional stepper driver and pulse signal to operate.
micro two phase four wire stepper motor with a precision planetary gearbox, which drives the driver's pole to push the metal slide and move and down. This is very miniature and precisely controllable miniature linear motor designed for adjusting the lens mobile phones.
There are two models of stepper motors, the model A motor diameter is 5mm, motor height is 6.5mm. The effective stroke of the slide is 8mm, and 2500 pulses are required to complete the stroke.
The model B motor diameter is 4.3mm, motor height is 8.3mm.The effective stroke of the slide is 8mm, and 1750 pulses are required to complete the stroke. At the top of the screw, there is a super miniature bearing.
Color: Black
Material: Plastic+Metal
Specification: A
Package Contents:

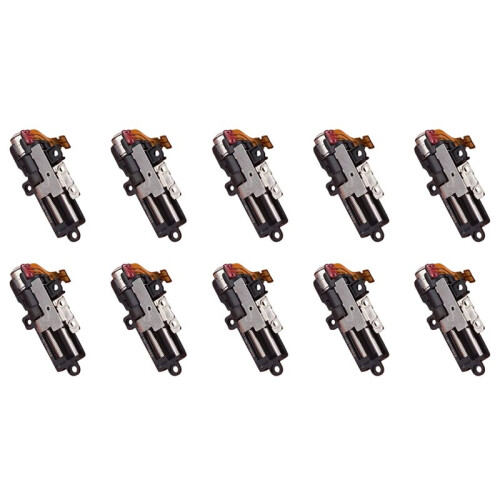

10*Planetary Gear Stepper Motor
Detaljer
| OPC | PWKS7HM |
|---|---|
| Mærke | Typecat |
| Koder | 6032694945538 (EAN) |
| Produkt- og sikkerhedsoplysninger |
Produktdata
| Height | 1cm |
|---|---|
| Width | 4cm |
| Length | 5cm |
| Weight | 0.0315kg |
| Colour | Black |
| Size | A |
| Material | Plastic+Metal |
