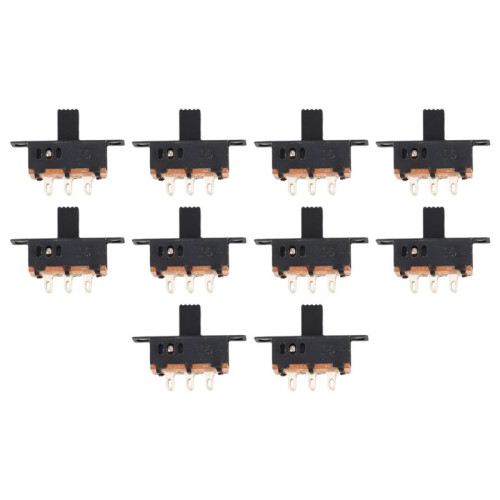

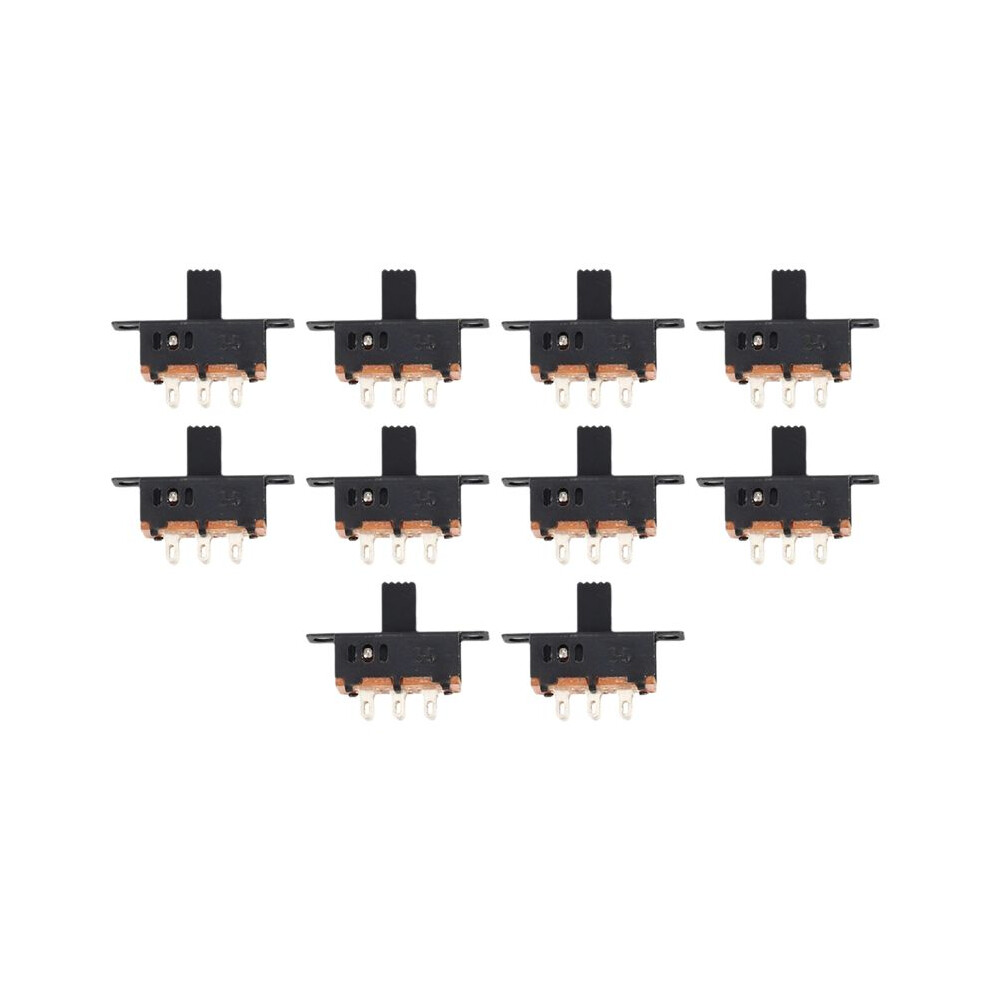

10 x 0.5A 50V 3 Position 2P2T DPDT Panel Mount Slide SS23D32

10 x 0.5A 50V 3 Position 2P2T DPDT Panel Mount Slide SS23D32 Beskrivelse

Easy Structure, Body, 6 Terminal, Vertical Handle,2 Pole 3 Position, Sliding Knob Actuator.
Widely used to control operation of many small power electronic projects, including volume and other controls for audio video, dimmer controls for lights.
Also a great component for DIY.
Product Name : Slide
Model : SS23D32
Type : 2 Pole 2 Throw
Terminal Quantity : 6 Pcs
Working Power : 0.5A 50V ;
Contact Resistance : 30Ohm Max;
Insulation Resistance : 100Ohm Min at 500V ;
Withstand Voltage : AC 500V for 1 min
Mounting Type : Through Hole;
Hole Diameter : 2.2mm / 0.08";Terminal Size(Each One) : 4 x 1.5mm / 0.16" x 0.05"( L * W)
Total Size : 23 x 7 x 13mm / 0.9" x 0.27" x 0.51" (L * W* H);
Knob Size : 4.4 x 3.5 x 6.7mm / 0.17" x 0.14" x 0.26"(L * W * H);
Material(External) : Plastic, Metal
Main Color : Silver Tone, Black;
Package Content : 10 x Slide
Note:Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
