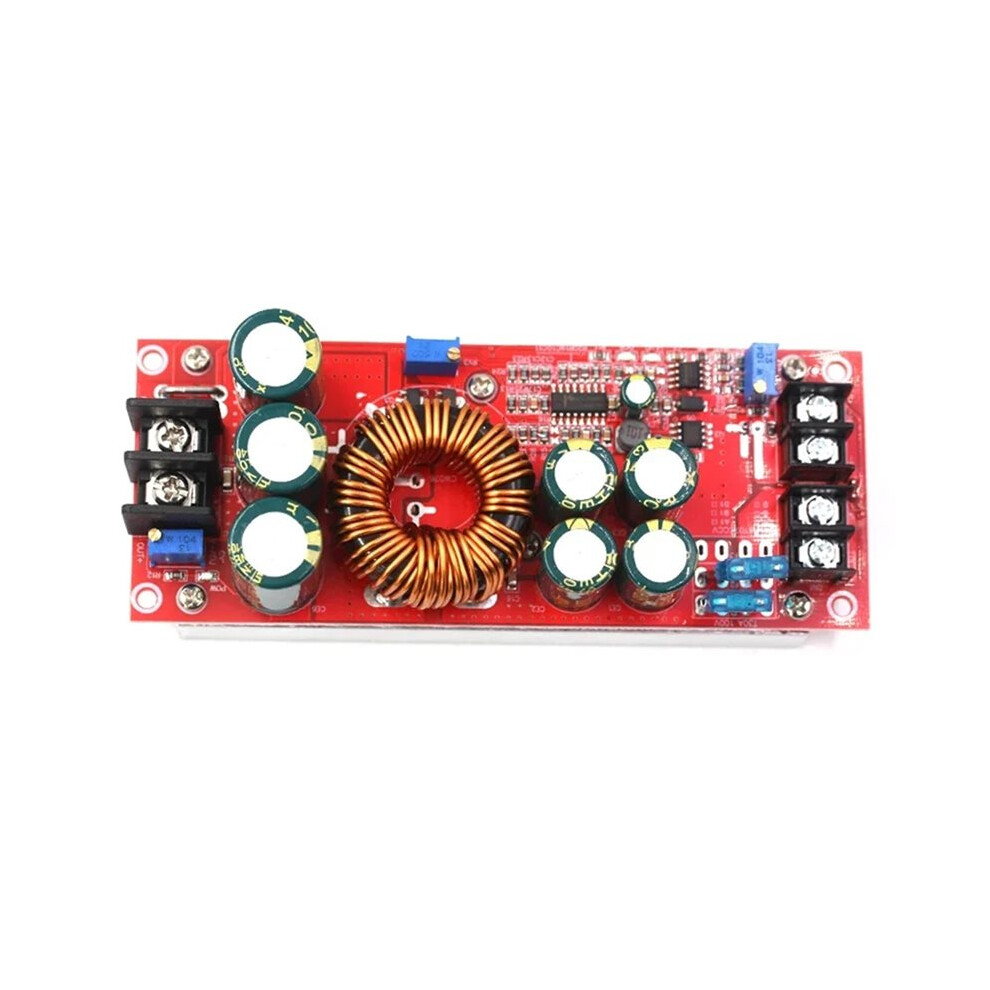

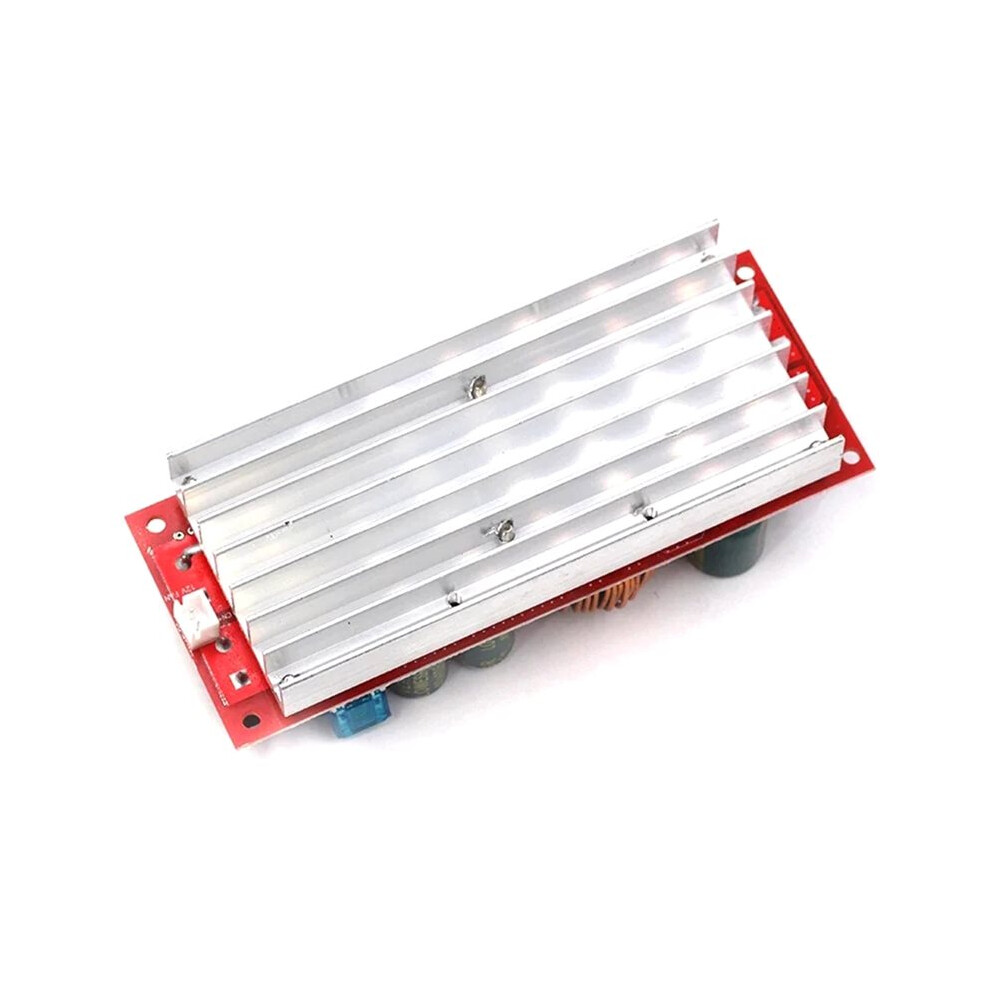

1200W 20A High Power - Adjustable Boost Power Module Board Constant Voltage Current for Laptop Car Audio DIY

1200W 20A High Power - Adjustable Boost Power Module Board Constant Voltage Current for Laptop Car Audio DIY Beskrivelse

Module nature: non-isolated boost module (BOOST) without jumper cap to select voltage)(updated 2016/5/15)
Input current:20A(MAX) Please add fan cooling if it exceeds 15A(add fan cooling input voltage when the input current can reach 25A when the input voltage is 12-24V)
Static working current:15mA(when 12V is increased to 20V,the higher the output voltage, the higher the static current will be)
Output voltage:12-83V continuously adjustable (the default output is adjusted to 19V for shipment. lf you need to adjust it to other voltage values, please indicate. lf you have a multimeter, the buyer can adjust it by himself) 12-83V fixed output (for batch customers)
Output current:18A MAX Please increase heat dissipation if it exceeds 10A(with =lnput and output voltage difference, the larger the voltage

Constant current range:0.5-18A(+/-0.3A)
Input reverse connection protection: Yes(150A power MOS reverse connection)
Low battery protection:Yes(9-50V adjustable)

Working temperature:-40~+85 degrees(please strengthen heat dissipation when the ambpient temperature is too high)
Working frequency:150KHz
Conversion efficiency:92%-97%(efficiency is related to input and output voltage, current, and voltage difference.Smal voltanstalation method:4 3mm copper pillars Wiring method: Terminal block(please use high current pure copper wire)

Module size:130mm long,52mm wide, 53mm high
Module weight: 300g
Output power:=input voltage* 20A, such as: Input 12V*20A=240W Maximum power when input 12V is 240W
Color: Red
Material: plastic

Package Contents:
1* Adjustable Boost Power Module
