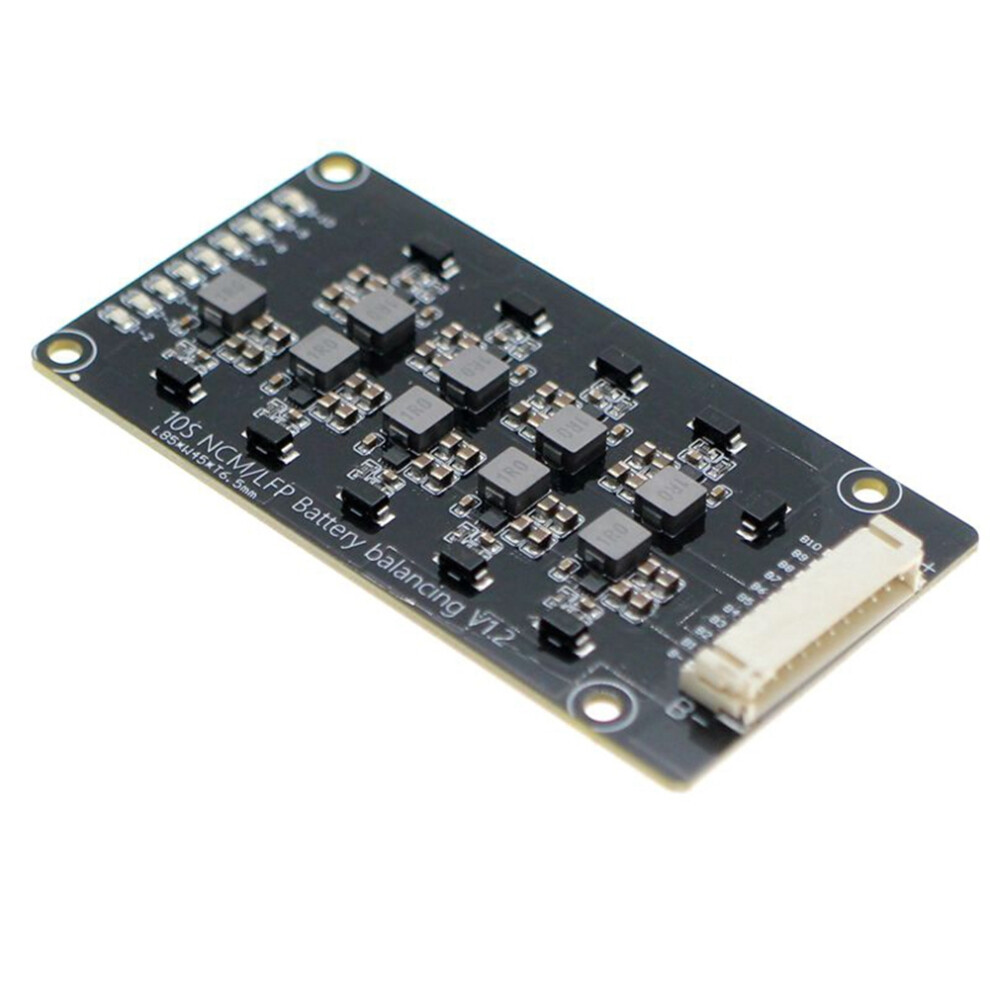

1.2A 10S High Current Equalization Module Lithium Battery Active Balancer Transfer Conversion Board

1.2A 10S High Current Equalization Module Lithium Battery Active Balancer Transfer Conversion Board Beskrivelse

Inductive transfer balance board, high current 1.2A transfer battery voltage balancer, significantly balance the battery voltage and improve the overall efficiency of the battery pack!
The module is the adjacent voltage difference equalization, the adjacent battery voltage difference reaches more than 0.1V, the chip internal triggers the equalization work, until the adjacent battery voltage difference is less than 0.03V and stops working, when it is used the battery pack, there is adjacent voltage difference trigger when charging and discharging Balanced work, the battery pack voltage error will also be pulled back to an perfect value, reducing battery maintenance costs.
When the equalization light is , the equalization work is turned ,
The equalization light is off, the equalization circuit is in sleep state,
The equalization light is flashing, indicating that the string is dropped, or the circuit is faulty.

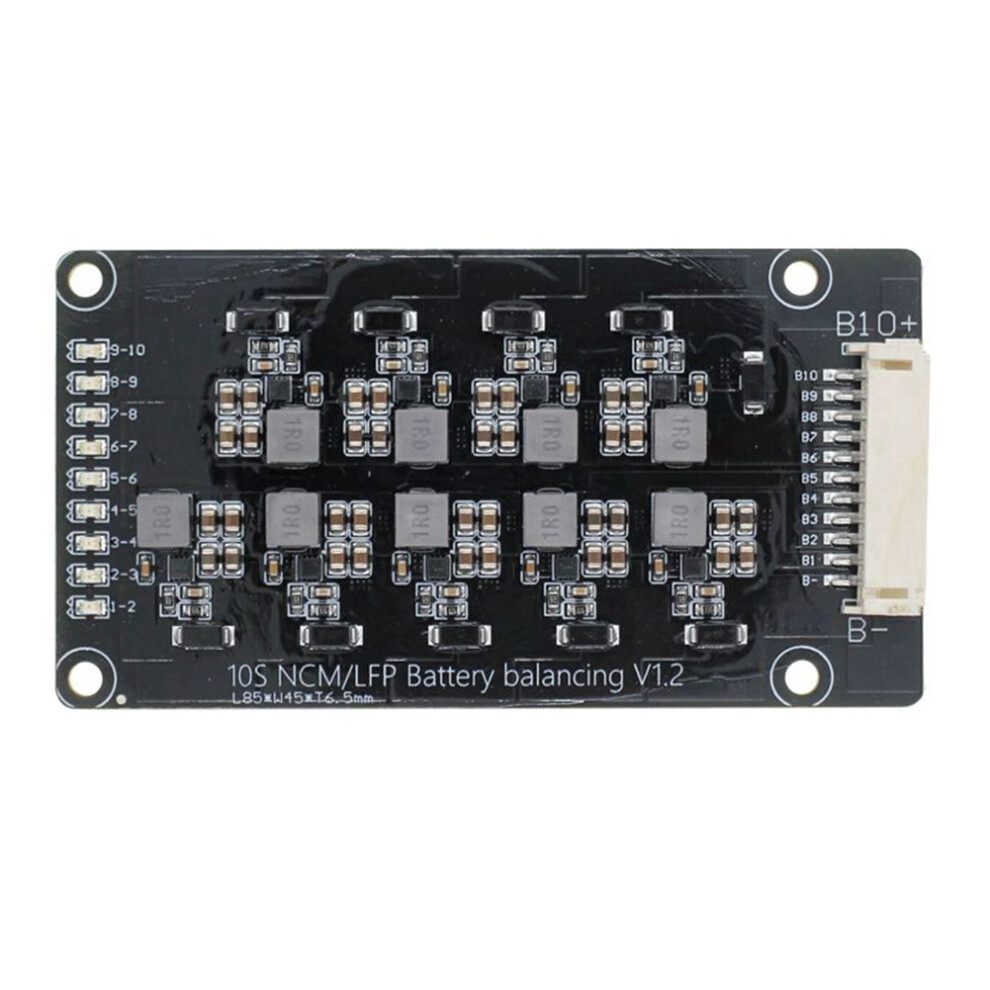

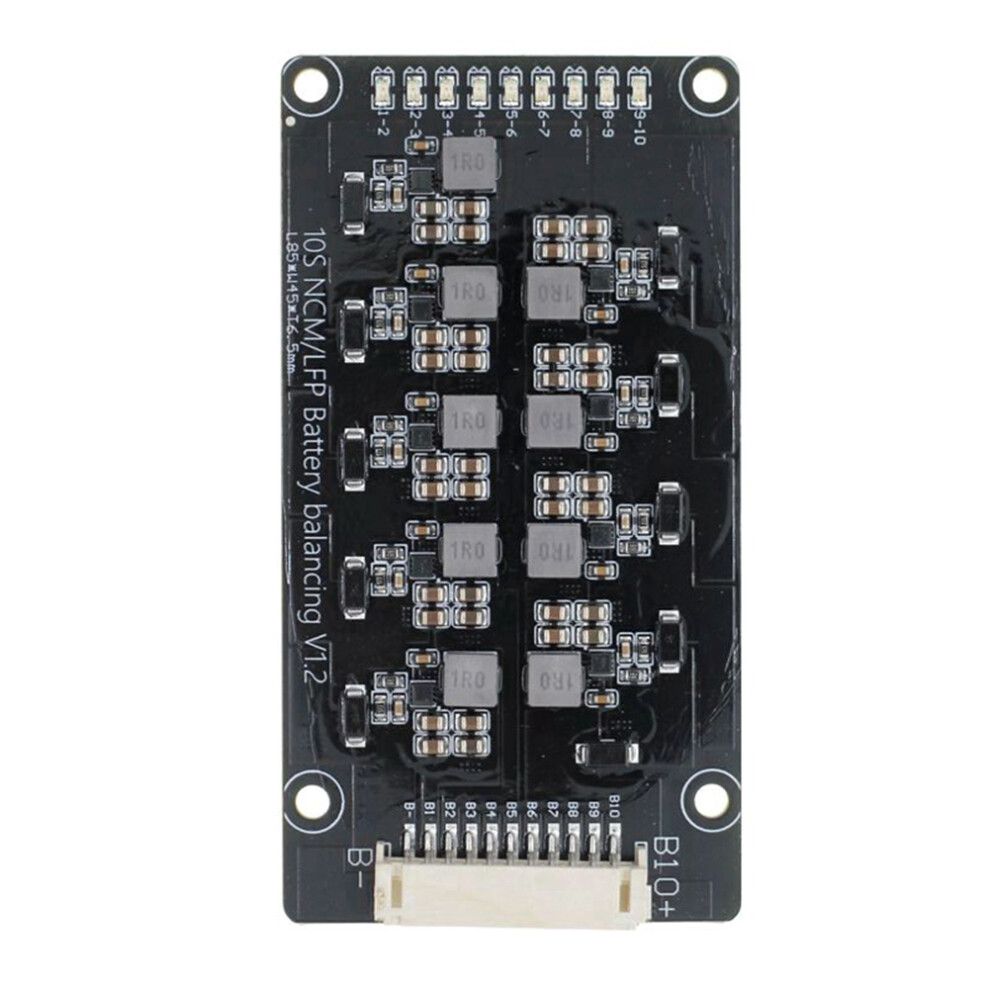

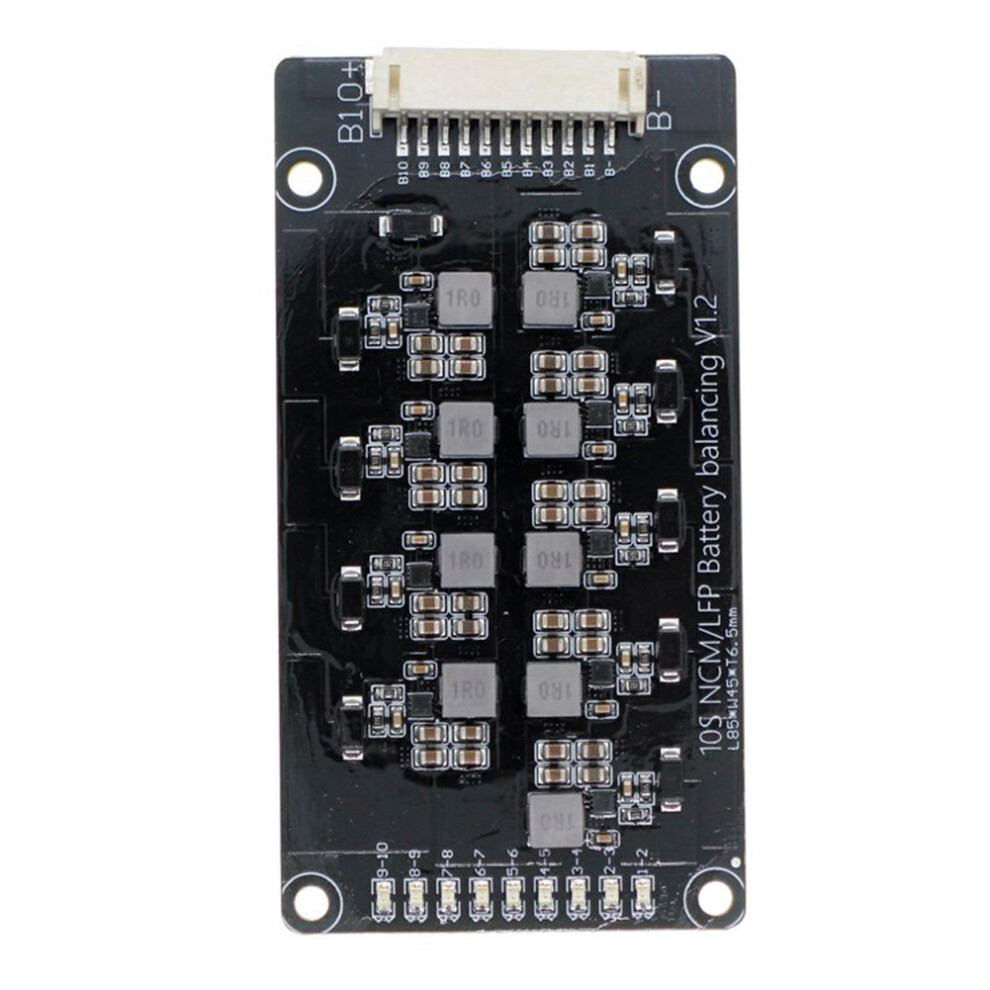

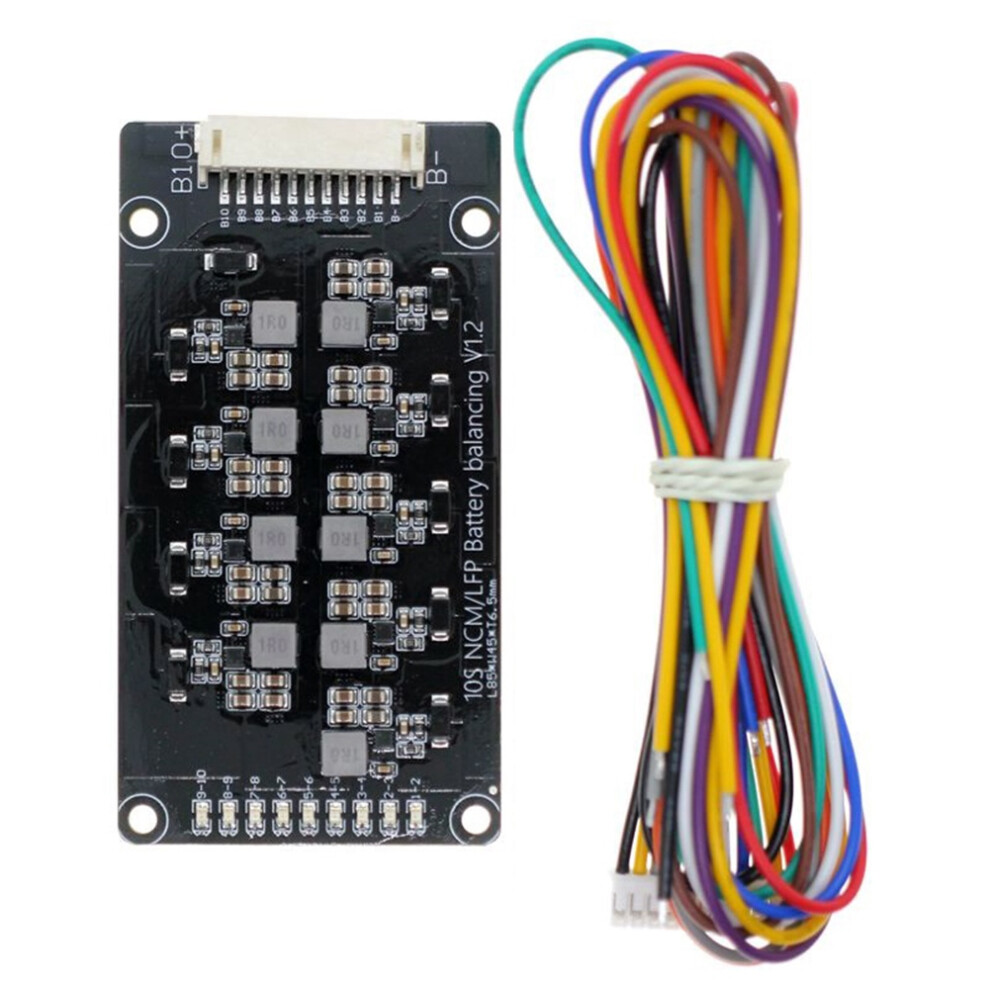

Wiring Definition:
B-, the total negative pole of the battery pack (the negative pole of the first battery)
B1, the positive pole of the first battery
B2, the positive pole of the second battery
B3, the positive pole of the third battery
B4, the positive pole of the fourth battery
B5, the positive pole of the fourth battery
B6, the positive pole of the sixth battery
B7, the positive pole of the seventh battery
B8, the positive pole of the eighth battery
B9, the positive pole of the ninth battery
B10, the positive pole of the tenth battery
technical parameter:
The working voltage is 2.0V-4.5V, the ternary iron lithium battery is common, and the LTO lithium titanate battery is not suitable.
Balance current:
The adjacent voltage difference is more than 0.1V (the current is about 0.5-0.7A);
The adjacent voltage difference is more than 0.
