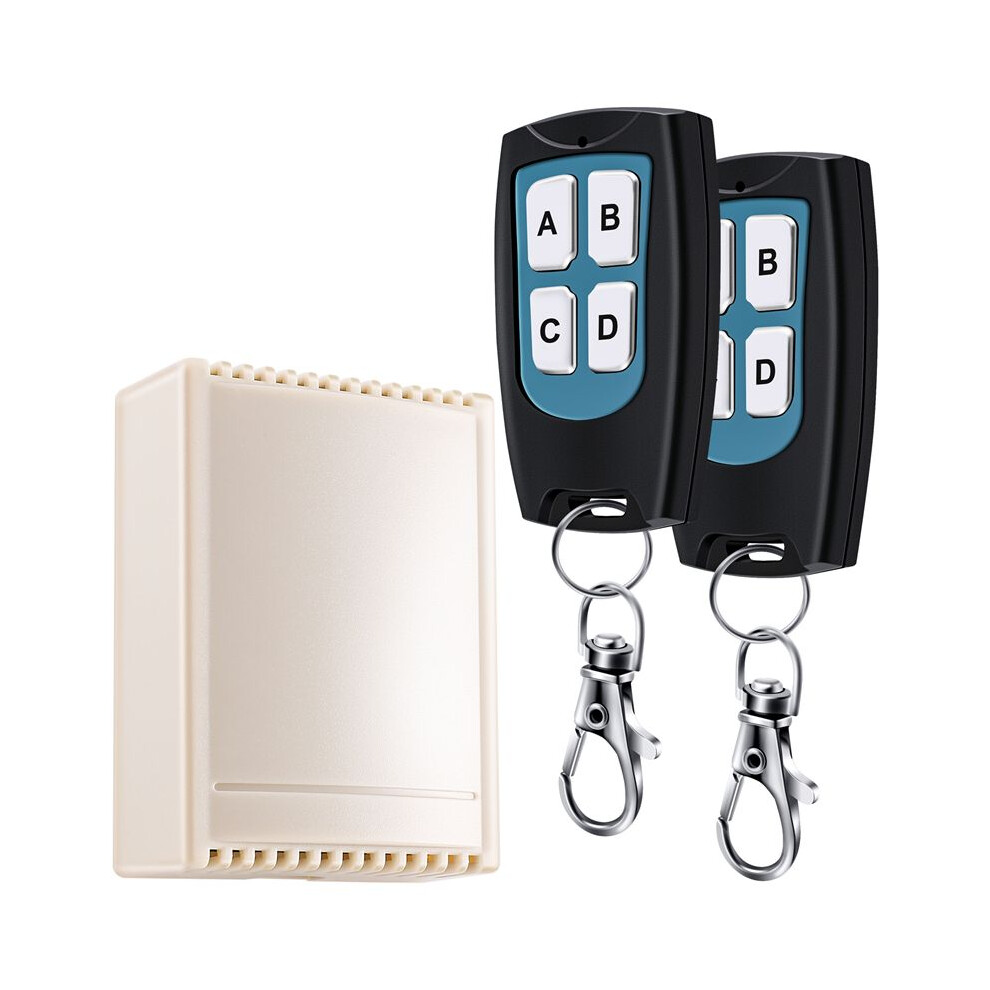

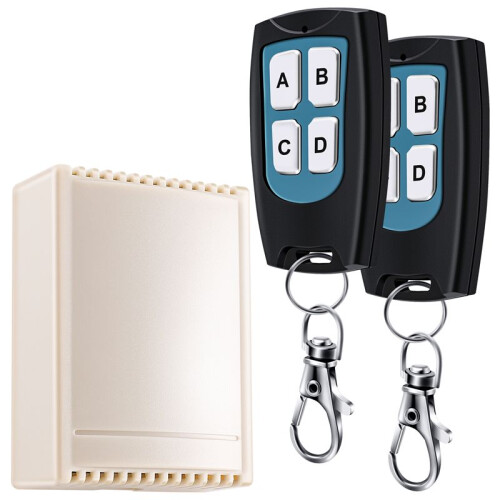

12V 4 Channel 200M Wireless RF Remote Control 2 Transmitter + Receiver

12V 4 Channel 200M Wireless RF Remote Control 2 Transmitter + Receiver Beskrivelse

It is a learning code wireless remote control (receiver), the output way /working way can be changed as you like, it is easy to match the transmitter.
It has 4 Relays which can make the equipment turn or reverse, /off and so come true. The volume is small and the performance is stable and reliable, high receive sensitivity.
It covers application ranging from simple domestic remote control to autonomous control, like auto door, window, lifting equipment, entrance access, and down controller, alarm system industrial control and security etc.
These remote controls are designed to control a wide variety of electronic devices with a wireless signal. Extremely easy to set and use.

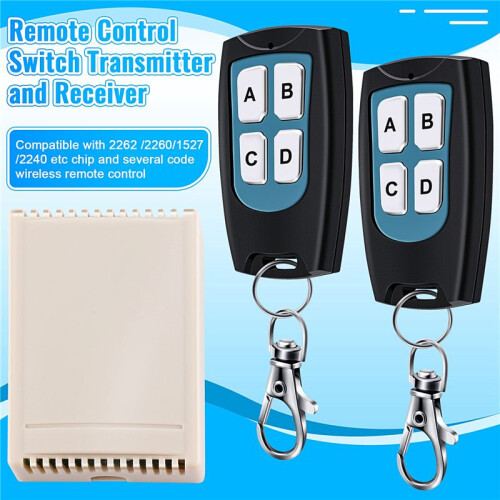

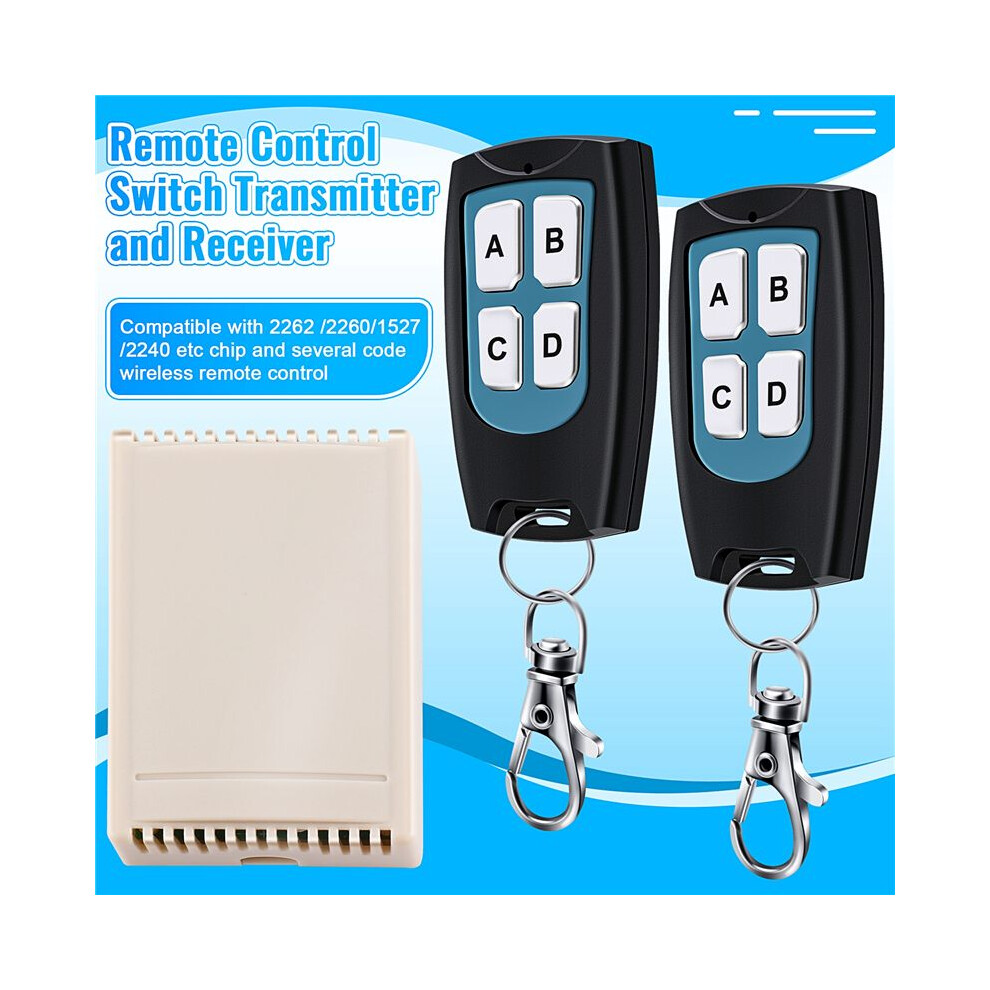

Compatible with 2262 /2260/1527/2240 etc chip and several code wireless remote control. So it can meet someone's need of choosing the wireless remote control as they like to work with it .
Color: As shown
Receiver:
working voltage:DC12V
quiescent condition:less than 6mA
working temperature: -40 - +80 Celsius
receiver sensitivity: more than -105dBm
working frequency:315MHz
here is in set. we have made it work together,so you don't have to care about what frequency are they.
output voltage: and AC is optional
output current: less than 3A
max load current:10A

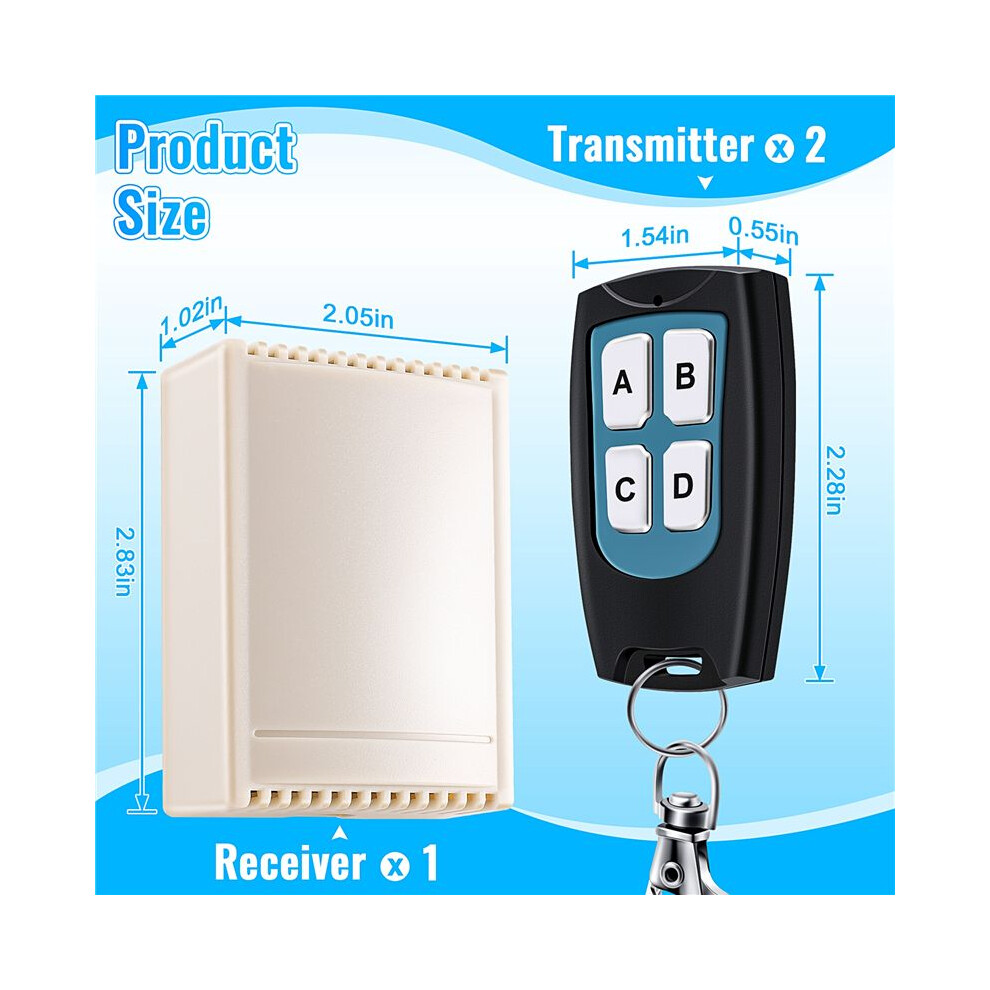

Dimensions: 72mm*52mm*26mm

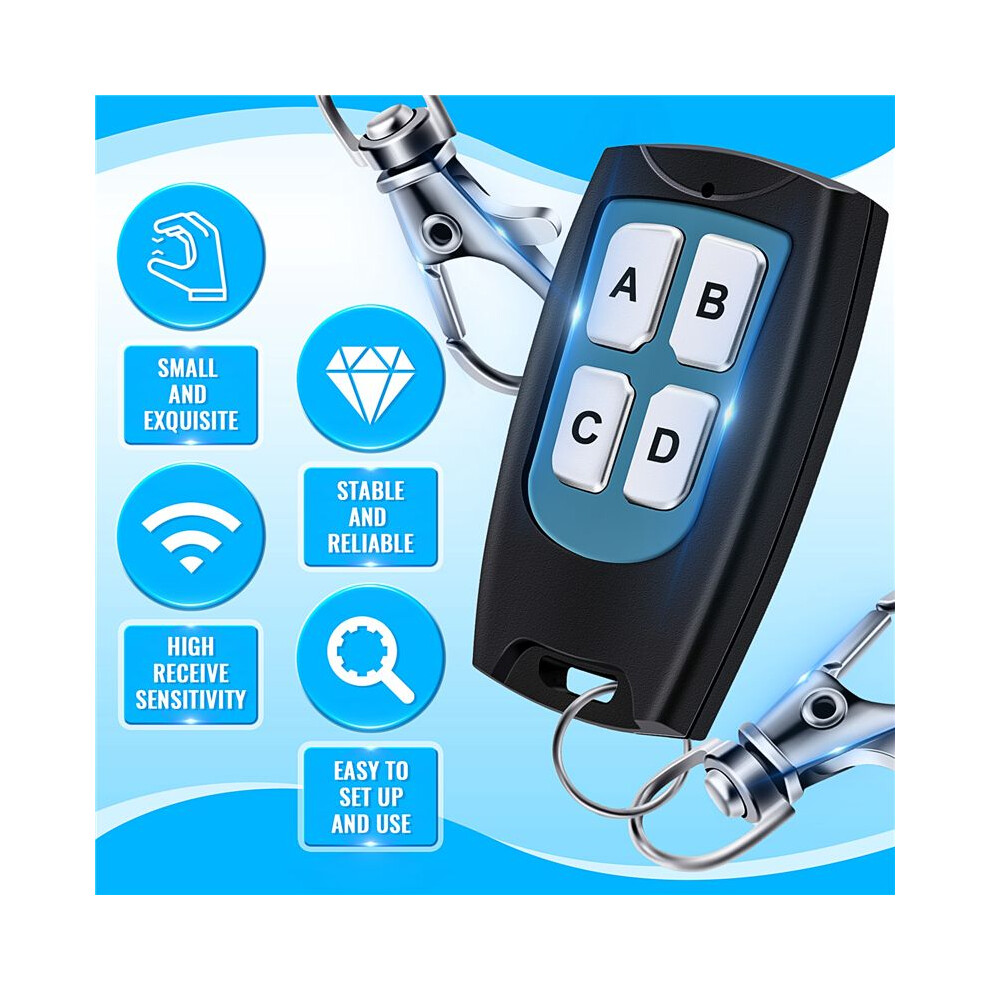

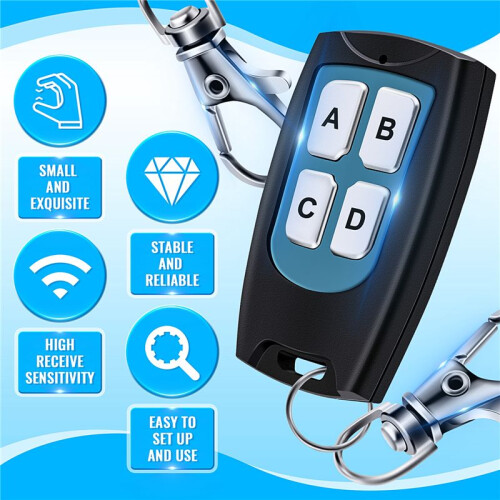

Remote control transmitter:
Remote Distance: 200M
Operating Voltage: 12V
Frequency: 315mhz
Operating Current: 13 mAh
Code Type: Fixed code / Learning code
Dimensions: 58 x 39 x 14mm
Material: Plastic, metal
Output working way:
Self-lock --- connect the JP1 with the cutting out cap.
Jog --- the cutting-out cap is non-occupation, JP1 and JP2 do not connect either.
-lock --- Connect the Jp2 with the Cutting out cap,
Jog --- press one button is , loosen your finger the same button is OFF (need one channel and one buttons remote control).
