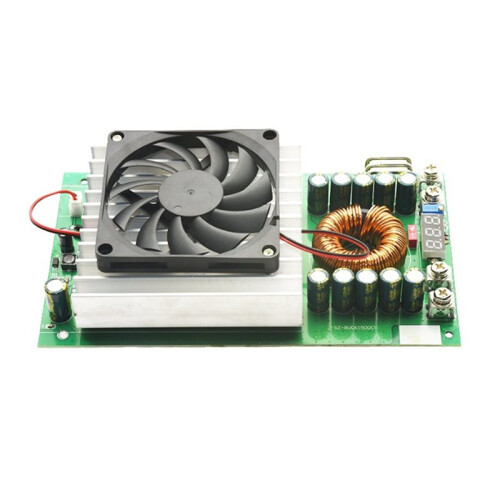

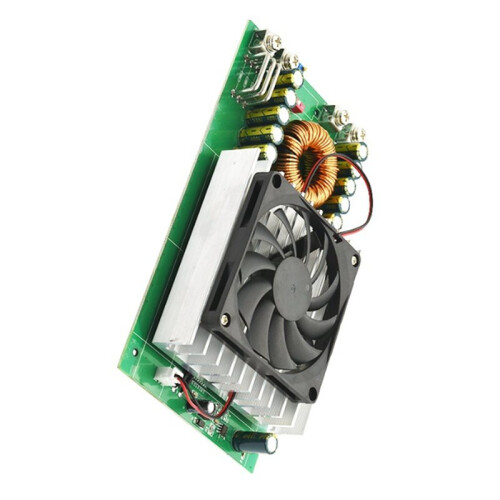

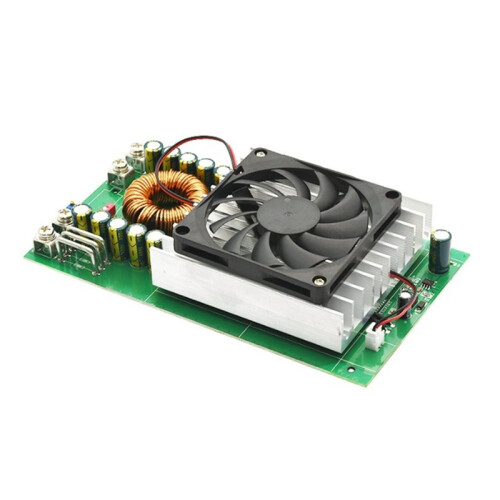

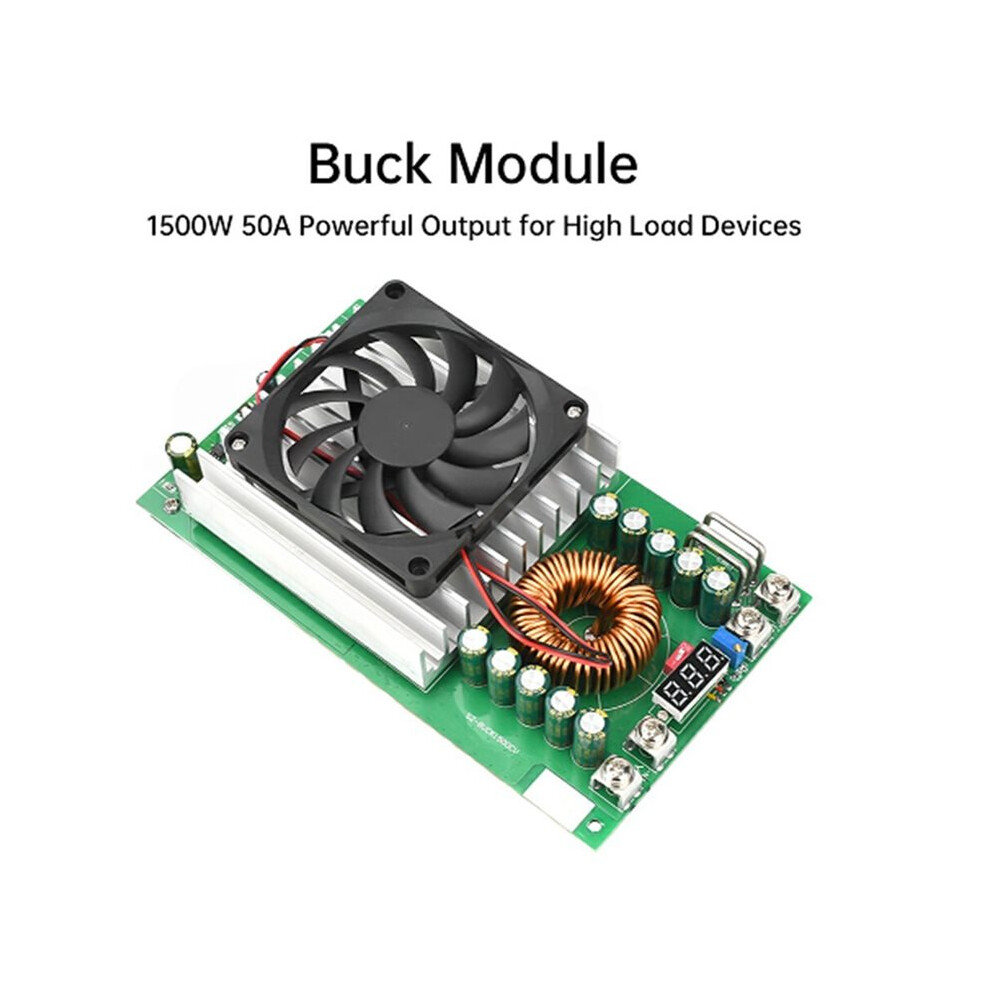

1500W 50A - Buck Converter 15-90V to 2.5-72V Adjustable Step-Down Power Supply Module Voltage Regulator Without Case

1500W 50A - Buck Converter 15-90V to 2.5-72V Adjustable Step-Down Power Supply Module Voltage Regulator Without Case Beskrivelse

High Current 50A: Supports heavy-duty loads with stable performance
Buck Converter: Reliable step-down module for efficient power conversion.

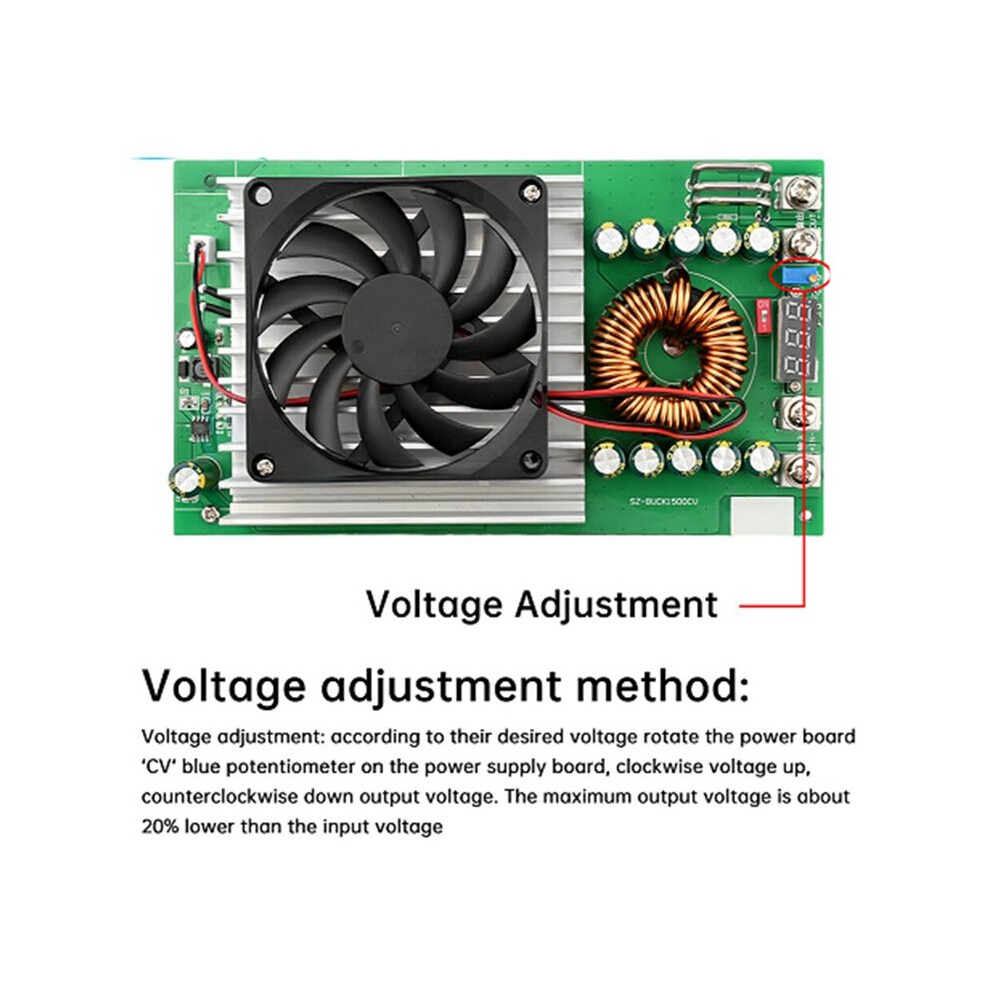

Adjustable Voltage 2.5-72V: Customizable output for various device needs

Description/Features:
This high-performance adjustable buck module is designed to support a wide range of applications with its 15-90V wide voltage input capability. It boasts a robust 1500W and 50A output, making it suitable for high-load equipment.

Specifications:
Module Type: Non-isolated buck module (BUCK)
Input Voltage: 15-90V
Output Voltage Range: 2.5-72V (Input voltage * 0.8 = maximum output voltage)
Maximum Output Current: 50A
Maximum Output Power: 1500W (adequate ventilation required)

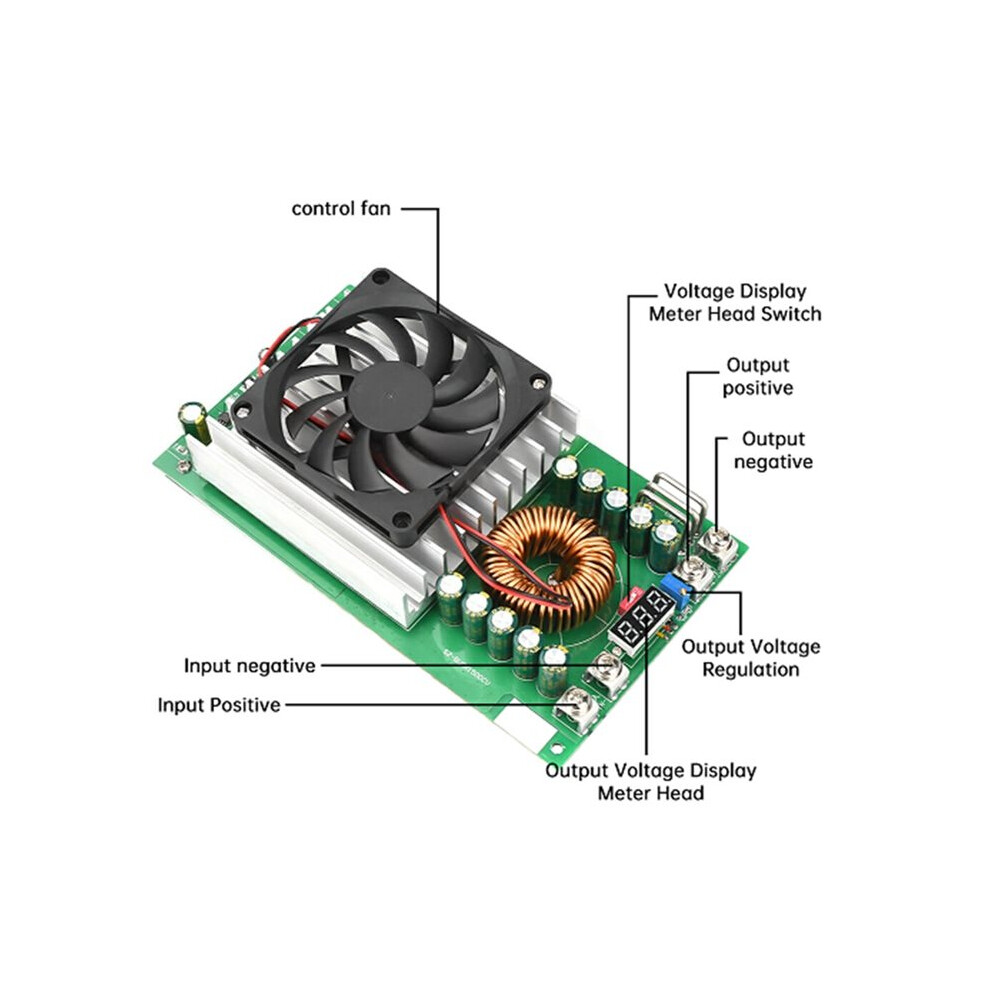

Cooling Method: Air-cooled (fan activates at 50C, deactivates at 40C)
Operating Temperature: -10 to +65C
Operating Frequency: 80KHz
Conversion Efficiency: to 97%
Short-circuit Protection: Yes (current limit 50A protection)
Input Anti-reverse Connection: No

Precautions:
This module can only step down the voltage; the output voltage must be lower than the input voltage.
There is no reverse input protection; reverse connections are strictly prohibited.
The output current is not adjustable; not suitable for charging batteries or connecting directly to inductive loads without an anti-reflux diode.
Select a power supply with at least 1.5 times more power than the load power.
Color: As Shown
Material: Plastic+Metal
Specification: Bare board

Package Contents:
1 Adjustable Step-Down Power Supply Module Voltage Regulator
