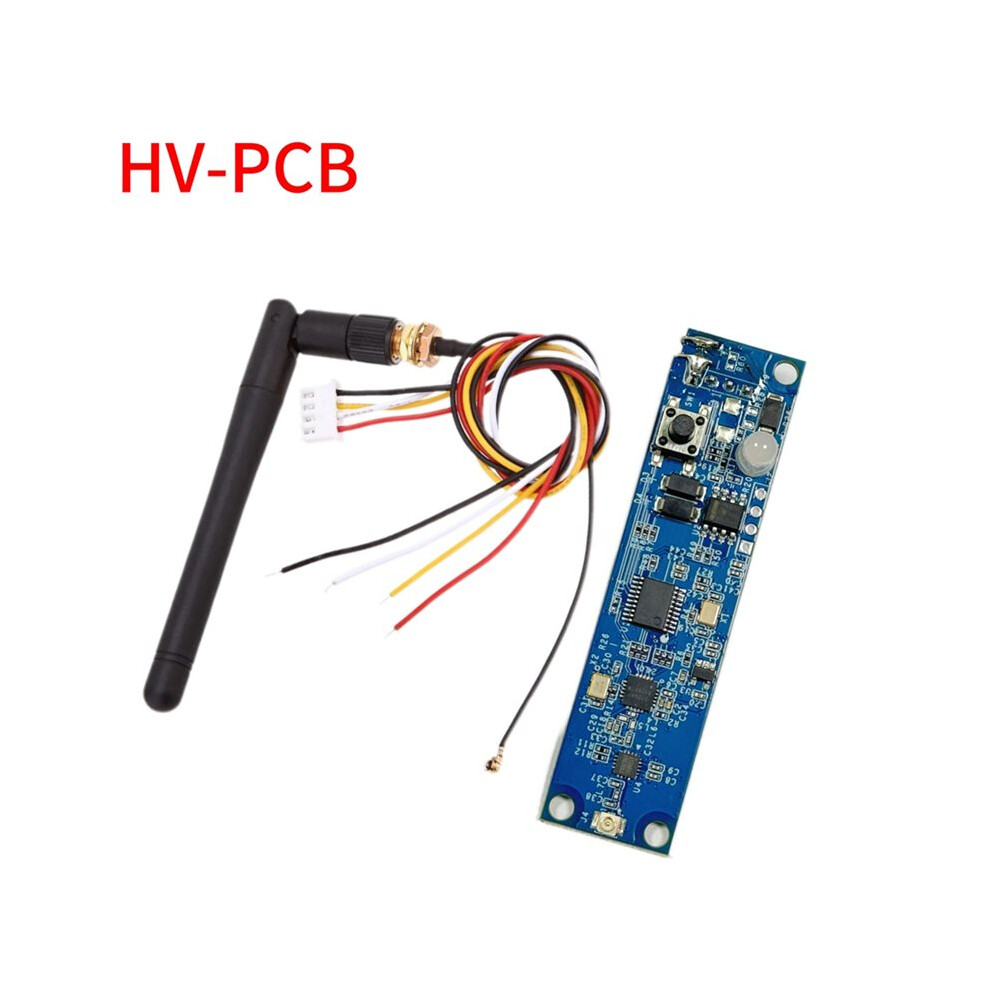

1PCS 2.4G DMX512 Wireless Controller PCB Module 2 in 1 Transmitter Receiver for Stage Light Built-in Wireless DIY 485EE

1PCS 2.4G DMX512 Wireless Controller PCB Module 2 in 1 Transmitter Receiver for Stage Light Built-in Wireless DIY 485EE Beskrivelse

Tricolor LED displaying.
126 channels jumping frequency automatically
7 groups ID code settable.
Small size, easy to suit for interior of accessed lighting.

SPECIFICATIONS:
Work Voltage:12V-48V
Communication distance: 400M ( visible distance )
Work frequency section: 2.4G ISM
Max transmitting power rate: 20dBm
Receiver sensitive: -94dBm
Signal port: 3pin female plug

How to connect the DMX wireless circuit board:
Red wire: 12V-48V + power
Black wire 1: 12V-48V + power
Black wire 2: Interface 1 / Ground (GND)
wire: Interface 3
Yellow wire: Interface 2 This connection method works for 99% of DMX devices. If it does not work properly, please swap the and yellow wires.

ID code and LED color corresponding relationship:
1: RED
2: GREEN
3: RED+GREEN
4:
5: RED+
6: GREEN+
7: RED+GREEN+
Press key 1 to indicate ID setting, press again to set IC.

Working condition:
LED constant lit : no DMX or wireless signal.
Red LED flash: transmitting.
Green LED flash: receiving total 126 channels, it's searching automatically.
ID Code- "1-7" groups ID code, press "KEY" for setting.

Establishing Communication:
Power .
Communication was established correctly then.
Color:
Material: PCB+Plastic

Package Contents:

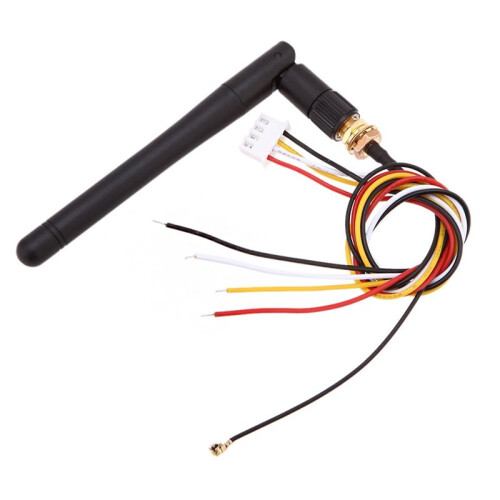

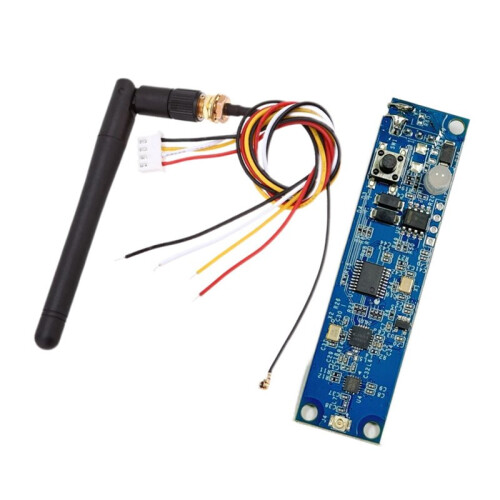

1 * Wireless DMX512 PCB Module Board

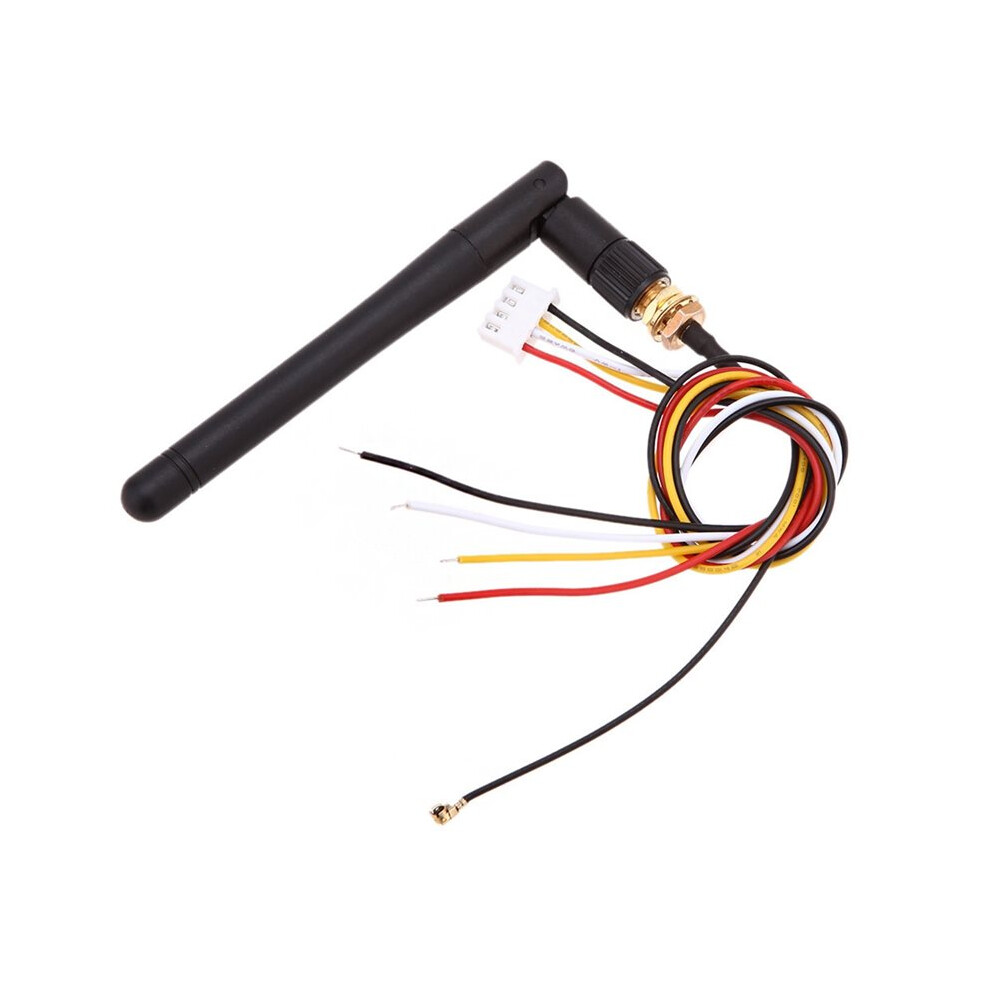

1 * Antenna
1 * Connecting wires
