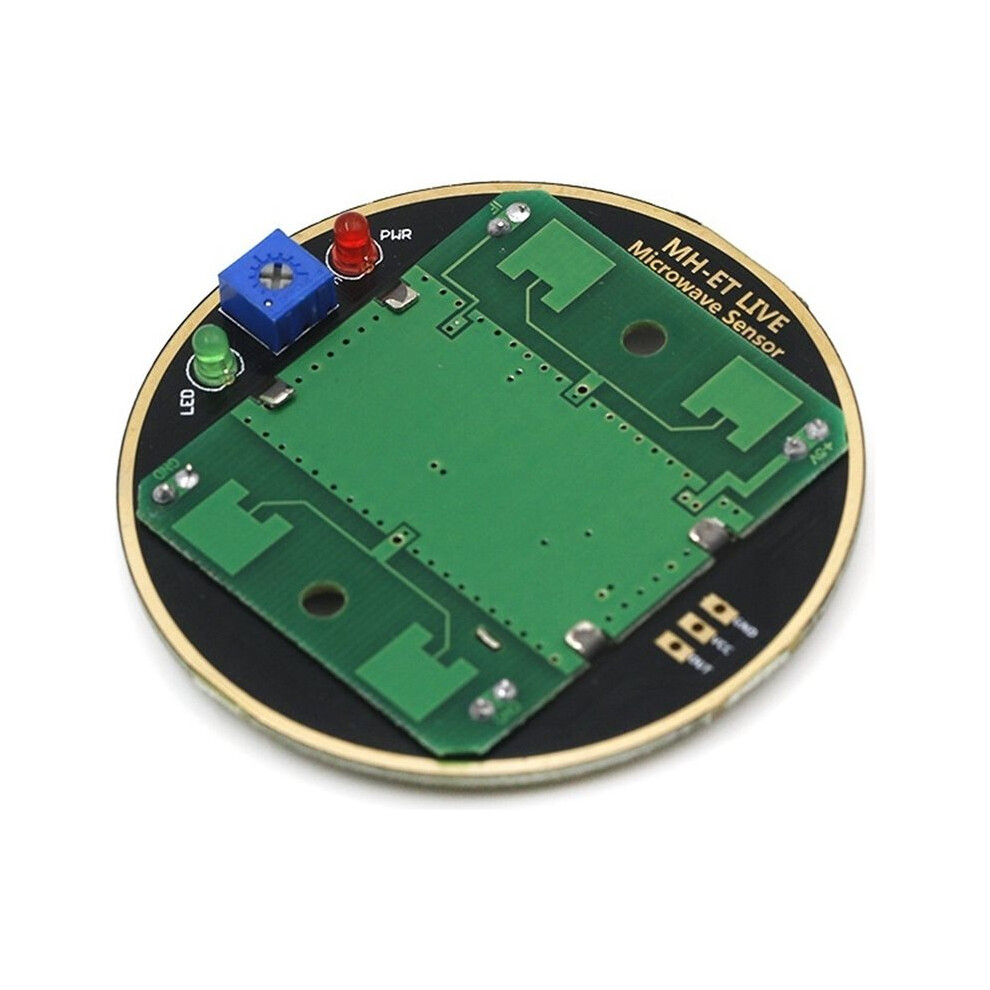

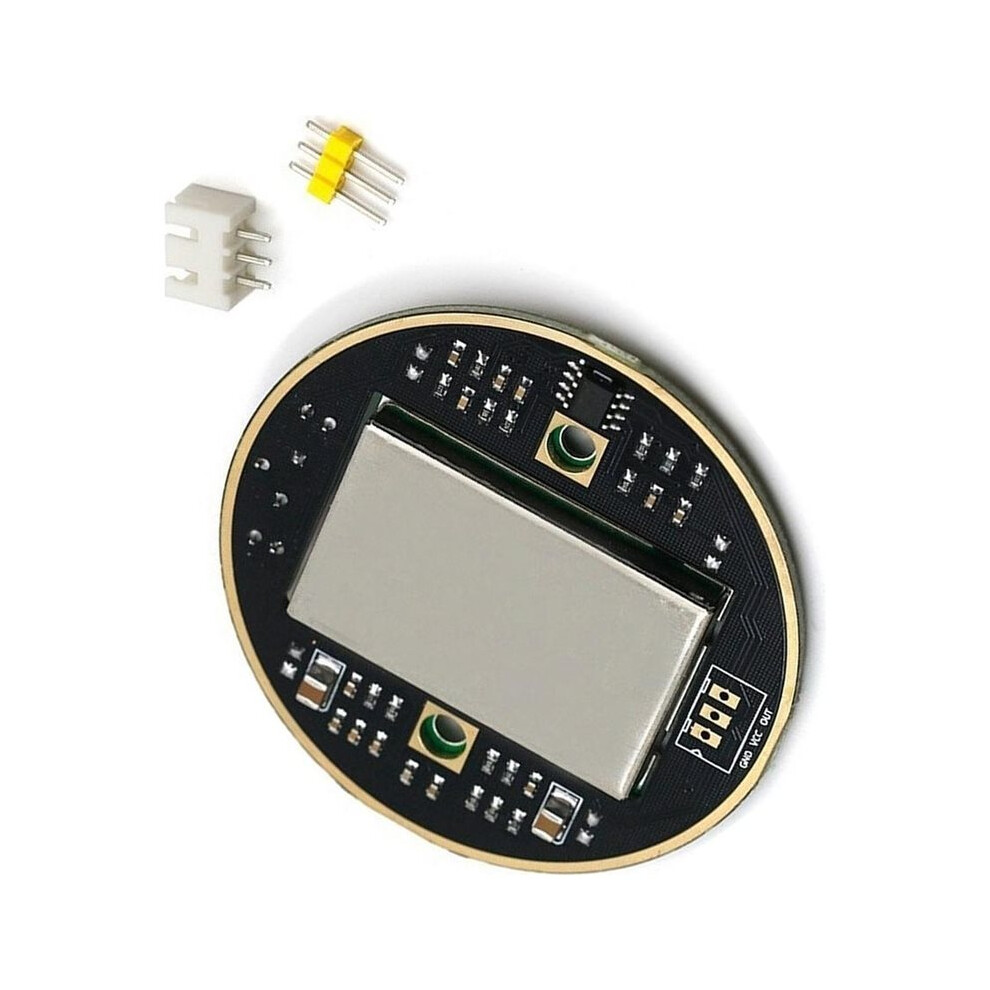

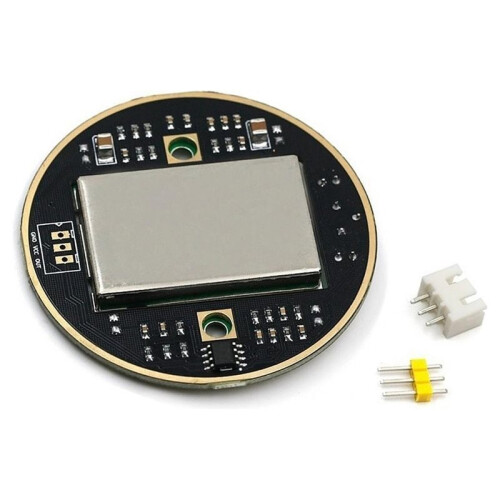

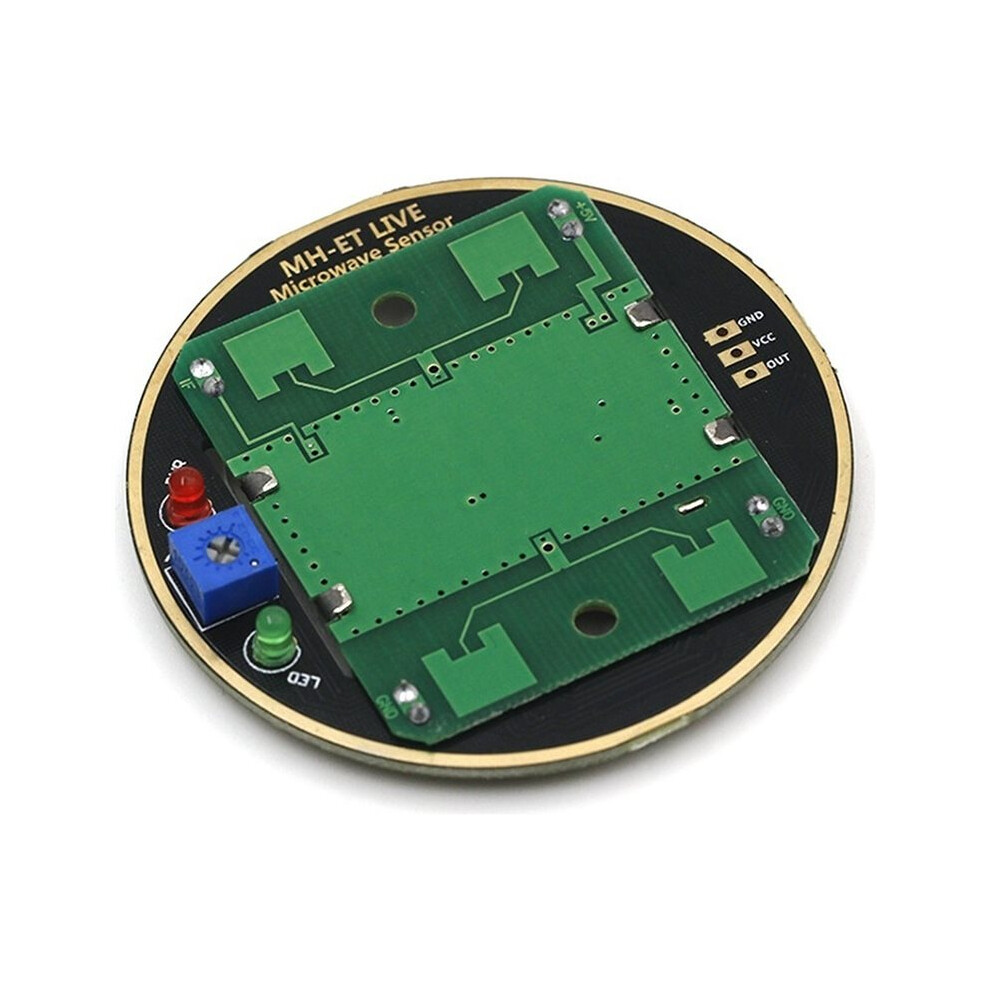

1Pcs HB100 X 10.525GHz Microwave Sensors Module 2-16M Human Body Induction Module for

1Pcs HB100 X 10.525GHz Microwave Sensors Module 2-16M Human Body Induction Module for Beskrivelse

Non-contact detection
Unaffected by temperature, humidity, noise, airflow, dust, or light, making it suitable for harsh environments
Strong resistance to radio frequency (RF) interference
Low output power, posing no harm to the human body; Long detection range;
Supports the detection of non-living objects; Microwaves exhibit excellent directivity and travel at the speed of light.

Operating Voltage: 5V 0.25V
Operating Current (CW): 60mA max., 37mA typical
Transmission Parameters:
Detection Range: Continuously adjustable from 2m to 16m (min. 2m, max. 16m)
Transmission Frequency: 10.525 GHz
Frequency Setting Accuracy: 3MHz
Output Power (Min.): 13dBm EIRP
Harmonic Emission: < -10dBm
Average Current (5% Duty Cycle): 2mA typ.
Pulse Width (Min.): 5µs
Duty Cycle (Min.): 1%
Reception Parameters:
Sensitivity (10dB S/N ratio, 3Hz to 80Hz bandwidth): -86dBm
Clutter (3Hz to 80Hz bandwidth): 10µV
Antenna Gain: 8dBi
Vertical 3dB Beamwidth: 36
Horizontal 3dB Beamwidth: 72
Pin Description
Color: As Shown
Material: PC+Metal

Package Contents:
1* Microwave Sensors Module
