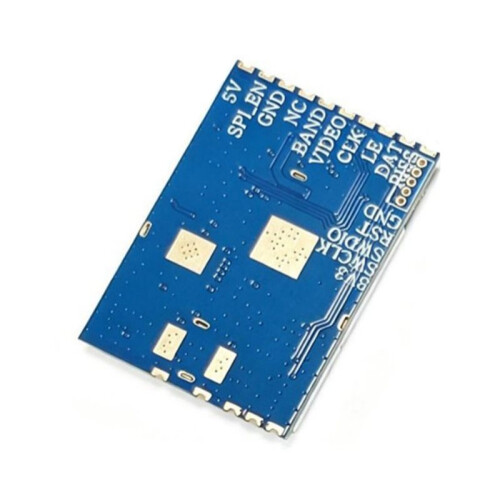

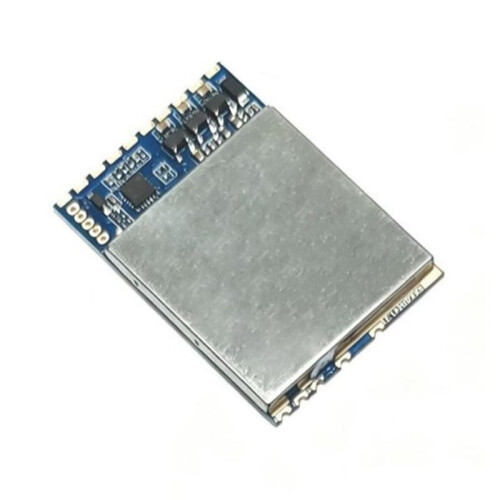

1PCS RX8200 6G-8.2GHz Video Receiver Module VRX FPV Analog Wireless Video Receiver Module SPI Mode

1PCS RX8200 6G-8.2GHz Video Receiver Module VRX FPV Analog Wireless Video Receiver Module SPI Mode Beskrivelse

1. Supports 6-8.2GHz wideband reception, accommodating diverse wireless video transmission scenarios
2. Unlimited channel customisation, enabling free editing of an unlimited number of channels
3. High sensitivity at -95dBm, maintaining clear image quality even under weak signal conditions
4. FM/PLL demodulation technology ensures crisp visuals with minimal video transmission distortion
5. Widely applicable across industrial sectors including drones, robotics, and emergency communications

Product Specifications:
Item name: 6G-8.2GHz video receiver module
Item model: RX8200
Supply Voltage: 5V
Current Consumption: 390mA Max
Operating Environment: -10~+65 ºC, 85%RH
Storage Temperature: -30~+85 ºC

Radio Frequency (RF):
Receiving frequency range: 6000~8260MHz
Voltage standing wave ratio: 2:1
Demodulation system: FM/PLL
IF (Intermediate Frequency): 5400MHz
ANT. input impedance: 50Ω, Typ.
LO frequency stabilization: 200kHz
LO frequency precision: 200kHz
LO control: PLL
Input LO leak: -65dBm
Receiving sensitivity: -95dBm
Input level range: -95 dBm ~ +5 dBm

Video Characteristics:
Video output impedance: 75Ω, Typ.
Video output level: 1Vp-p, Typ.
Video polarity: NEGATIVE
Video frequency response: 5 dB, Max. 50Hz ~ 6MHz
Differential gain: 5 %, Max
Differential phase: 5 Deg., Max
3dB IF Wideband: 16.5MHz
Signal-to-Noise Ratio (S/N): 30dB, Min
RSSI Output Voltage (-30dBm~-90dBm): 1.2~0.6V (The stronger the signal strength, the higher the output voltage; the weaker the signal strength, the lower it is.)
Color: & Silver
Material: PCB+Metal

Package Contents:
1 * Video Receiver Module
