2 in 1 Hub LED Controller 5V 3Pin ARGB 4Pin PWM Power Multi Splitter 8 Way for PC Chassis Case Computer Accessories

2 in 1 Hub LED Controller 5V 3Pin ARGB 4Pin PWM Power Multi Splitter 8 Way for PC Chassis Case Computer Accessories Beskrivelse

1. Interface: The fan hub can support to 8 fans, including a total of pcs 4-pin PWM and 8pcs ARGB for ARGB fans or ARGB devices.
2. Adjustable speed: The fan speed can be adjusted through the PWM signal of the main board, and the system can only read the speed of "Fan 1". The 3-pin fan has no speed control function, and the attached 3-pin fan will operate at maximum RPM.
3. Mainboard synchronization: It supports 12V RGB/5V ARGB mainboard synchronization, and synchronizes two light systems by toggling a small . It is compatible with AURA, RGB Fusion, Mystic Light, and Polychrome. There is no built-in color mode, and the synchronization cable must be connected to the motherboard connector.
4. Lighting system: to 8 groups of ARGB (3-pin) connectors can meet your needs to connect more equipment, build your own lighting system, and support to 200 LEDs.
5. Function: High quality Material, very durable, with adhesive sticker, can easily fix the hub in the chassis, and the power supply can maintain stable output even under full load. power supply provides direct power supply and is more efficient.

Specification:
Type: PWM Controller/HUB
Model Number: PWM ARGB Fan Hub
Power interface:
Fan Interface: 4-PIN PWM FAN Header, Compatible to 3-PIN Fan Connector; Connect 3-PIN Fan will spin in full speed.
LED Interface: 3-PIN 5V ARGB Header, doesn't support 4-PIN 12V RGB Connector.
: SYNC to motherboard 5V 3-PIN ARGB or 12V 4-PIN RGB via toggle the .
Fan current: 0.28A
Installation method: Double-sided adhesive tape
Other accessories: ARGB&PWM 2 in 1 wiring

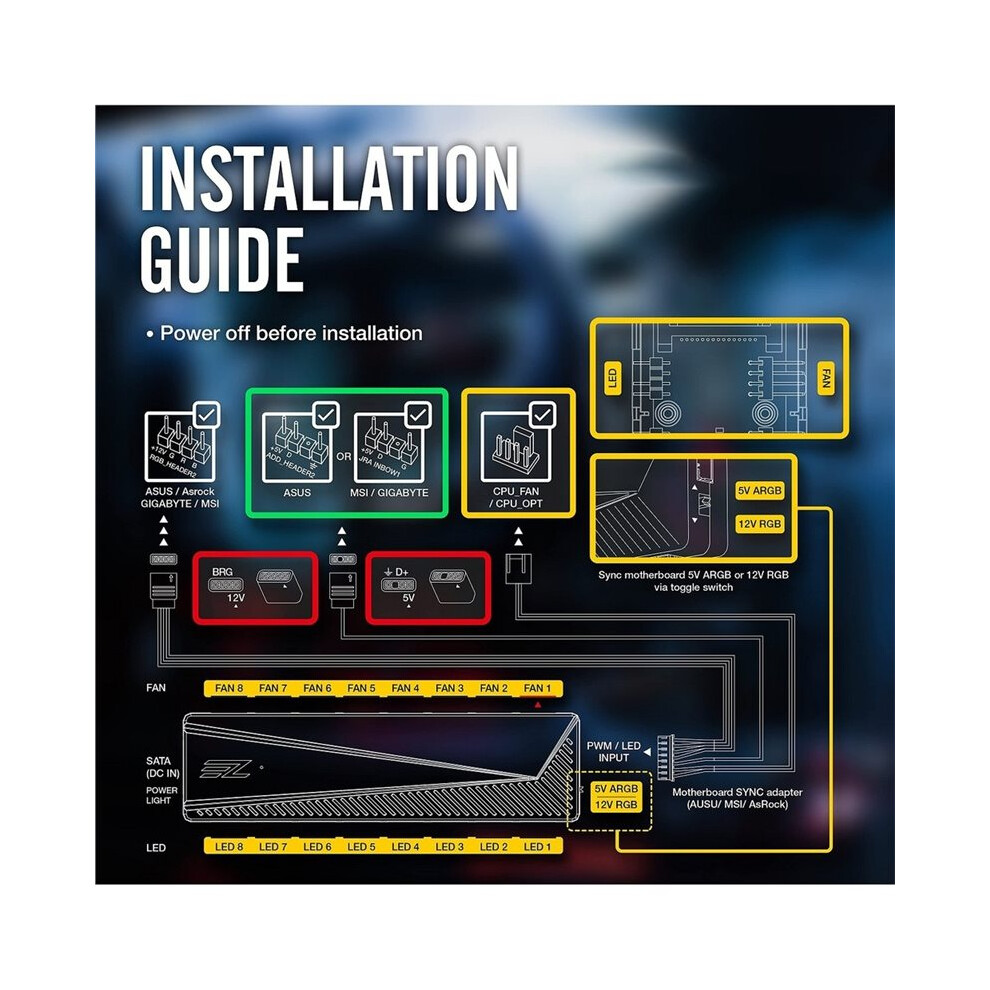

Hub interface description:
There is a manual 5V 12V changeover the hub. If your motherboard is 12V, to 12V when connecting 5V equipment; If your motherboard is 5V,
