20 PCS - Boost Converter, 2A Adjustable Module Voltage Regulation Board, Input Voltage 2V to 24V Output 5V to 28V

20 PCS - Boost Converter, 2A Adjustable Module Voltage Regulation Board, Input Voltage 2V to 24V Output 5V to 28V Beskrivelse

Electrical Specifications: The maximum output current of this - boost converter module is 2A, and it can handle an input voltage range from 2V to 24V. The maximum output voltage achievable is 28V, with a maximum conversion efficiency of 93%.
Physical Dimensions: The module has a compact size of 36 x 17 x 14 mm or 1.42 x 0.67 x 0.55 inches (Length x Width x Height), making it suitable for various space-constrained applications.

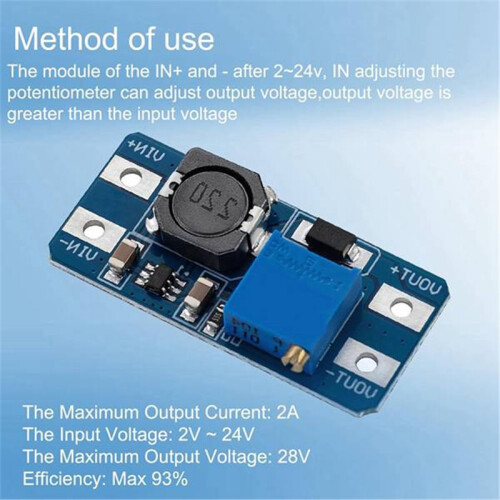

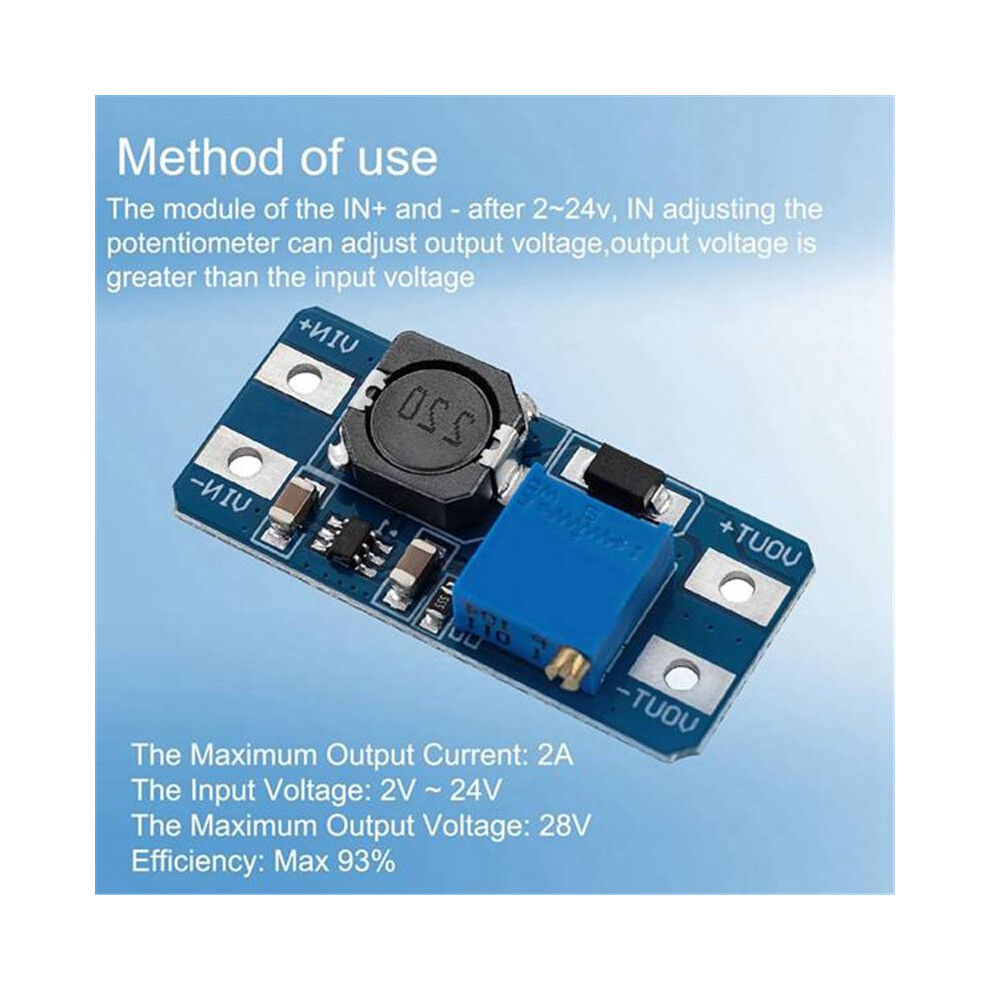

Operation Method: To use the module, apply an input voltage between 2V and 24V to the IN+ and IN- terminals. By adjusting the potentiometer, the output voltage, which is designed to be greater than the input voltage, can be precisely adjusted.
Precautions - Input Voltage: It is crucial to ensure that the input voltage does not exceed the maximum rated input voltage of 24V. Exceeding this limit may cause damage to the module and affect its performance and reliability.
Precautions - Output Current: The output current must not exceed 2A. Adhering to this limit is essential to prevent overloading and potential overheating or failure of the module during operation.

- Boost Converter Module
Input Voltage: 2V-24V
Output Voltage: to 28V (adjustable via potentiometer)
Max Output Current: 2A
Efficiency: 93%
Compact Size: 36x17x14mm (1.42x0.67x0.55 inches)
Usage: Connect input power to IN+/IN- terminals.
Adjust output voltage higher than input using potentiometer.
Safety Notes:
Do not exceed 24V input voltage
Keep output current under 2A to prevent overheating
H1-HBB0005-20
Adjustable - Boost Converter
Input: 2V-24V / Output: 5V-28V, 2A max
Voltage adjustable via potentiometer

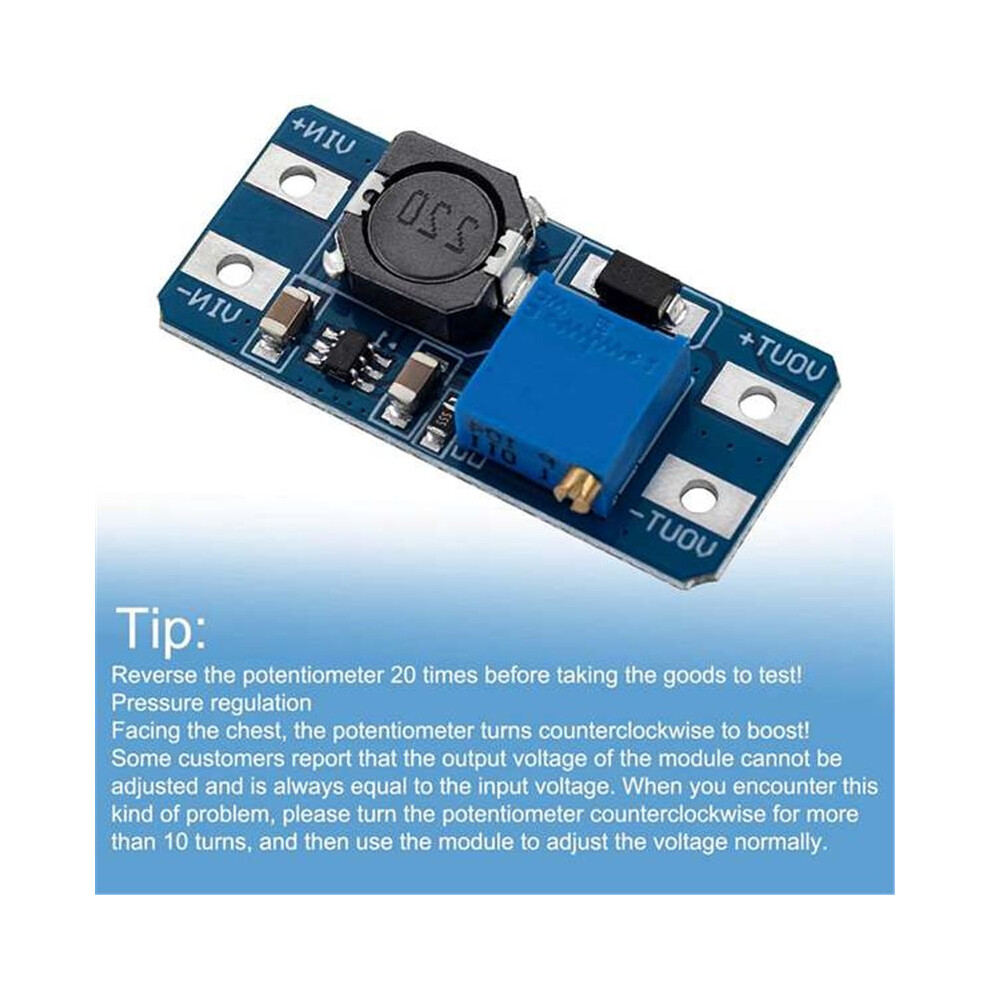

Turn counterclockwise 20 times before initial use
Avoid exceeding max input voltage or 2A output
(For modular products, slight differences in appear
