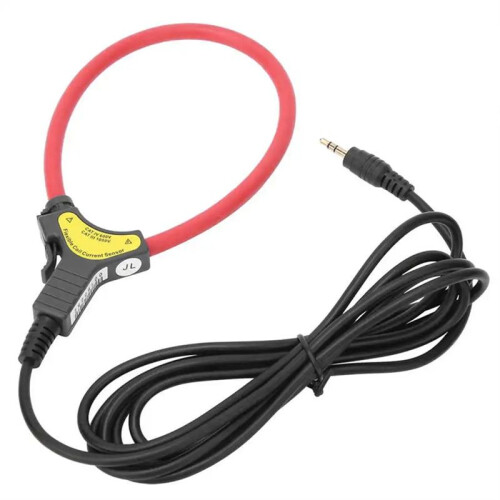

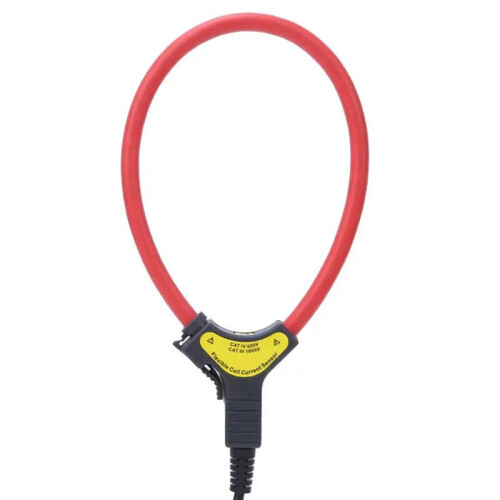

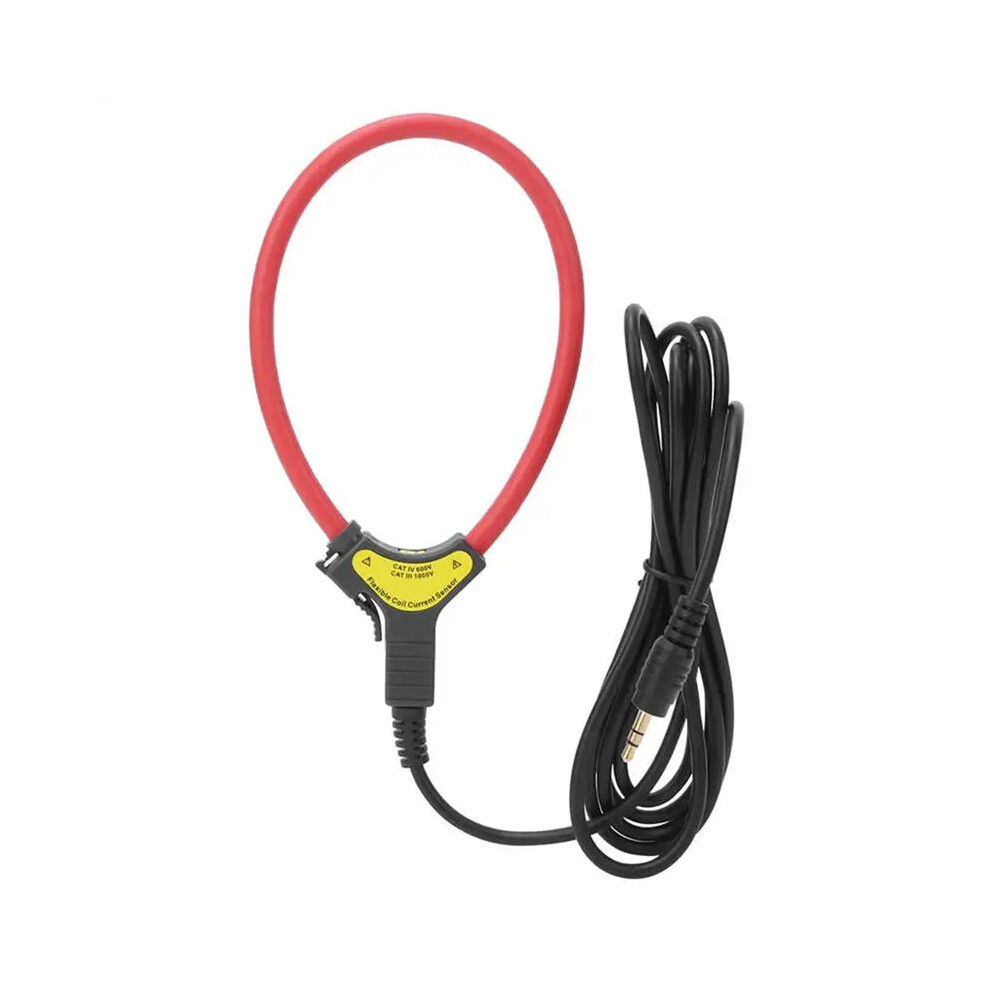

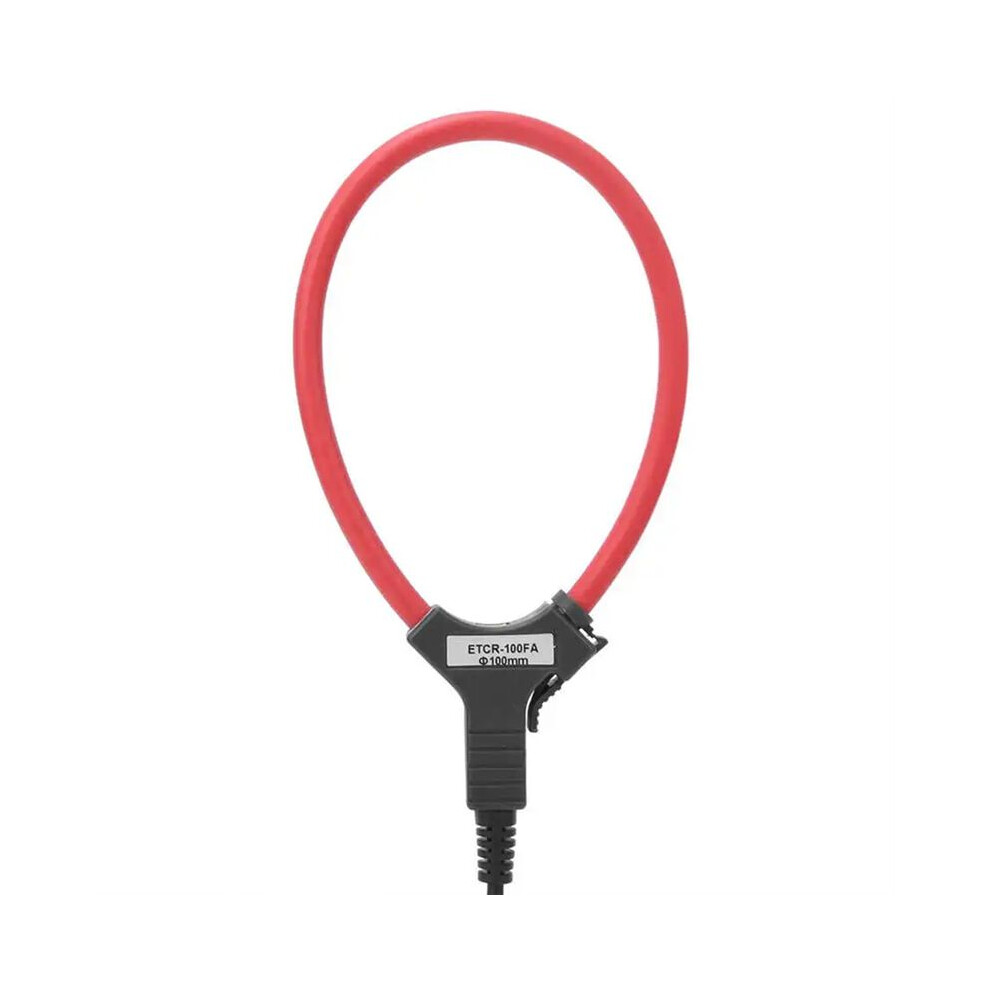

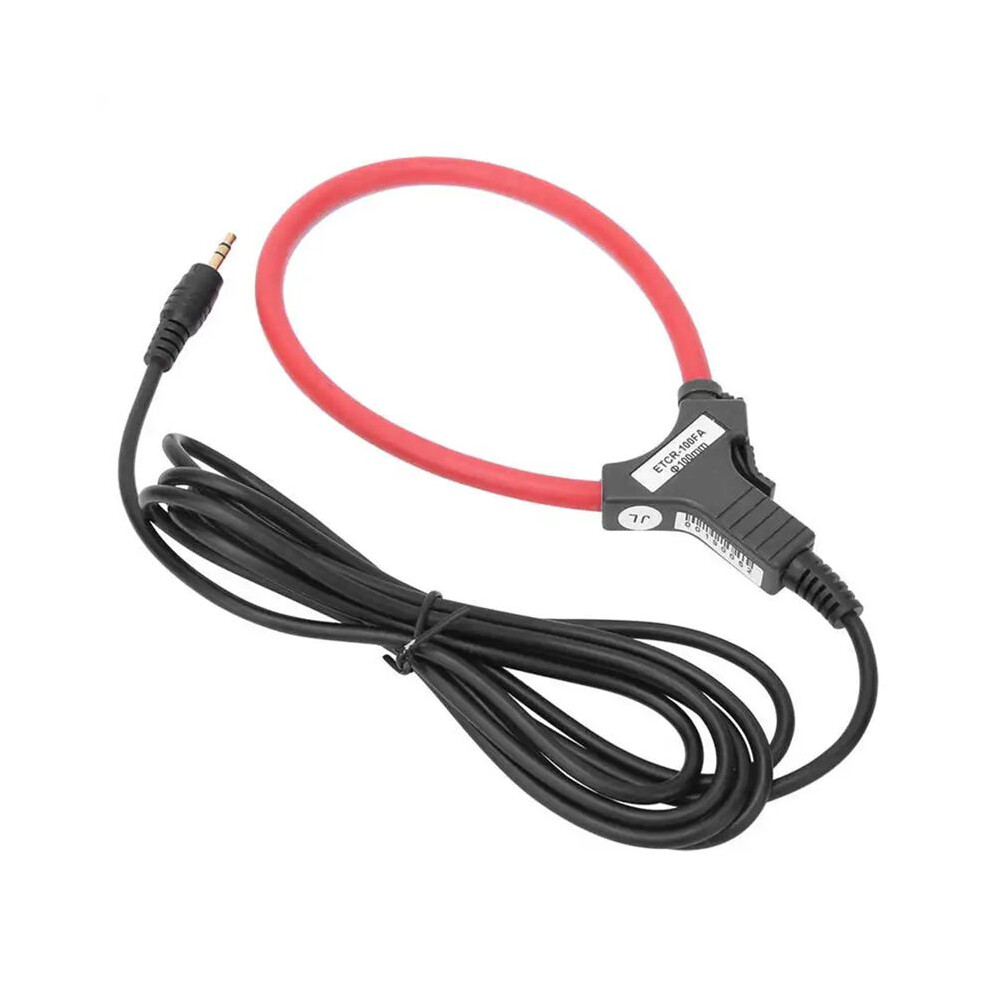

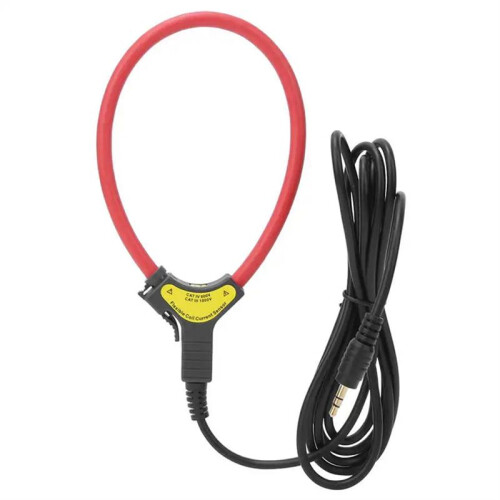

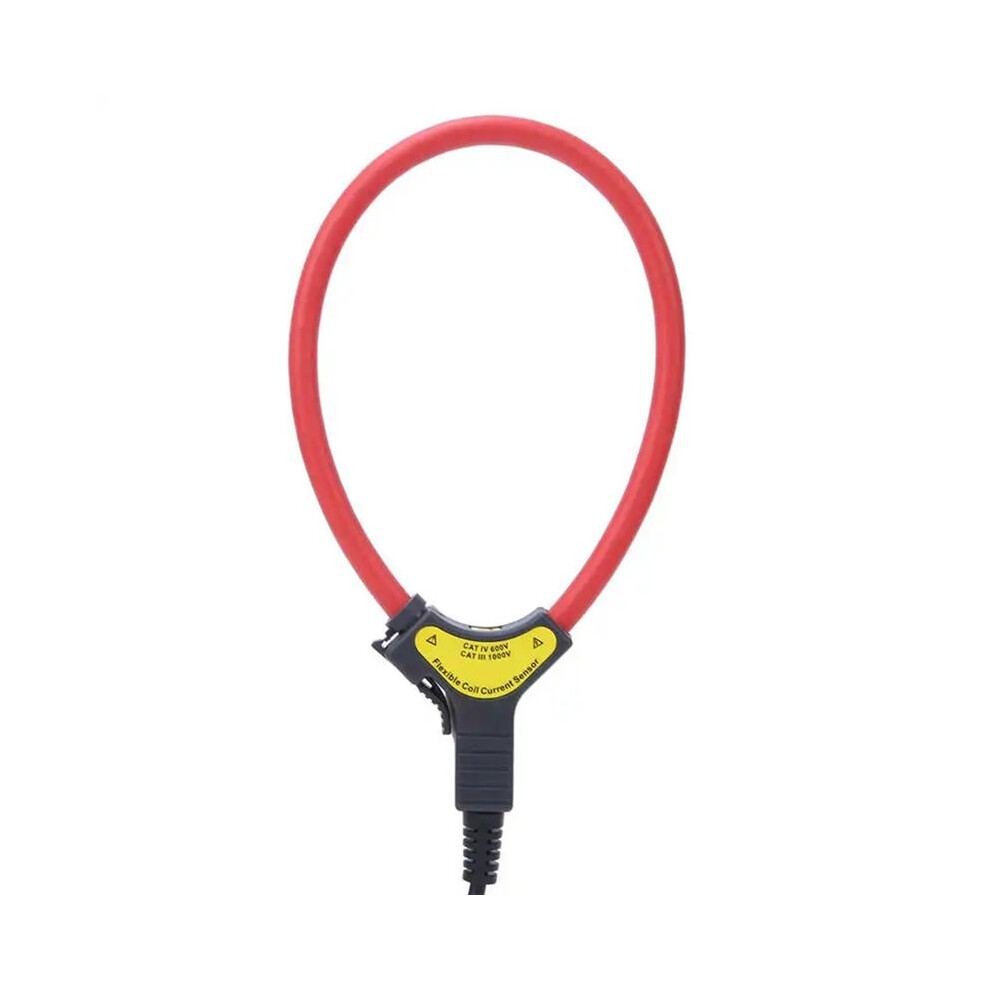

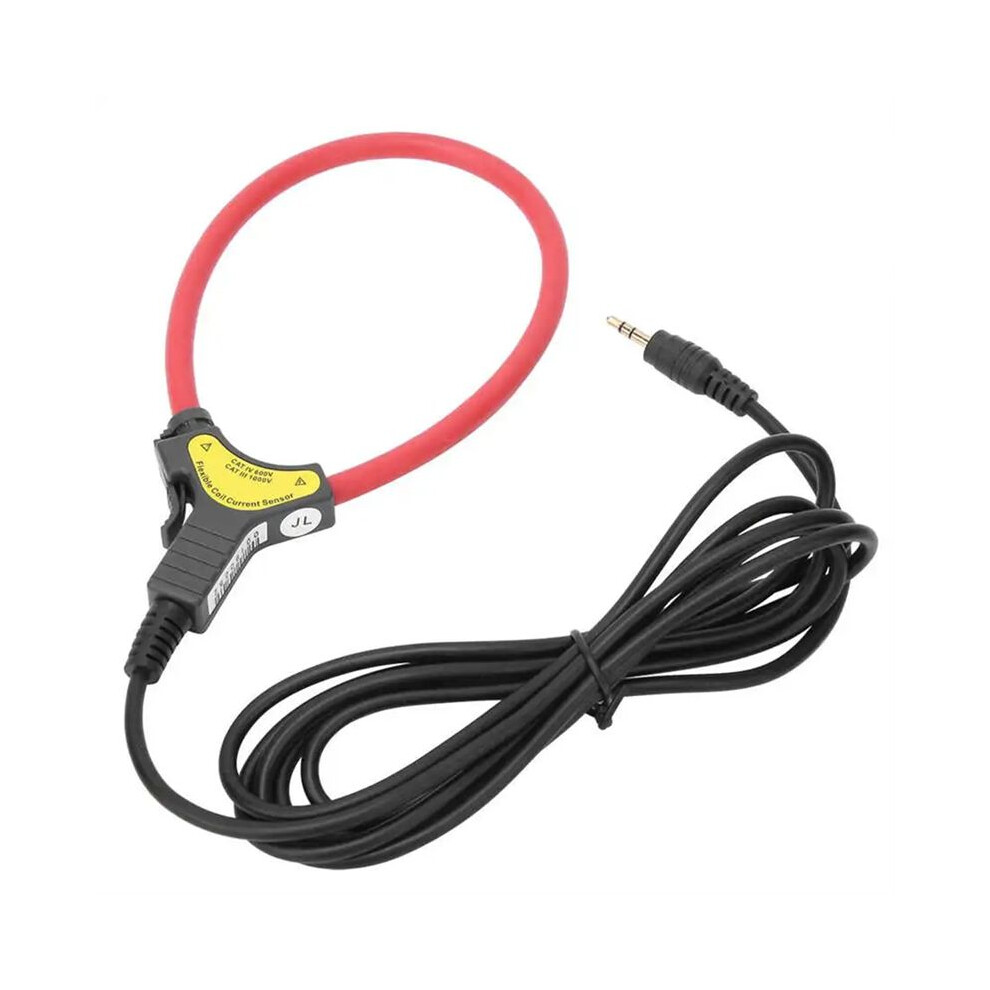

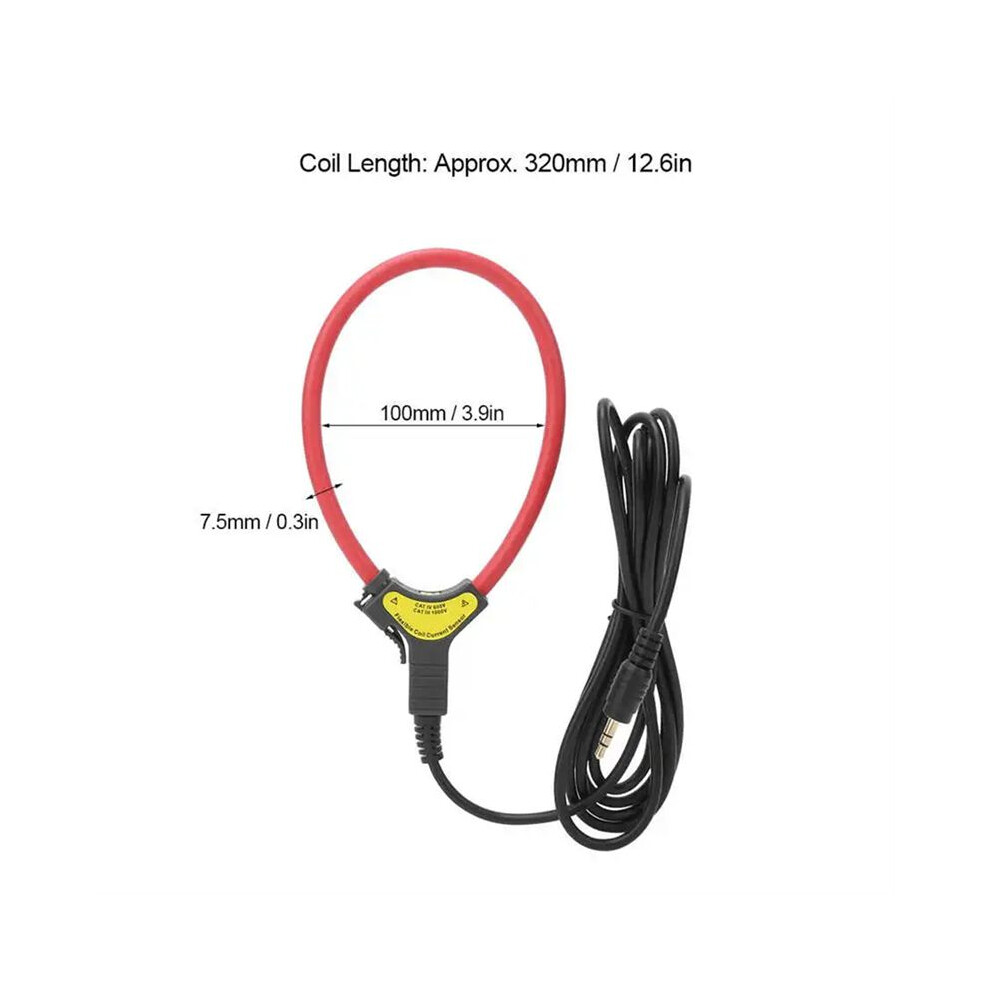

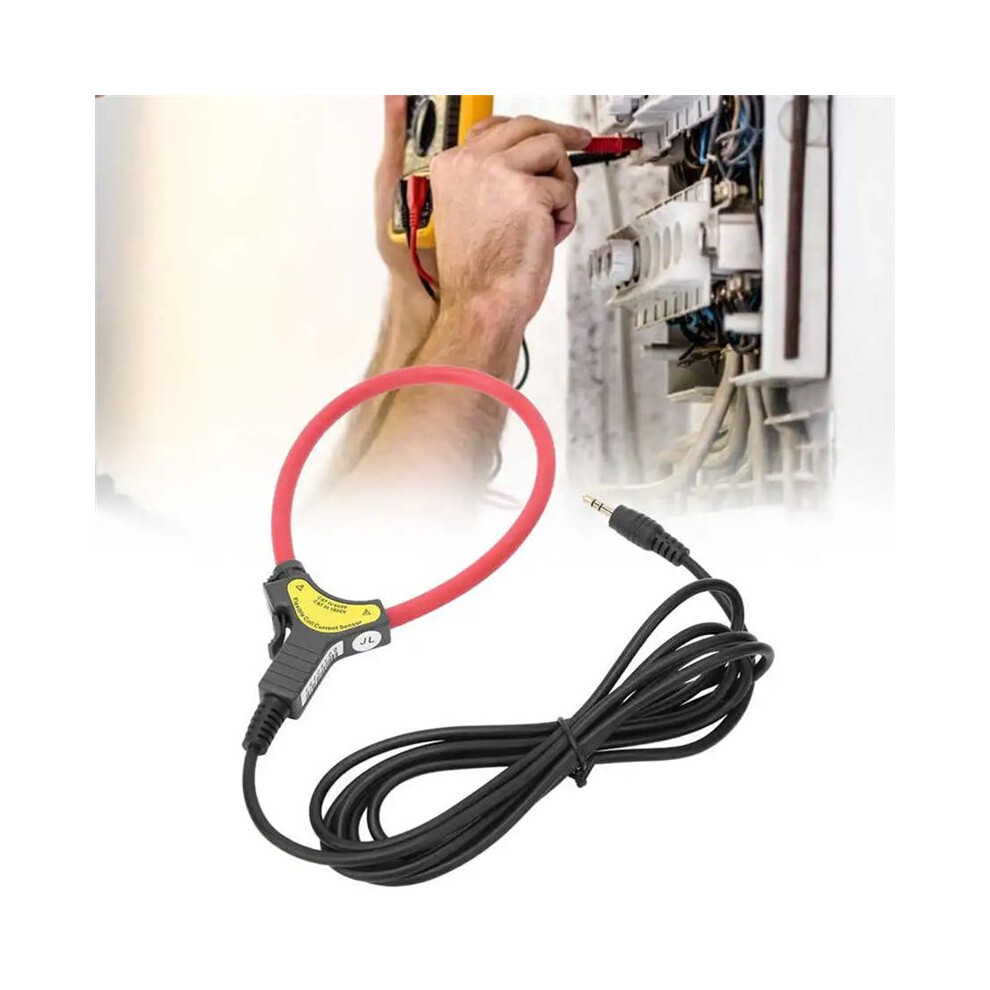

2000V/Rms AC Leakage Current Sensor Multi-Functional Flexible Coil Current Sensor 0.1Hz - 1MHz ETCR100F

2000V/Rms AC Leakage Current Sensor Multi-Functional Flexible Coil Current Sensor 0.1Hz - 1MHz ETCR100F Beskrivelse

Feature: 1. There is no exposed metal conductor in the coil, adopt non-contact measurement method, which is safe and reliable.
2. It is small in size, light in weight, exquisite in appearance, soft and flexible, suitable for narrow environment and flat cable dense place.
3. It can detect AC leakage current, large current, high-order harmonic current, complex wave current, transient pulse current, phase, power, power factor, etc.
4. Wide measurement range, high accuracy, strong reliability, the hysteresis effect is not affected by the external electric field, and has a noise free frequency band (0.1 Hz-1 MHz).The position of the wire is located in the center of the test wire coil, and the influence of position error is less than 0.3% FS.
5. It is widely used in electric power, communication, meteorology, railway, oil field, architecture, measurement research and teaching units, industrial and mining enterprises and other fields.

Specification:
Condition: New
Item Type: Current Sensor
Measuring Range: 10A-10000A-Higher
Resolution: 10mA
Grade: 0.1% FS (50Hz / 60Hz; 23 2 , Relative Humidity Below 70%, The wire is in the middle of the coil)
Phase Error: 0.1 (50Hz / 60Hz; 232)
Output Interface: 3.5mm Plug
Output : 2m / 6.6ft
Current Frequency: 45Hz-70Hz (Measured Frequency)
Response Frequency: 0.1Hz - 1MHz
Voltage: Below AC1000V Test
Working Temperature and Humidity: -20 - 50 ; Relative Humidity Below 80%
Storage Temperature and Humidity: -10 - 60 ; Relative Humidity Below 70%
Dielectric Strength: 2000V / Rms AC (Both ends of the coil)
Function: Detecting of AC leakage current, AC current, high harmonic current, complex waveforms current, inrush transient current, phase, electric , power, power factor.
Testing Me
