200Pcs High Knob 6 Pin 3 Position DPDT Panel Slide 0.5A 50V

200Pcs High Knob 6 Pin 3 Position DPDT Panel Slide 0.5A 50V Beskrivelse

Main Color: Black;
Material(External): Plastic, Metal

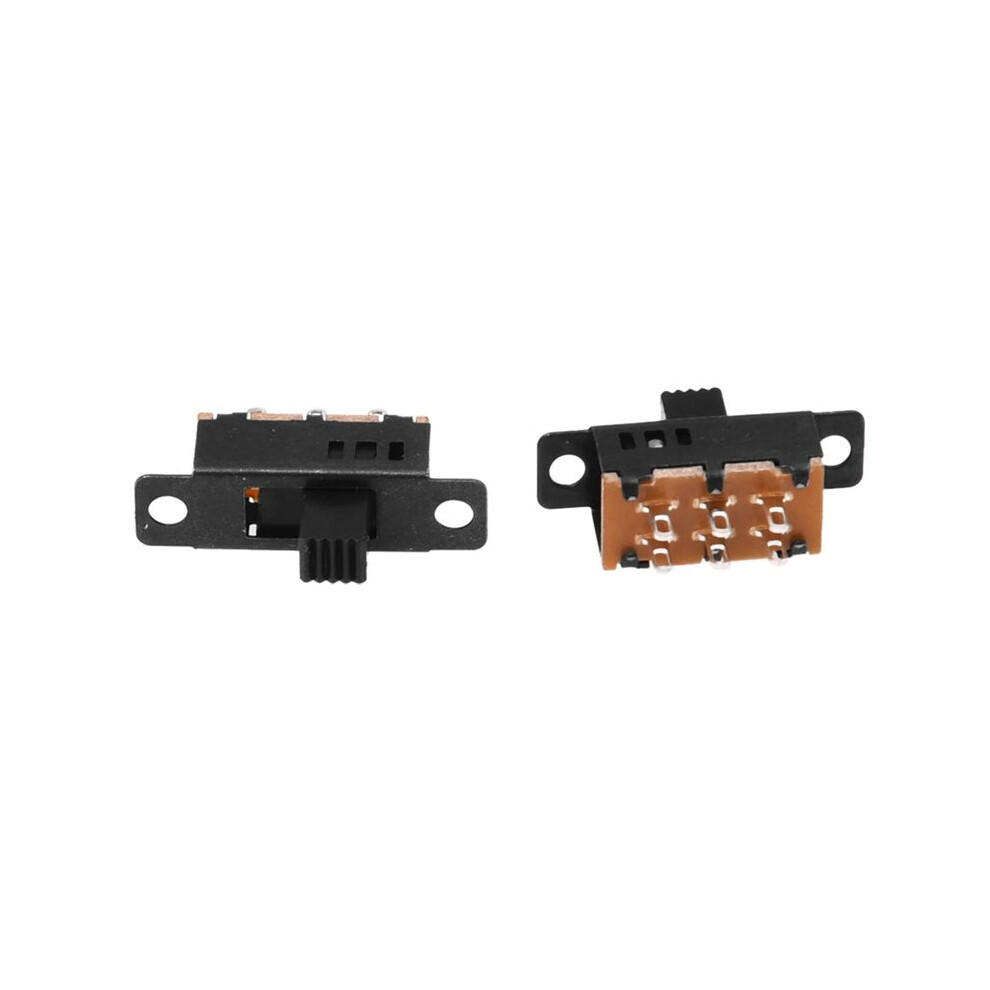

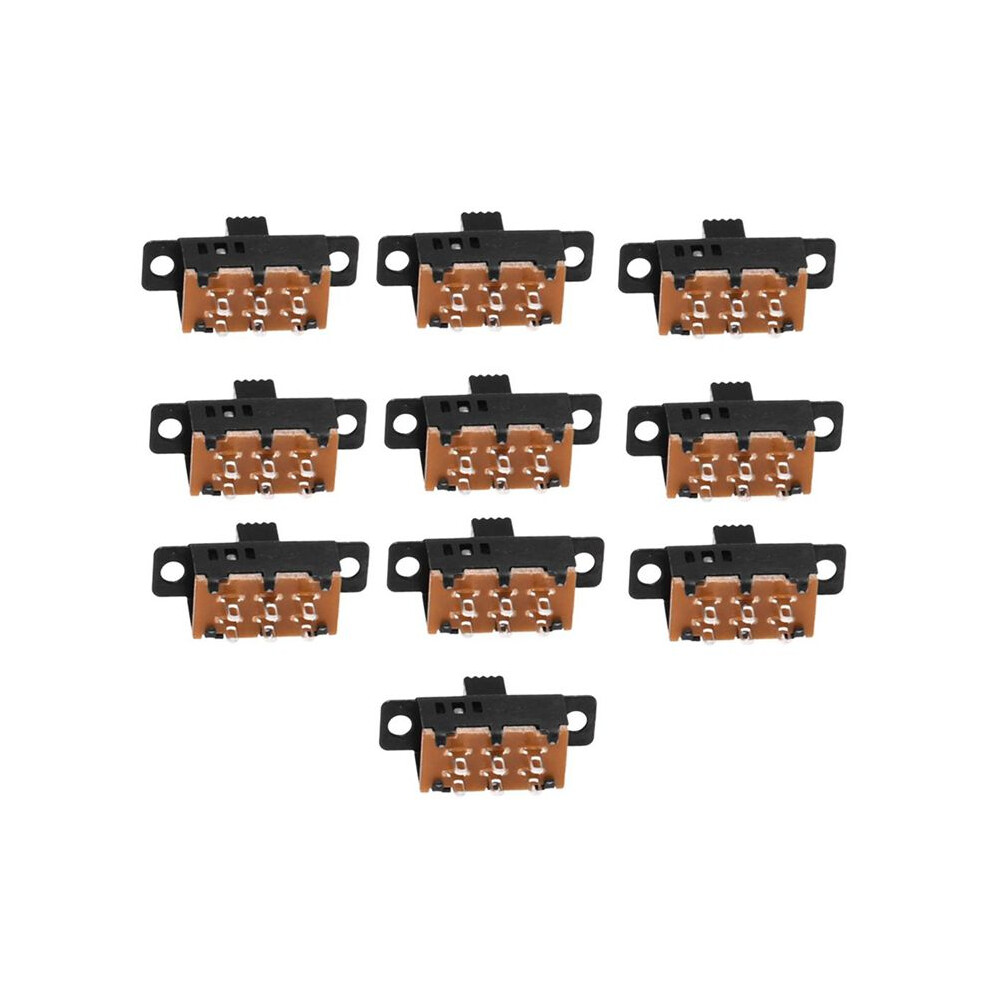

There are 200 Pcs sliding switches here, thay are 6 terminals, DP3T action type and 3 /off/ positions.
Widely used to control operation of many small power electronic projects, including volume and other controls for audio video, dimmer controls for lights.

Product Name: Slide ;
Model: SS-23D32G6;
Action Type: DPDT;
Contact Type: /OFF/, 3 Positions
Terminals Quantity: 6;
Working Power: 0.5A 50V ;
Contact Resistance: 30mohm Max
Insulation Resistance: 100ohm Min at 500V ;
Withstand Voltage: AC 500V for 1 min;
Terminals Size(Each One): 4 x 1.6mm/ 0.16 inch x 0.06 inch ( L x W)
Total Size: 2.3 x 0.75 x 1.7cm/ 0.9 inch x 0.3 inch x 0.7 inch(L x W x H);
Knob Size: 5.5 x 4 x 6mm/ 0.22 inch x 0.16 inch x 0.24 inch (L x W x H);

Package Contents:
200 x Slide
