200W Amplifier Board 20V-90V Dual-Voltage Mono Amplifier 1943+5200 Push-Pull Tube Power Amplifier Board

200W Amplifier Board 20V-90V Dual-Voltage Mono Amplifier 1943+5200 Push-Pull Tube Power Amplifier Board Beskrivelse

Dual-channel support: Mono design; requires two boards to achieve dual-channel functionality
High-voltage-rated paired transistors: Utilises A970/C2240 paired transistors for pure, distortion-free sound quality
Wide voltage compatibility: Supports 20V-90V power supply, adapting to diverse usage scenarios
Robust Output Power: 200W high-power output effortlessly drives 15-inch speakers
Classic Circuit Architecture: Employs a classic amplifier circuit design for stable, reliable operation, ensuring long-term fault-free use

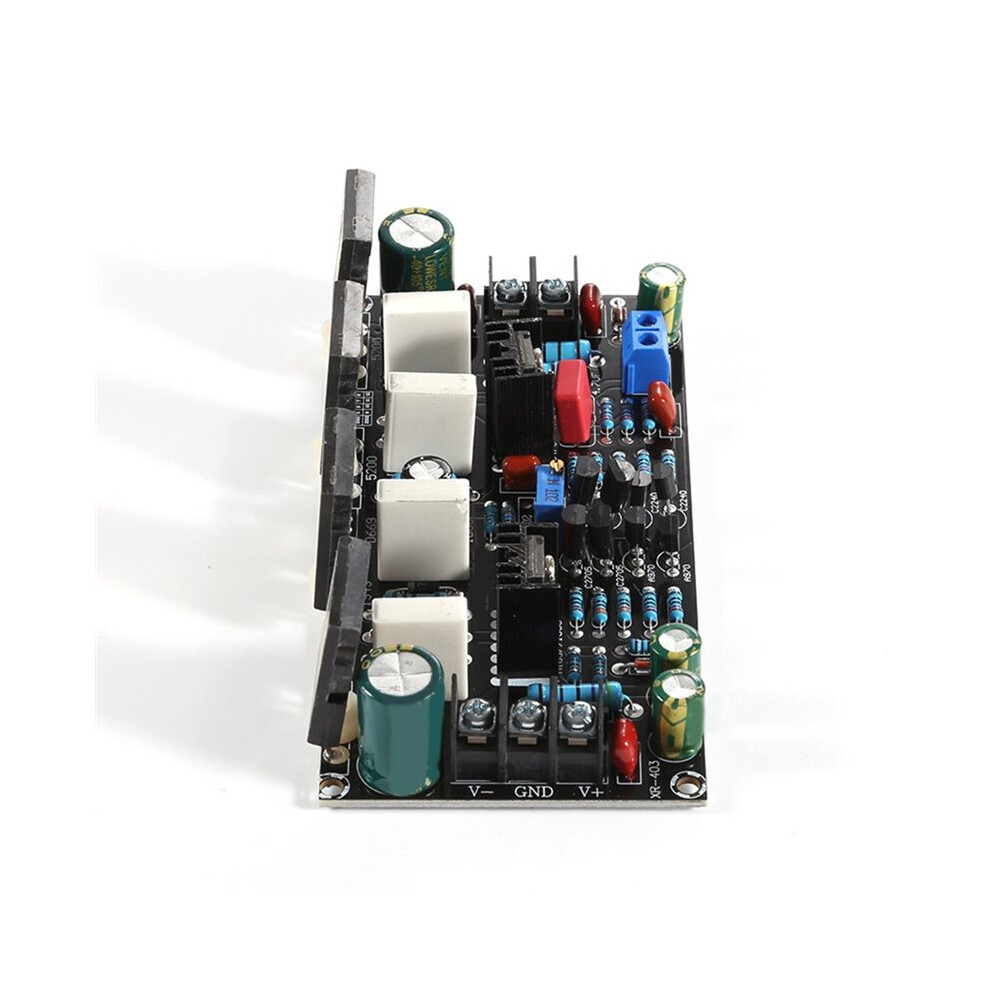

This board is a monaural power amplifier board. For stereo operation, two amplifier boards must be purchased and used in a dual-channel circuit configuration. Features an A970/C2240 high-voltage audio push-pull dual differential circuit for voltage amplification, driving the A1837/C4793 medium-power push-pull transistors. The output stage employs A1943/C5200 high-power push-pull transistors. Wide power supply range accommodates 20V to 90V , delivering exceptional sound quality at 200W with ample drive power. Effortlessly powers 15-inch speakers!
Product Specifications:
Supply Voltage: Dual 20V-90V (recommended below 90V; avoid pushing voltage limits)
Power Output: 200W (undistorted power)
Color: As Shown
Material: PCB

Package Contents:
1*Amplifier Board
