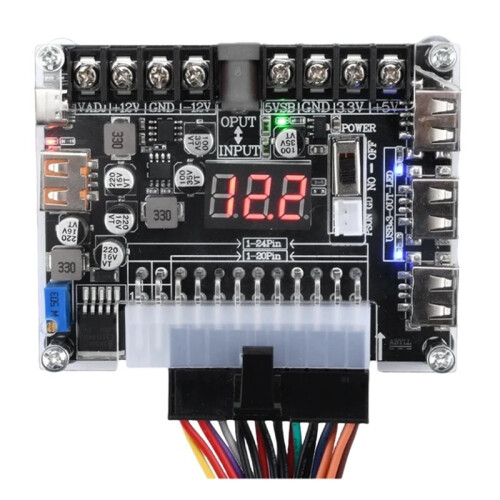

20/24 Pin Atx Power Adapter Board PC Computer Power Module Adapter Adjustable Voltage Red Digital Display with Shell

20/24 Pin Atx Power Adapter Board PC Computer Power Module Adapter Adjustable Voltage Red Digital Display with Shell Beskrivelse

Reserve XH2.54-2P terminals (suspended), which can be connected to two external wires using the microcontroller IO port (5V) or to control the ATX power (for easy modification with a casing).
Multiple onboard interfaces facilitate the use of various cables. After the module is turned , it outputs 5 sets of power supplies:+12V, -12V, 5V, 5VSB, and 3.3V.
The module adopts high current wiring terminals to solve the problem of loose and difficult wiring caused by wiring terminals and screw type wiring terminals.
The motherboard comes with a voltage display screen, which displays and monitors the computer power output voltage in real .
The motherboard can output 12V voltage when paired with a socket, which can also be used as input voltage (DC12V-24V). When using a socket for input, the motherboard's fast charging interface has voltage output.

Parameter:
Terminal output voltage:+12V, -12V,+5V, 5VSB, 3.3V
3 USB outputs:
Output voltage: DC5V MAX;
Output current: 0.1A-2.1A;
1 orange USB port: (Fast charging output interface, supports multiple protocols, requires phone and data cable support for fast charging)
Output voltage: 5-12V, automatically adjusted according to protocol;
Output current: 2A
1 TYPE-C interface output:
Supports PD2.0/PD3.0 protocols;
Output voltage: 5V, 9V
Output current: 2A
socket interface: can be used as input and output interfaces
Compatibility: Compatible with all 20 pin and 24 pin computer power supplies
Application: The USB interface can provide power to mobile phones, tablets, mobile power supplies, flashlights, speakers, bracelets, small desk lamps, aging electronic products, and more.
Color: Black
Material: plastic
Specification: Shell

Package Contents:
