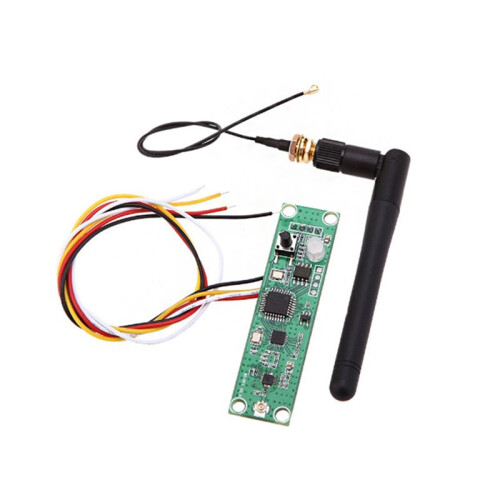

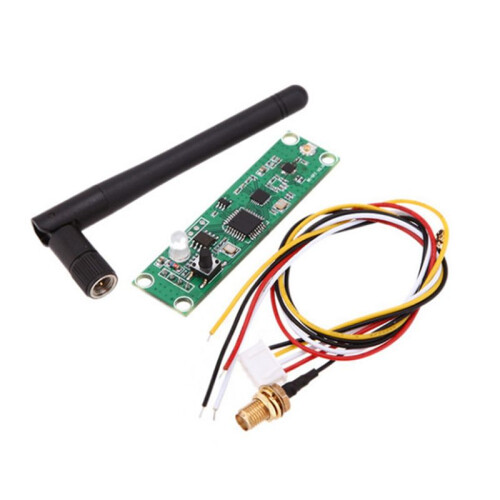

20Pcs 2.4Ghz Wireless DMX 512 Transmitter Receiver PCB 2 in 1 Module Wireless PCB Board with Antenna for DMX Stage Light

20Pcs 2.4Ghz Wireless DMX 512 Transmitter Receiver PCB 2 in 1 Module Wireless PCB Board with Antenna for DMX Stage Light Beskrivelse

Small in size, easy to suit for interior of accessed lighting.
Single key to operate, tricolor LED displaying.
Transmitting standard DMX512 protocol data of controller, also can transmit lighting and lighting DMX512 protocol data.
126 channels automatically jumping frequency, high anti-jamming ability to ensure working reliability.
7 groups ID code settable, user can use 7 groups individual wireless system without any interference with each other in the same place.

Input voltage: 5VDC
Work frequency section: 2.4GHz ISM band, 126 channels frequency section
Max transmitting power rate: 20dBm
Receiver sensitive: -94dBm
Signal port: RS485 or CPU series port AURT.
Operating manual:
ID code and LED color corresponding correlation:
1:RED
2:GREEN
3:RED+GREEN = YELLOW
4:
5:RED+ =
6:GREEN+ = CYAN
7:RED+GREEN+ = WHITE
Press key 1 to indicate ID setting, press again to set ID, then ID value adding 1 each by press.
Working condition:
LED constant litght : no DMX or wireless signal
Flashing red LED: sending
Flashing green LED: receiving
Colour: green
Material: PCB+plastic+metal

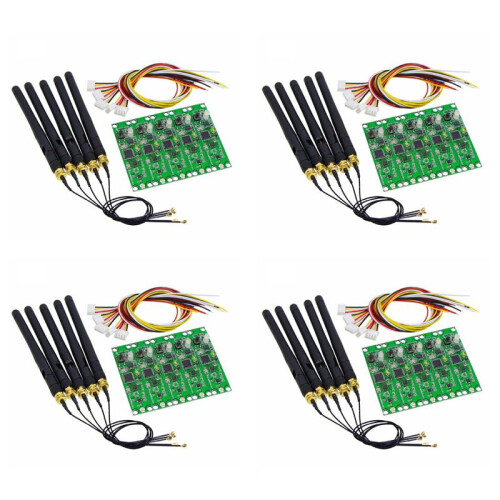

Package Contents:
20 x Wireless DMX512 R/T PCB Module Board
20 x Antenna
20 x Connecting wires
