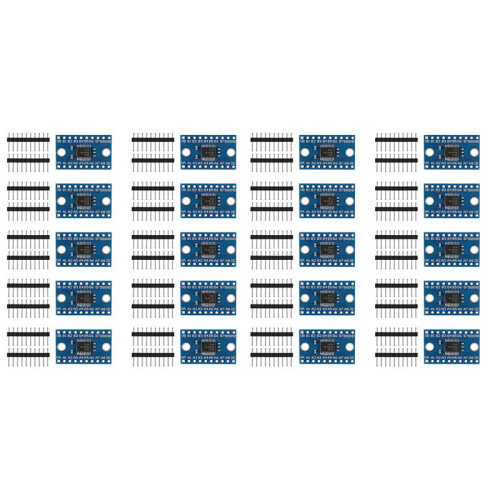

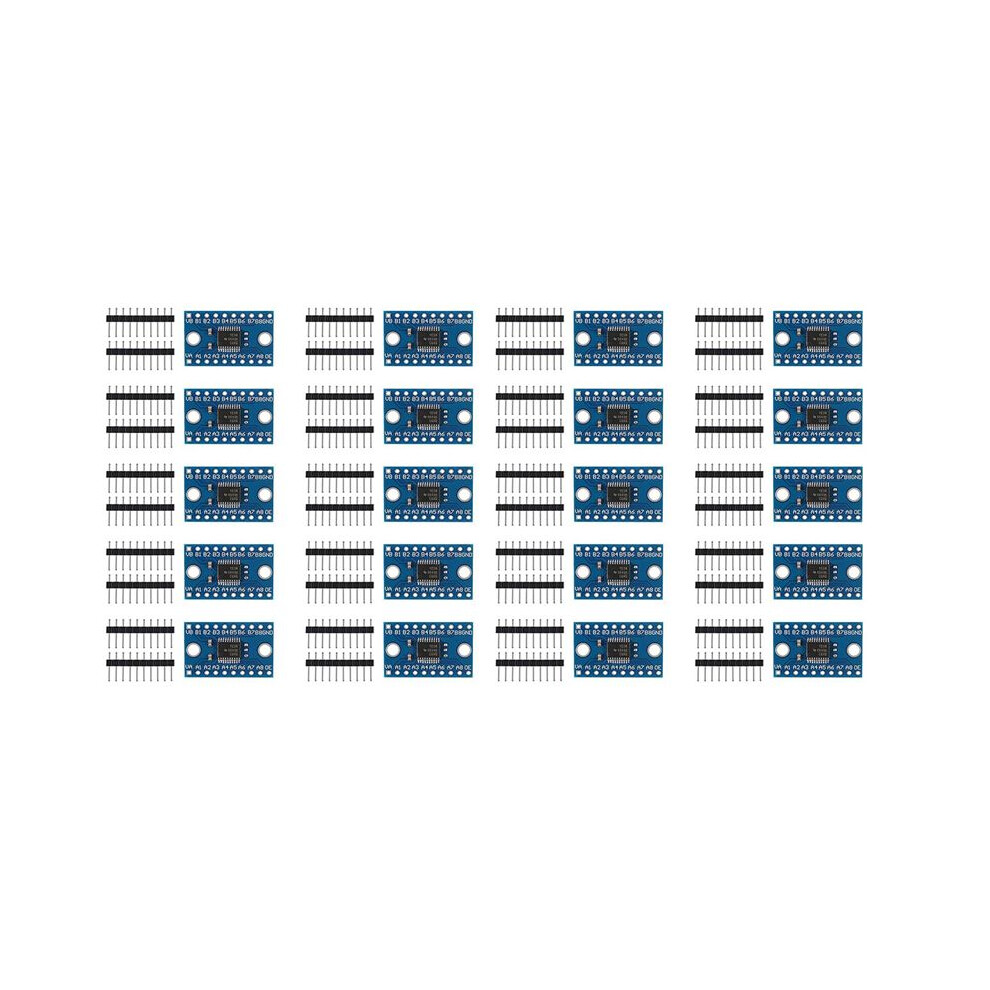

20PCS TXS0108E 8 Channel Level Conversion Module High Speed Full Duplex 8 Way Bi-Directional Converter for

20PCS TXS0108E 8 Channel Level Conversion Module High Speed Full Duplex 8 Way Bi-Directional Converter for Beskrivelse

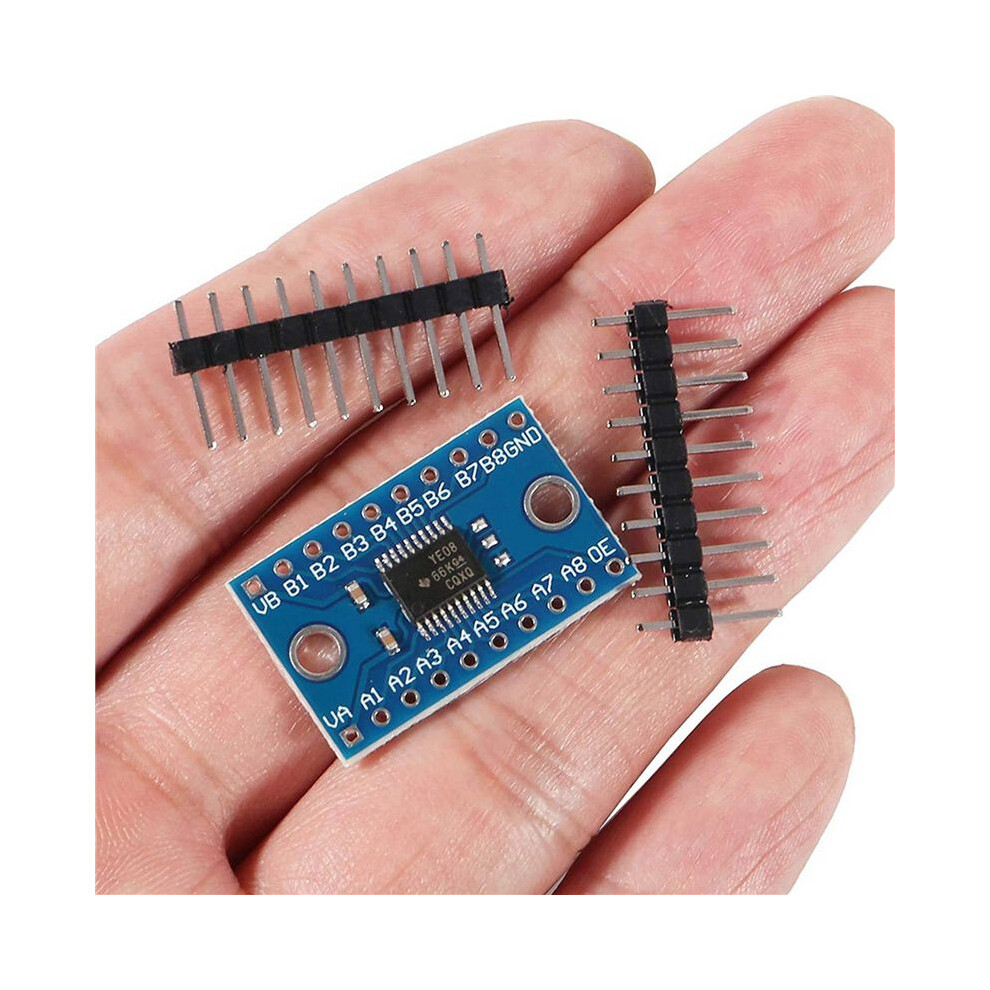

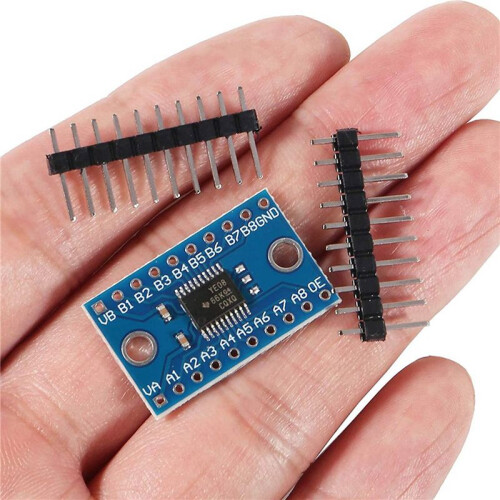

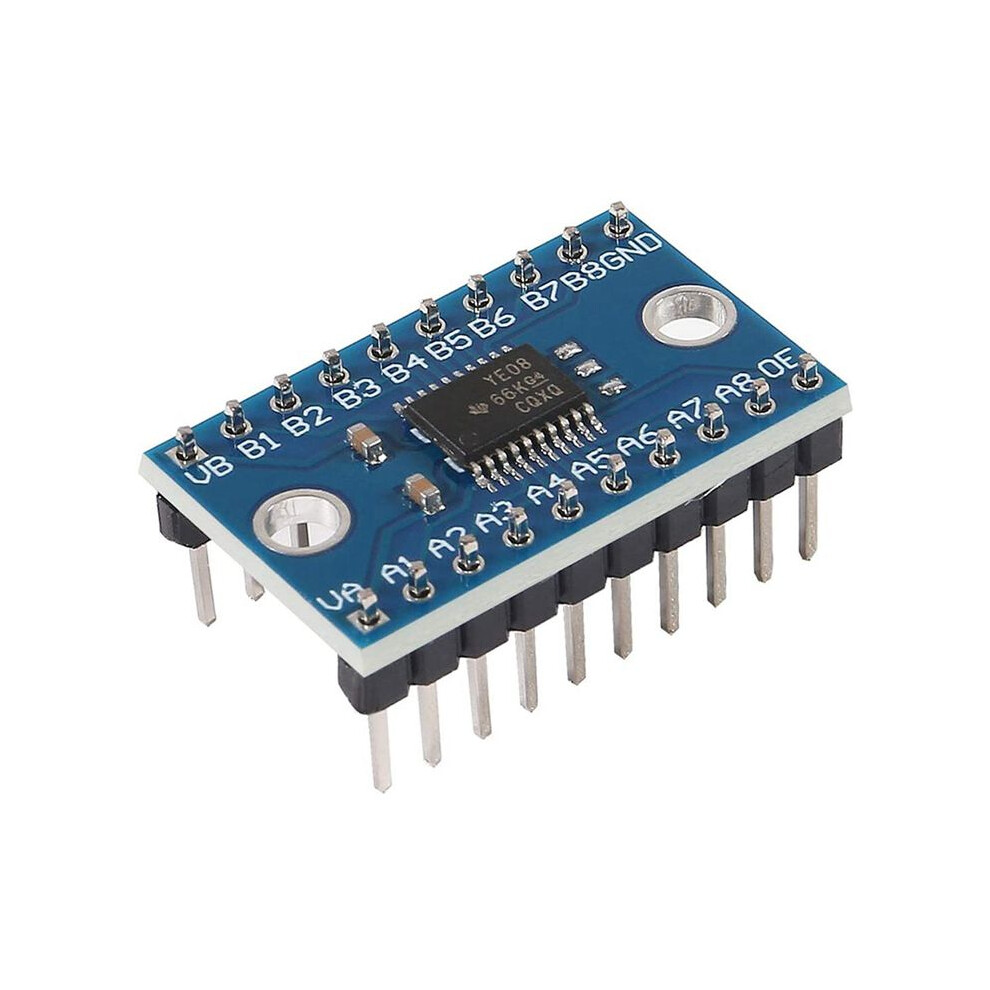

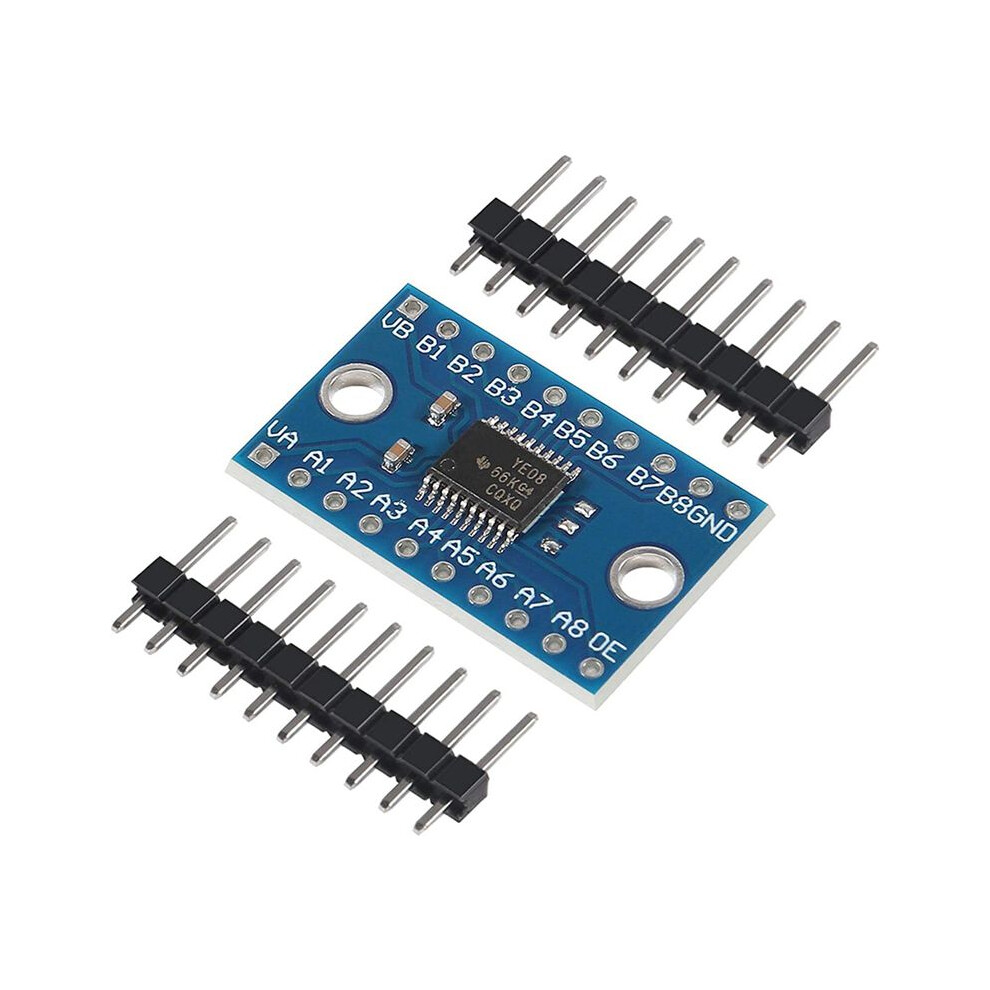

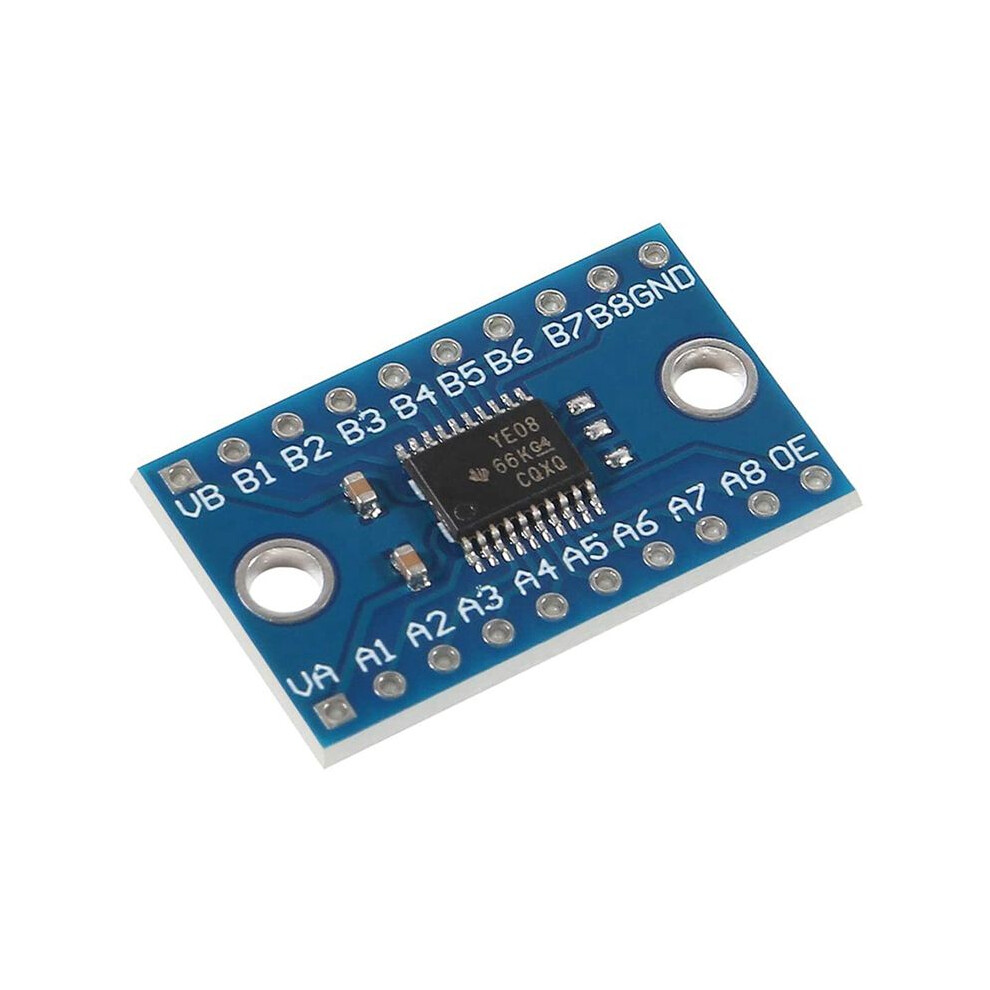

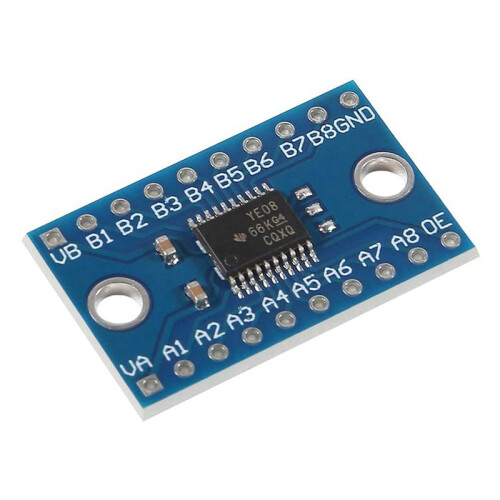

8 digit bi-directional 3.3V-5V/5V-3.3V logic level converter board, it can bidirectionally transfer with 8 channels between high logic voltage and low logic voltage.

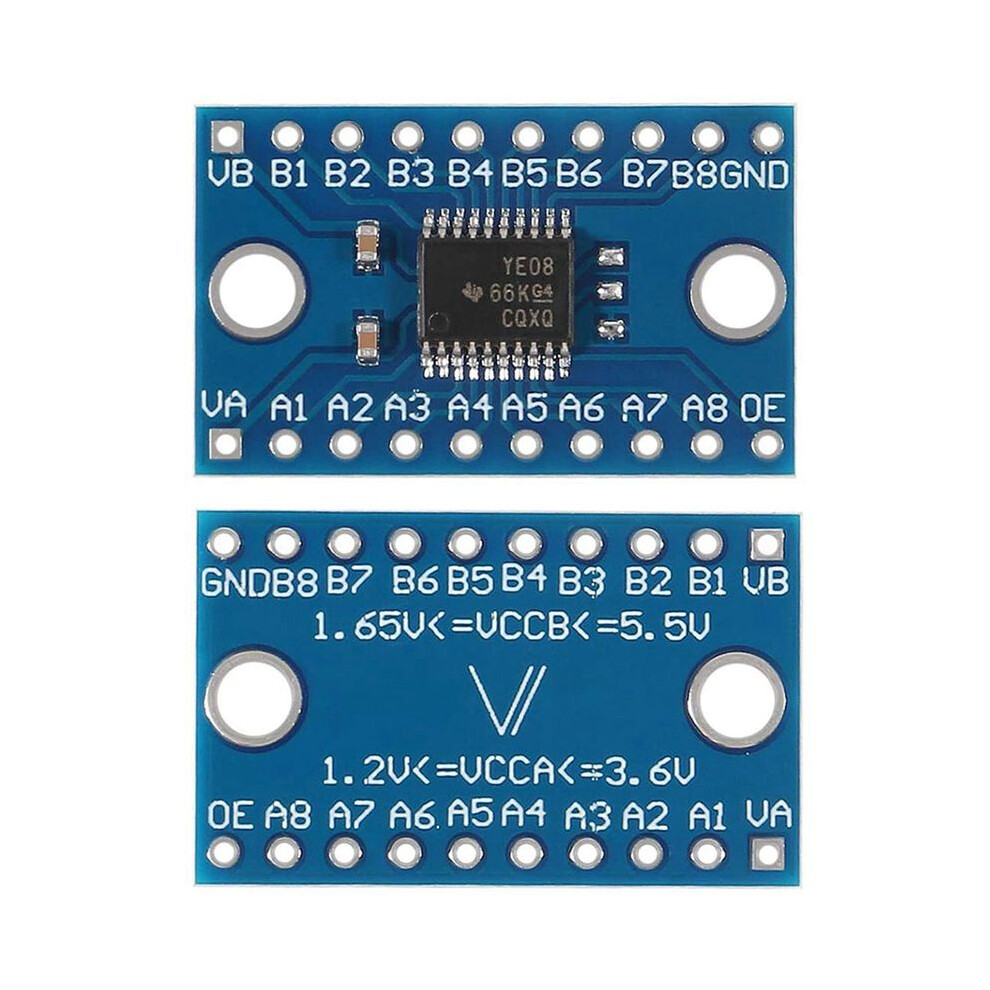

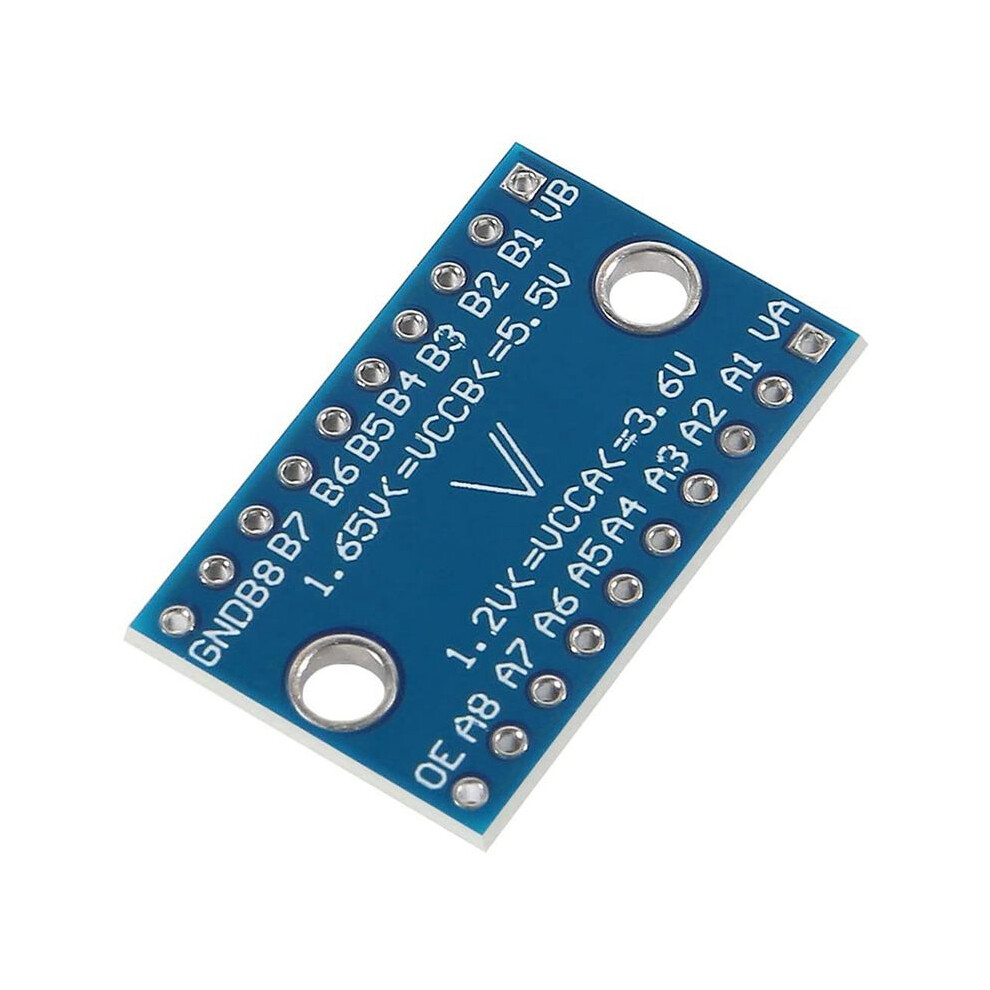

VCCA side voltage range: 1.2V-3.6V; VCCB side voltage range: 1.65v-5.5v; 3.3V going to VA; 5V going to VB; 3.3V going to 0E, OE active high enable IO recommended by a low voltage side of the IO port.
High-speed shifter, tie the OE pin directly to 3.3v to WORK.The level converter provide serial interface+ is very easy to use.
Widely used in the communication between 5V SCM and 3.3V device, 3.3V SCM and 5V device. It can also apply in the level conversion between MCU and card, MCU and iic/spi serial port devices.
TXS0108E operate in both open-drain and push-pull modes, with max data throughput of about 2Mbps (open-drain) and 60Mbps (push-pull) for 3v3 to 5v translation, serial communication interface is compatible with UART/IIC/SPI port, which is easy to connect.

Colour:
Material: plastic

Package Contents:
20 sets * TXS0108E 8 channel converter module
