24G HLK-LD2450 Millimeter Wave Human Movement Tracking Sensor Module LD2450 Sensing Distance 8M Home B

24G HLK-LD2450 Millimeter Wave Human Movement Tracking Sensor Module LD2450 Sensing Distance 8M Home B Beskrivelse

The LD2450 is a motion target tracking sensor module from FOR the Hilink 24G millimeter wave series, which includes extremely simplified 24 GHz sensor hardware and intelligent algorithm firmware. The solution is mainly used in general indoor scenarios such as homes, offices and hotels to enable the location tracking of moving human bodies.
Motion target tracking is to track the position of the moving target in the region in real , and realize the distance, angle and speed measurement of the moving target in the region.
The sensor hardware consists of an AloT millimeter wave chip, a high performance one-transmitter-two-receiver microstrip antenna and a low cost MCU and peripheral auxiliary circuitry. The intelligent algorithm firmware uses FMCW waveforms and the chip's proprietary advanced signal processing technology.
It supports serial output of detection data, which is plug-and- and can be flexibly applied to different scenarios and end products.

Type: LD2450
style: B-1 x Sensing module+1 x Cable+1 x Serial port block
Communication method: other
Compatibility: Other
Current: 5v
Average operating current: 120 mA
Detection distance: 8m
Modulation method: FMCW
Detection angle: 60
Ambient temperature: -40-85
Working current: 50mA
Azimuth angle: 60
Pitch angle: 35
Material: abs
colour: As Shown

Package Contents:
1 x Sensing module
1 x Cable

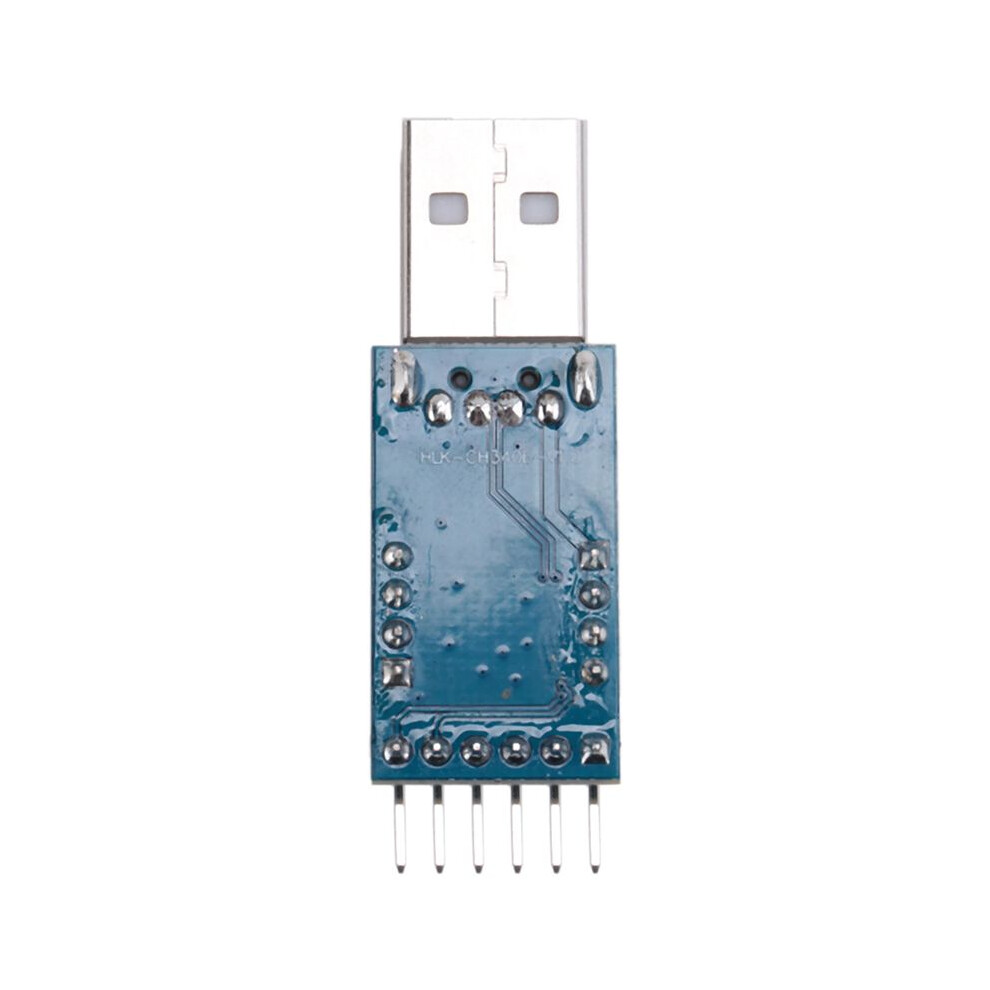

1 x Serial port block
