24G Millimeter Wave High-Precision Human State Perception LD2460 Multi-Target Trajectory Positioning and Tracking
Brand kepptory
New
216,61 kr.
Lignende produkter, vi tror du vil kunne lide
Populær
Populær
Populær
Would you like us to let you know when it's back?
Beskrivelse og detaljer
Oversigt
- LD2460 is a high-performance 24GHz millimeter wave radar product designed for precise human perception. The hardware integrates two 1T2R radar chips, high-performance microstrip antennas, advanced MCU and Bluetooth SOC, and is equipped with peripheral auxiliary circuits. Using FMCW (Frequency Modulated Continuous Wave) technology, it can accurately identify and track 3-5 human targets (including moving, micro-moving or stationary) and estimate their positions.
- It is suitable for a variety of scenarios such as homes, office spaces and hotels, providing accurate sensing capabilities for multiple targets, and is an ideal choice for realizing intelligent space management.
- LD2460
- Multi-target trajectory tracking module
- 24G mm human perception module
24G Millimeter Wave High-Precision Human State Perception LD2460 Multi-Target Trajectory Positioning and Tracking Beskrivelse

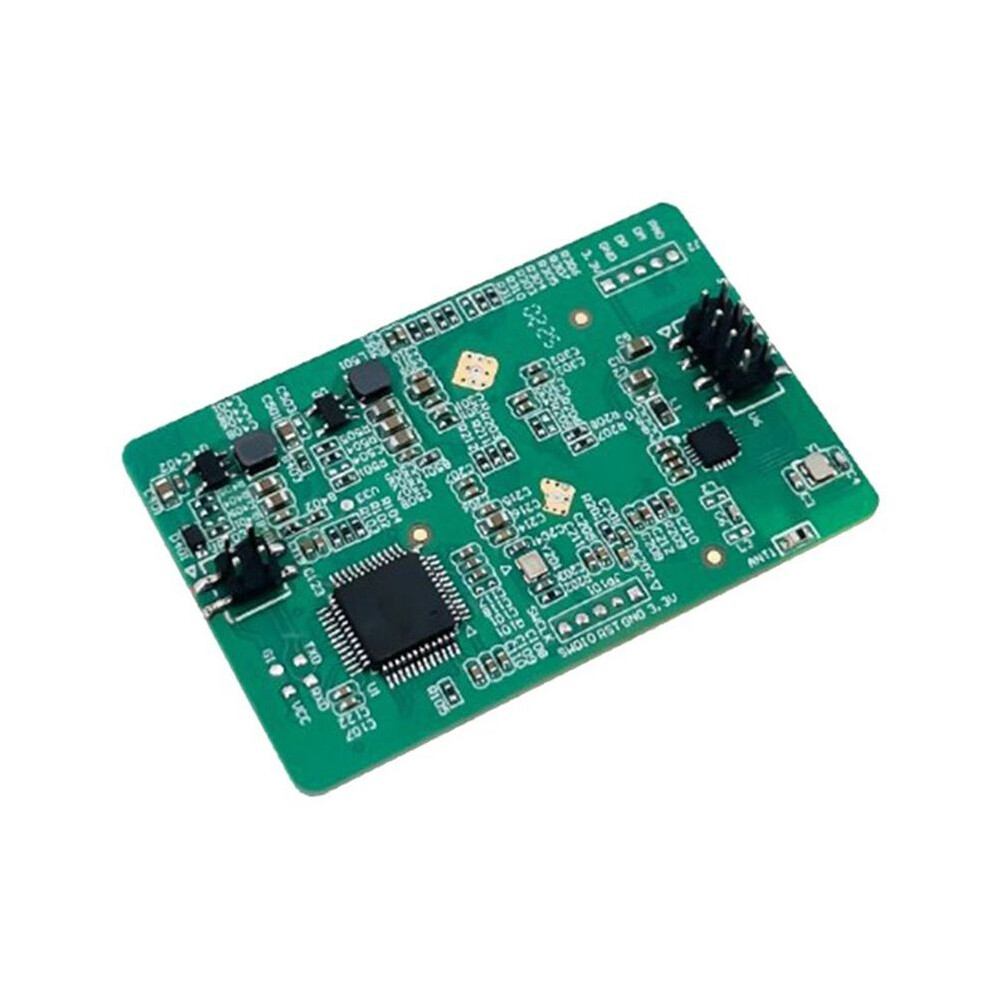

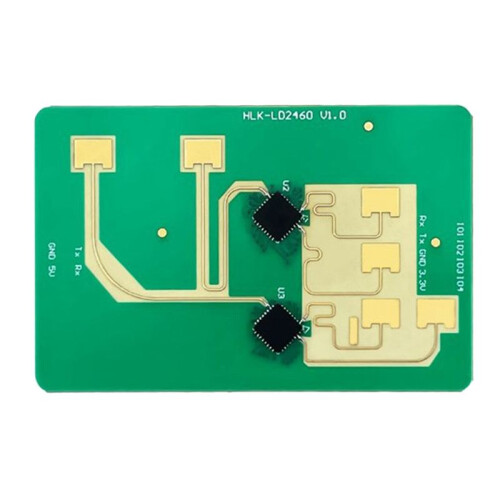

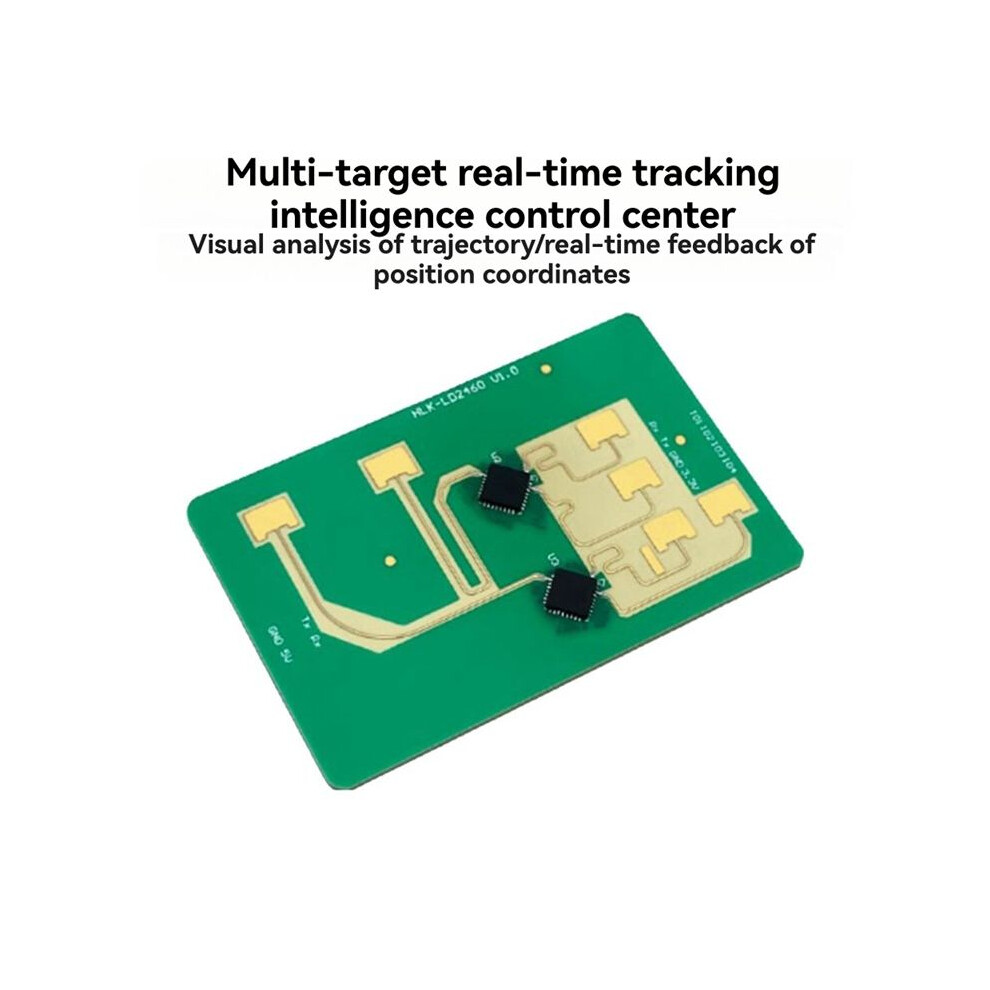

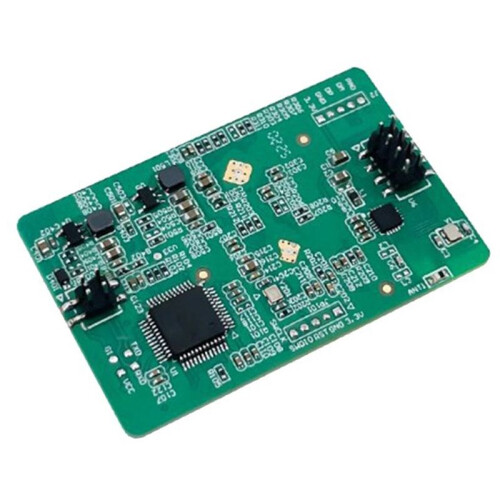

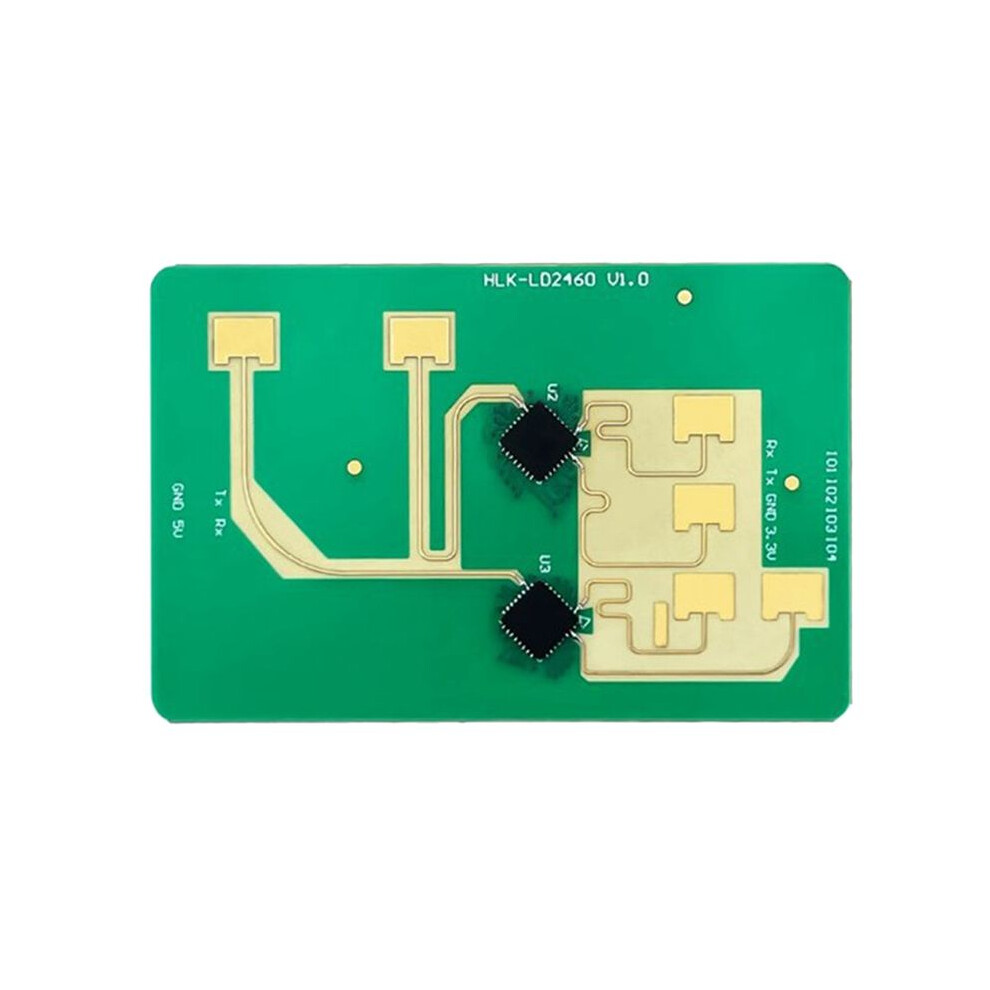

LD2460 is a high-performance 24GHz millimeter wave product designed for precise human perception. The hardware integrates two 1T2R chips, high-performance microstrip antennas, advanced MCU and SOC, and is equipped with peripheral auxiliary circuits. Using FMCW (Frequency Modulated Continuous Wave) technology, it can accurately identify and track 3-5 human targets (including moving, micro-moving or stationary) and estimate their positions.
It is suitable for a variety of scenarios such as homes, office spaces and hotels, providing accurate sensing capabilities for multiple targets, and is an ideal choice for realizing intelligent space management.
Frequency: 24G-24.25GHz
Sweep bandwidth: 250MHz
Modulation mode: FMCW

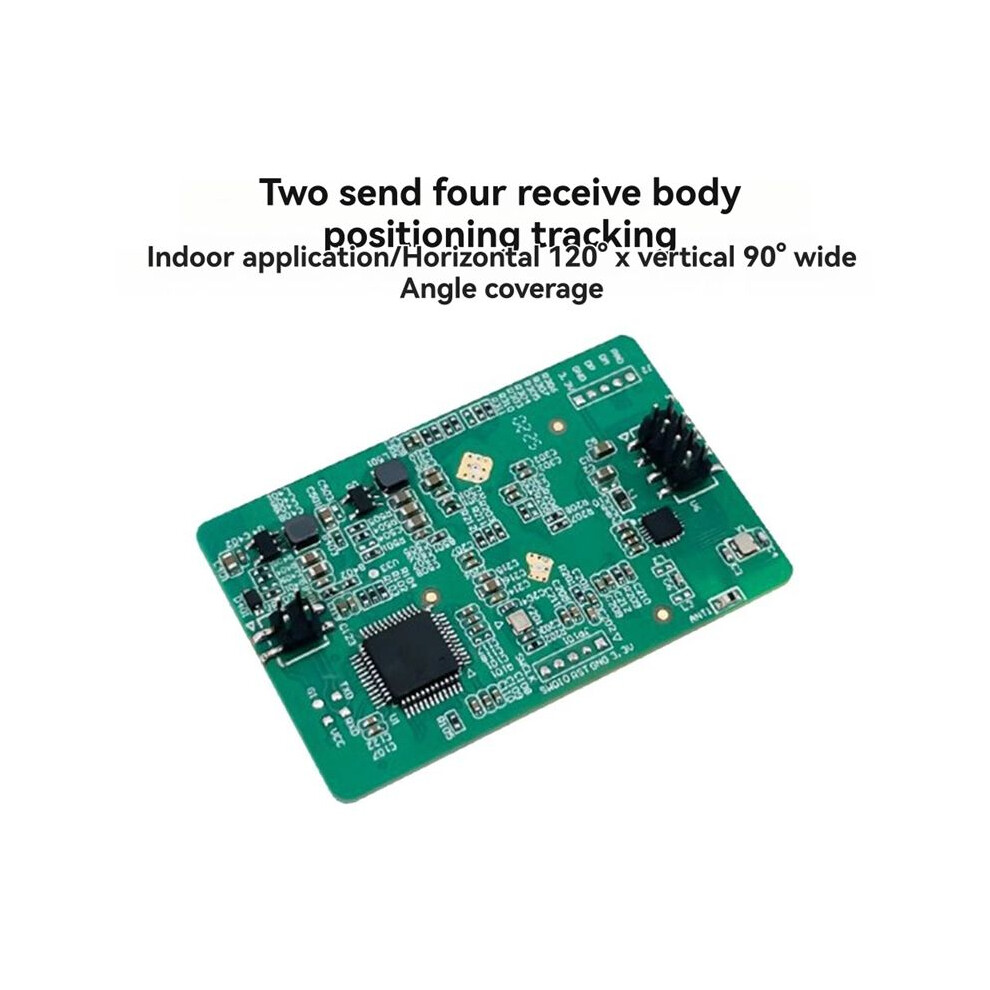

Detection angle: azimuth 60% pitch angle 45
Detection distance: static Greater than 5m/dynamic Greater than 6m(Typ.)
Distance resolution: 0.75m(Typ.)
Range accuracy: 0.(Typ.)
Angle accuracy: Less than 5(Typ.)
Angle resolution: 40(Typ.)
EIRP: 13dBm(Typ.)
Average current: Less than 250mA 5V(Typ.)
Ambient temperature: -40-+85

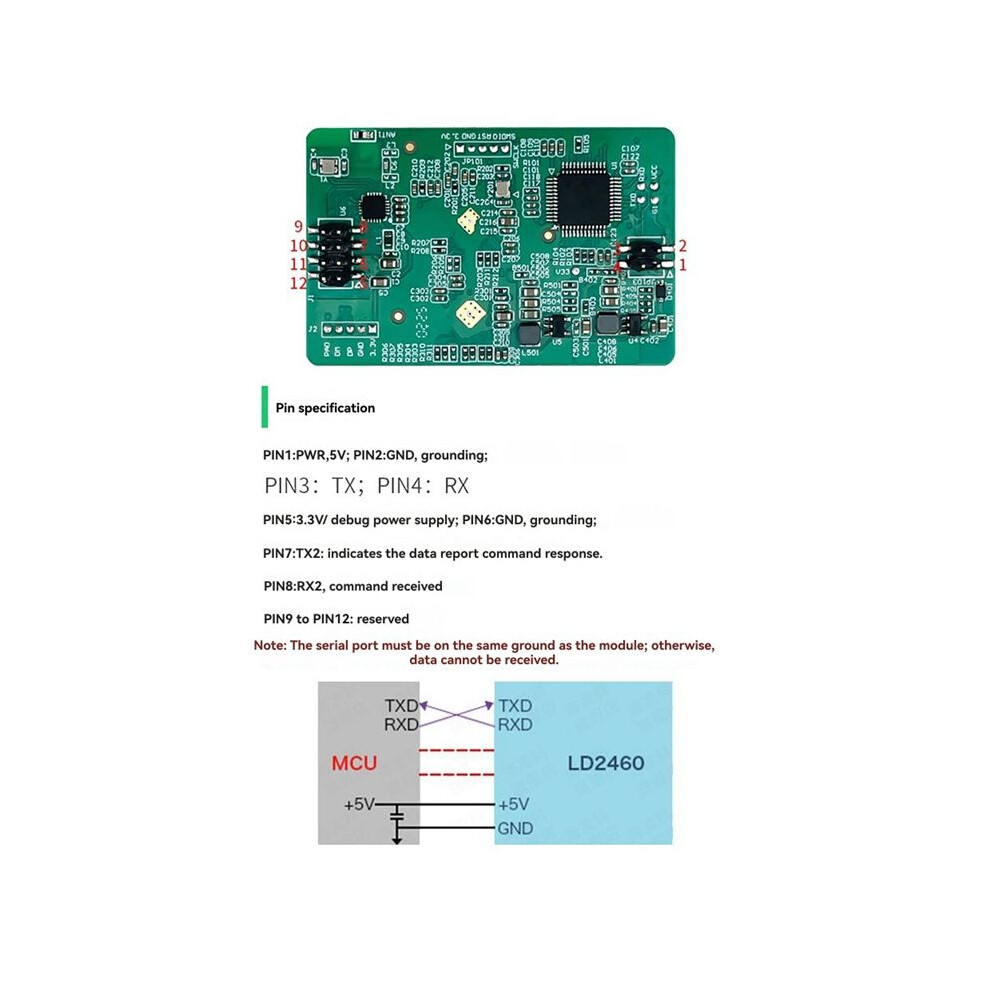

Data format: Serial port ASCII output/BLE
Color: green
Material: PCB

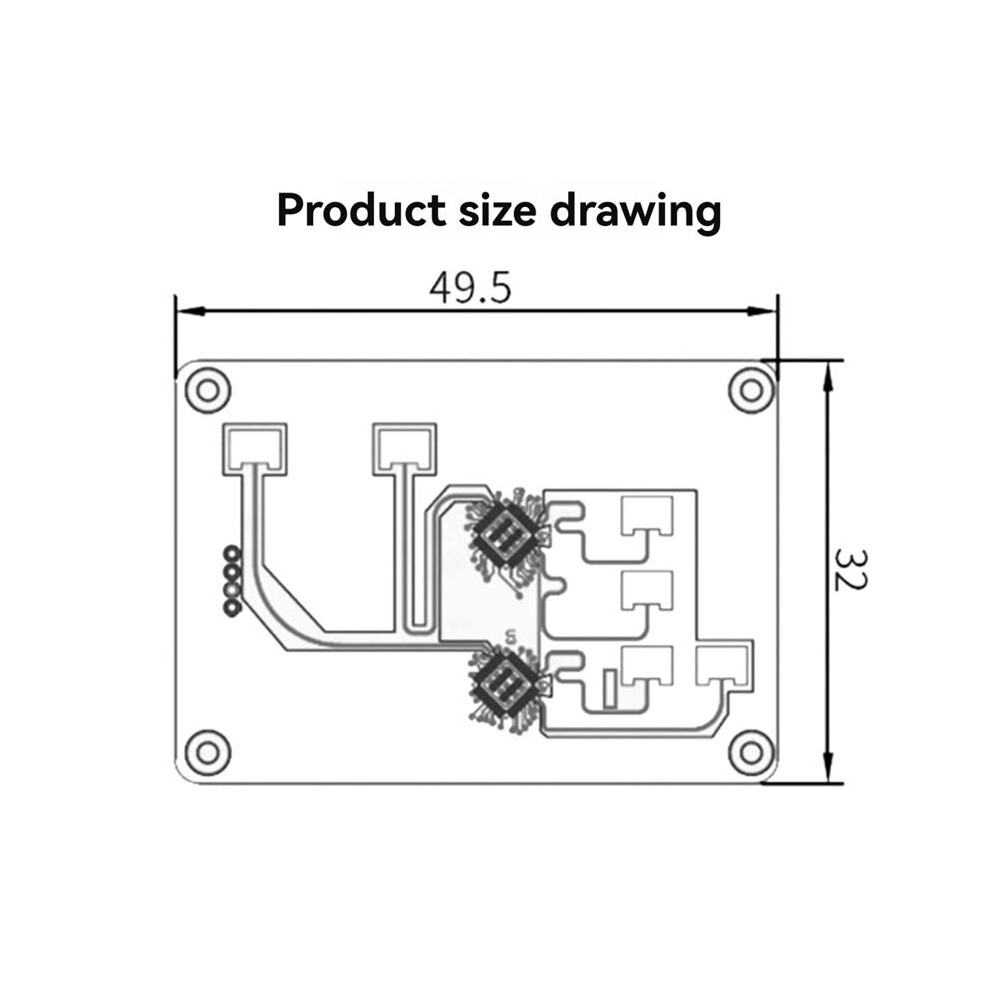

Size: 32x49.5mm
Package Contents:
1 x 24G rajectory tracking module
Detaljer
| OPC | PRVXJX7 |
|---|---|
| Mærke | kepptory |
| Koder | 4711630364344 (EAN) |
| Produkt- og sikkerhedsoplysninger |
Produktdata
| Height | 1cm |
|---|---|
| Width | 3cm |
| Length | 5cm |
| Weight | 0.008kg |
| Colour | Green |
| Material | PCB |
