24V LED Light Board for Flashforge Adventurer 5M/5M Pro/AD5X, 7 Beads, Cold White, Boosts Chamber Brightness

24V LED Light Board for Flashforge Adventurer 5M/5M Pro/AD5X, 7 Beads, Cold White, Boosts Chamber Brightness Beskrivelse

Direct replacement 24V LED light board designed specifically for Flashforge Adventurer 5M, 5M Pro and AD5X 3D printers, ideal for upgrading or replacing a failed original light. Note: the regular 5M lacks a lighting control port, so you must use an external or fully power off the printer to cut power to the light.
Low‑power, high‑brightness LED board rated at 24V, 0.2A and about 4.8W, delivering efficient illumination without adding noticeable load to the printer. Features two 8.5 mm mounting holes so you can securely fix the light strip to the AD5M Pro front panel or mount it dual side panels of the 5M using magnets.

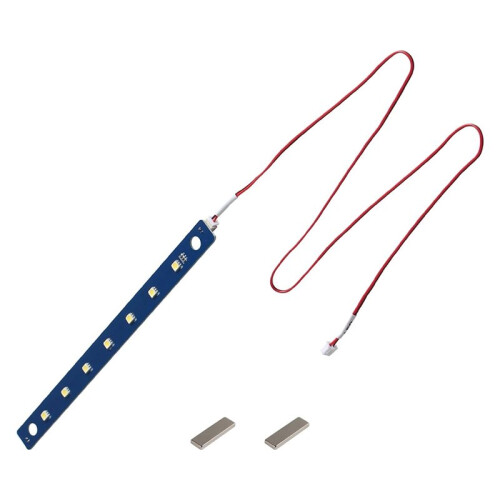

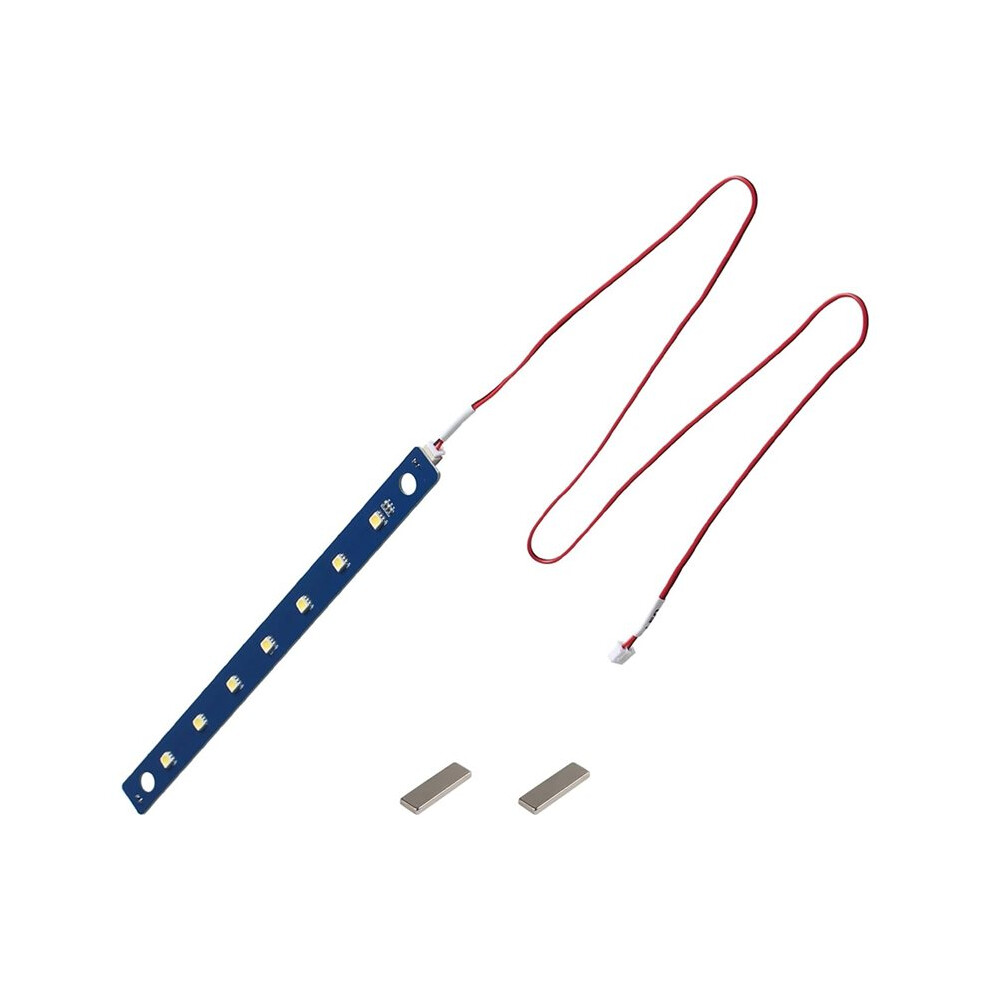

Extended 23 cm/9.06 in light bar integrates 7 premium lamp beads that output stable, constant‑current cold white light, ensuring even, comfortable chamber illumination during long prints. Includes a 71.5 cm/28.15 in connection cable to easily plug into the PCB control board for quick, plug‑and‑play power.
Improves chamber visibility so you can clearly observe the hotend extruder assembly, 0.4 mm brass nozzle and printed layers in real , helping with bed leveling, print inspection and troubleshooting. Also makes filament loading, unloading and replacing standard 1.75 mm materials faster and more accurate.
Supports DIY modifications with printable mounting brackets; refer to pictures or search Thingiverse for "5M Pro Light Board Bracket" or "5M AD5X Light Board Bracket" STL files. Terminals both ends allow series connection of two boards if you want a brighter AD5M environment, and two small magnets are included.

Color: As Shown
Material: ABS

Package Contents:
1*LED light strip kit
