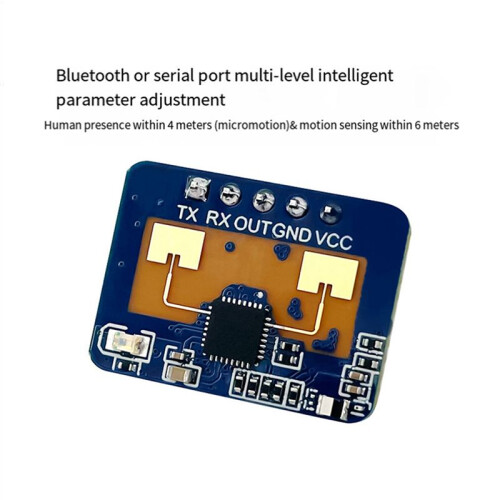

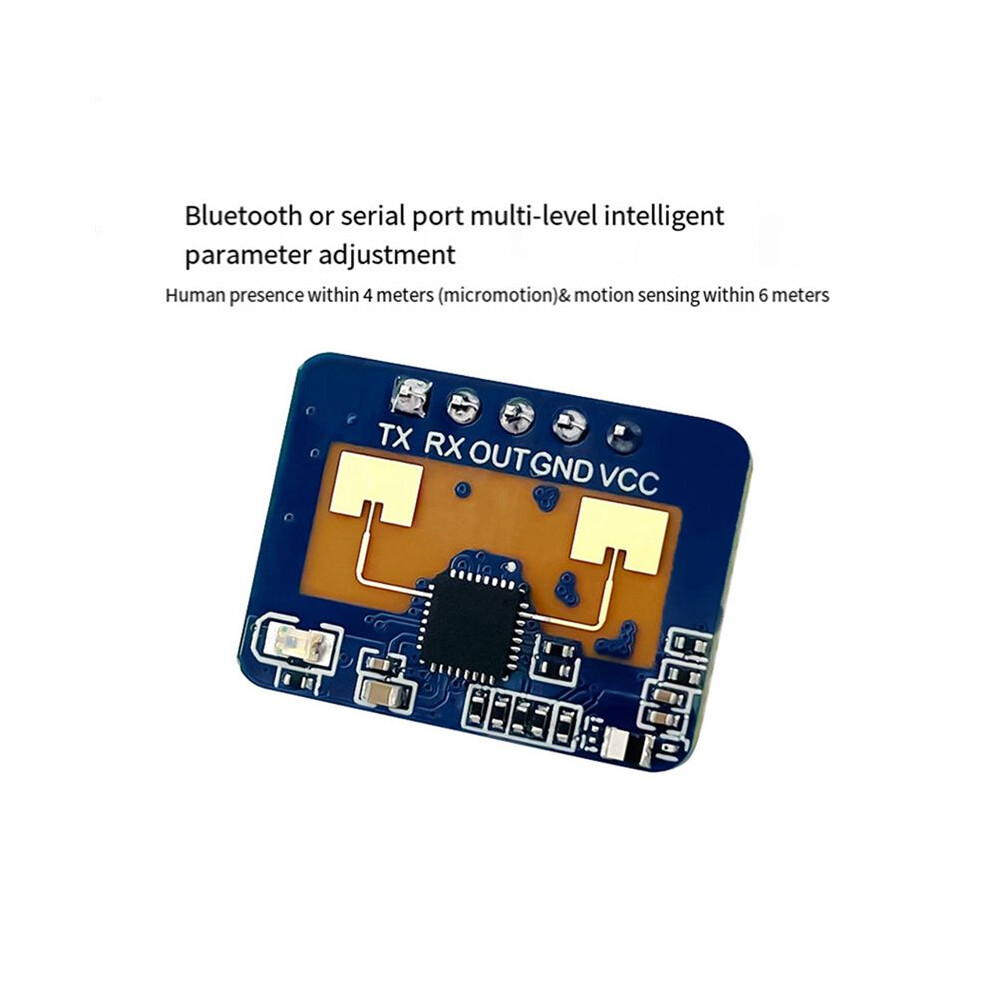

2X 24G mmWave LD2410C Human Presence Sensor Motion Detection Module

2X 24G mmWave LD2410C Human Presence Sensor Motion Detection Module Beskrivelse

LD2410C is a high sensitivity 24GHz human presence sensing module. The working principle is to use FMCW FM Continuous Wave to detect human targets in the set space, combined with signal processing, accurate human body sensing algorithm, to realize high sensitivity human presence state sensing, which can recognize the human body in motion and in a stationary state, and can calculate the distance of the target and other auxiliary information.
The product is mainly used in indoor scenes to sense whether there is movement or micro-movement of the human body in the area and output the results in real . The longest sensing distance is to 6 meters, and the resolution is 0.75m. A configuration tool is provided to configure the sensing distance range, sensing sensitivity in different intervals, unattended delay , etc.
Supports GPIO and UART output, plug-and-, and can be flexibly applied to different scenarios and terminal products.

Color:
material: Plastic+metal
Frequency: 24G-24.25GHz
Modulation method: FMCW
Detection distance: 0.75~6m adjustable
Detection angle: 60
Power supply: 5V
Current: ~79mA
Output serial port level: 3.3V
Sweep bandwidth: 250MHz
Ambient temperature: -40~+85
Data format: Serial port ASCII output/high and low levels 3.3V&OV

Package Contents:
2 x Sense Module
