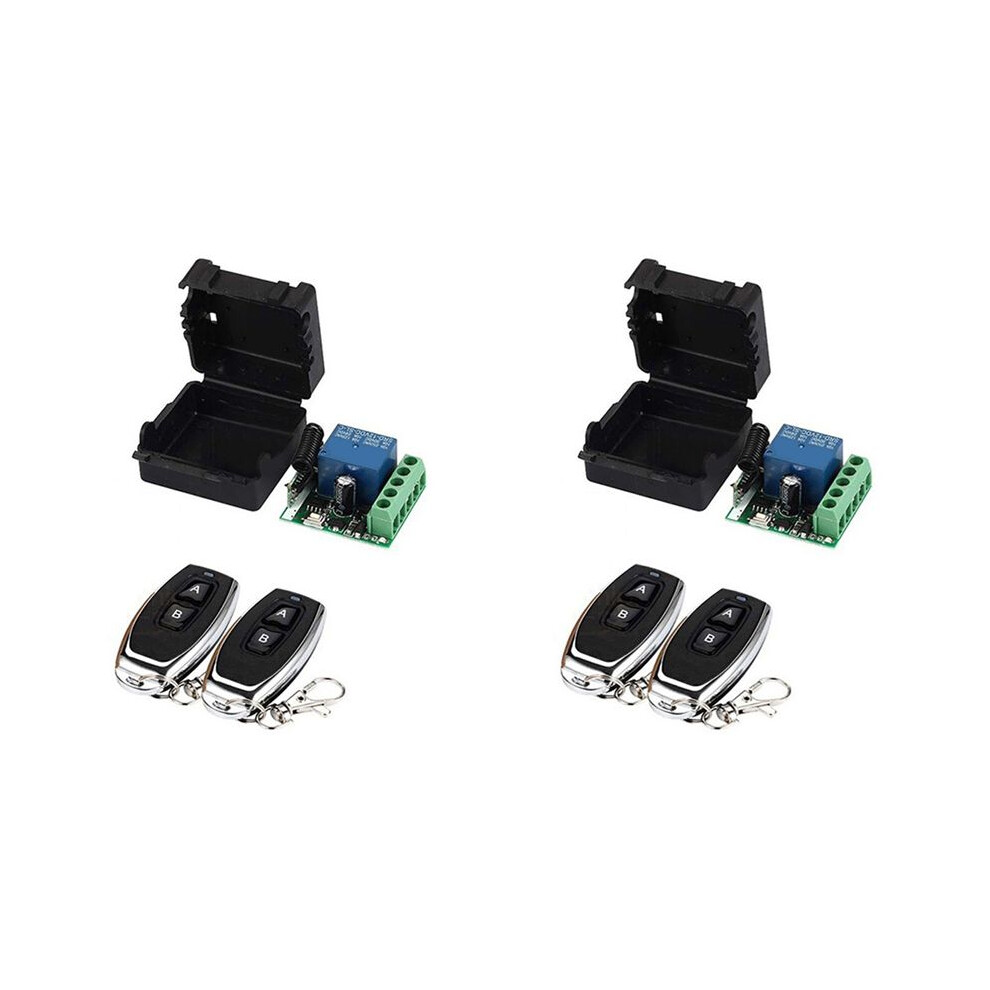

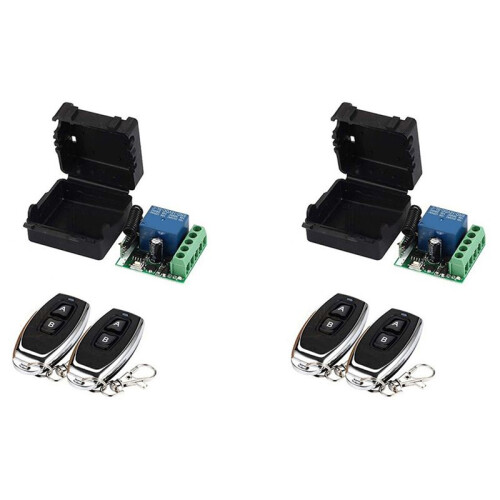

2X 433Mhz Wireless Remote Control Universal DC12V 1CH Relay Receiver Module RF Transmitter 433 Mhz Remote Control

2X 433Mhz Wireless Remote Control Universal DC12V 1CH Relay Receiver Module RF Transmitter 433 Mhz Remote Control Beskrivelse

Specifications Of The Transmitter:
Operating Frequency: 433MHz
Power by 3V Coin Cell Button Battery (Battery included )
Button: 2 Buttons

Size: 59mm x 28mm x 8mm
Operating Voltage: 3V
Operating Current: 12mA
Transmitting Power: 10mw
Modulation Mode: ASK (AM)
Encoding Type: Learning
Transfers Distance: 20-50 m

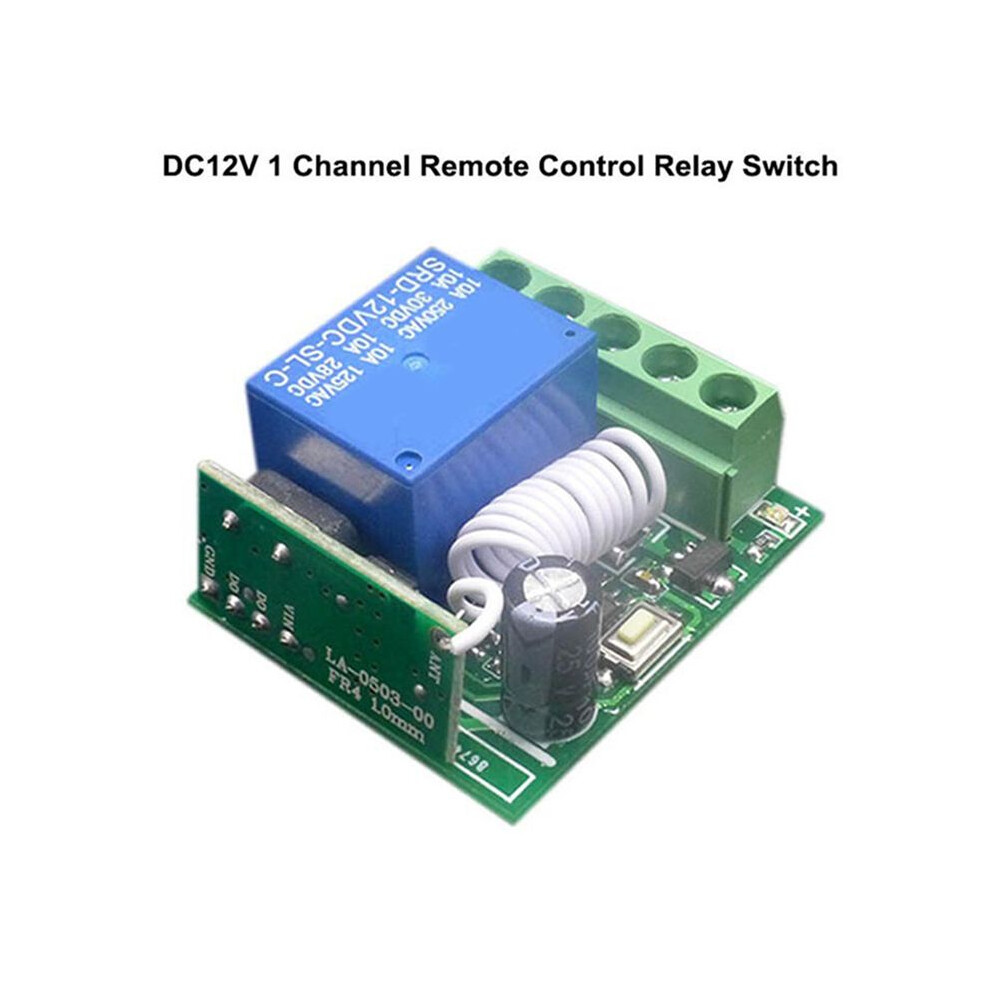

Specifications Of The Receiver:
RF Working Mode: Superheterodyne Reception
Modulation Mode: ASK
Working Mode: Momentary, Toggle, Latching and Delay Mode.
Input Voltage: 10 ~ 14V
RF Frequency: 433MHz
Quiescent Current: 5mA
Receiving Sensitivity: Greater than 97dbm
Remote Control Range: Greater than 100m (Free Space).
Wired Connection Way: Fixed Wiring Pillar.
Decoding Mode:MCU Software Decoding.
Working Mode:Momentary, Toggle, Interlocked Mode Latching delay (5s ,10s ,15s )

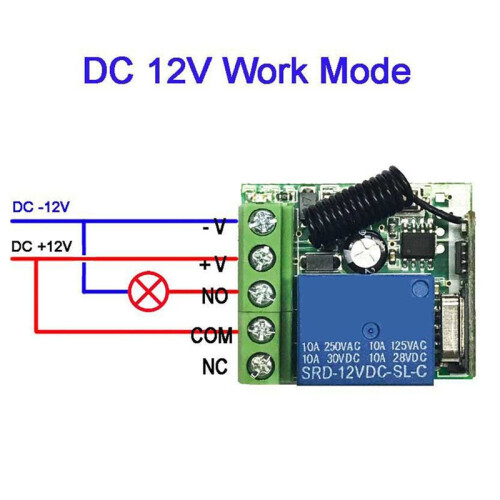

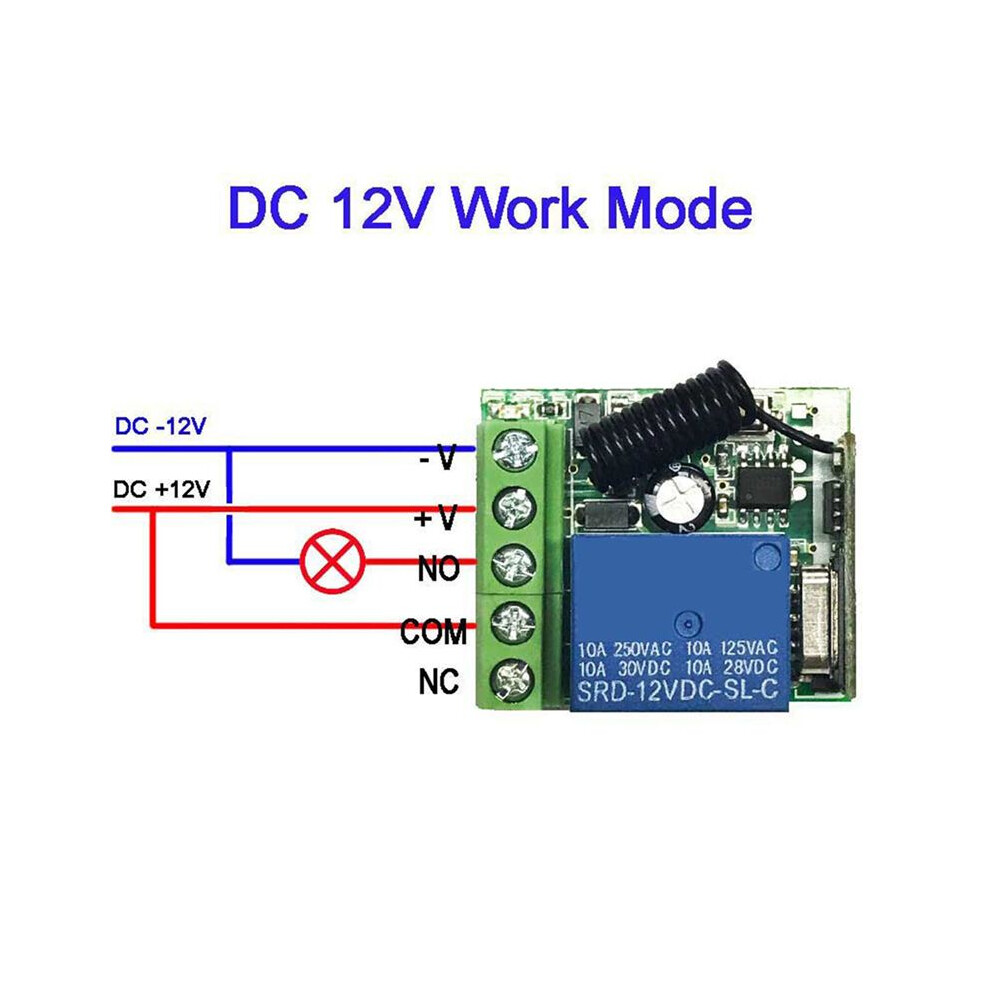

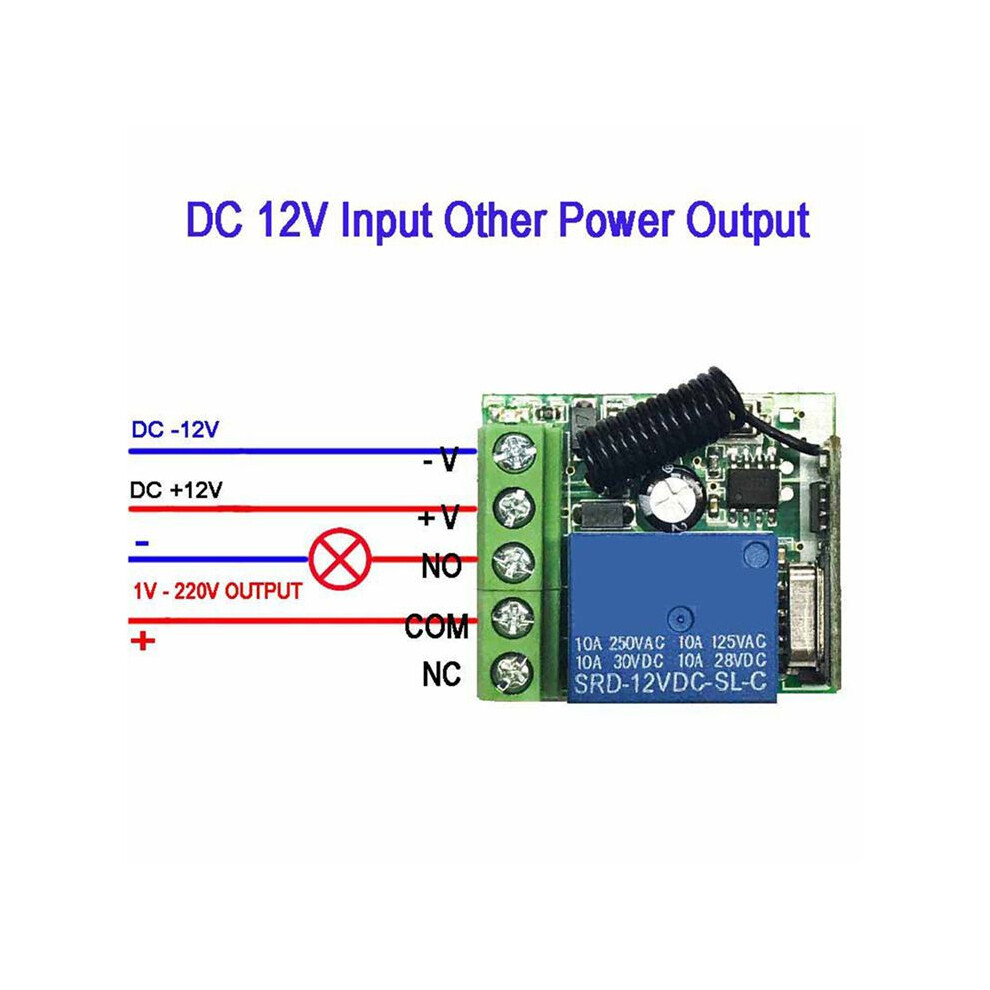

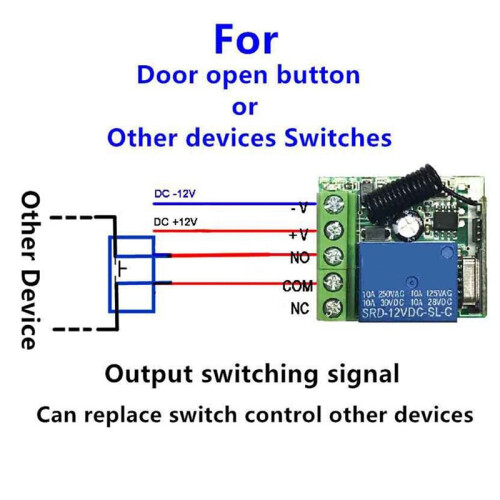

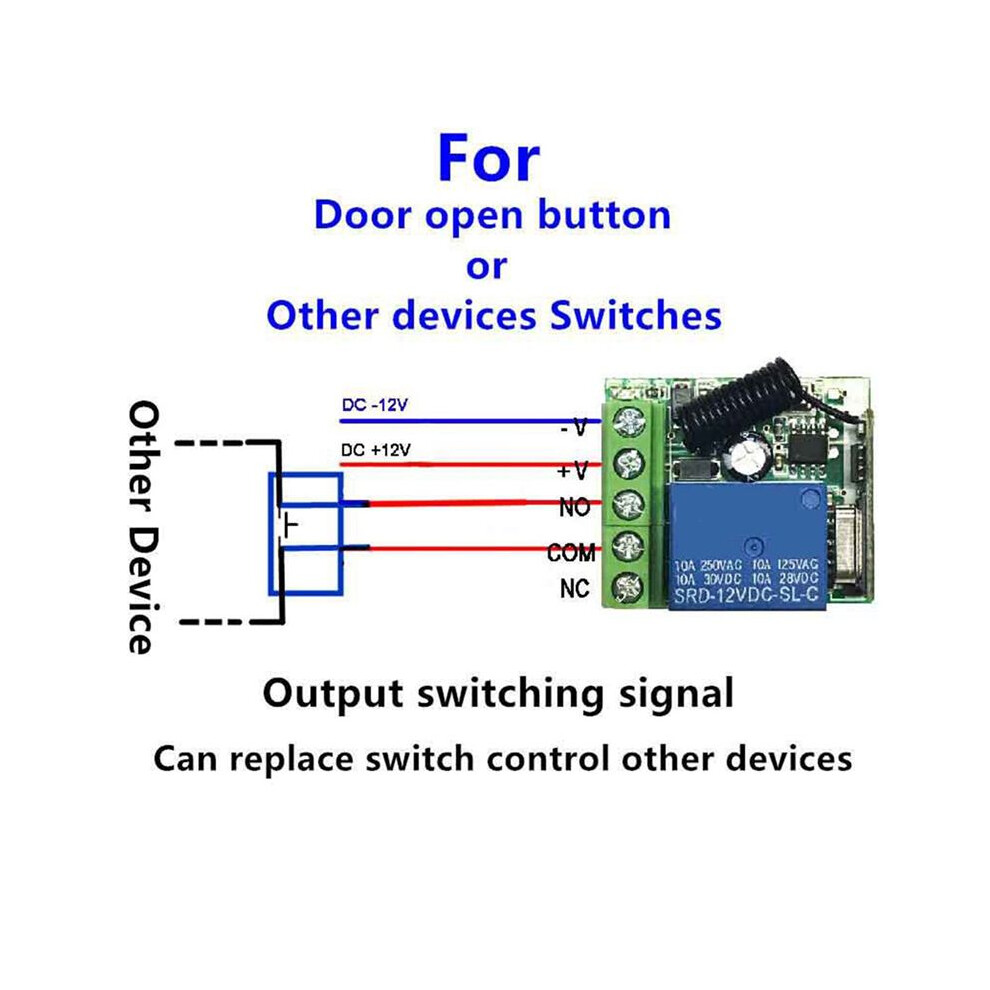

Wiring Diagram 1:
+V: 12V + (Input).
- V: 12V - (Input).
NO: Normal Open(Output).
COM:Common(Output).
NC: Normal Close(Output).
Color:Black
Material: PCB+plastic
Circuit Board Size: 3.5 x 3.0 x 1.8cm
Due to different batches, the appearance, color, and printed words of the product may vary, which does not affect its use.

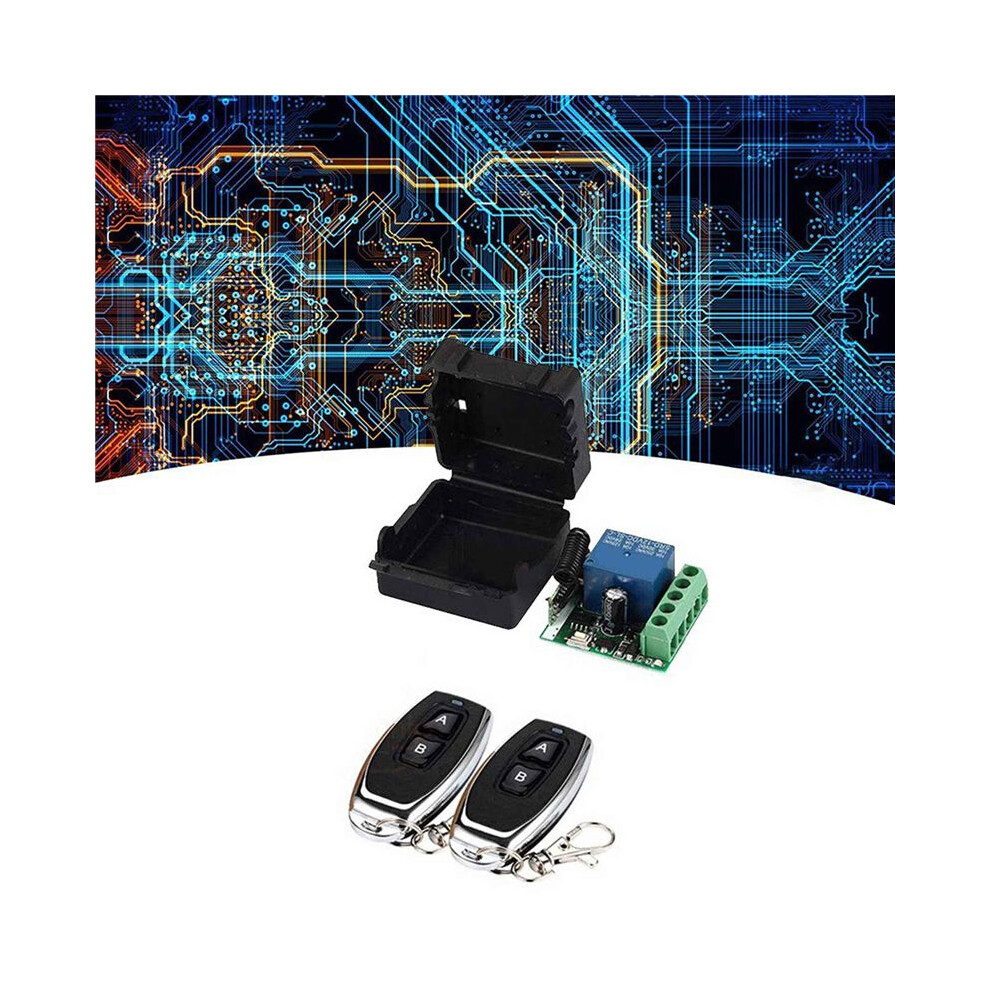

Package Contents:
2 x Receiver
4 x Remote Control
