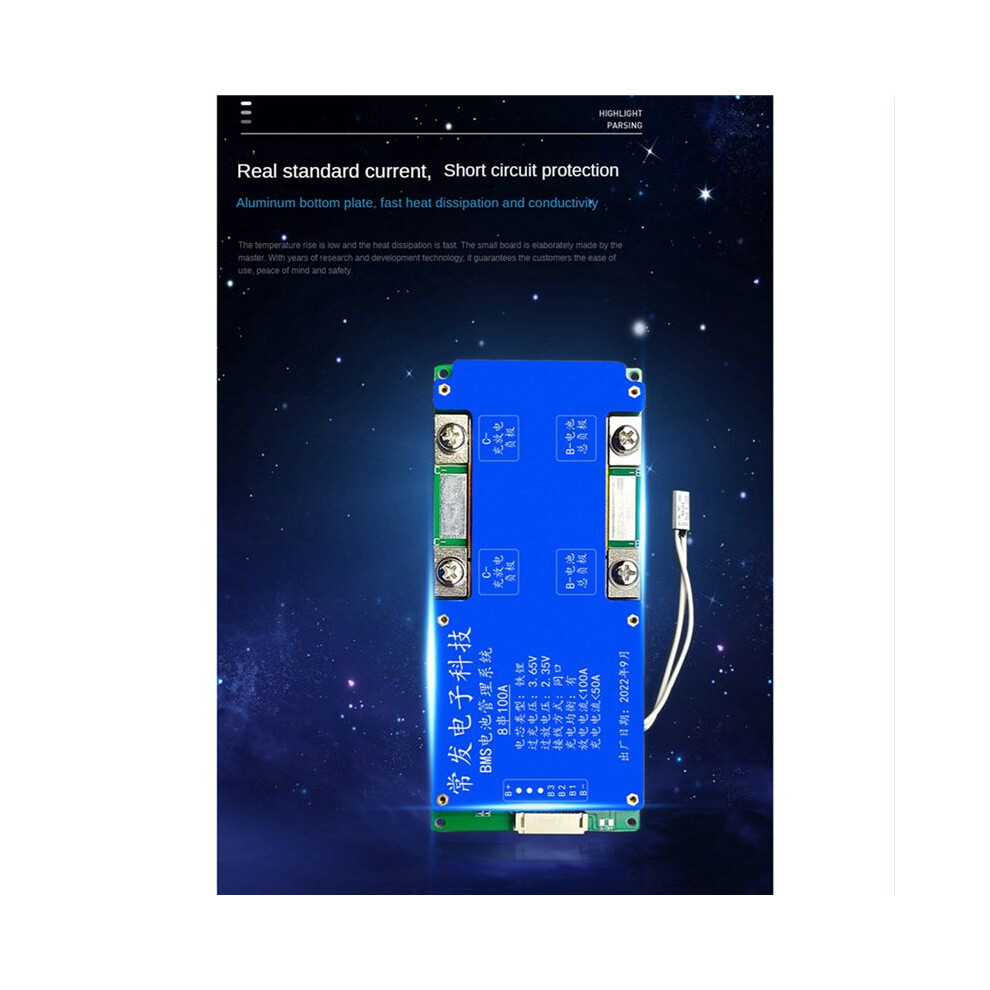

2X 8S 24V 100A LiFePO4 Battery Protection Board Same Port with Equalization Temperature Control BMS Battery Board
Brand Typecat
Ny
På lager
Derfor vil du elske at handle hos OnBuy:
- Tjen Cashback på hvert køb – brug det med det samme på din næste ordre
- Gratis levering – på millioner af varer på siden
- Kunder elsker os – 131,000 anmeldelser med vurderingen “Fremragende”
568,05 kr.
728,27 kr.
Spar 22%!
Gratis levering
1%
Tjen 5,68 kr. med det samme
Læs mere
Priserne for varer, der sælges af OnBuy, inkluderer moms.
Rentefrie betalingsmuligheder
Se fuld produktbeskrivelse og detaljer
Levering: Standard (Gratis) | tir. 25. - lør. 29. aug.
Solgt af: Papishop
Returnering: 30 dage
180 dages betalingsbeskyttelse
Du kan også lide
Beskrivelse og detaljer
Oversigt
- Overcharge and discharge protection to prevent overcharge and discharge of the battery. Overcurrent protection to prevent abnormal high current of battery
- Balance protection, battery voltage balance, make battery life longer
- Stable heat dissipation, stable heat dissipation of the aluminum substrate, safer
- TVS safety protection absorbs anti-high voltage, reduces MOS tube breakdown, ultra-low internal resistance MOS
- Suitable for most electric tools on the market, electric scooters, electric bicycles, electric tricycles, electric motorcycles, electric vehicles, electric tools, etc.
2X 8S 24V 100A LiFePO4 Battery Protection Board Same Port with Equalization Temperature Control BMS Battery Board Beskrivelse
Overcharge and discharge protection to prevent overcharge and discharge of the battery. Overcurrent protection to prevent abnormal high current of battery
Balance protection, battery voltage balance, make battery life longer
Stable heat dissipation, stable heat dissipation of the aluminum substrate, safer
TVS safety protection absorbs anti-high voltage, reduces MOS tube breakdown, ultra-low internal resistance MOS
Suitable for most electric tools the market, electric scooters, electric bicycles, electric tricycles, electric motorcycles, electric vehicles, electric tools, etc.
Product name: Lithium battery protection board
Product type: 8S 24V 100A (with Equalization temperature control)
Specifications: 8S Lithium Iron 24V 100A
Iron lithium battery nominal: 3.2V
Overcharge: Iron Lithium 3.650.025V
Overdischarge: Iron Lithium 2.350.1V
Equalization: Iron Lithium 3.50.025V
Current: 100A
Charging current (same port): 50A
Main circuit -resistance: 5MΩ
Discharge overcurrent protection: 60010A
Temperature control protection: charge at 75C, discharge at 75C
Working temperature: -20/+80
Short circuit protection: 350US
Self-consumption: 40UA
Product application range: for Inverter, solar street lamp, electric tool, photovoltaic storage UPS, etc,
Product size: 145 x 65 x 11mm
color:
Material:PCB+Metal
Package Contents:
2 x lithium battery protection board
2 x cable
Detaljer
| OPC | PWMHYVQ |
|---|---|
| Mærke | Typecat |
| Koder | 6032355938763 (EAN) |
| Produkt- og sikkerhedsoplysninger |
Produktdata
| Height | 4cm |
|---|---|
| Width | 7cm |
| Length | 15cm |
| Weight | 0.309kg |
| Colour | Blue |
| Material | PCB+Metal |
