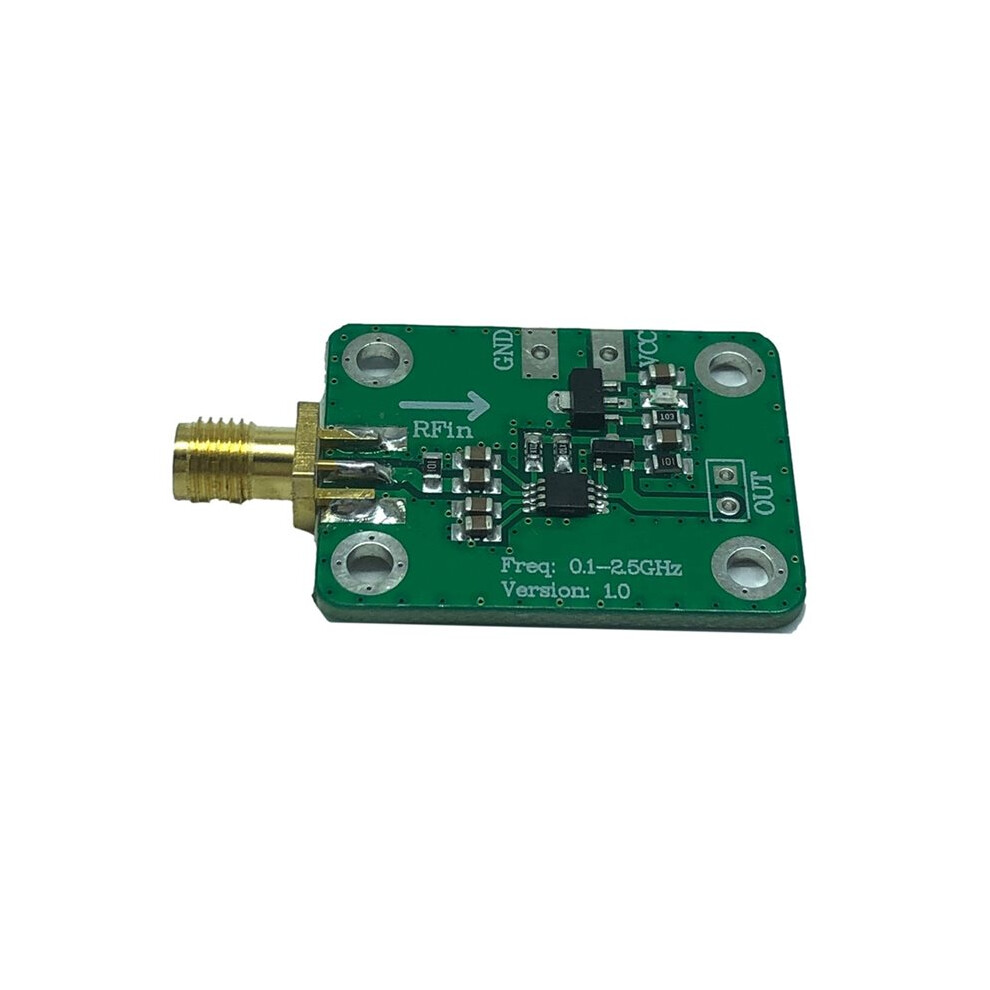

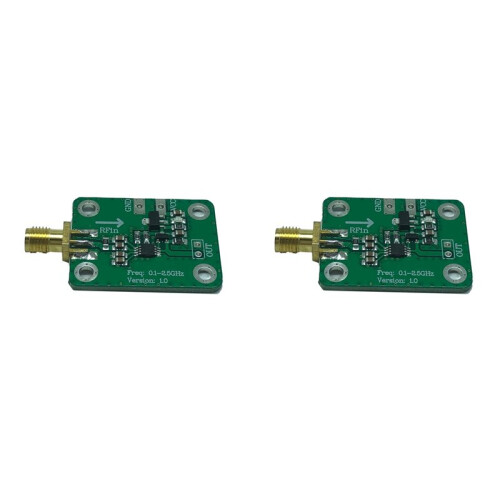

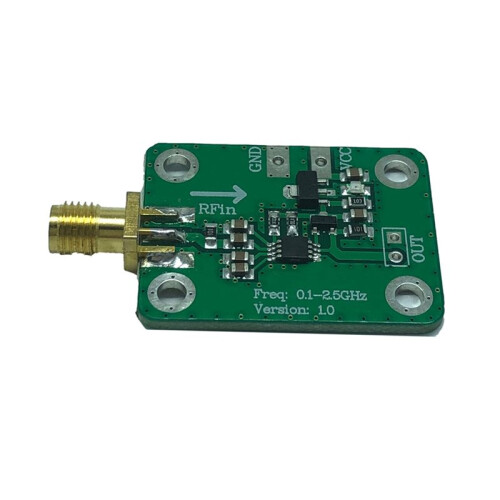

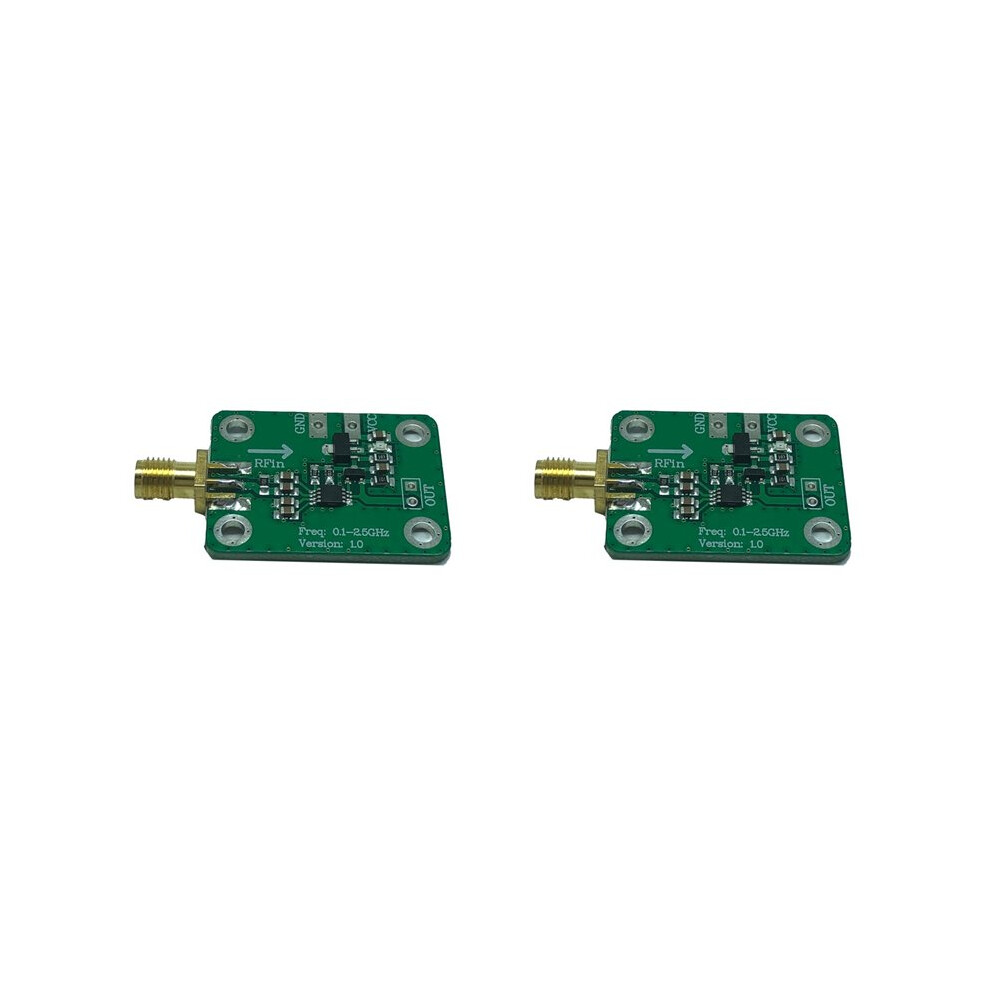

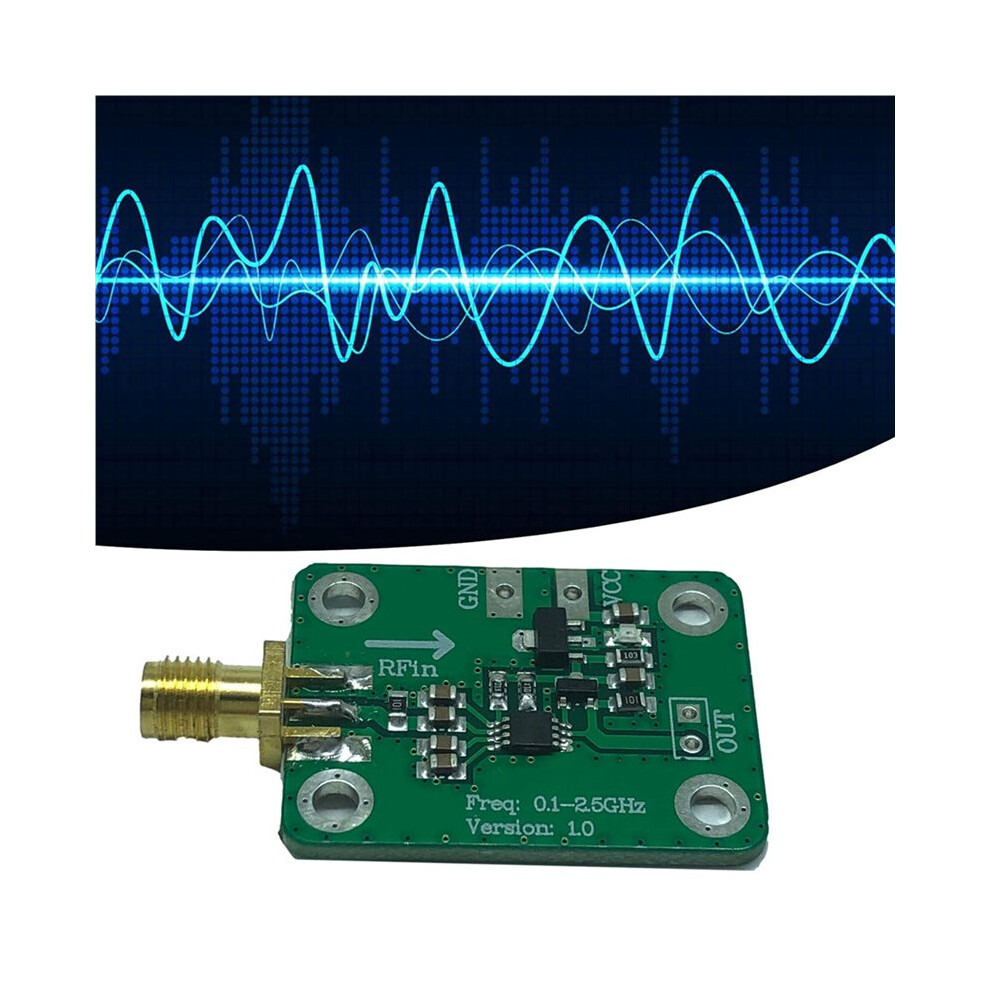

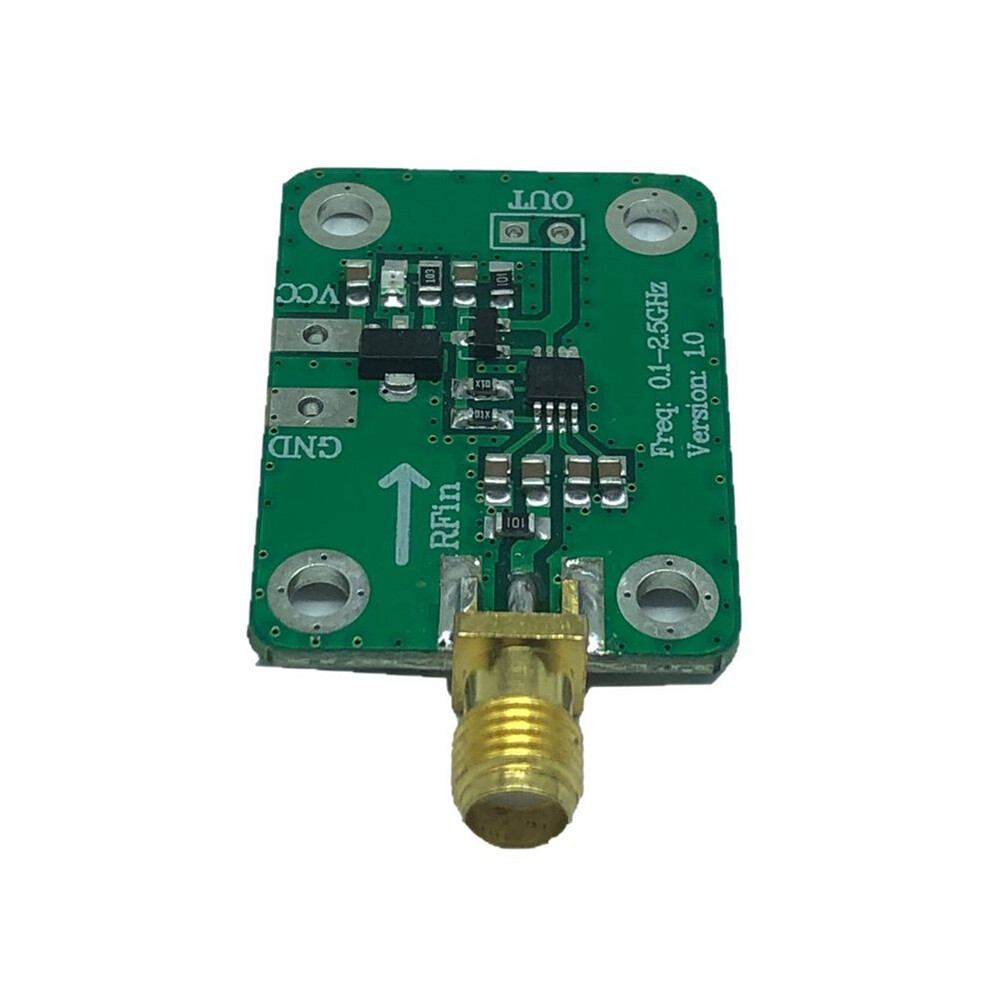

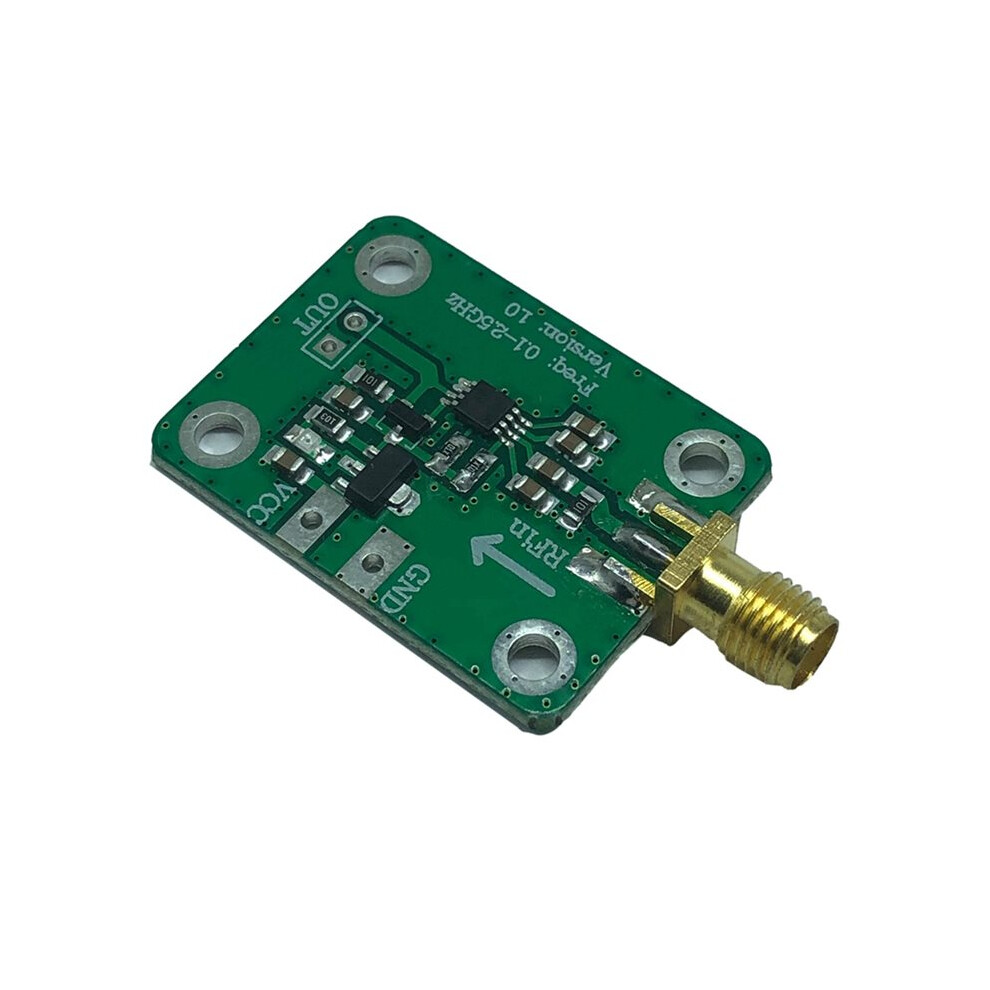

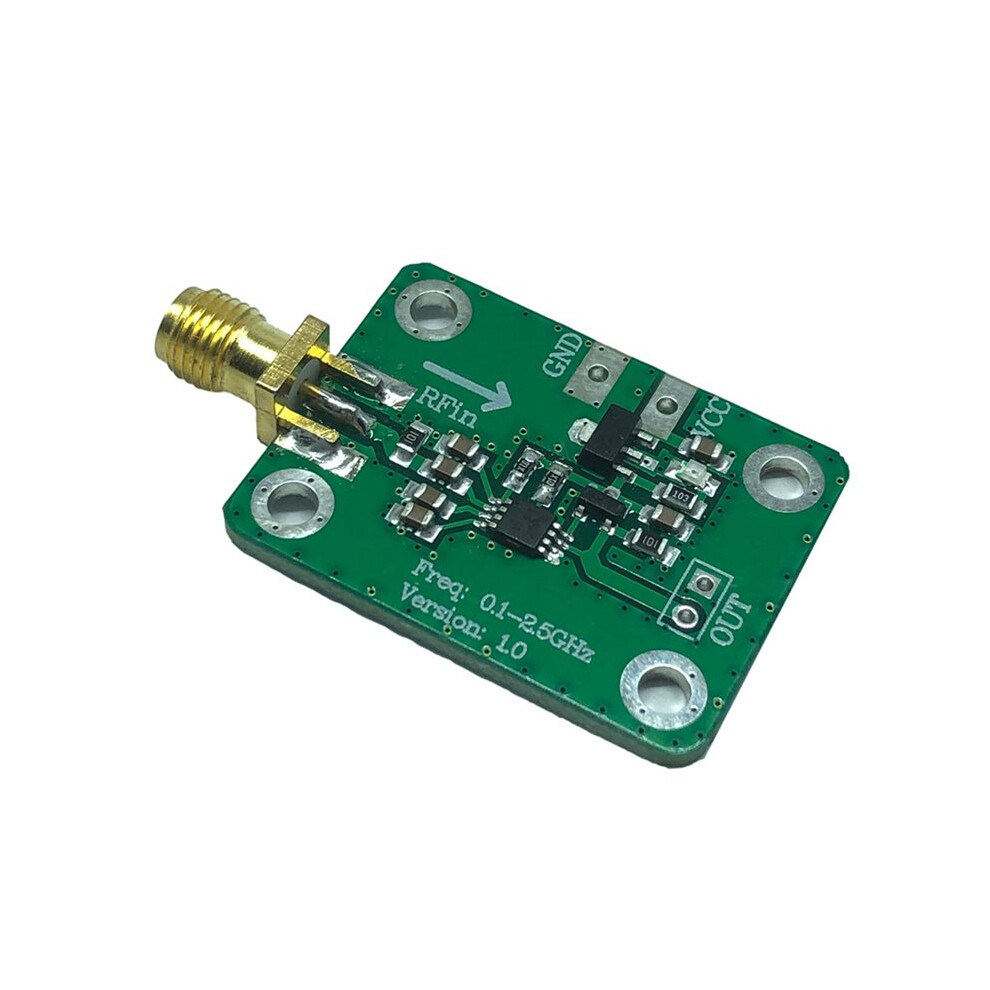

2X AD8313 RF Power Meter Logarithmic Detector 0.1-2.5 GHz Detector Board Variable Gain Amplifier

2X AD8313 RF Power Meter Logarithmic Detector 0.1-2.5 GHz Detector Board Variable Gain Amplifier Beskrivelse

High Precision Measurement: The AD8313 RF Power Meter is equipped with a logarithmic detector that ensures accurate power detection across a wide frequency range of 0.1 to 2.5 GHz, making it ideal for various wireless applications.
Compact and Durable: Designed with a robust and compact form factor, this power meter is perfect for both professional and hobbyist use in RF engineering and telecommunications.
Versatile Use: It is suitable for signal strength detection, transmitter testing, and RF system maintenance, providing reliable and consistent readings.
Easy Integration: The AD8313 module can be easily integrated into existing setups, enhancing your measurement capabilities without the need for extensive modifications.

0.1-2.5GHz Logarithmic Power Detector
Product Application:
This product is used for RF signal power detection in the frequency range of 0.1-2.4GHz. It can detect RF signals with power levels between -72dBm and -2dBm and convert these signals into a voltage output. The greater the RF signal amplitude or power, the higher the output voltage. The output voltage is proportional to the logarithm of the input signal amplitude, thus expanding the dynamic range of the detected signal to 70dB.
This product can be widely used in RF signal detection, signal power measurement, and ambient field strength detection. It can also be used as a component of automatic gain control and automatic level control.
Technical Specifications:
Operating Frequency: 0.1-2.5GHz
Measured Power: -72-(-2dBm)
Output Voltage: 0.5-1.65V
Detection Slope: 18mV/dBm (typical)
Input Impedance: 50Ω
Color: As shown
Material: PCB

Package Contents:
2 x Automatic Gain Controller
