2X CNC Closed Loop Stepper Motor Servo Stepping Controller Stm32 Step Pcb Board Nema17 Servomotor MKS(B)

2X CNC Closed Loop Stepper Motor Servo Stepping Controller Stm32 Step Pcb Board Nema17 Servomotor MKS(B) Beskrivelse

new and high quality.
Position/speed/torque closed-loop, it can run at high speed without losing step.
Field-Oriented control, low noise, low vibration and low calorific.
4 Half bridge driver with 8 MOSFET, high operating efficiency.
14 Bit magnetic encoder, high angle resolution.

Support 1-256 subdivision,odd subdivision is also avaible.(Such as 11 subdivision)
Maximum speed 1000RPM.Support motors with 0.9 degree or 1.8 degree .
The maximum printing speed can reach 150-180mm/s and easy to install and wire.
With USART interface, you can connect the computer by serial port, for parameter adjustment and query.

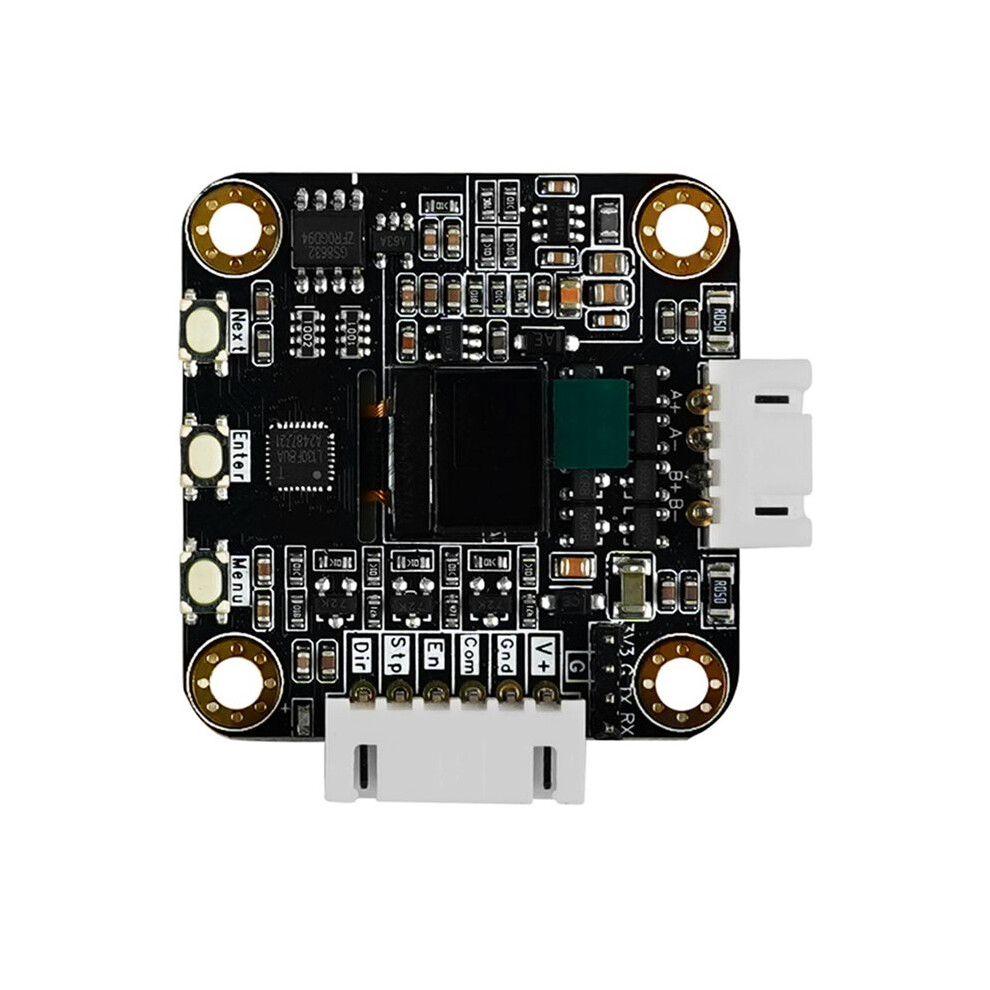

Board Type:MKS SERVO42C V1.0
Microprocessor:Crotex-M0+
Mootor Driver:4 Half bridge driver with 8 MOSFET
Input Voltage:7V-28V
Encoder:14 Bit Magnetic Encoder
Adjustable Current Range:0-3000mA
Subdivision:1-256(Default 16)
Maximum Speed:1000RPM
Angle Resolution:0.08 degree
The Frequency of Update:Position 10Khz/Velocity 10Khz/Torque 20Khz
Type:B:MKS SERVO42C V1.0
Colour:Black
Material:PC+Metal
Size:PCBA Size:approx 39x35.8mm/1.54x1.41in

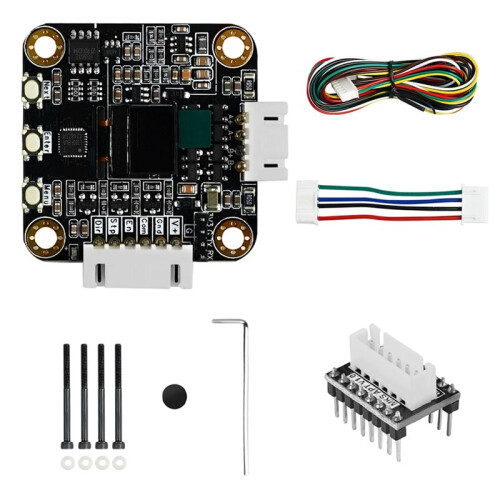

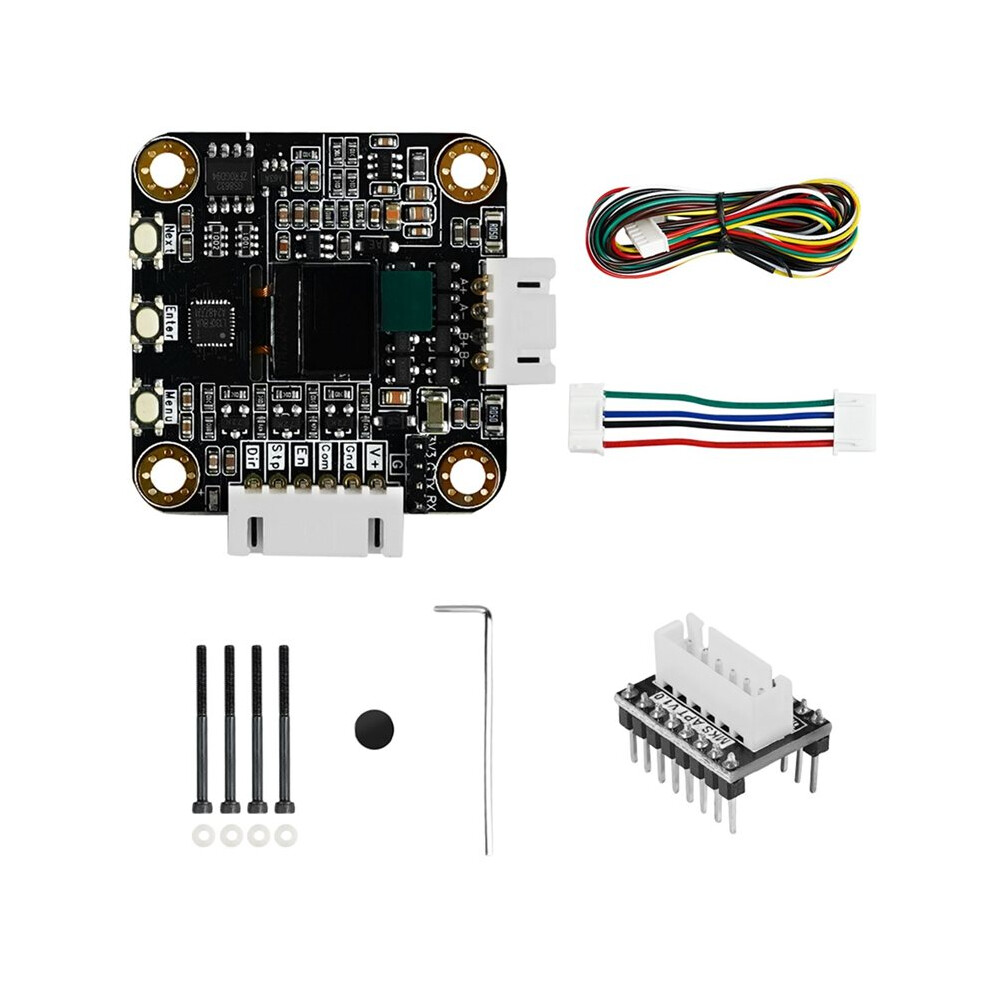

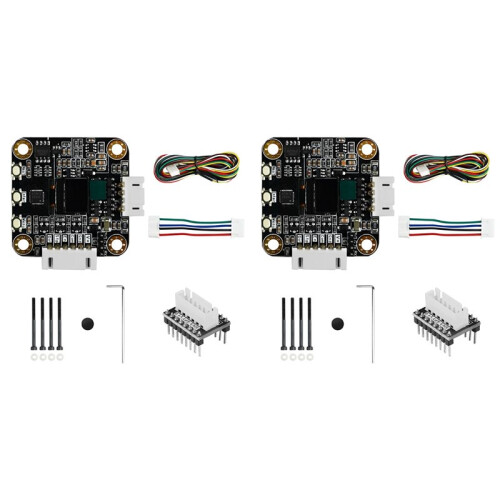

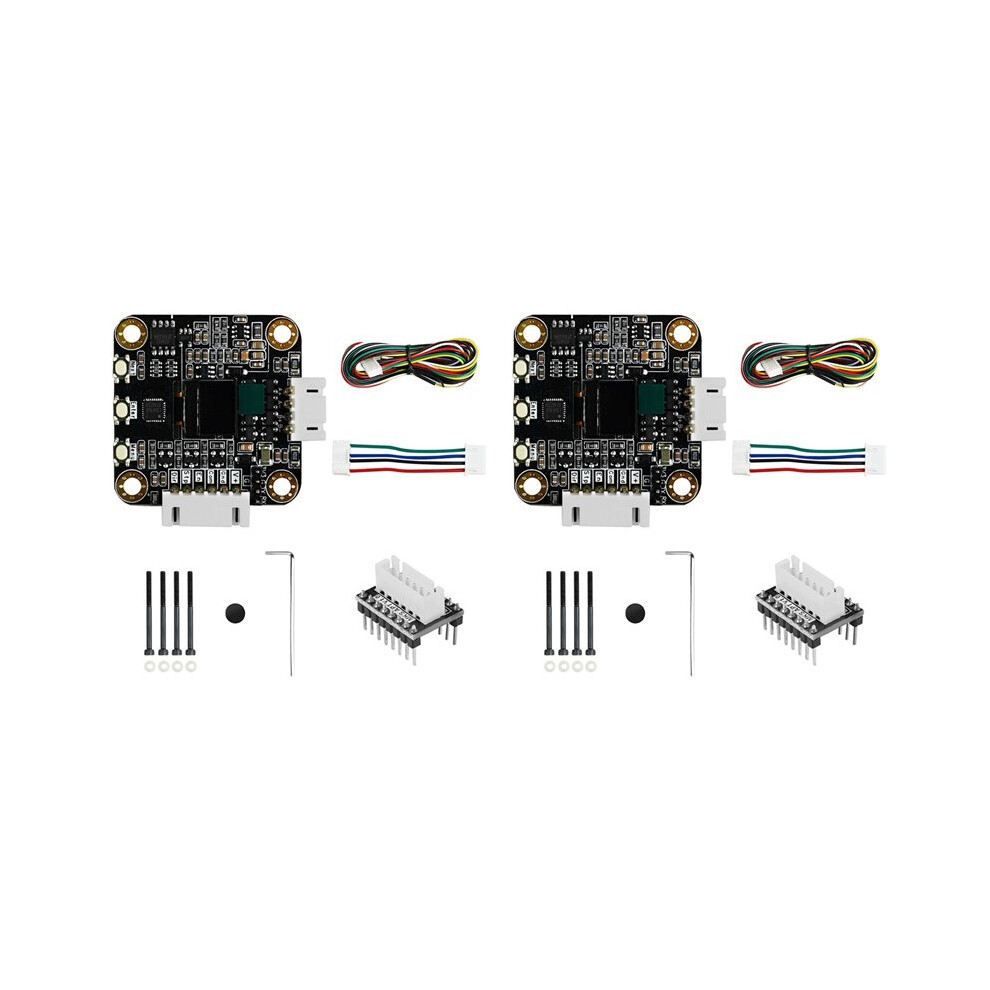

Package Contents:
2Set x MKS SERVO42C V1.0
