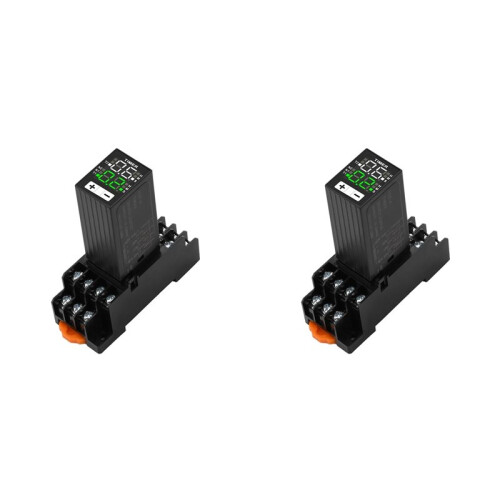

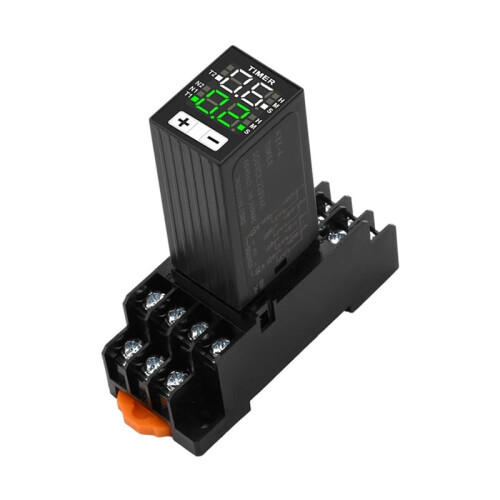

2X H3Y-4 AC220V Liquid Crystal Relay Dual with Base Small Digital Display Cycle Control Delayer

2X H3Y-4 AC220V Liquid Crystal Relay Dual with Base Small Digital Display Cycle Control Delayer Beskrivelse

1. PC shell, fireproof and high temperature resistant

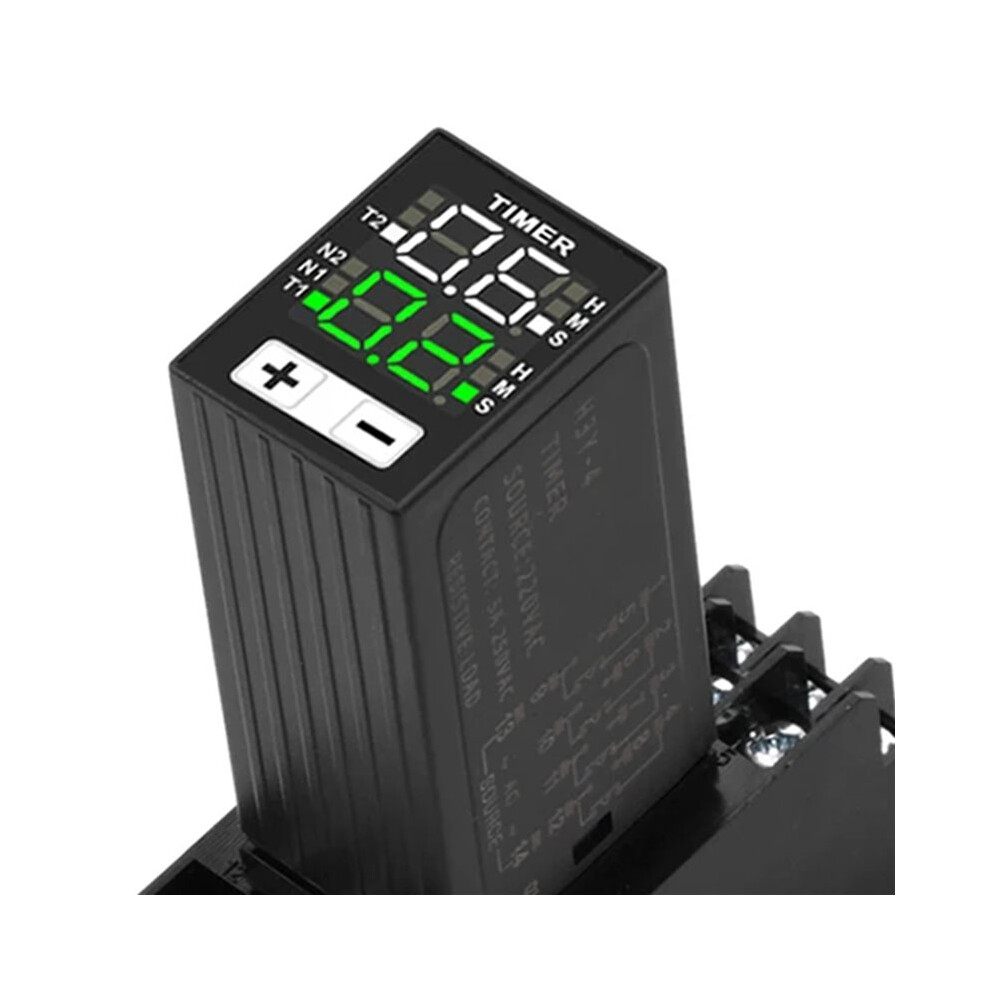

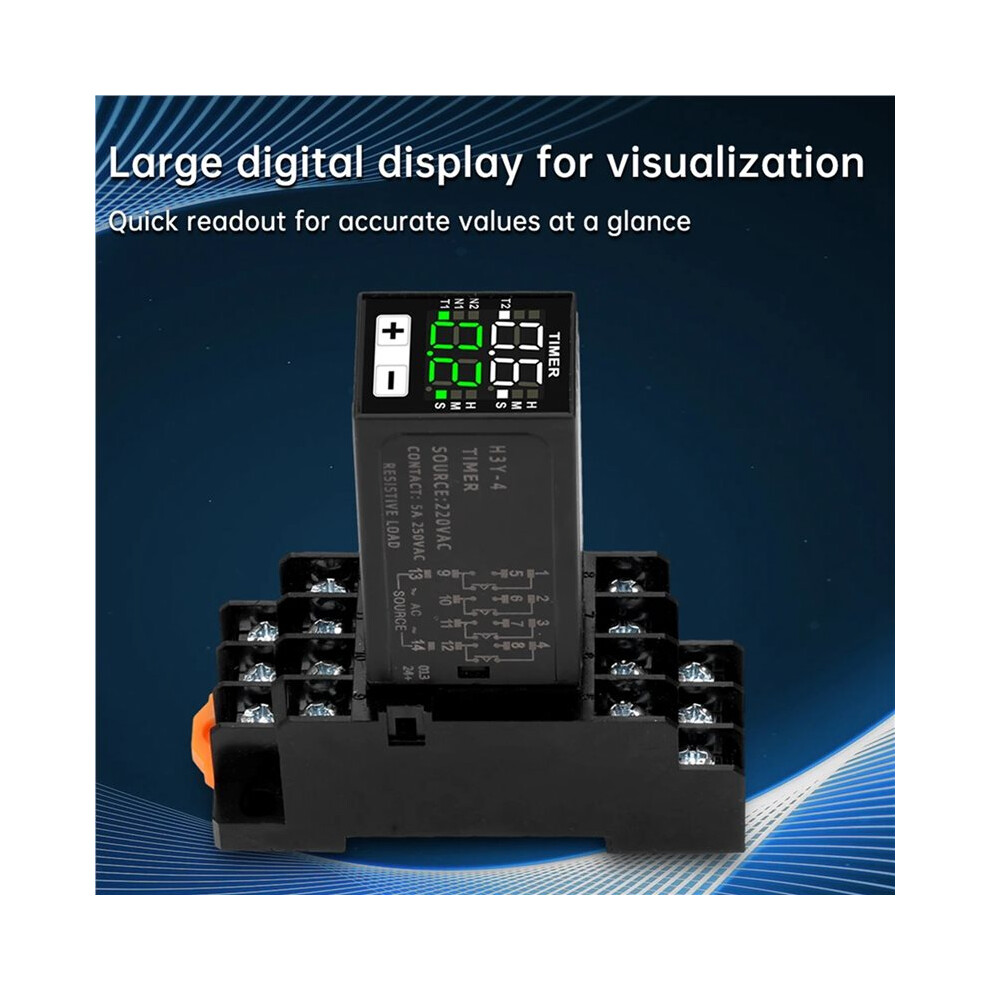

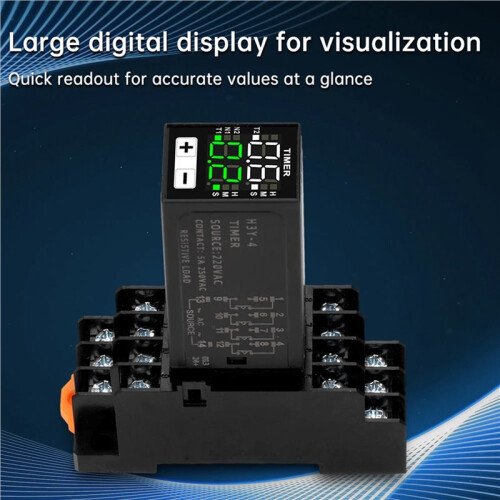

2. LED high-definition screen and digital display panel are more intuitive
3. Silver contacts, stable performance, anti-oxidation, high working efficiency;4. The large-capacity pins at the bottom are made of galvanized copper, with high melting point, strong resistance to oxidation and corrosion, and good electrical conductivity.
5. There are 3 delay modes: N1 power- delay mode, N2 delay release mode, and N3 cycle delay mode;6. Widely used: suitable for automation equipment, electromechanical cabinets, electrical control, power protection and other fields
Colour:black;Material:plastic;Product model: H3Y-4 (14 feet/four open and four closed, including base);Product name: relay;Voltage: DC12V 24V 220V (optional); range: 0.1S-99H

N1 mode power- delay: four groups of delay pull-in
N2 mode delayed release: four groups of pull-in when powered , four groups of delayed disconnection
T1 T2 cycle mode: T1 T2 and off can set different times
Ambient temperature: -25-75

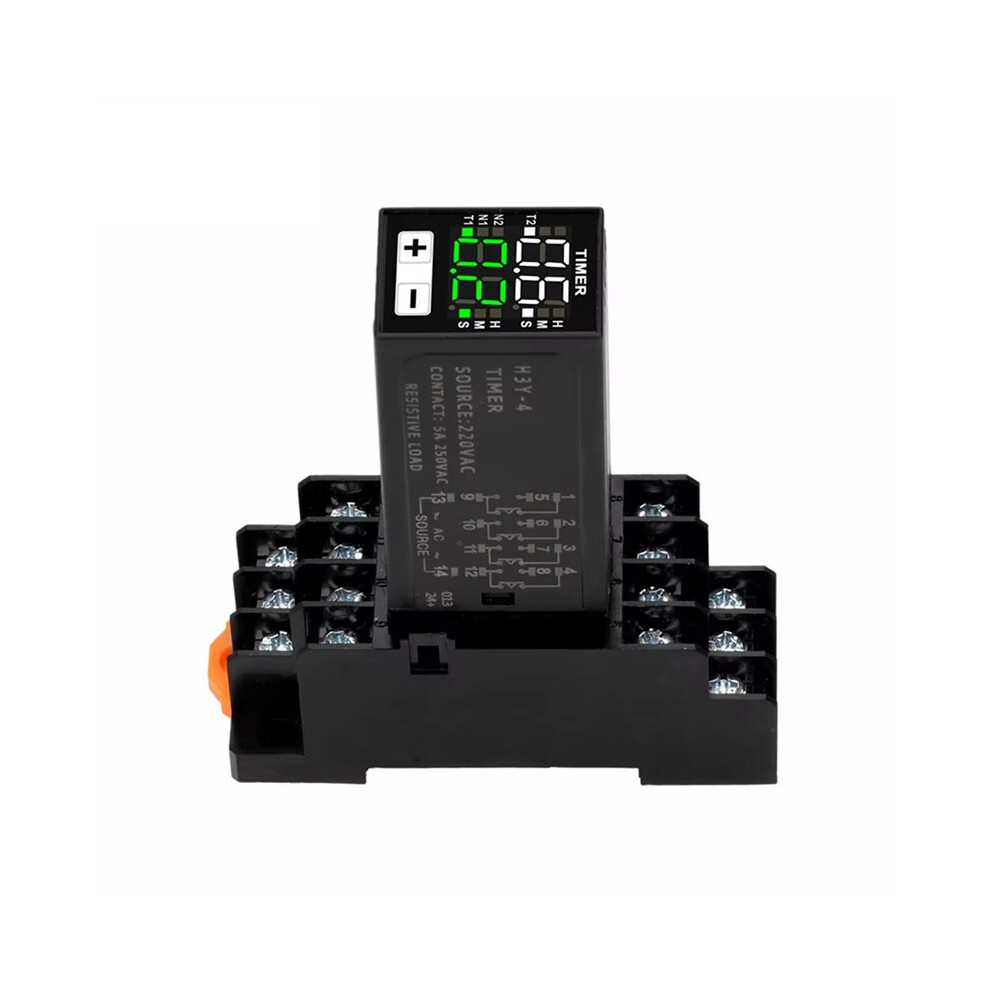

Installation method: matching PYF-14A base installation type
Setup instructions
Mode description: N1 mode is power- delay, N2 is delayed release, T1 and T2 are cycle delays.
Working mode: long press + and one button for more than 3 seconds, click one button to change the working mode
base setting: Press and hold the + key for more than 3 seconds to enter, click the + key to change the specification. Change T2 specification with one click in loop mode
Value setting: the of clicking the + key increases, and the of clicking the one key decreases. In cycle mode, press and hold a button for more than 3 seconds to enter T2 value setting.
Extension instructions: If there is no operation for more than 8 seconds, save the current settings and exi
