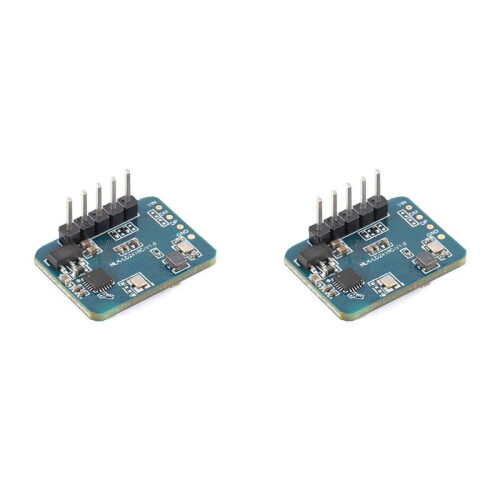

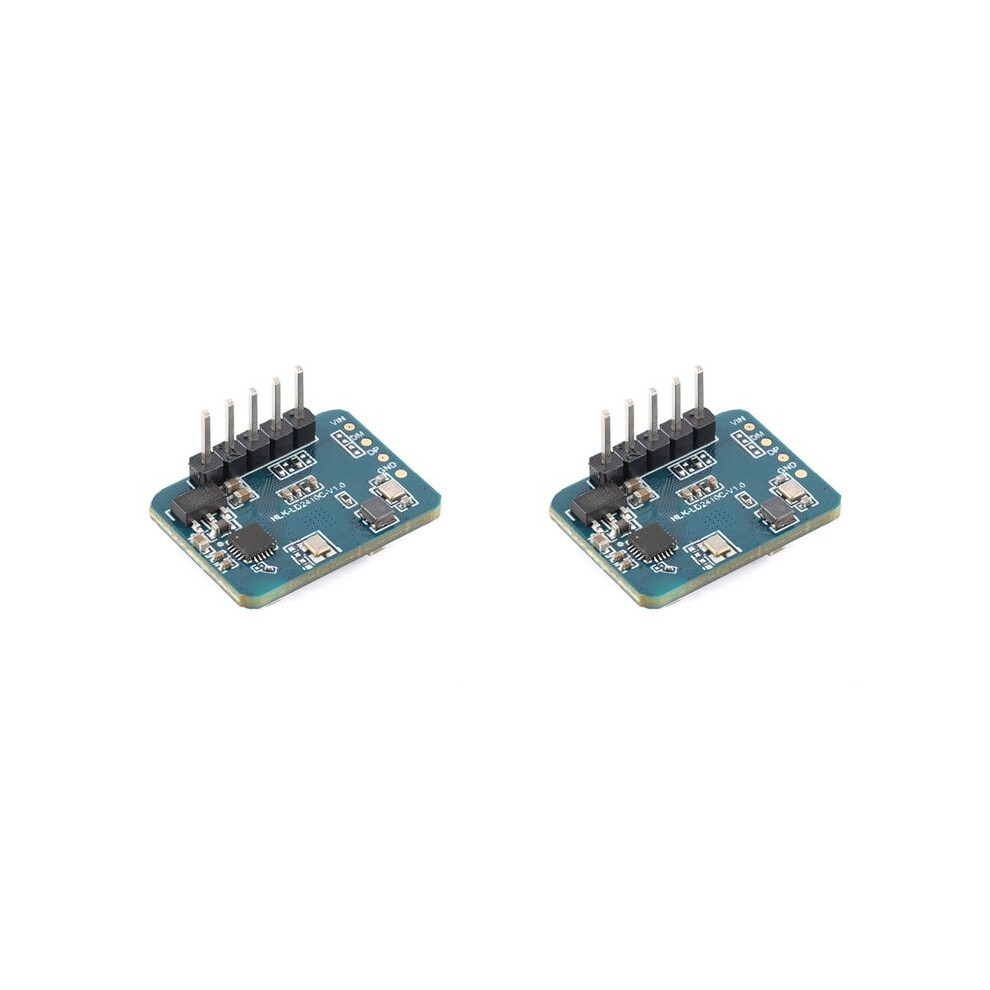

2X LD2410C 5V 24G Human Presence Status Sensor Millimeter Wave Sensing Module
På lager
Derfor vil du elske at handle hos OnBuy:
- Tjen Cashback på hvert køb – brug det med det samme på din næste ordre
- Gratis levering – på millioner af varer på siden
- Kunder elsker os – 126,000 anmeldelser med vurderingen “Fremragende”
Priserne for varer, der sælges af OnBuy, inkluderer moms.
Rentefrie betalingsmuligheder
Se fuld produktbeskrivelse og detaljer
Levering: Standard (Gratis) | tir. 23. - lør. 27. jun.
Solgt af: LLhappy
Returnering: 30 dage
180 dages betalingsbeskyttelse
Mest populære i Temperaturfølere til biler
Oversigt
- LD2410C is a highly sensitive 24GHz human body presence sensing module. The working principle is to use FMCW frequency modulated continuous wave to detect human targets in a set space.
- Combined with the precise human body sensing algorithm of radar signal processing, it can achieve high-sensitivity human presence state sensing, and can identify human bodies in motion and stationary states, and can Calculate auxiliary information such as the distance to the target.
- The product is mainly used in indoor scenes to sense whether there is movement or micro-movement of the human body in the area and output the results in real time. The longest sensing distance is up to 5 meters, and the distance resolution is 0.75m.
- Provides a visual configuration tool to easily configure the sensing distance range, sensing sensitivity in different intervals, and unattended delay time. Supports GPIO and UART output, plug-and-play, and can be flexibly applied to different smart scenarios and terminal products.
- pulse detection sensor module
2X LD2410C 5V 24G Human Presence Status Sensor Millimeter Wave Sensing Module Beskrivelse
LD2410C is a highly sensitive 24GHz human body presence sensing module. The working principle is to use FMCW frequency modulated continuous wave to detect human targets in a set space.
Combined with the precise human body sensing algorithm of signal processing, it can achieve high-sensitivity human presence state sensing, and can identify human bodies in motion and stationary states, and can Calculate auxiliary information such as the distance to the target.
The product is mainly used in indoor scenes to sense whether there is movement or micro-movement of the human body in the area and output the results in real . The longest sensing distance is to 5 meters, and the distance resolution is 0.75m.
Provides a visual configuration tool to easily configure the sensing distance range, sensing sensitivity in different intervals, and unattended delay . Supports GPIO and UART output, plug-and-, and can be flexibly applied to different scenarios and terminal products.
Colour:As Shown
Material:plastic
Size:Approx. 16mm x 22mm
Package Contents:
2 x LD2410C sensing module
Detaljer
| OPC | PSTVDM9 |
|---|---|
| Mærke | Zandonà |
| Koder | 6031416583737 (EAN) |
Produktdata
| Height | 6cm |
|---|---|
| Width | 5cm |
| Length | 10cm |
| Weight | 0.011kg |
| Colour | As Shown |
| Material | Plastic |
