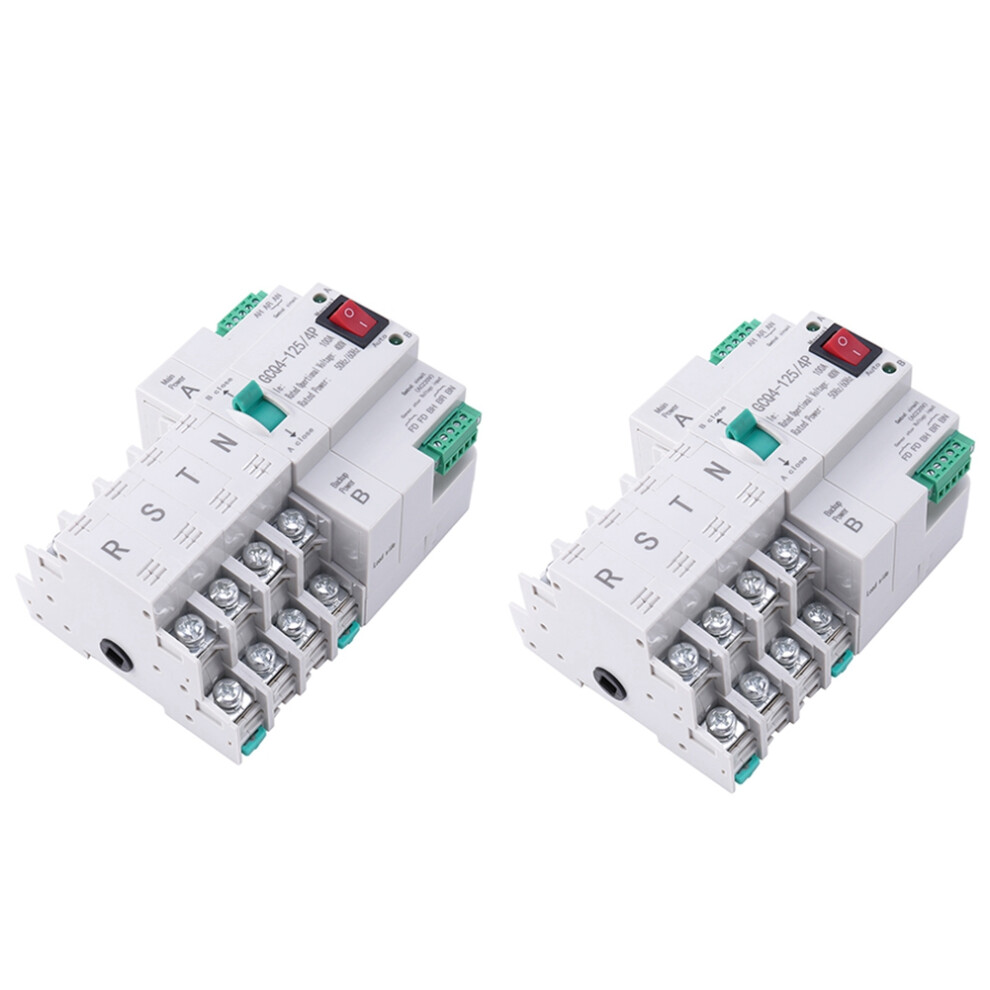

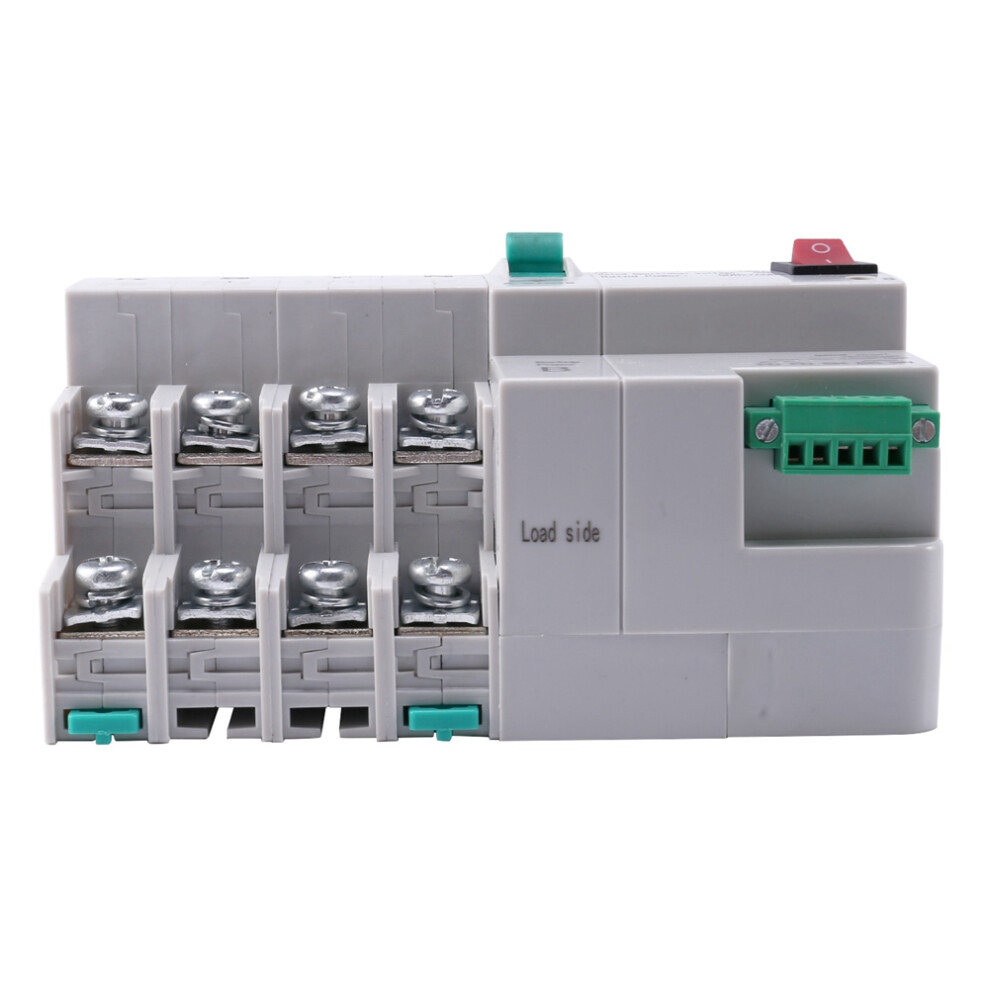

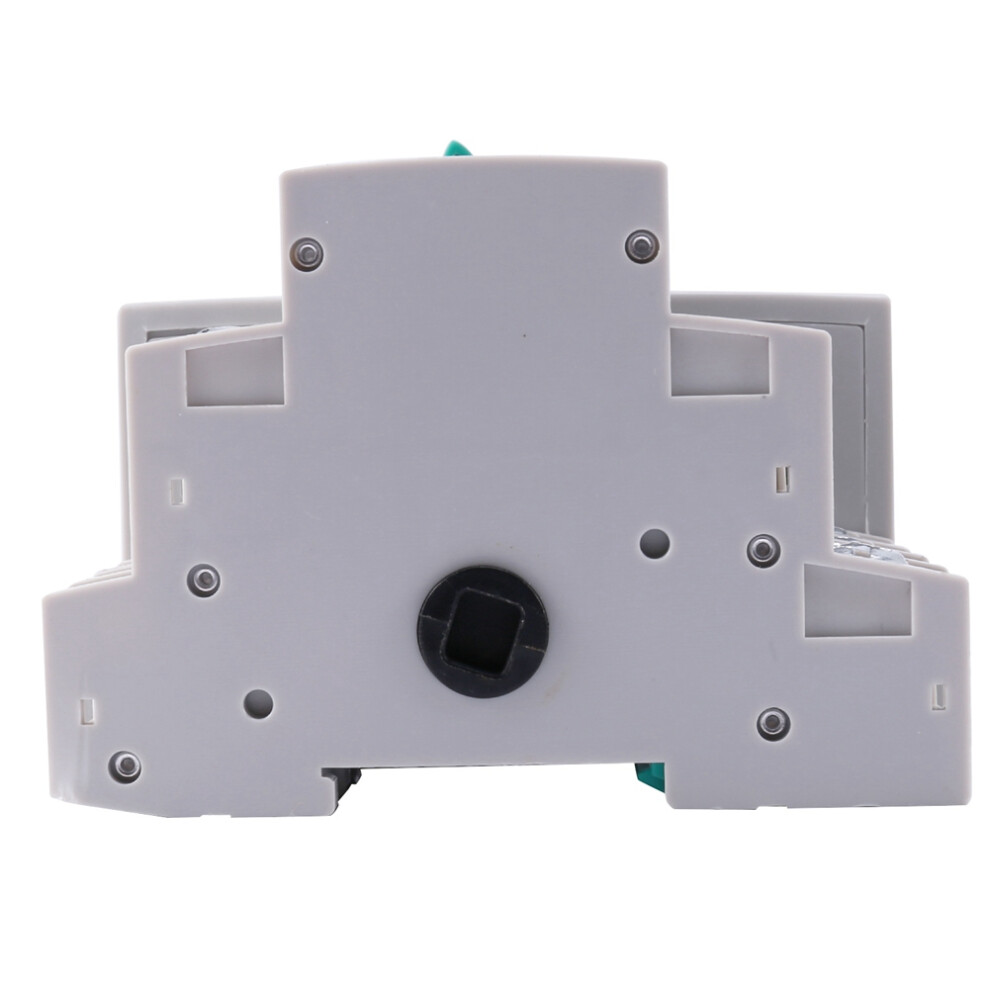

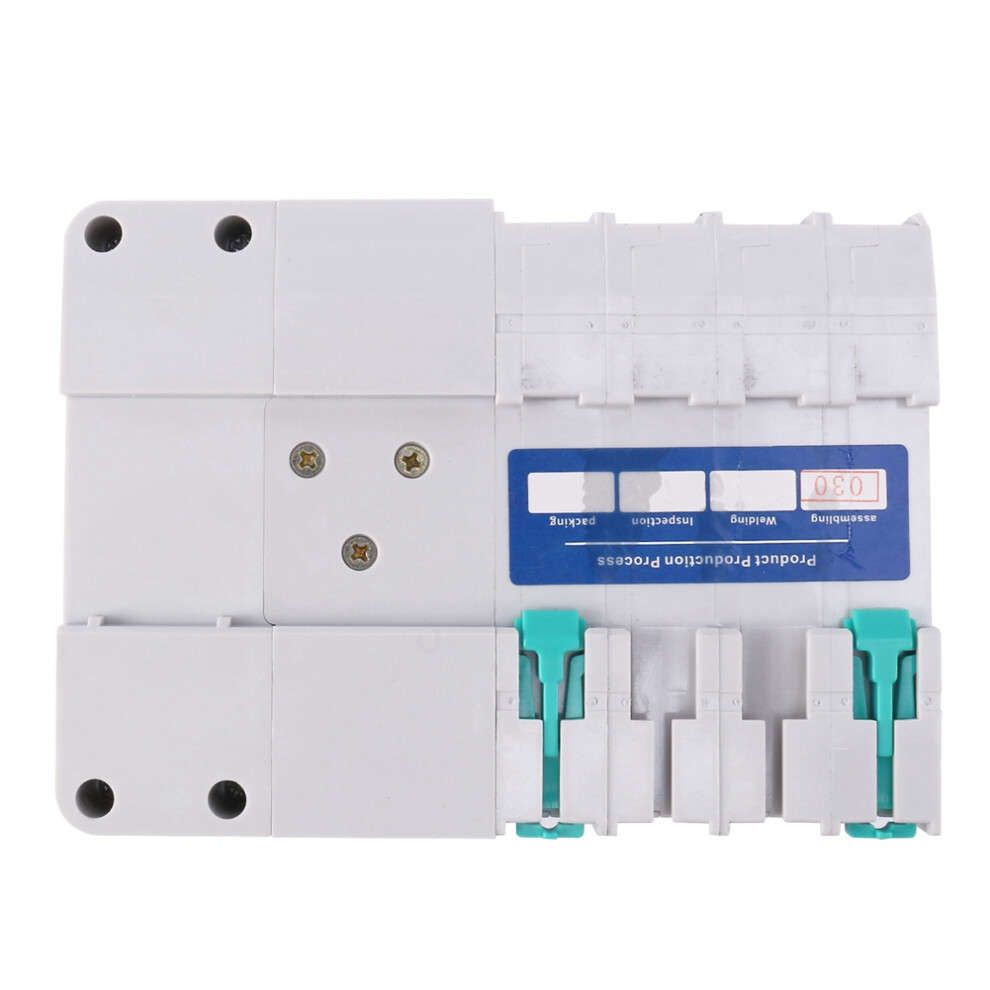

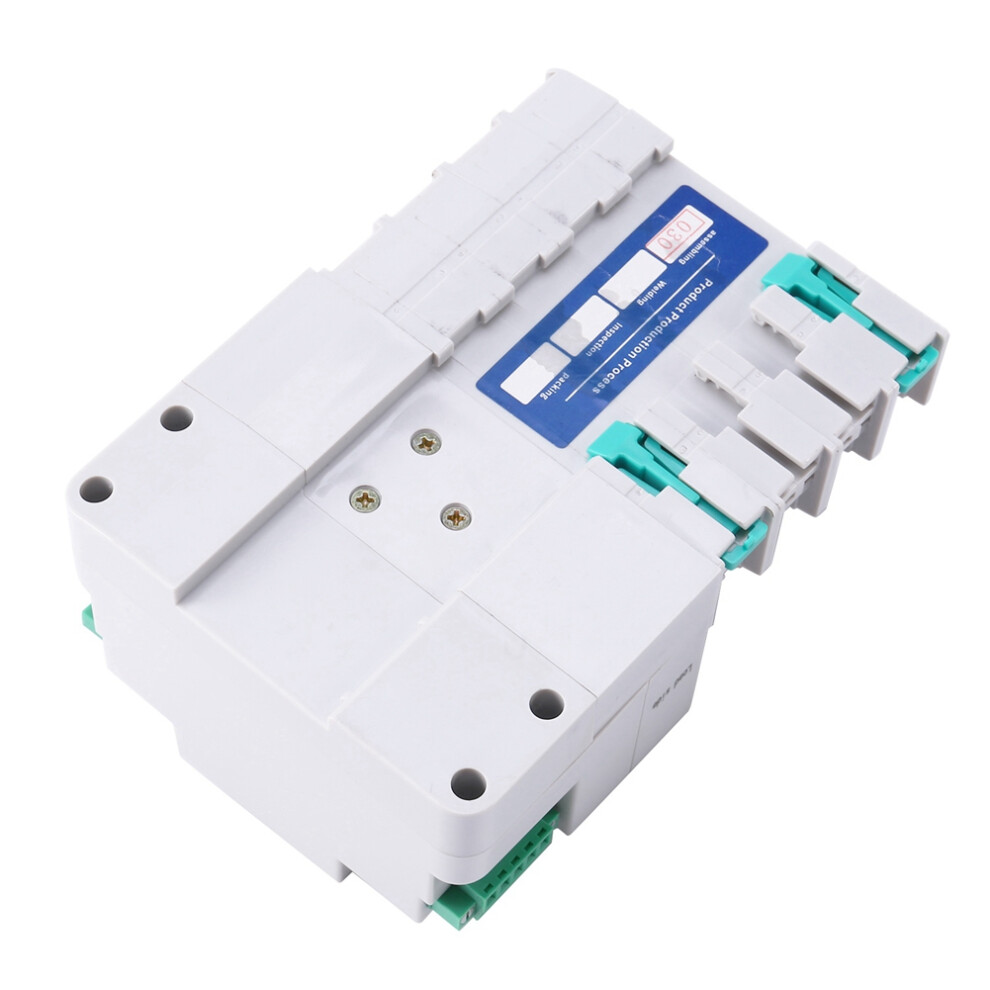

2X MCB Type Dual Power Automatic Transfer 4P 100A ATS Circuit Breaker Electrical

2X MCB Type Dual Power Automatic Transfer 4P 100A ATS Circuit Breaker Electrical Beskrivelse

The dual-power automatic transfer (ATS) is a newly developed miniature household power transfer , is mainly used to test whether the main power or reserve power is normal.
When the normal power supply is abnormal, the reserve power supply will start work immediately to continuity, reliability and safety of the power supply. It is specially designed for household rail installation for PZ30 distribution box.
The ATS is suitable for emergency power supply systems of AC50 or 60Hz and rated voltage 400V. It is featured with firm structure, reliable transfer, easy installation and maintenance, and long life, is widely used in places where frequent power outage is not allowed. Both electric and operation and manual operation are available. The ATS is composed of TES and controller.
According to the standard GB/T14048.11 Part 6-1: Multiple function equipment - Transfer switching equipment, we can know that ATS is the most suitable low-voltage switchgear and control device.

Manual/automatic operation:
Excessive silver alloy loss may occur during manual power generation and power down. Therefore, set the selector at the manual position under normal condition, and pull it to the manual position when all power is turned off to check and maintain the operating system and contacts. After the manual operation is completed pull the selector back to the automatic position.
Control circuit:
ATS will be active in an instant. After the conversion is complete, the coils in the control circuit are disconnected by the internal converter. The coil can operate normally with a rated voltage of 80%-110%, and too low voltage may cause the coil to heat or even ignite.
Colour: White
Material: Plastic
Size: 140x103mm

Package Contents:
2 x Power transfer
