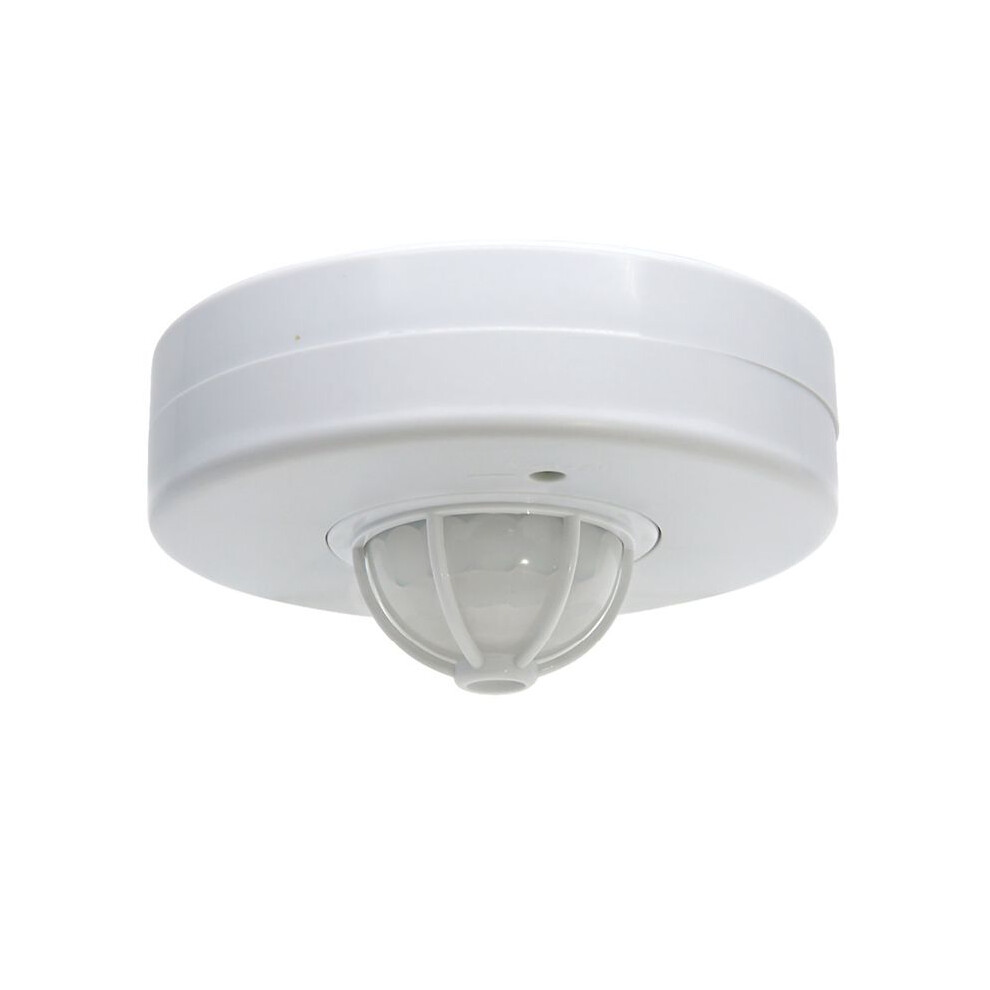

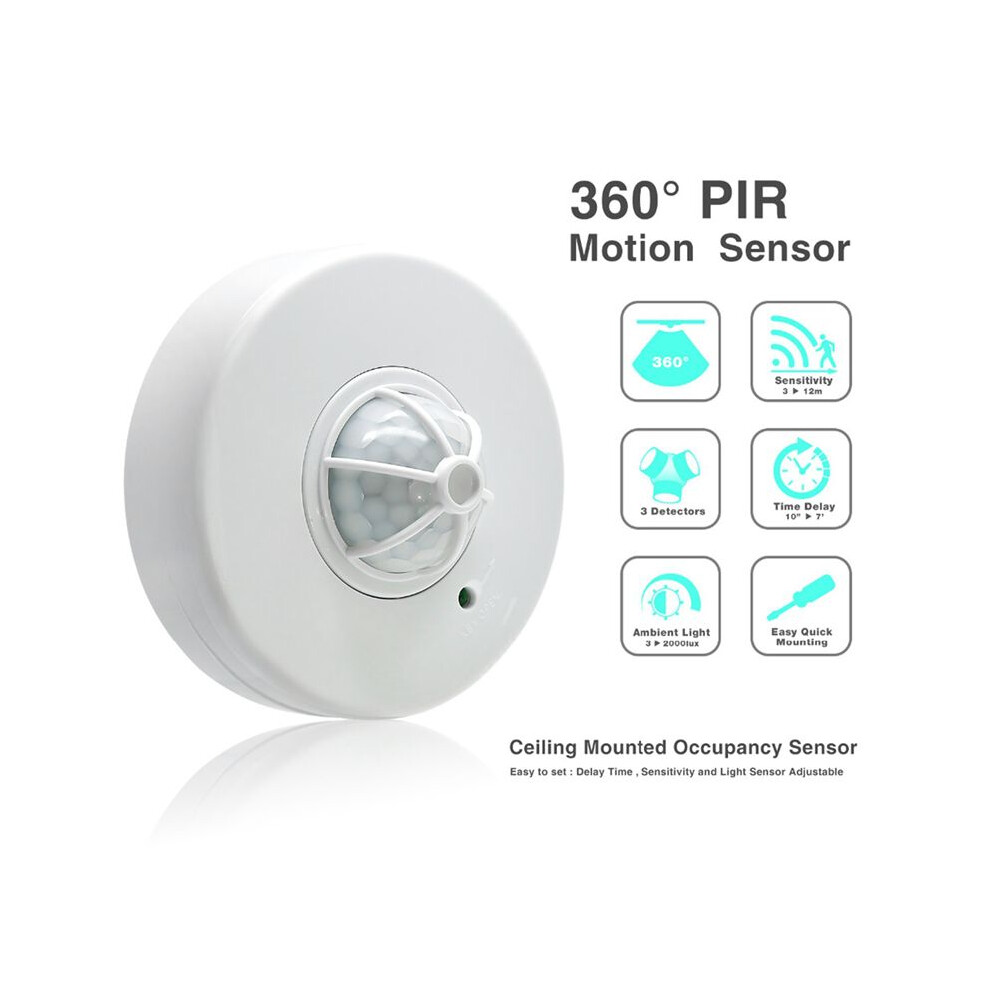

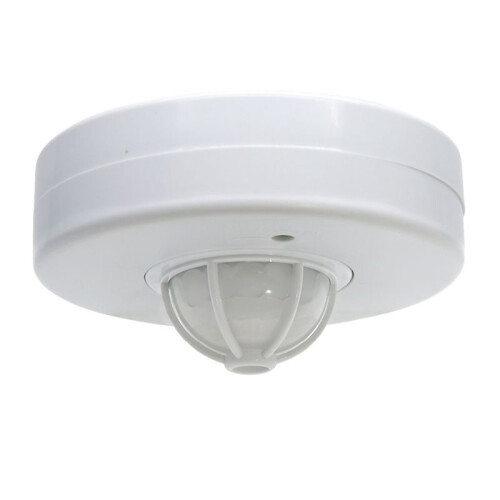

2X Motion Sensor,3 Detectors 360 Degree Ceiling PIR Movement Sensor Light 110-240V for Bathroom

2X Motion Sensor,3 Detectors 360 Degree Ceiling PIR Movement Sensor Light 110-240V for Bathroom Beskrivelse

The product is a new saving- ; it adopts good sensitivity detector, integrated circuit. SMT. It gathers automatism, convenience, safety, saving- and practicality functions. The wide detection field is consist of detectors. It works by receiving human motion infrared rays. When one enters the detection field, it can start the load at once and identify automatically day and night; Its installation is very convenient and Its using is very wide.

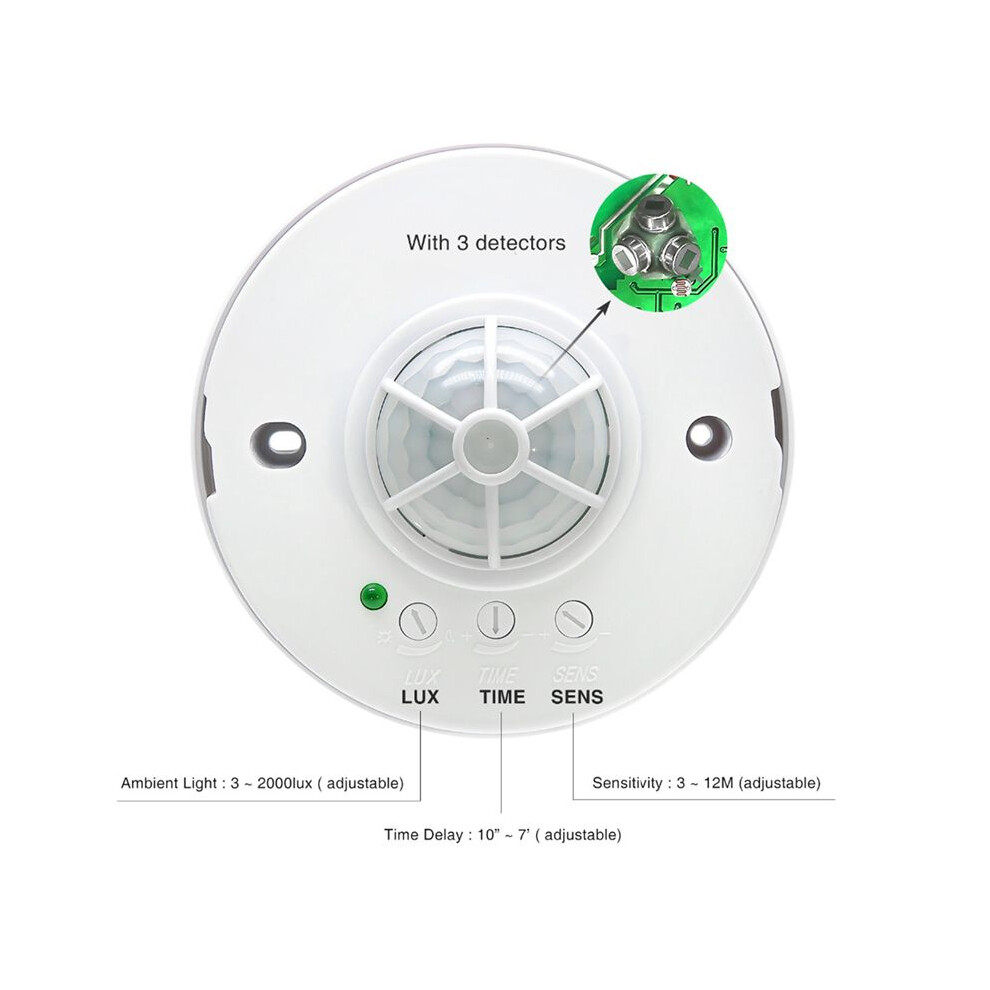

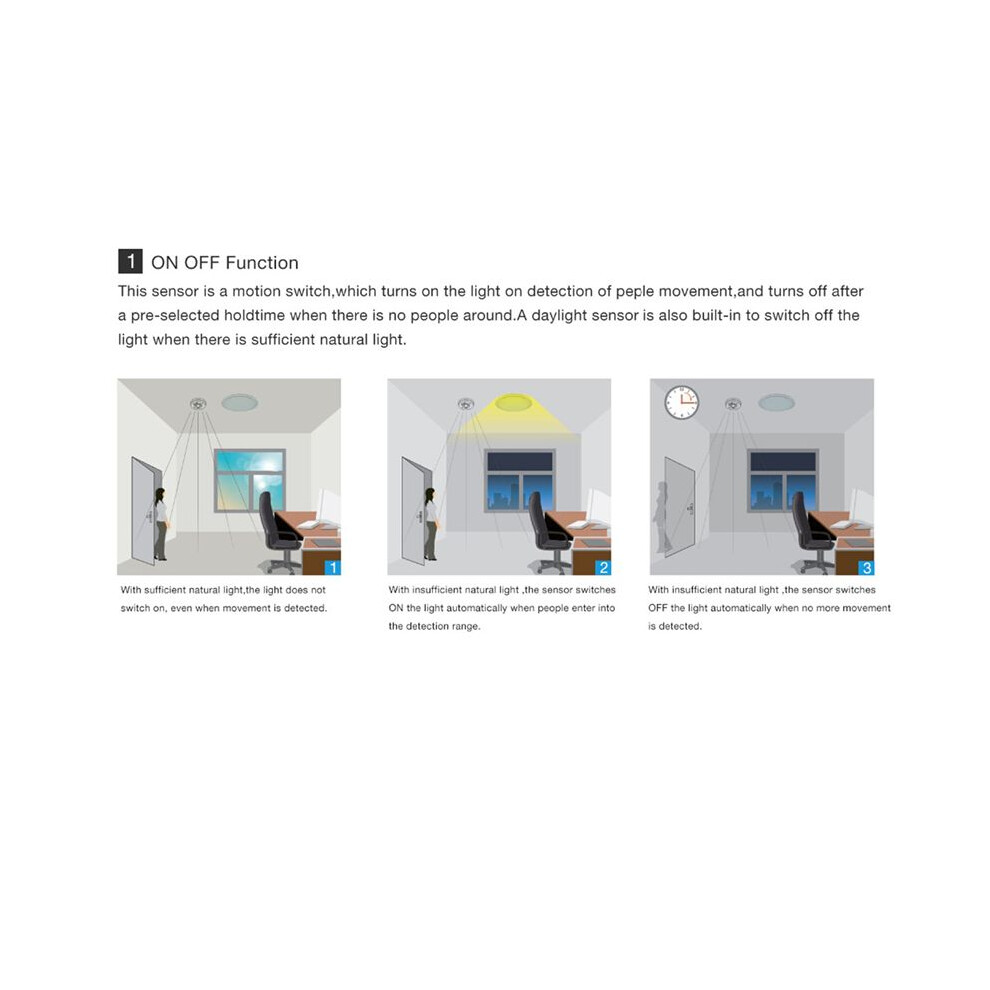

Can identify day and night: The consumer can adjust work ambient light. It can work in the daytime and at night when it is adjusted the "sun" position (max). It can work in the ambient light less than 3LUX when it is adjusted the "moon" position (min). As for the adjustment pattern, please refer to the testing pattern.
SENS adjustable: It can be adjusted according to using location; low sensitivity with 3meter for detection distance;high sensitivity with 6 or 12m, it fits for large room.
-Delay is added continually: When it receives the second induction signals after the first induction, it will compute once more the basic of the first -delay rest.
-Delay is adjustable. It can be set according to the consumer's desire. The minimum is 10sec +/- 3sec. The maximum is 7min +/- 2min.

INSTALLATIION
off the power.
Please moving the upper cover with anti-clockwise whirl as per the diagram in the crust.
Fix the bottom the selected position with the inflated screw.

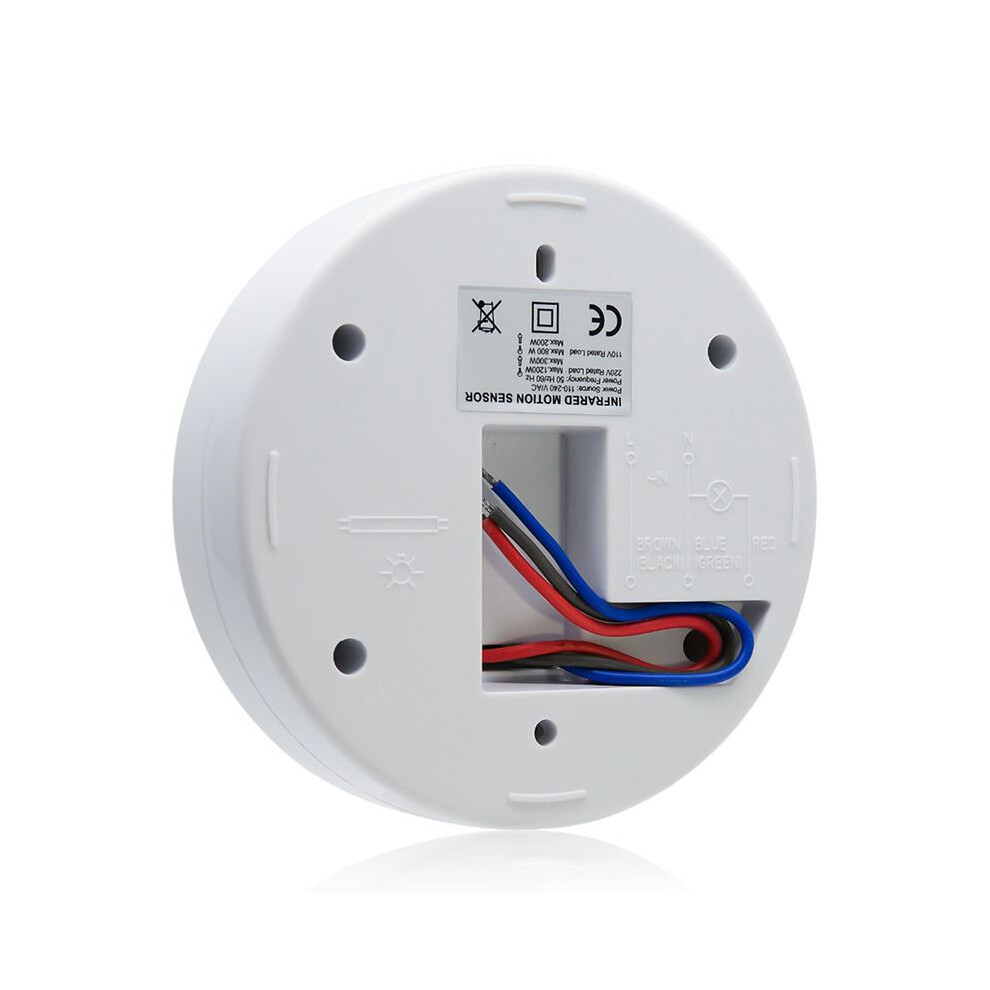

Connecting the power and the load to sensor as per the connection-wire sketch diagram.
Buttoning the upper cover the sensor, whirling the cover with clockwise when LED light bare, then you could the power and test it.
Model No.: ET036B
Power Sourcing: 110V/AC-240V/AC
Detection Range: 360 degree
Detection Distance: 3~12m
Working H
