2X Solar Tracker Dual Axis Controller Solar Automatic Tracking System Two-Degree-Of-Freedom Platform Tracking

2X Solar Tracker Dual Axis Controller Solar Automatic Tracking System Two-Degree-Of-Freedom Platform Tracking Beskrivelse

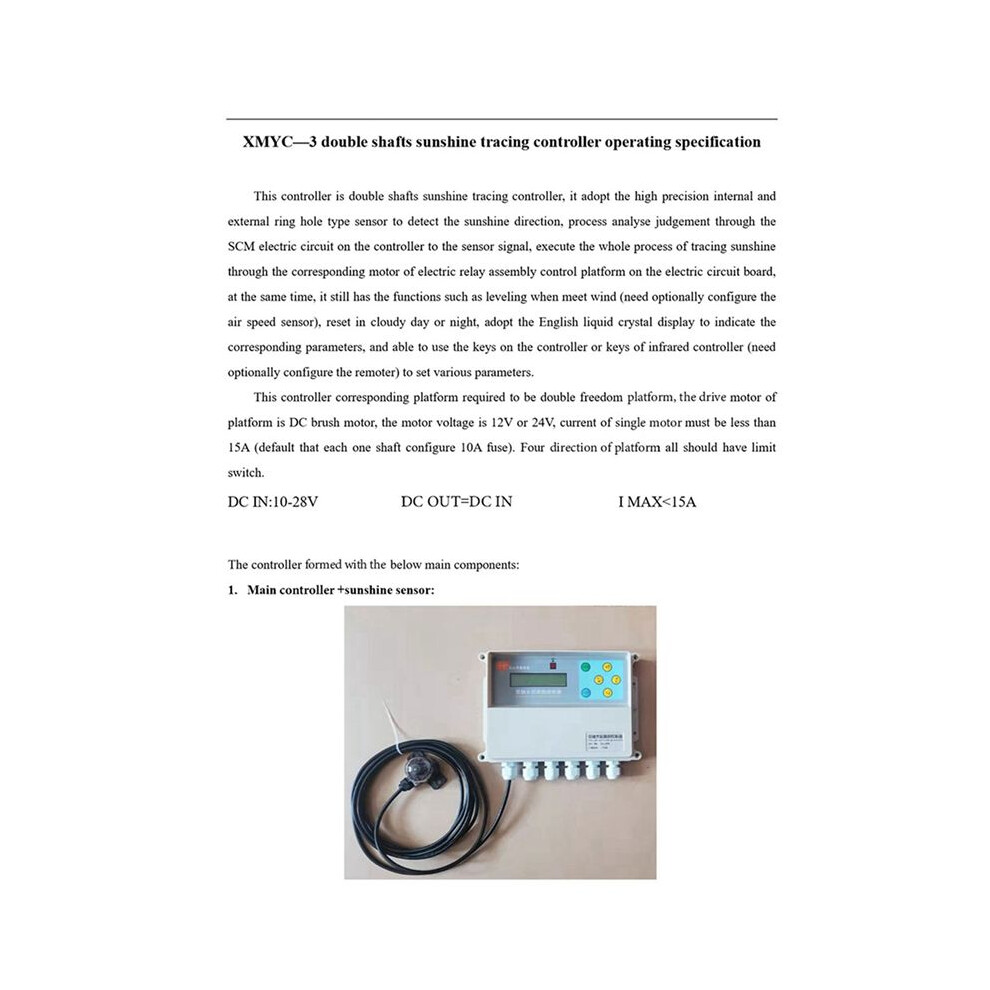

This controller is double shafts sunshine tracing controller, it adopt the high precision internal and external ring hole type sensor to detect the sunshine direction, process analyse judgement through the SCM electric circuit the controller to the sensor signal, execute the whole process of tracing sunshine through the corresponding motor of electric relay assembly control platform the electric circuit board.

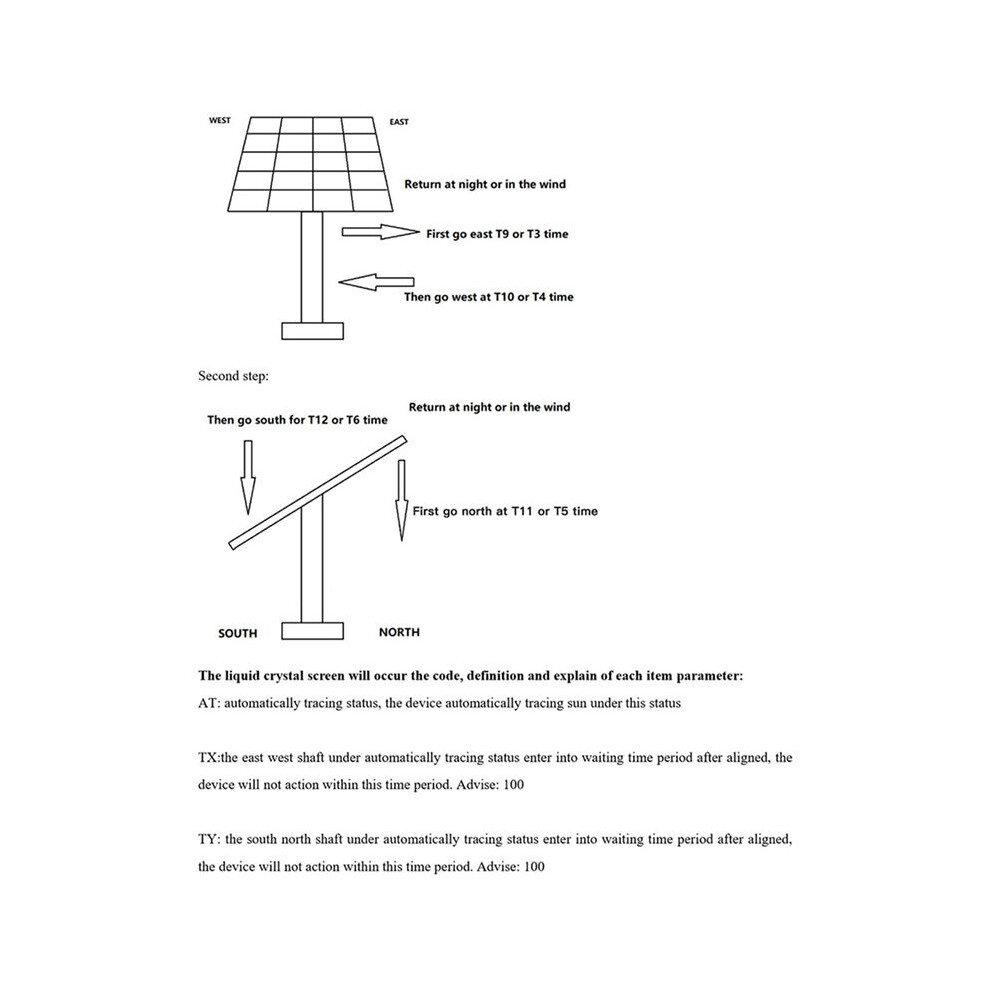

At the same , it still has the functions such as leveling when meet wind (need optionally configure the air speed sensor), reset in cloudy day or night, adopt the English liquid crystal display to indicate the corresponding parameters, and able to use the keys the controller or keys of infrared controller (need optionally configure the remoter) to set various parameters.
This controller corresponding platform required to be double freedom platform, the drive motor of platform is brush motor, the motor voltage is 12V or 24V, current of single motor must be less than 15A (default that each one shaft configure 10A fuse). Four direction of platform all should have limit .

Material: plastic
colour: white + black

Package Contents:
2 x Main Controller
2 x Remote Control
2 x Wind Speed Sensor
