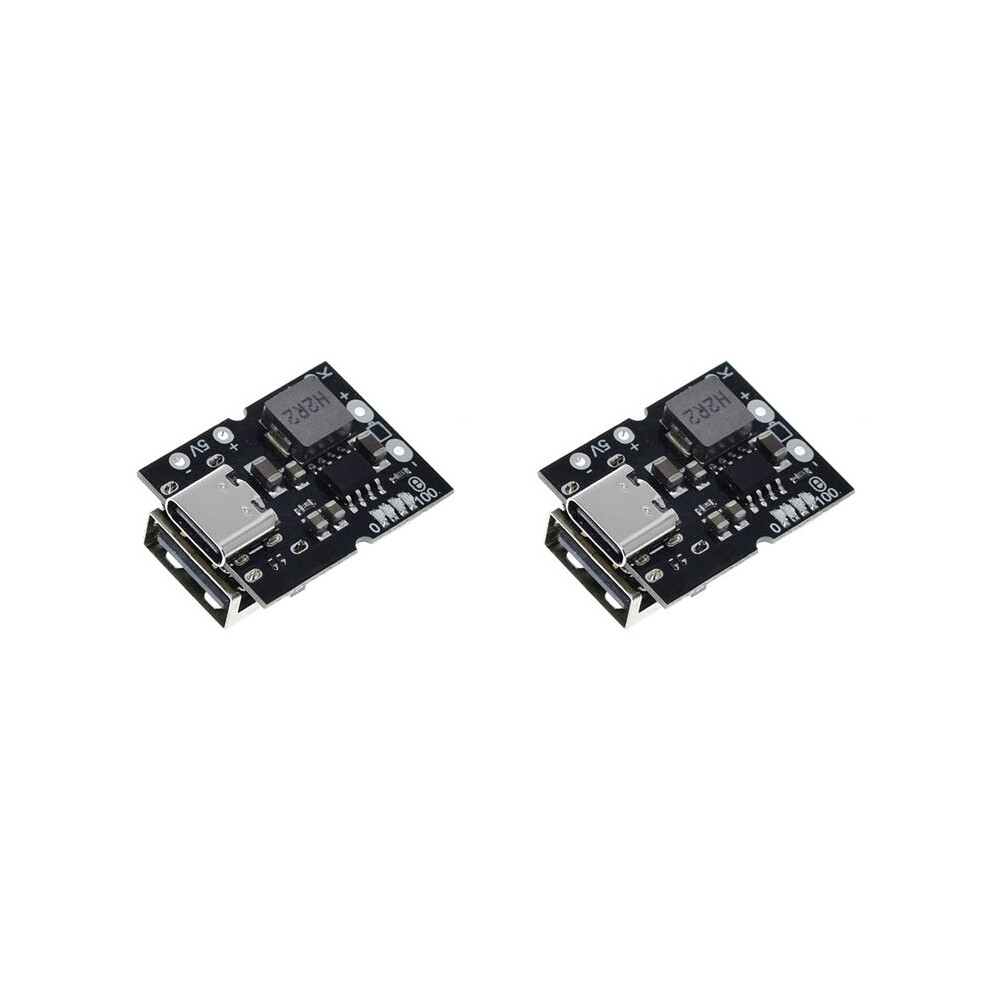

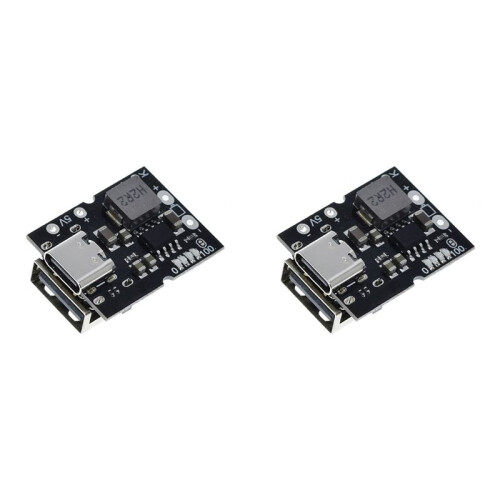

2X Type-C USB 5V 2A Boost Converter Step- Power Module Lithium Battery Charging Protection Board,with Welding
Brand Torribaly
Ny
På lager
Derfor vil du elske at handle hos OnBuy:
- Tjen Cashback på hvert køb – brug det med det samme på din næste ordre
- Gratis levering – på millioner af varer på siden
- Kunder elsker os – 127,000 anmeldelser med vurderingen “Fremragende”
64,53 kr.
76,82 kr.
Spar 16%!
+11,19 kr. levering
1%
Tjen 0,65 kr. med det samme
Læs mere
Priserne for varer, der sælges af OnBuy, inkluderer moms.
Rentefrie betalingsmuligheder
Se fuld produktbeskrivelse og detaljer
Levering: Standard (11,19 kr.) | fre. 3. - ons. 8. jul.
Returnering: 30 dage
180 dages betalingsbeskyttelse
Mest populære i Hardware til printkort
Beskrivelse og detaljer
Oversigt
- When the load current is less than 50mA continuously, the output will be turned off.

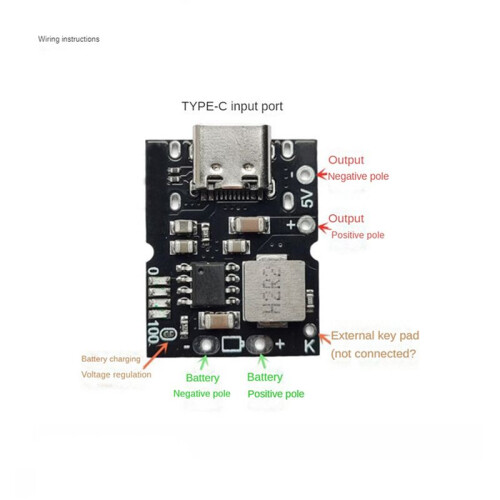

- It supports the external key, which is connected to the K point and the output negative pole. Short press to turn on the power display and turn on the 5V output. Two consecutive short presses will turn off the power display and turn off the 5V output.
- When the charging current drops to 100mA after reaching the final floating charging voltage, the charging cycle will be automatically terminated.
- When the battery voltage drops below 4.1V, the charging cycle starts again.
- When the battery voltage is lower than 2.8V, the battery will be pre charged with a current of 180mA.
2X Type-C USB 5V 2A Boost Converter Step- Power Module Lithium Battery Charging Protection Board,with Welding Beskrivelse
When the load current is less than 50mA continuously, the output will be turned off.
It supports the external key, which is connected to the K point and the output negative pole. Short press to turn the power display and turn the 5V output. Two consecutive short presses will turn off the power display and turn off the 5V output.
When the charging current drops to 100mA after reaching the final floating charging voltage, the charging cycle will be automatically terminated.
When the battery voltage drops below 4.1V, the charging cycle starts again.
When the battery voltage is lower than 2.8V, the battery will be pre charged with a current of 180mA.
Type-C input, high accuracy of charging voltage.
It supports discharging while charging.
Note: power off operation is required to adjust the charging voltage setting
Input voltage range: 5 - 5.5V
Charging cut-off voltage: (4.2v/4.35v) 0.5%
Charging current: 2.4a 5%
Boost output voltage: 5V - 5.15v ( loss compensation)
Boost output voltage ripple: 100mV
Boost output current: 2A
Boost conversion efficiency: 92.5% (3.6V input, 5v2a output)
Static current at battery end: Less than 30uA
Version: With Welding
Colour: Black
Material: PCB+electronic components
Package Contents:
2 x 5V 2A Charge-discharge Integrated Module
Detaljer
| OPC | PTNNDWH |
|---|---|
| Mærke | Torribaly |
| Koder | 6031820772574 (EAN) |
Produktdata
| Height | 4cm |
|---|---|
| Width | 4cm |
| Length | 5cm |
| Weight | 0.011kg |
| Colour | Black |
| Size | With Welding |
| Material | PCB+electronic components |
