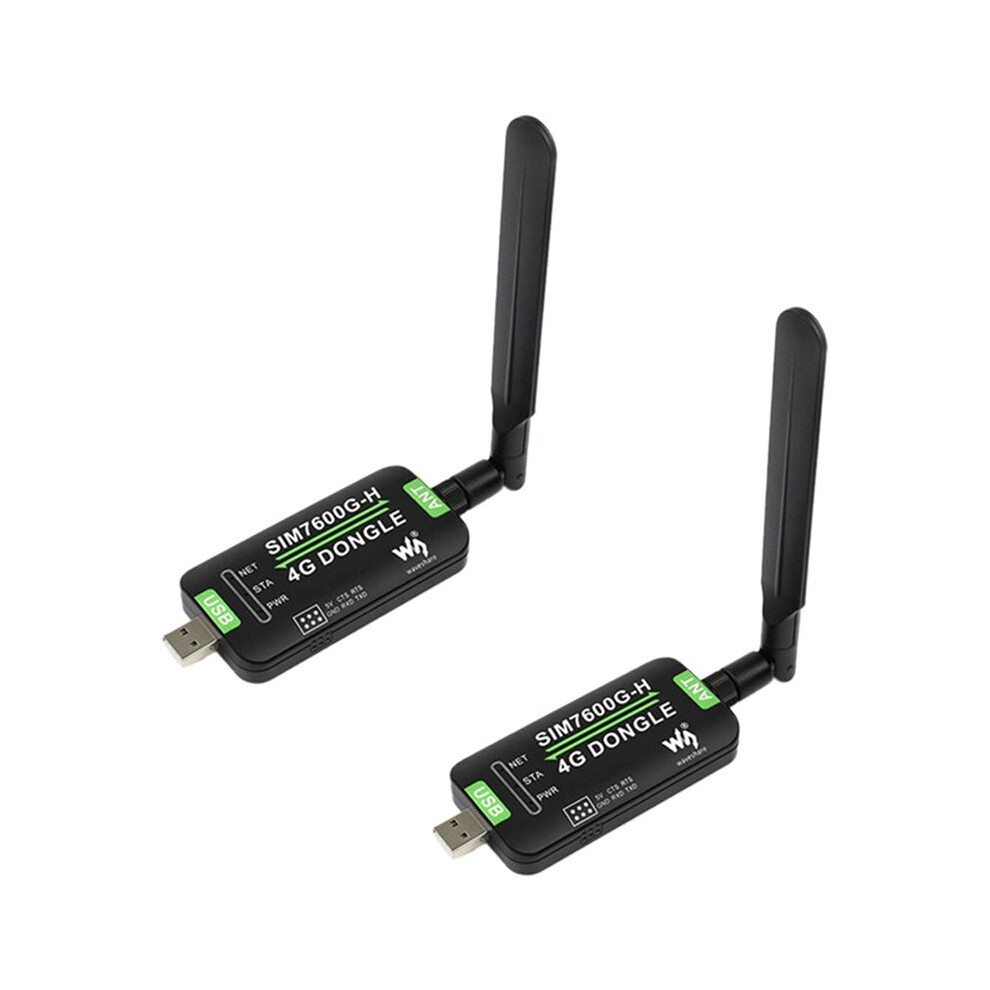

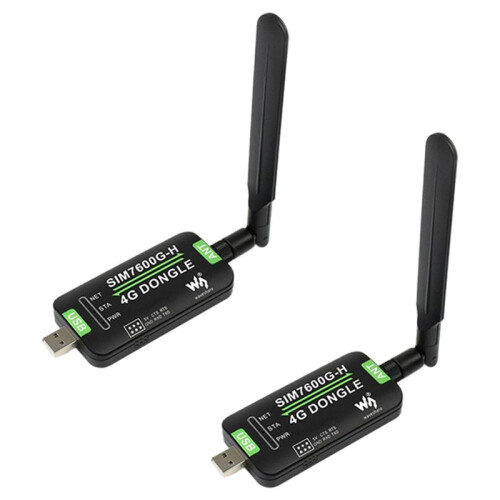

2X Waveshare SIM7600G-H 4G DONGLE Module An Internet Access Module for Raspberry Pi GNSS Global Communication

2X Waveshare SIM7600G-H 4G DONGLE Module An Internet Access Module for Raspberry Pi GNSS Global Communication Beskrivelse

1. Support 2G/3G4G network, universal, support 2G/3G4G communication network of global frequency band. 2. Provide drivers, applicable to operating systems such as Windows/Linux/Android.

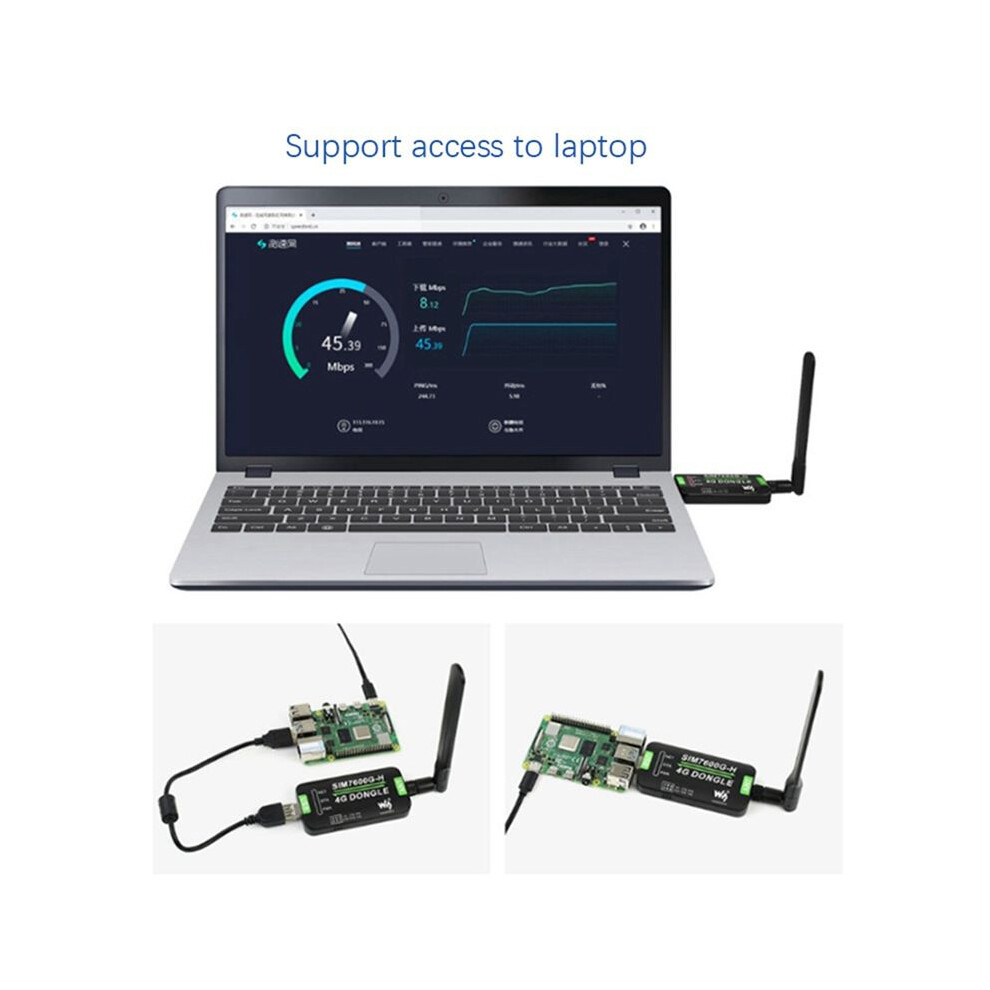

3. Support TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTPS/DNS and other communication protocols. 4. The onboard USB interface is convenient for direct access to mainstream ARM, X86 motherboards or other industrial computers for networking.
5. Onboard UART interface, with hardware flow control, easy to connect to for /STM32 and other main control boards. 6. Onboard GNSS interface, support GPS, Beidou, Glonass, LBS base station positioning.

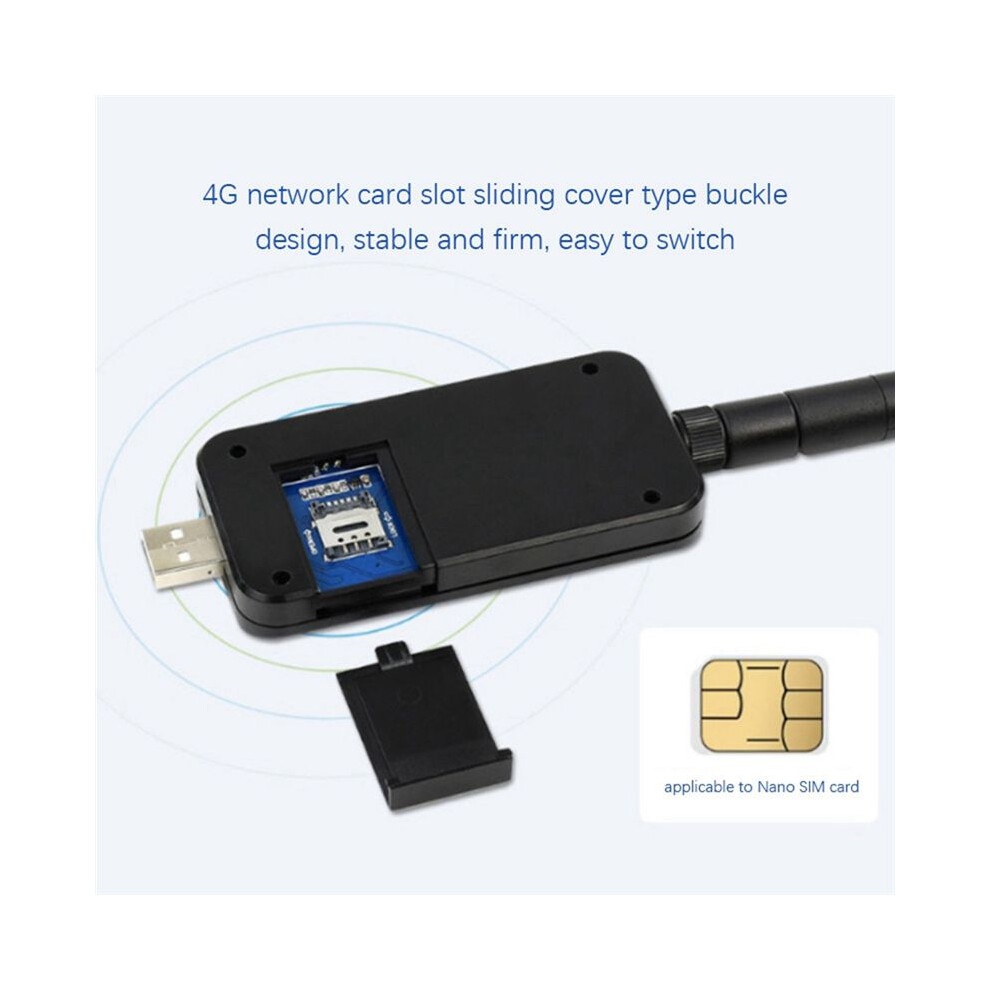

7. Onboard SIM card slot, support 1.8V and 3V SIM card. 8. There are 3 LED indicators board, which is convenient to check the running status of the module.
9. Matching shell, small size, beautiful and durable, easy to carry. 10. Support automatic identification of baud rate (9600bps~115200bps)

Product model: SIM7600G-H
Working frequency:
LTE Cat-4/ LTE Cat-1: LTE-TDD: B34/B38/B39/B40/B41
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B8/B19/B20/B25/B26B28/B66
3G: UMTS/HSDPA/HSPA+: B1/B2/B4/B5/B6/B8/B19
2G: GSM/GPRS/: 850/900/1800/1900MHz
GNSS: Support GPS, Beidou, Glonass, LBS base station positioning
Applicable area: global
Data transmission:
LTE Cat-4: 150Mbps(DL)/50Mbps(UL)
3G (HSPA+): 42Mbps(DL)/5.76Mbps(UL)
2G(): 236.8Kbps(DL)/236.8Kbps(UL)
2G(GPRS): 85.6Kbps(DL)/85.6Kbps(UL)
Software function
Operating system: Windows/Linux/Android
Communication protocol: TCP/IP/IPV4/IPV6/MULTI-PDP/FTP/FTPS/HTTP/HTTPS/DNS
Internet access: NDIS/RNDIS/PPP
Short Message (SMS): Support MT, MO, CB, Text, PDU
Hardware description
Communication interface: U58/UART
UAR communication baud rate: 300bps-4Mbps (the default is 115200bps)
