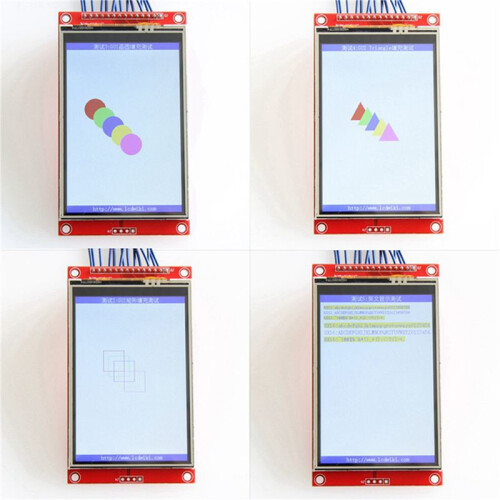

3 Pcs 3.5 Inch 480X320 SPI Serial TFT LCD Module Display Screen with Press Panel Driver IC ILI9488 for MCU

3 Pcs 3.5 Inch 480X320 SPI Serial TFT LCD Module Display Screen with Press Panel Driver IC ILI9488 for MCU Beskrivelse

Product Description:
3.5-inch color screen,support 65K color display,display rich colors
480X320 resolution, Press function
color: red
Material: metal + pc

Using the SPI serial bus, it only takes a few IOs to illuminate the display
Easy to expand the experiment with card slot
Provide a rich sample program
process standards, long-term stable work
Provide underlying driver technical support
Product Parameters:
Name : Parameter
Display Color : RGB 65K color
SKU : have Press screen: MSP3520
Screen Size: 3.5(inch)
Type: TFT
Driver IC : ILI9488
Resolution: 480*320 (Pixel)
Module Interface: 4-wire SPI interface
Active Area (AA area): 48.96x73.44(mm)
Module PCB Size: 56.34x98(mm)
Operating Temperature: -20~60
Storage Temperature: -30~70
VCC power voltage : 3.3V~5V
Logic IO port voltage: 3.3V(TTL)
Power Consumption: TBD
Rough Weight(Package containing) With touch: 57 (g)

Package Contents:3 * 3.5 inch 480*320 SPI Serial TFT LCD Module
