3PCS Mhz Superheterodyne RF Receiver and Transmitter Module for Wireless Module Kit 433Mhz Remote Control

3PCS Mhz Superheterodyne RF Receiver and Transmitter Module for Wireless Module Kit 433Mhz Remote Control Beskrivelse

Description: 1.Support ASK / OOK modulation, receiver sensitivity of -108dBm;
2.Operating frequency: 433.92 MHz, bandwidth of about 150KHz;
3.Mains input voltage range: 2.2V-5V; Working current: Type:2.1mA (Requirement:VDD=5V); Type :2.1mA (Requirement:VDD=3V)
4. Quiescent Current: 1uA
5. Low power consumption;

6. Good selectivity and spurious radiation suppression, and easy to pass CE / Fcc international certification;
7. Good local oscillator radiation suppression, receiver module to work with (ie, more than single income) and will not interfere with each other, used together without affecting receiving distance;
8. transmission rates, the general module for 2KHz, to 10KHz;
9. Temperature range: -40-85 C
10. Oltra-small size of 30*9 (mm) (can be customized according to customer)
11.External antenna: 32CM single core wire, wound into a spiral.
Specifications:

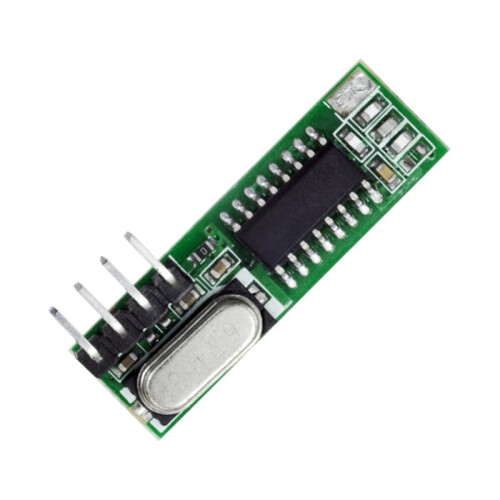

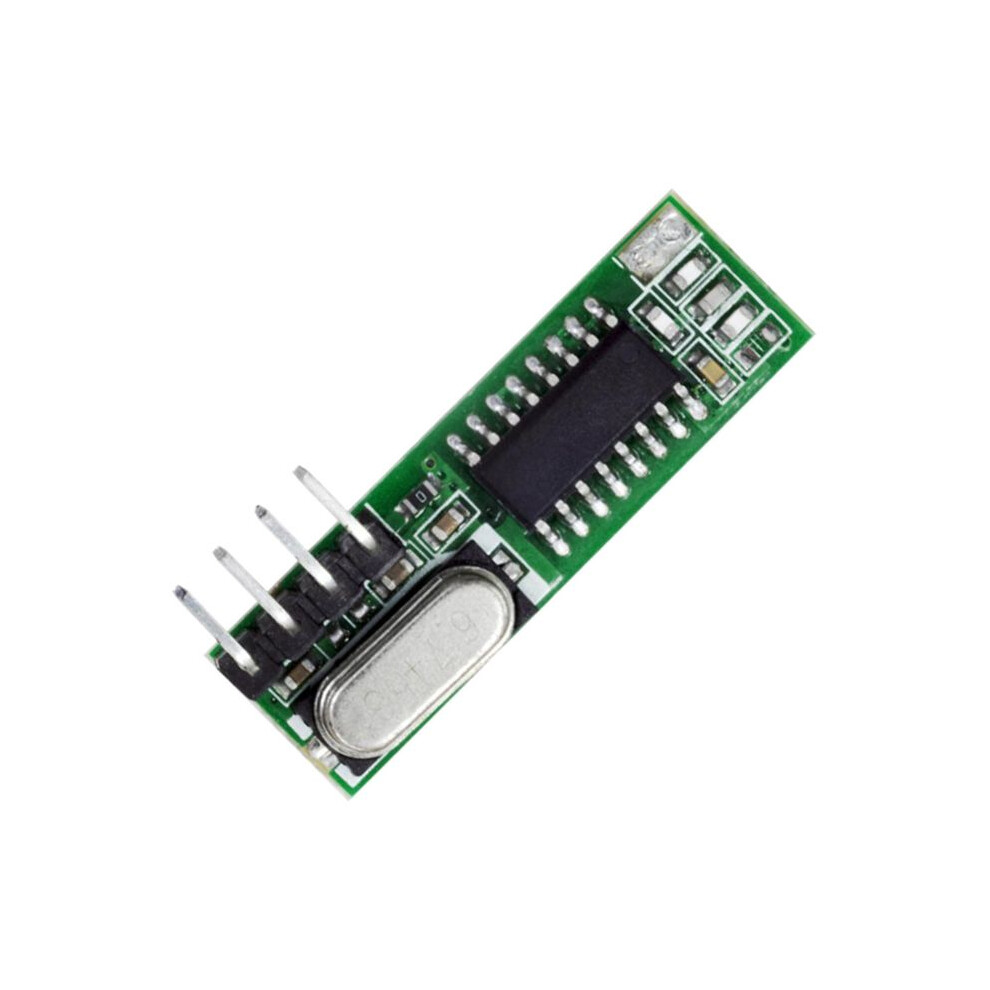

Receiver Module ] Product Model: RX470-4
RX470-4 : superheterodyne wireless receiver module is receiving UHF ASK demodulators support ASK and OOK modulation. The receiver module has high sensitivity (-108dBm),
Low-power performance, along with high dynamic range (greater than 60dB). Module uses highly integrated chip, built front-end low-noise amplifier,Mixers, filters, frequency synthesizer circuit, etc., can maximize the signal optimization.
color: As shown
Material: PCB
size: 30 x 9mm

Package Contents:

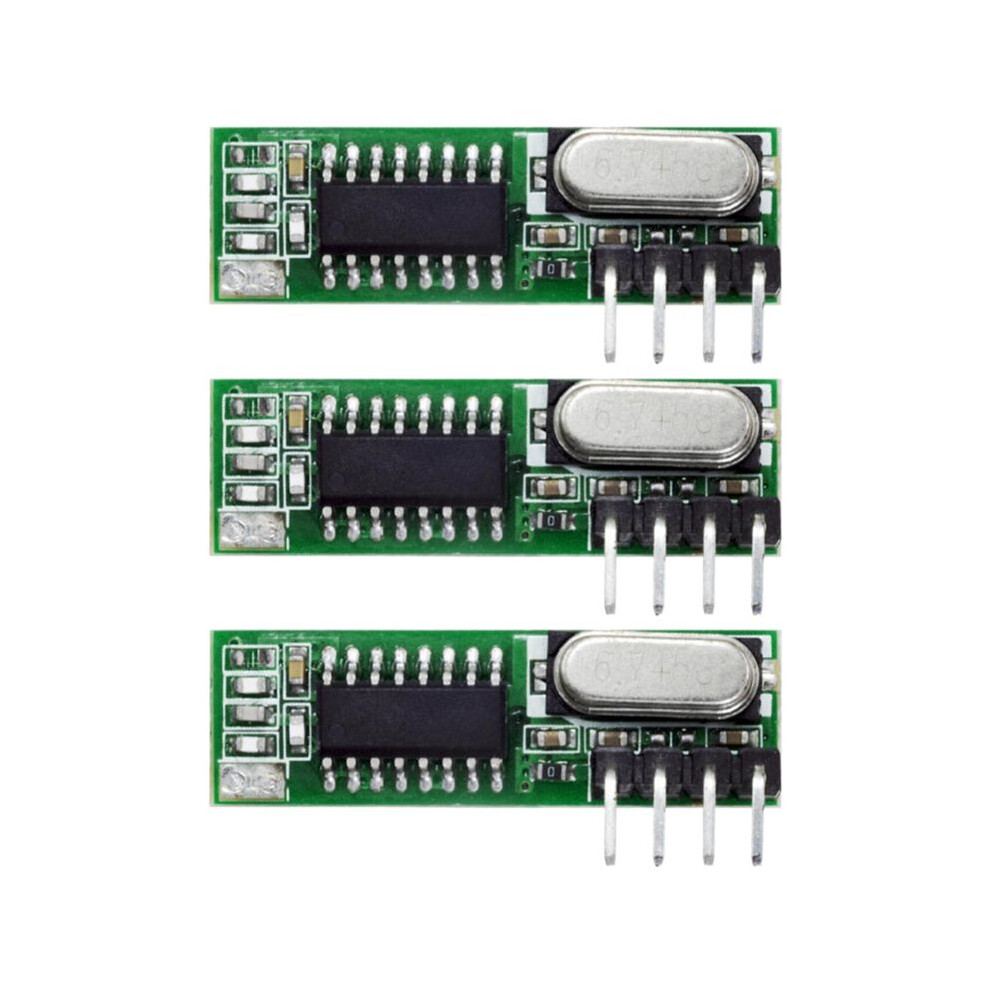

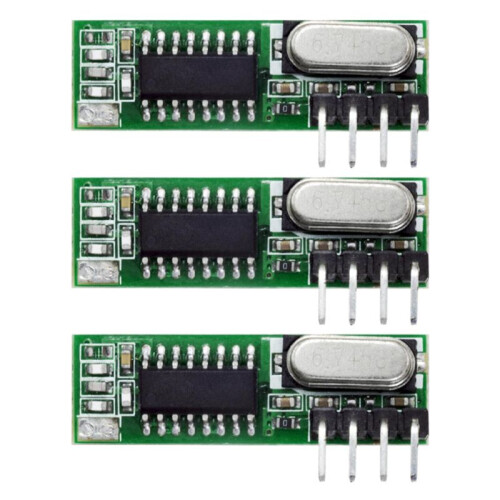

3* 433MhzRX470-4Superheterodyne Receiver Module
