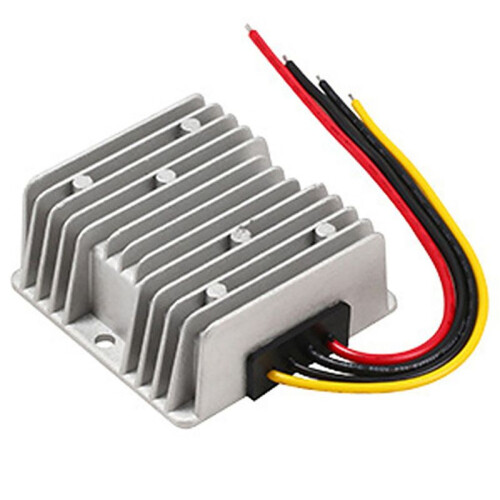

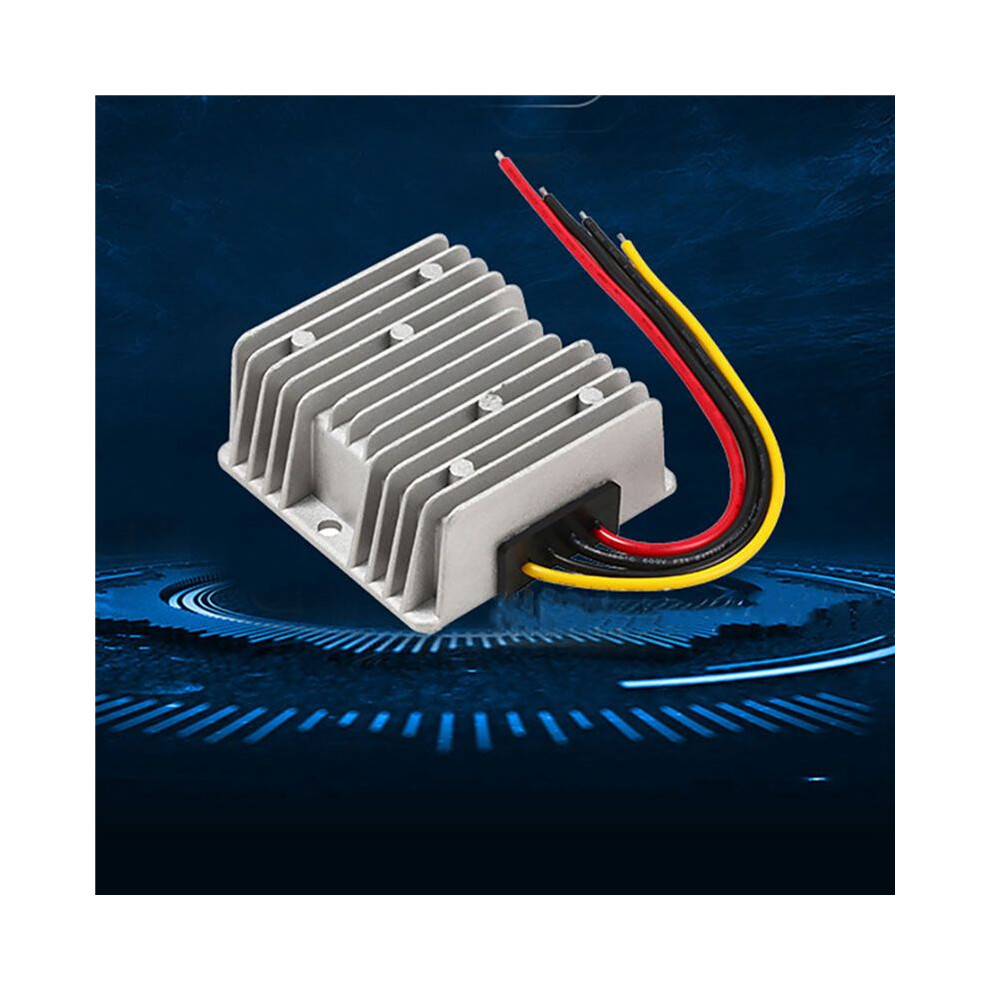

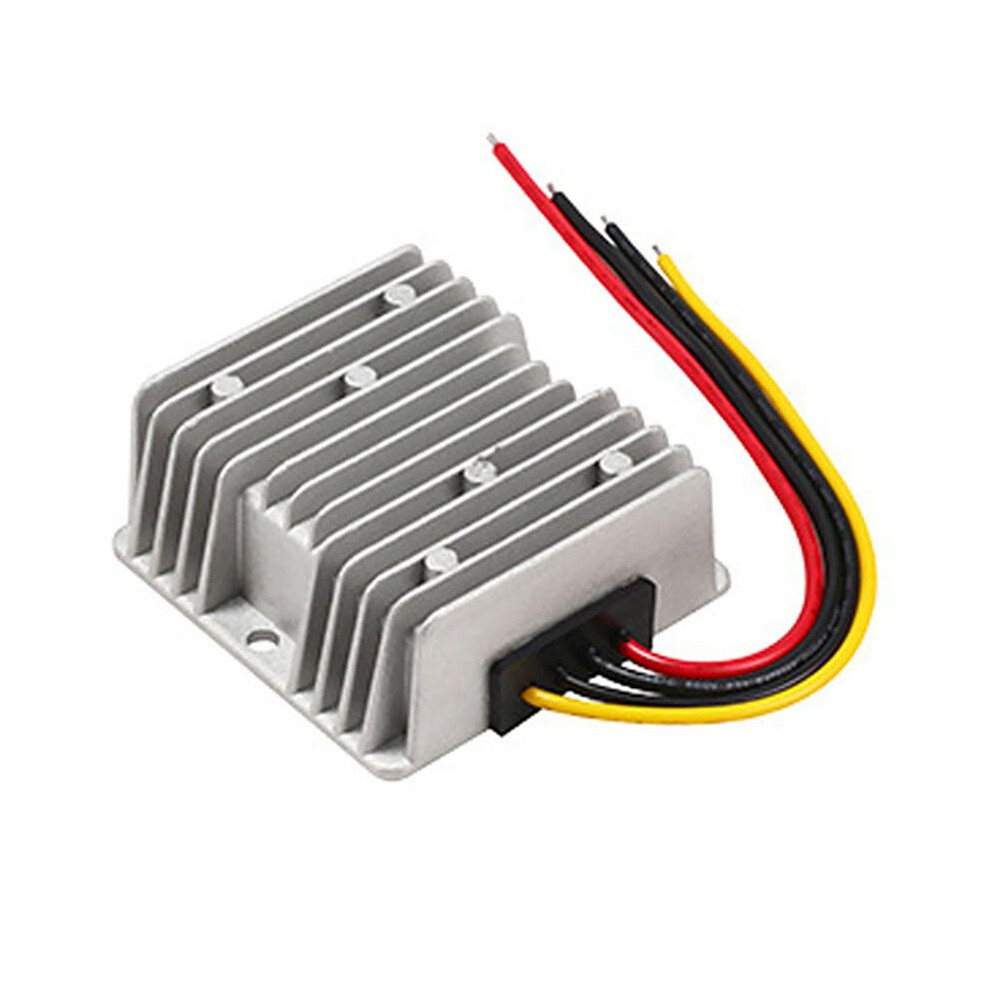

3X 12 / 24V to 48V 5A 240W Voltage Converter Regulator / Boost Transformer Waterproof

3X 12 / 24V to 48V 5A 240W Voltage Converter Regulator / Boost Transformer Waterproof Beskrivelse

Working temperature: -40-+85, humidity: 0-95%RH
Storage temperature: -40-+100, humidity: 0-95%RH
Conforms to waterproof level IPX-7. Water immersion and electrification work experiment, test with load for 60 minutes, analog The block does not have any failures.
Dust-proof test: the module is protected by high-grade silica gel sealing type glue filling to ensure that the internal electronics The components are isolated from the external environment and meet the requirements of dust prevention.

Model: F12S48V5A5L
Typical input voltage: 12V/24V
Input range: 10-30V
Maximum conversion efficiency: over 92%
Output voltage setting: 48V
Output current: 5A
Output power: 240W
Load voltage: 12V2%
Static power consumption: less than equal 10MA
Output ripple: 210mVp-m
Input wire: red positive, black negative
Output wire: yellow positive, black negative
Working environment temperature: -40-+85
Storage ambient temperature: -40-+100
Working environment humidity: 0-95%RH
Storage environment humidity: 0-95%RH
Colour: Silver
Material: Metal

Package Contents:
3 x Booster
