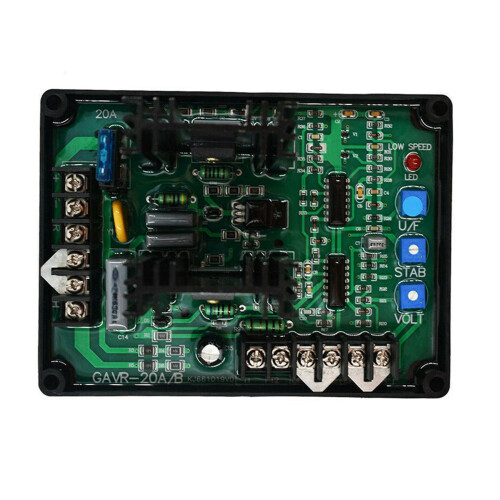

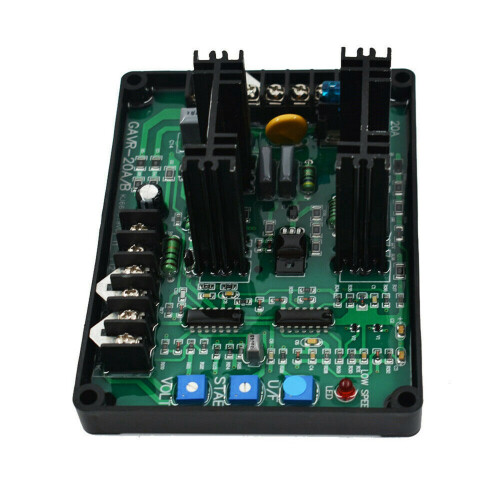

3X Automatic Voltage Regulator Fit for Parbeau Generator AVR GAVR-20A

3X Automatic Voltage Regulator Fit for Parbeau Generator AVR GAVR-20A Beskrivelse

1. Less than +/-0.5% Reglation
2.220/400 VAC Programmable Input
3.Rugged Compact Design
4.With Under Frequency Protection; Soft Start Voltage Ramping
5.EMI Suppression; Buit-in High Capacity 8Amp Fuse

Input Voltage: 220/400VAC, 1 phase 2 Wire
POWER INPUT
Voltage: 180~240V, 1 phase 2 Wire
Output Voltage: Max 90V @240V ac input
Current: Continuous 15A
Intermittent 20A for 10 secs
Resistance: 10 ohms min 100 ohms Max
Regulation
+/-0.5% RMS with 4% engine governing
Voltage Build-: Residualvolts at AVR teminal Greater than 5VAC
SOFT START RAMP
3 seconds
EXTERNAL VOLTAGE ADJUSTMENT
+/-7% with 1 k ohm 1 watt trimmer
UNIT POWER DISSIPATION
8 watts maximum
Thermal. Drift: 0.05% per C chage in AVR ambient
Under Frequency: 60Hz system presets knee point at 57Hz
50Hz system presets knee point at 47Hz
Operating Temperature: -40C to + 65C
Storage Temperature: -40C to + 85C
Relative Humidity: Less than 95%
Material: plastic
colour: Photo Color

Package Contents:

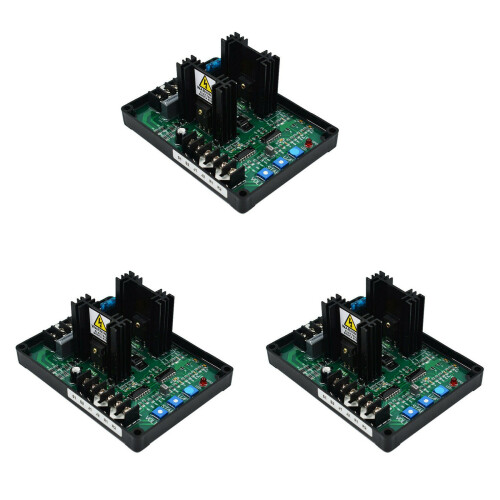

3 x GAVR-20A Automatic Voltage Regulator
3 x English manual
