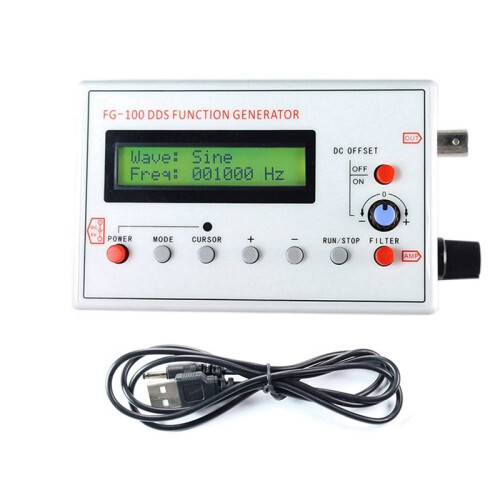

3X FG-100 DDS Function Signal Generator Frequency Counter 1Hz - 500KHz Module Sine+Square+Triangle +Sawtooth Waveform

3X FG-100 DDS Function Signal Generator Frequency Counter 1Hz - 500KHz Module Sine+Square+Triangle +Sawtooth Waveform Beskrivelse

Product Description
Small size, multiple functions, simple operation, easy to carry.
ith an oscilloscope, which can be used in electronic circuit experiment and debugging, the frequenc
Due to the good precision of DDS and frequency stability, is also very suitable for oscilloscope swe
With an oscilloscope, which can be used in electronic circuit experiment and debugging, the frequency characteristics of audio amplifier and pulse response of test and measurement.

Square wave output
Also suit for oscilloscope attenuator and probe pulse adjustment, etc
The main output waveform: sine wave and square-wave, Triangular wave, sawtooth wave.
Maximum output amplitude: +/- 10Vpp (no-load)
Output impedance: 50Ohm+/-10%
bias: +/- 10V (no-load)
Display: LCD1602
Resolution: 1 Hz
Power supply: 3. 5-10V
Output frequency range:
Sine wave: 1Hz-500KHz
Square-wave: 1 Hz - 20kHz (the valid range)
Triangular wave: 1 Hz - 20KHz (the valid range)
Sawtooth wave: 1 Hz - 20kHz (the valid range)
Note: Due to different production batches, there may be slight differences in products.
Colour: White
Material: Plastic

Package Contents:

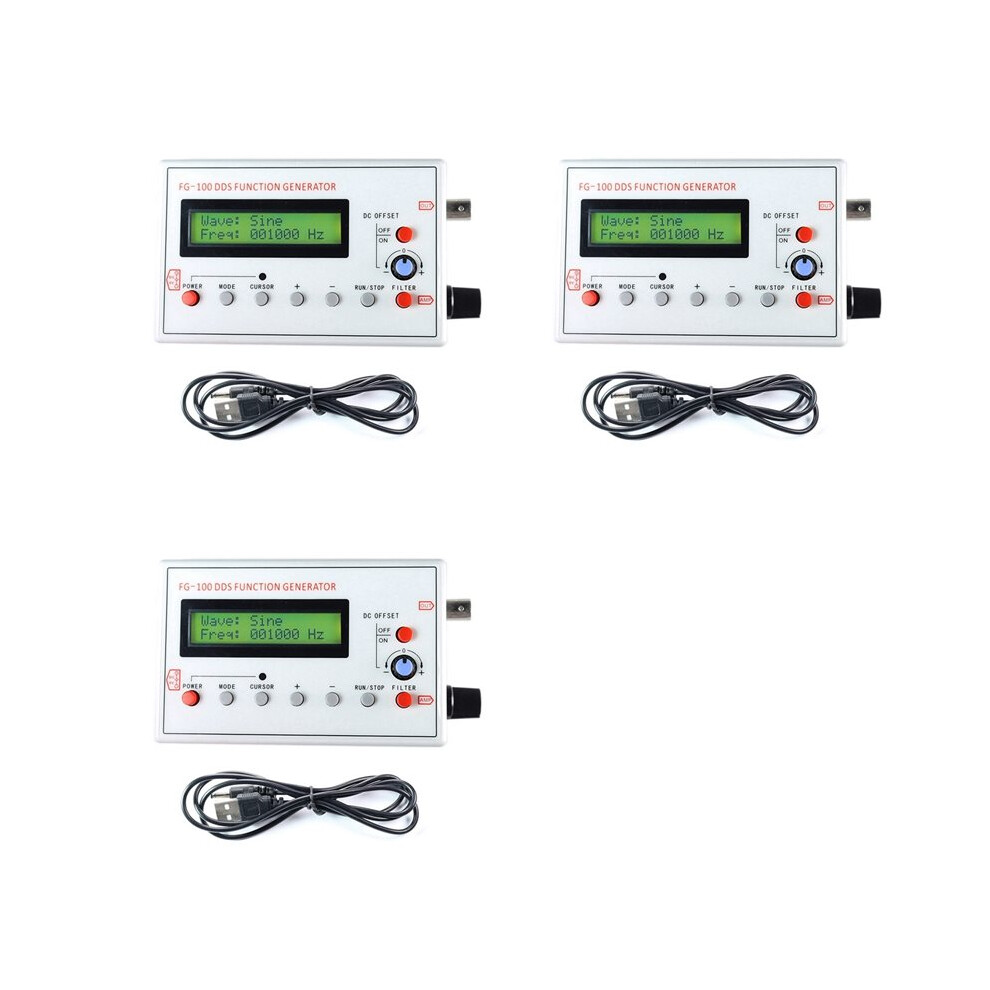

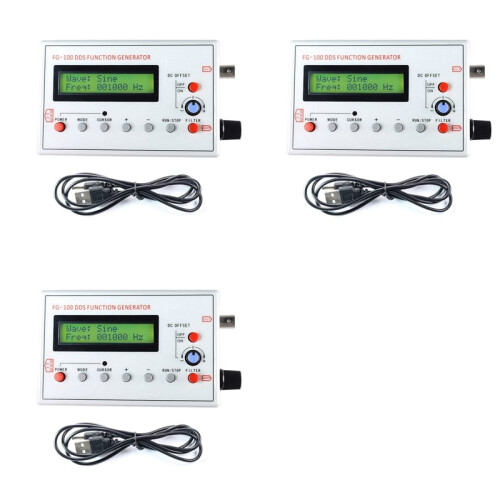

3 x FG-100 DDS Signal Generator
