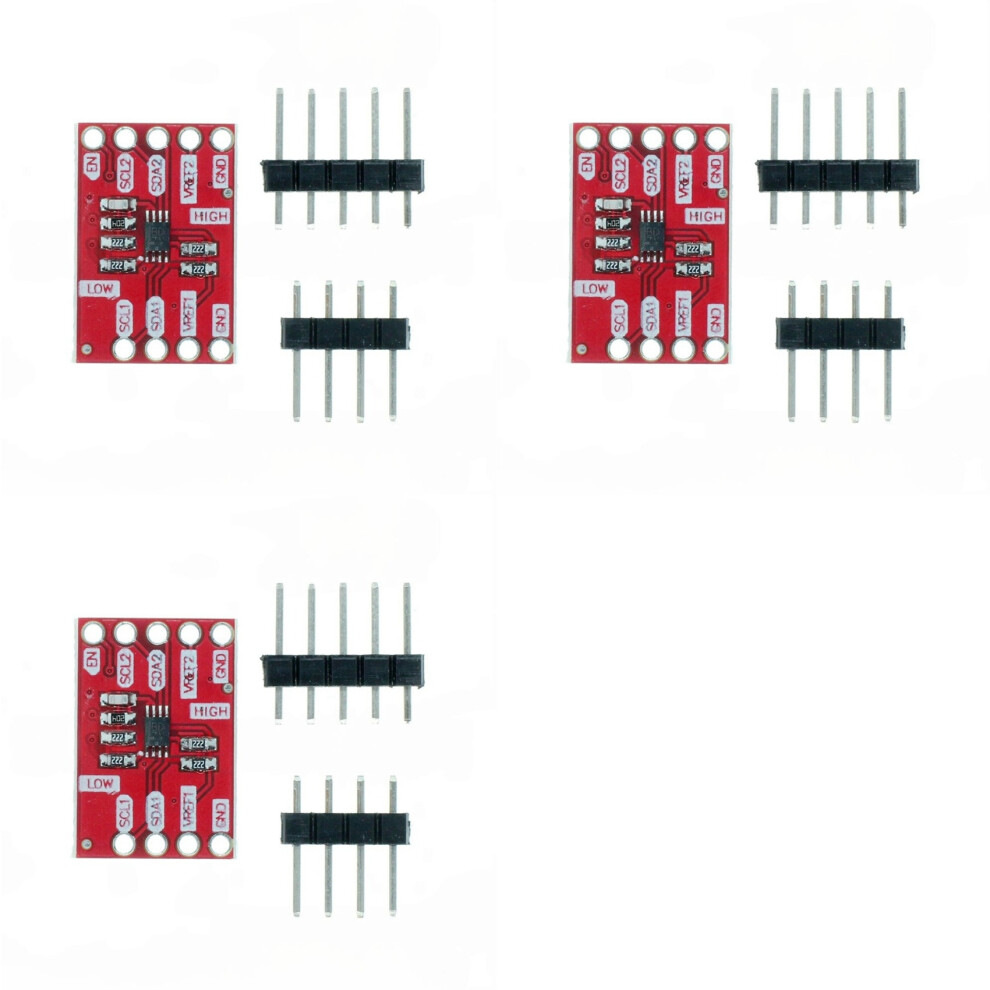

3X PCA9306 I2C Level Translator Breakout Board Module Bidirectional I2C/UART Level Shifter with 5V and 3.3V
På lager
Derfor vil du elske at handle hos OnBuy:
- Tjen Cashback på hvert køb – brug det med det samme på din næste ordre
- Gratis levering – på millioner af varer på siden
- Kunder elsker os – 130,000 anmeldelser med vurderingen “Fremragende”
Priserne for varer, der sælges af OnBuy, inkluderer moms.
Rentefrie betalingsmuligheder
Se fuld produktbeskrivelse og detaljer
Levering: Standard (Gratis) | fre. 14. - ons. 19. aug.
Solgt af: Papishop
Returnering: 30 dage
180 dages betalingsbeskyttelse
Du kan også lide
Oversigt
- The PCA9306 level conversion module is a bidirectional voltage converter designed for I²C/SMBus, which can seamlessly connect different voltage devices from 1.2V to 5V, such as 3.3V MCU (such as STM32, ESP8266, Raspberry Pi) and 5V sensors (such as OLED, BMP180, MPU6050). It uses TI (Texas Instruments) PCA9306 chip, which is stable and reliable, supports 400kHz high-speed I²C communication, does not require direction control, and is plug-and-play!
- Bidirectional conversion: Wide voltage supports any combination of 1.2V~5V (such as 3.3V↔5V, 1.8V↔3.3V), and efficiently manages bidirectional voltage conversion between 5V and 3.3V to ensure reliable data transmission and device functionality.
- Easy to integrate: Integrated PCB, straight-in pin headers, convenient breadboard/Dupont line connection, and compact breakout board design, which can be directly integrated into your existing projects without complicated wiring or setup.
- High compatibility: This PCA9306 I²C level converter module is designed for seamless communication between devices with different voltage levels. The dual-channel design can simultaneously convert the two I²C signal lines SCL (clock) and SDA (data), making it ideal for a variety of I²C applications.
- Wide application: Bidirectional automatic conversion, no additional control signals required, and automatic identification of data transmission direction are very suitable for developers using microcontrollers, sensors and other electronic components that need to adjust voltage levels.
3X PCA9306 I2C Level Translator Breakout Board Module Bidirectional I2C/UART Level Shifter with 5V and 3.3V Beskrivelse
The PCA9306 level conversion module is a bidirectional voltage converter designed for I²C/SMBus, which can seamlessly connect different voltage devices from 1.2V to 5V, such as 3.3V MCU (such as STM32, ESP8266, Raspberry Pi) and 5V sensors (such as OLED, BMP180, MPU6050). It uses TI (Texas Instruments) PCA9306 chip, which is stable and reliable, supports 400kHz high-speed I²C communication, does not require direction control, and is plug-and-!
Bidirectional conversion: Wide voltage supports any combination of 1.2V~5V (such as 3.3V5V, 1.8V3.3V), and efficiently manages bidirectional voltage conversion between 5V and 3.3V to ensure reliable data transmission and device functionality.
Easy to integrate: Integrated PCB, straight-in pin headers, convenient breadboard/Dupont connection, and compact breakout board design, which can be directly integrated into your existing projects without complicated wiring or setup.
High compatibility: This PCA9306 I²C level converter module is designed for seamless communication between devices with different voltage levels. The dual-channel design can simultaneously convert the two I²C signal lines SCL (clock) and SDA (data), making it ideal for a variety of I²C applications.
Wide application: Bidirectional automatic conversion, no additional control signals required, and automatic identification of data transmission direction are very suitable for developers using microcontrollers, sensors and other electronic components that need to adjust voltage levels.
Chip model PCA9306DCUR (TI)
Input voltage range 1.2V ~ 5V (VREF1 VREF2)
Maximum frequency 400kHz (I²C Fast Mode)
Conversion direction Bidirectional automatic switching
Interface type I²C (SCL + SDA)
Operating temperature -40C ~ +85C
Pin definition
VREF1 Low voltage side power supply (such as 3.3V)
SC
Detaljer
| OPC | PWM9F7S |
|---|---|
| Mærke | Typecat |
| Koder | 6032465858395 (EAN) |
| Produkt- og sikkerhedsoplysninger |
Produktdata
| Height | 3cm |
|---|---|
| Width | 2cm |
| Length | 2cm |
| Weight | 0.006kg |
| Colour | As Shown |
| Material | PCB |
