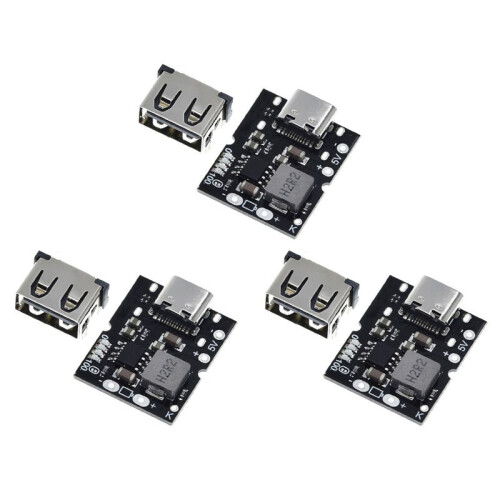

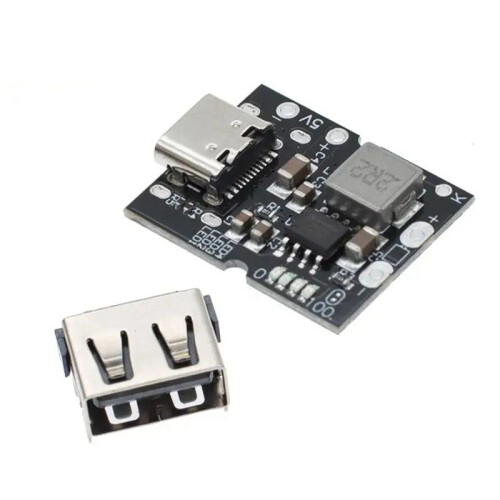

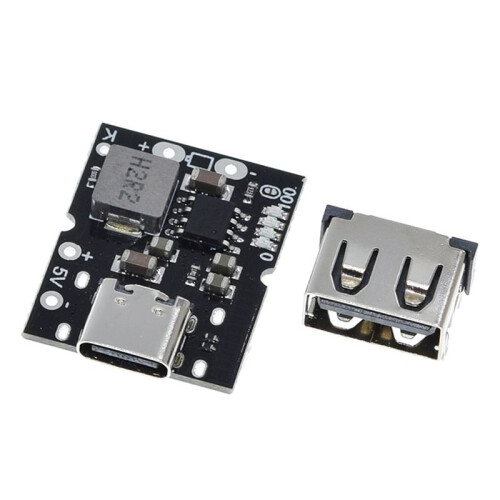

3X Type-C USB 5V 2A Boost Converter Step- Power Module Lithium Battery Charging Board DIY Charger,No Welding

3X Type-C USB 5V 2A Boost Converter Step- Power Module Lithium Battery Charging Board DIY Charger,No Welding Beskrivelse

When the load current is less than 50mA continuously, the output will be turned off.

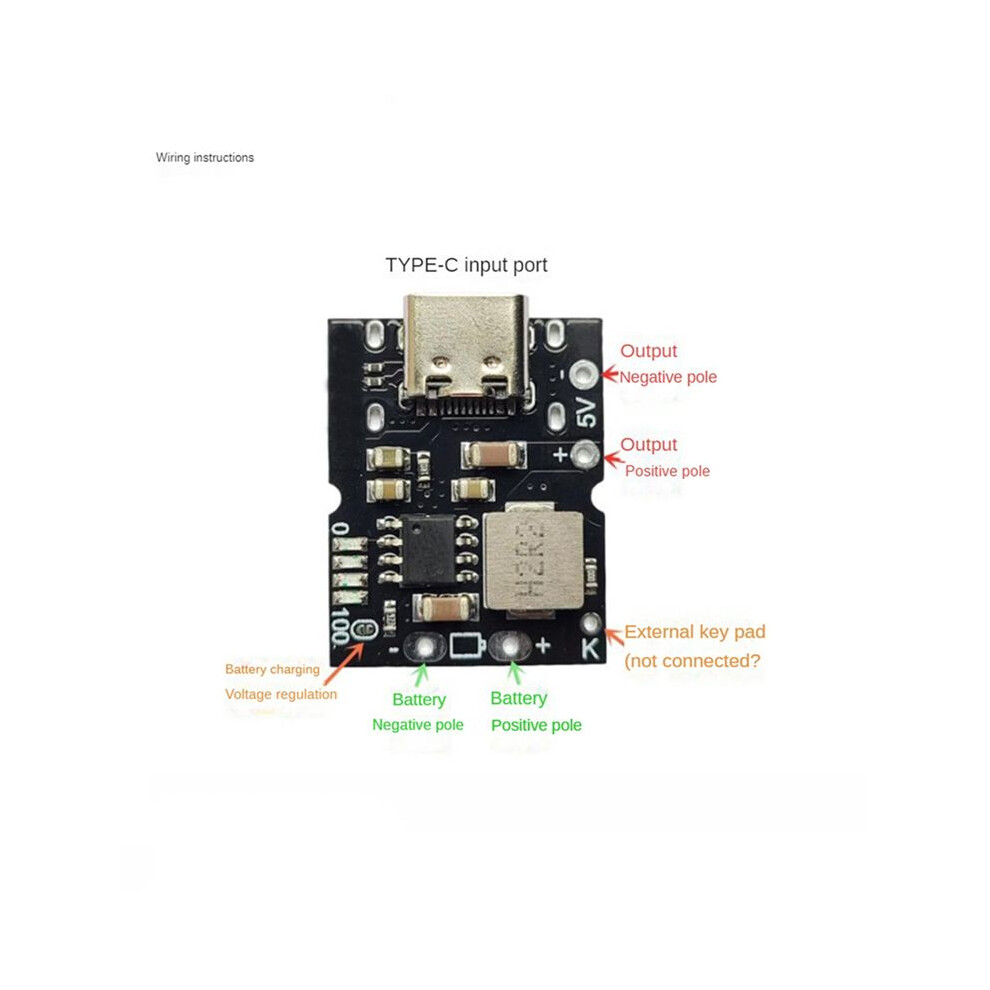

It supports the external key, which is connected to the K point and the output negative pole. Short press to turn the power display and turn the 5V output. Two consecutive short presses will turn off the power display and turn off the 5V output.
When the charging current drops to 100mA after reaching the final floating charging voltage, the charging cycle will be automatically terminated.
When the battery voltage drops below 4.1V, the charging cycle starts again.
When the battery voltage is lower than 2.8V, the battery will be pre charged with a current of 180mA.

Type-C input, high accuracy of charging voltage.
It supports discharging while charging.
Note:power off operation is required to adjust the charging voltage setting
Input voltage range:5 - 5.5V
Charging cut-off voltage:(4.2v/4.35v) 0.5%
Charging current:2.4a 5%
Boost output voltage:5V - 5.15v ( loss compensation)
Boost output voltage ripple:100mV
Boost output current:2A
Boost conversion efficiency:92.5% (3.6V input, 5v2a output)
Static current at battery end:Less than 30uA
Version:No Welding

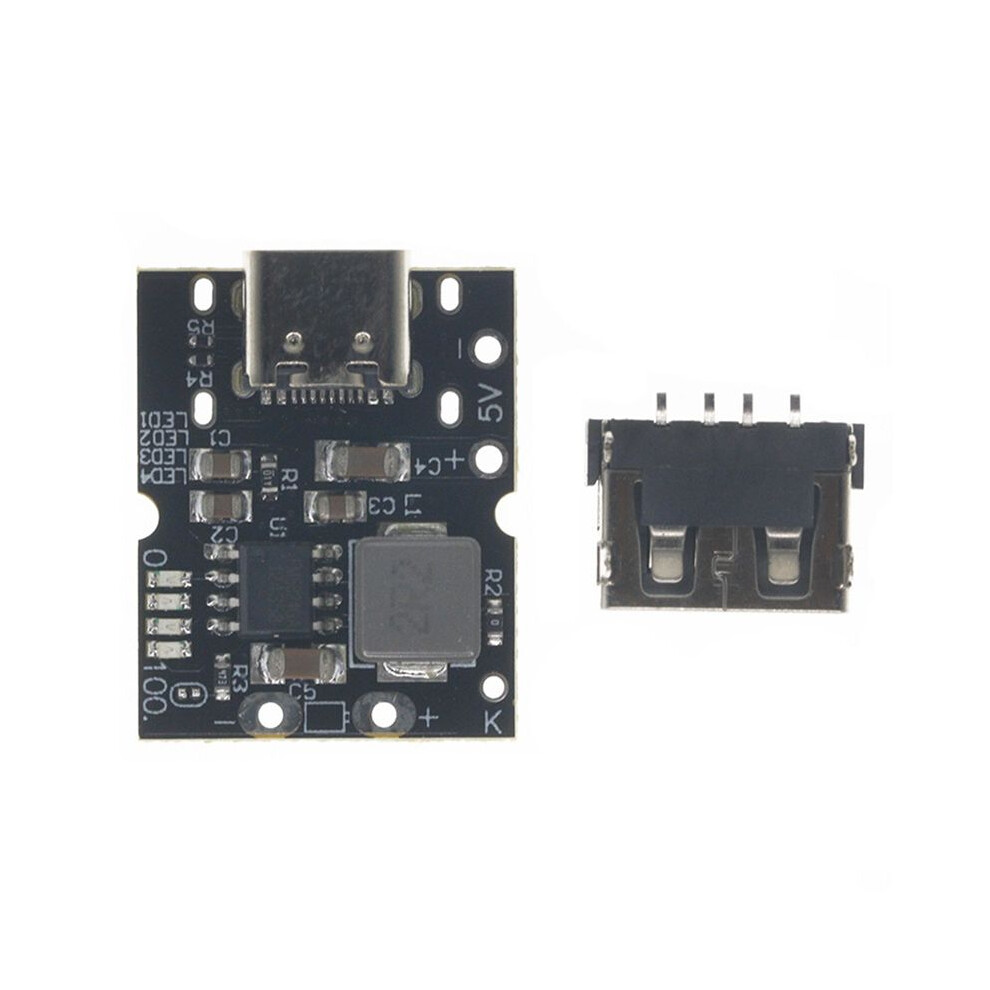

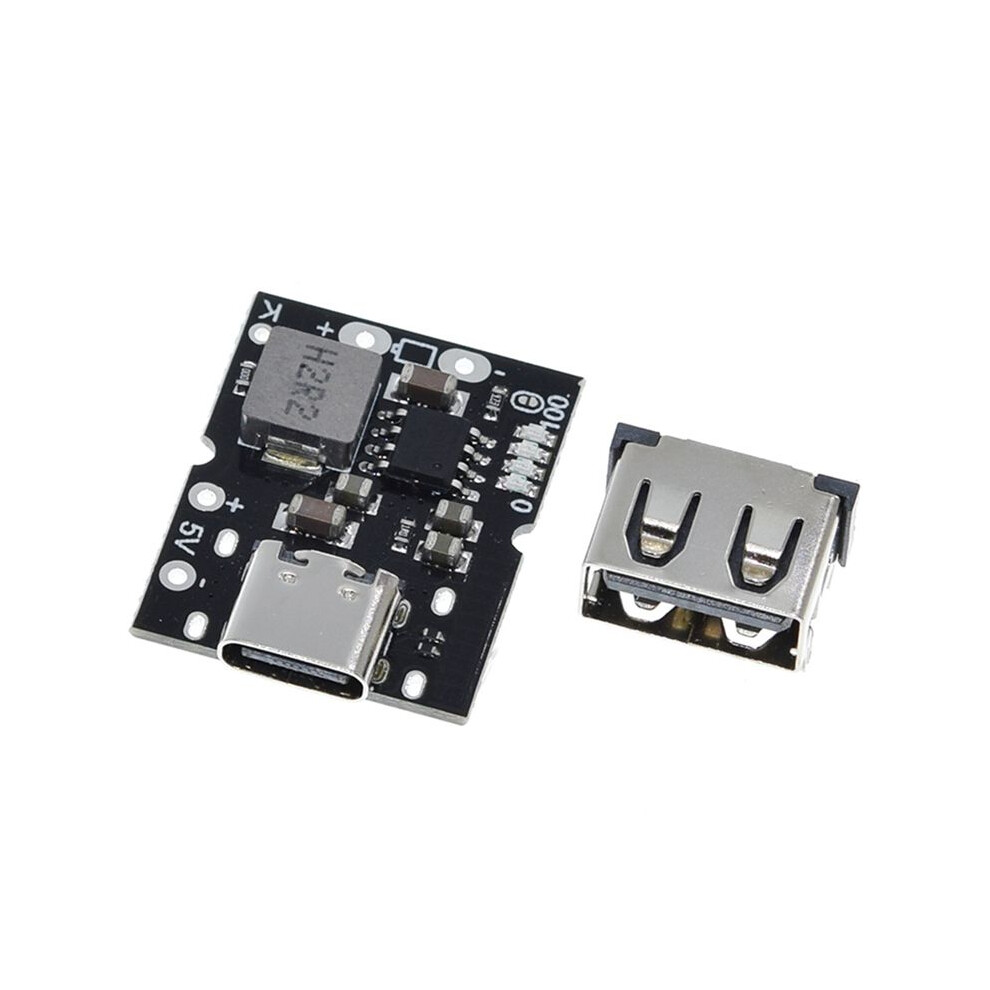

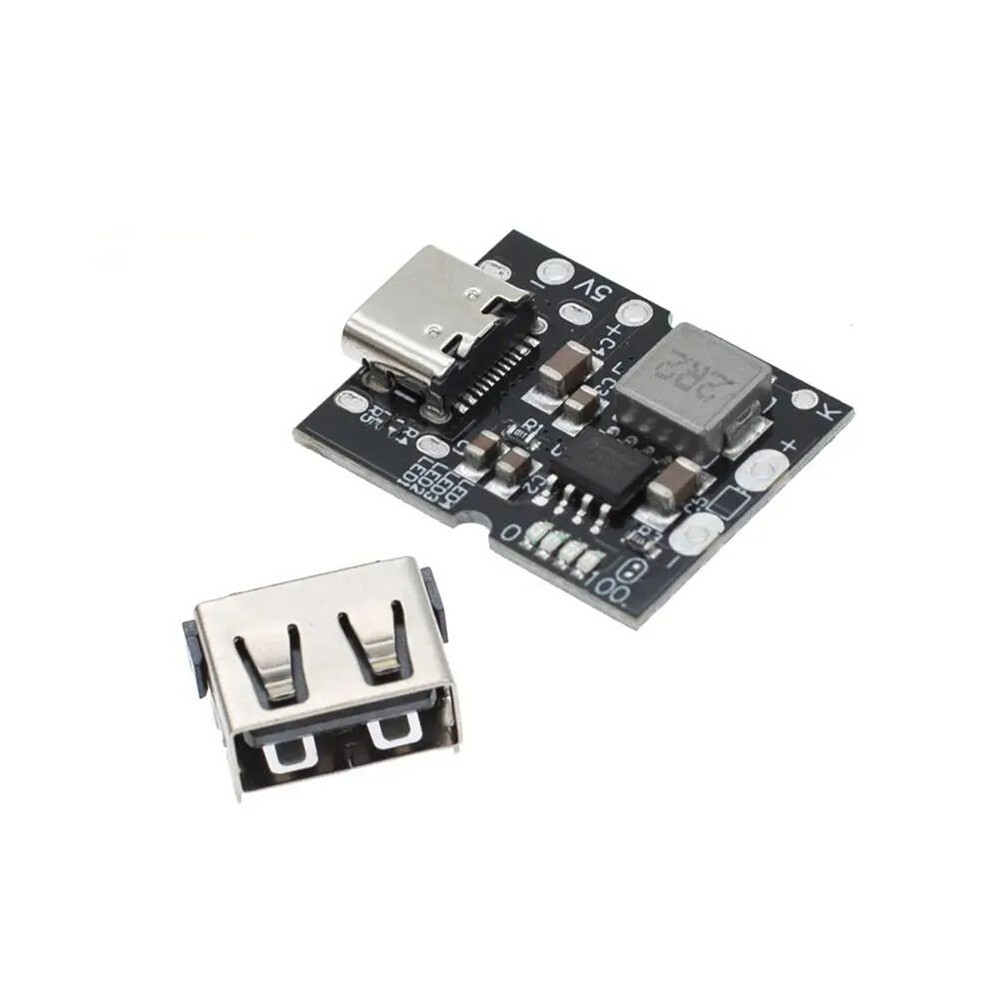

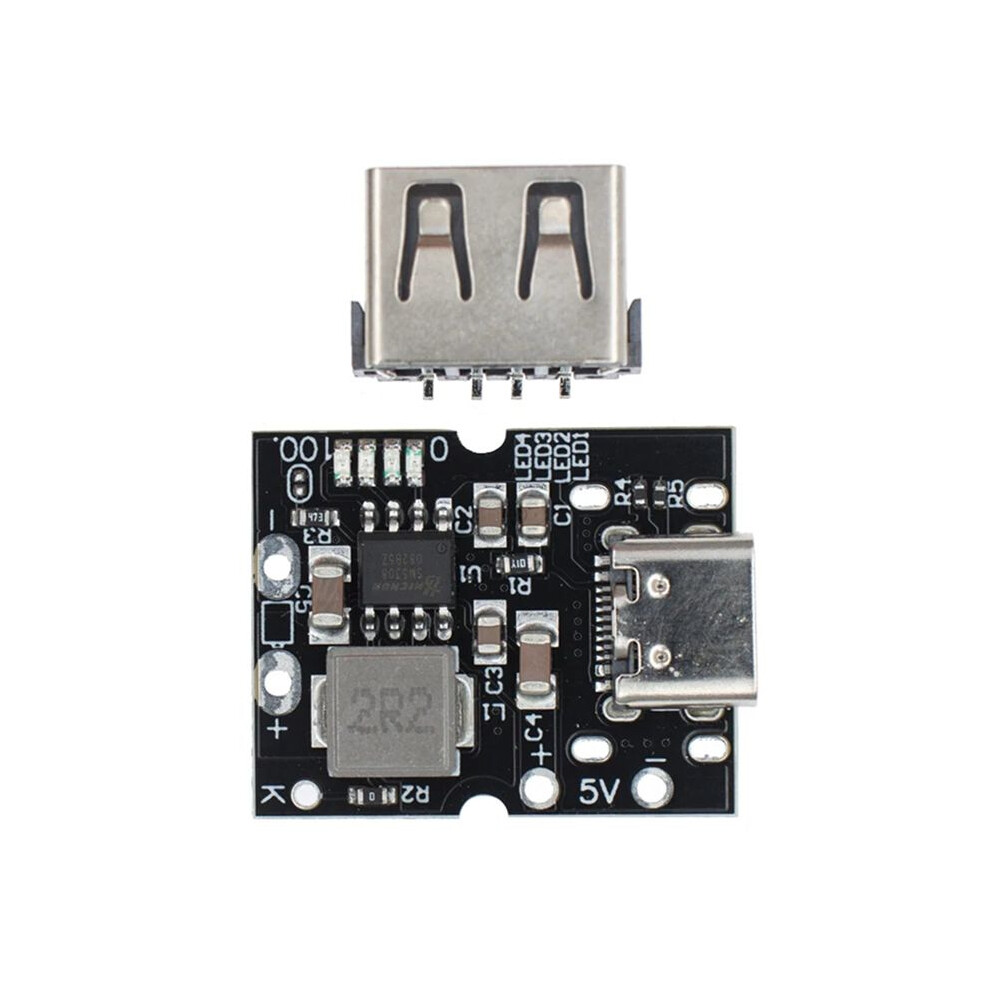

No Welding:The usb-a base the back of the module needs to be welded by yourself, and we will provide a female base with the product.
Colour:Black
Material:PCB+electronic components

Package Contents:

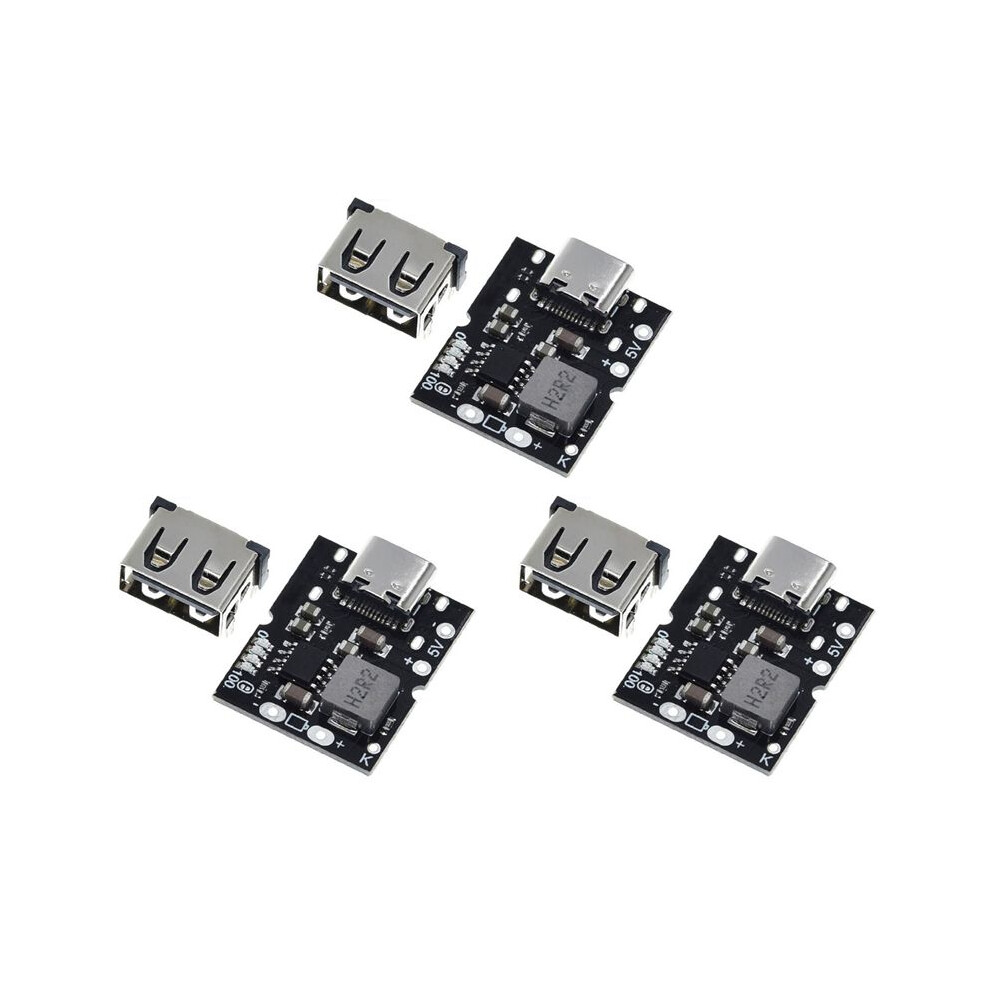

3 x 5V 2A Charge-discharge Integrated Module
