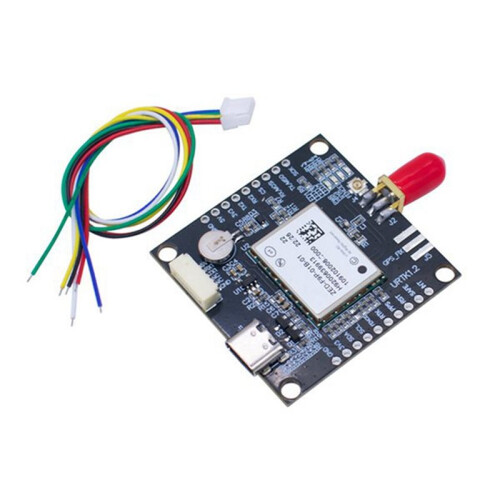

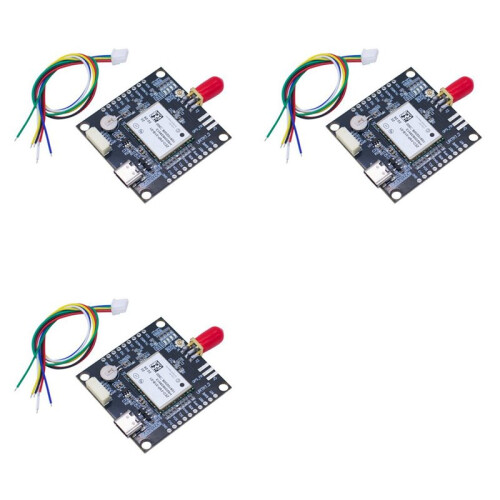

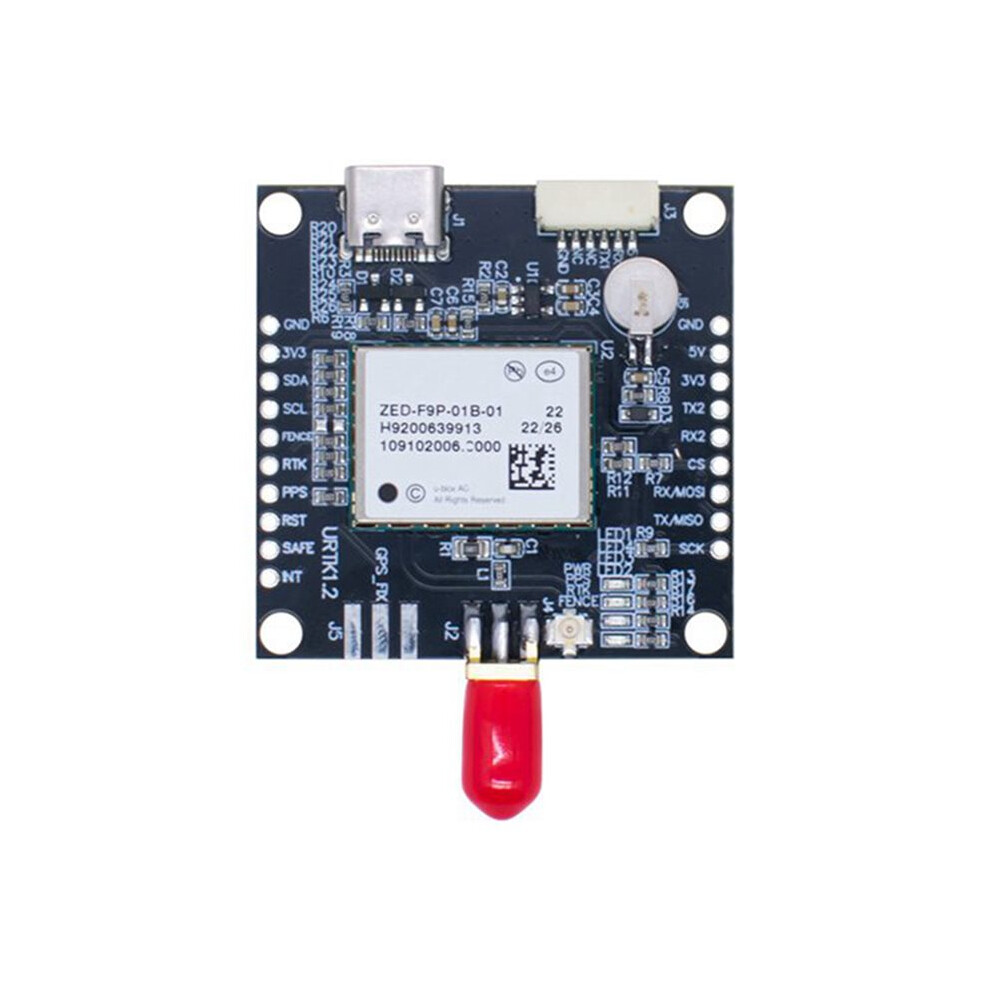

3X ZED-F9P RTK GPS Moudule RTK High Precision Centimeter-Level Differential Positioning GNSS Module for Drone Autopilot

3X ZED-F9P RTK GPS Moudule RTK High Precision Centimeter-Level Differential Positioning GNSS Module for Drone Autopilot Beskrivelse

The default baud rate of F9P is 38400bps. To prevent the data from being too large to be transmitted, the baud rate is also increased when the frequency is increased. The frequency is recommended not to exceed 5HZ.

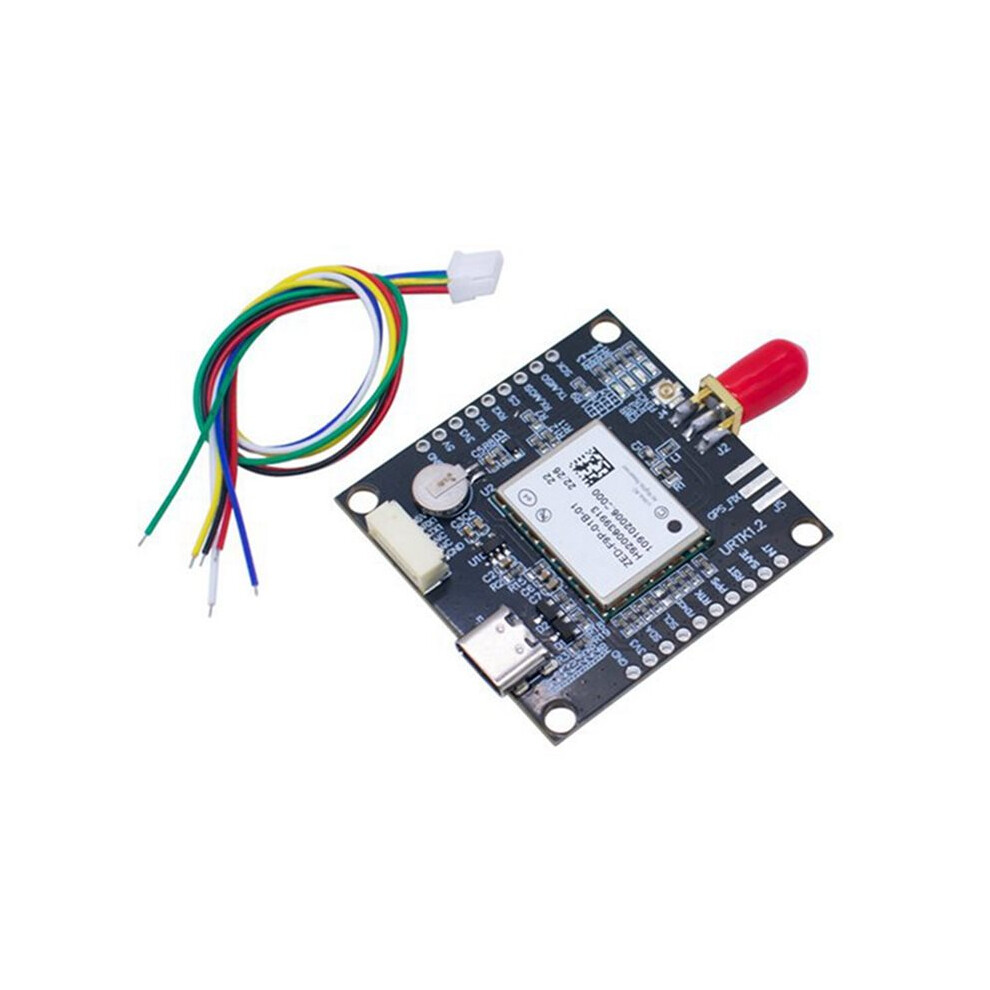

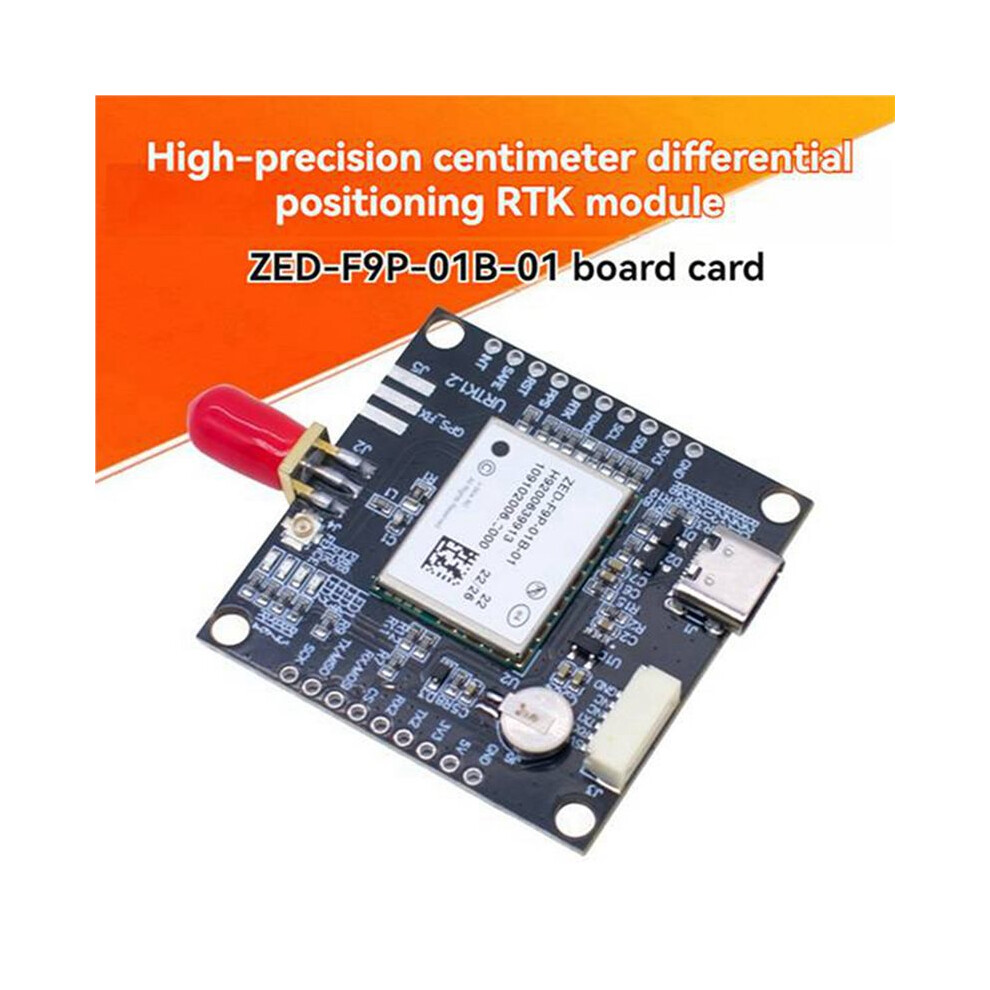

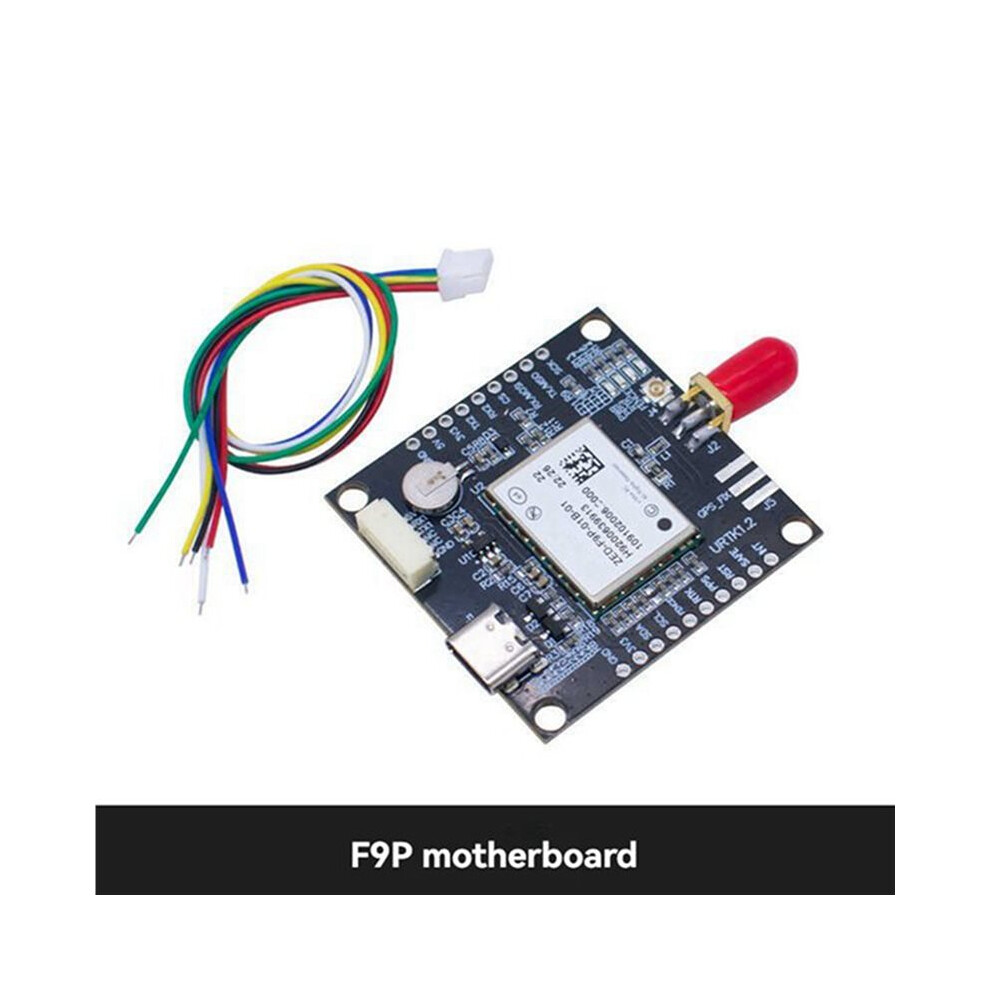

F9P board supports centimeter-level high-precision RTK differential positioning.
Small size, light weight.
If used as a base station mode, just configure it to mode. If the F9P module is used as a mobile, it can be directly used as an RTK mobile station without any configuration.
Suitable for research and development, drones, unmanned ships, unmanned driving, robots, driving schools, surveying and mapping, precision agriculture, mountain landslide monitoring, mine monitoring, vehicle navigation, walkie-talkies, differential base stations and other industry application products.

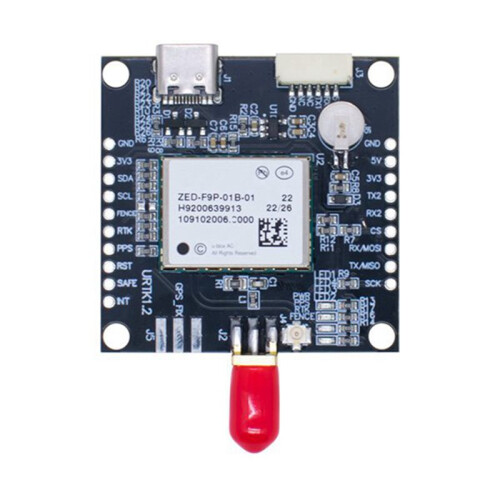

Chip:ZEDF9P-01B-01
Frequency:GPS L/L2; GLONASS G1/G2; BeiDou B1/B2; GaliLco E1/E5; QZSS L1/L2
Working mode:GPS+QZSS+GLONASS+BeiDou+GaliLco multi-mode positioning
Channel:184 channels
Baud rate:4800dps-921600dps, default 38400
Output level:TTL level
Output protocol:NMEA-0183, RTCM
Update frequency:1HZ-20HZ, default 1HZ
FLASH:4M FLASH, configuration can be changed, power off without loss
Pulse per second:0.25HZ to 10MHZ configurable, default period 1s, high level lasts 100ns
Carrier phase output:support, output RAWX sentence
The product appearance and printed words may vary depending the batch, but this does not affect use.
Colour:As Shown
Material:PCB

Package Contents:

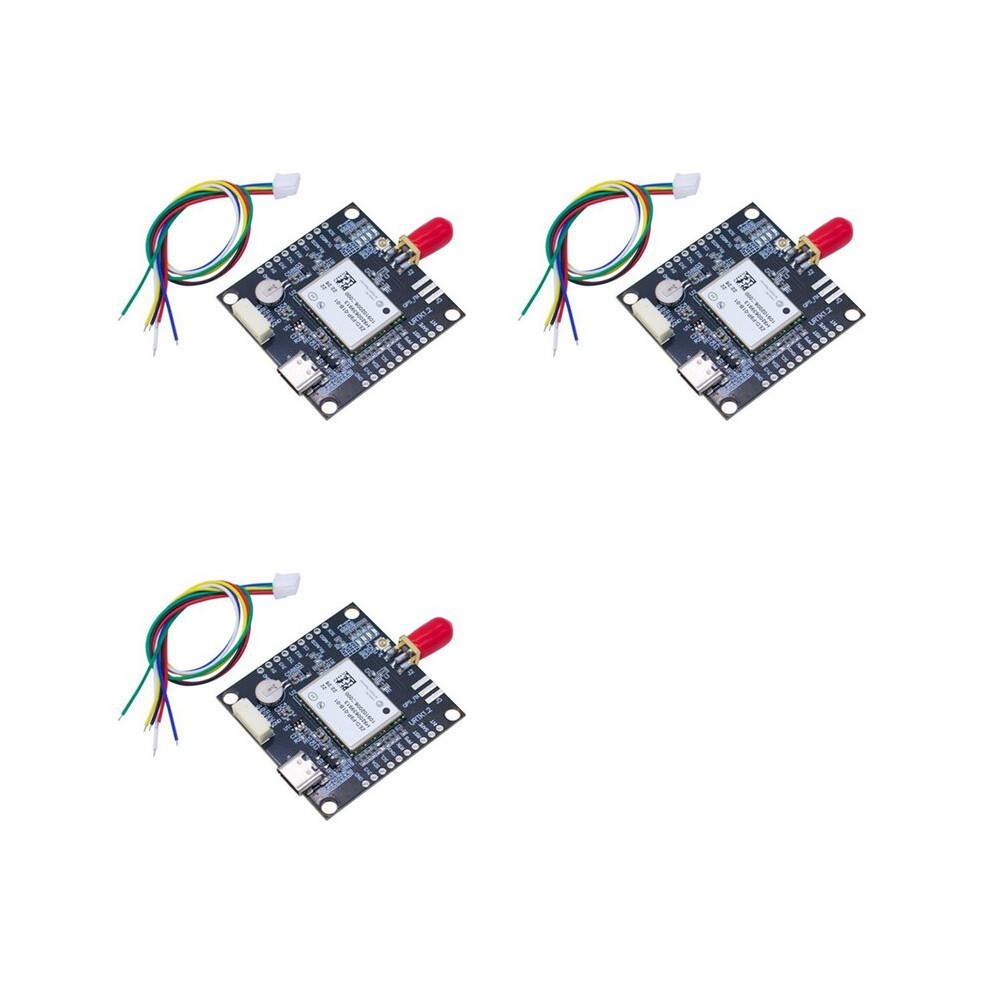

3 x GPS Module
3 x Connecting Cable
