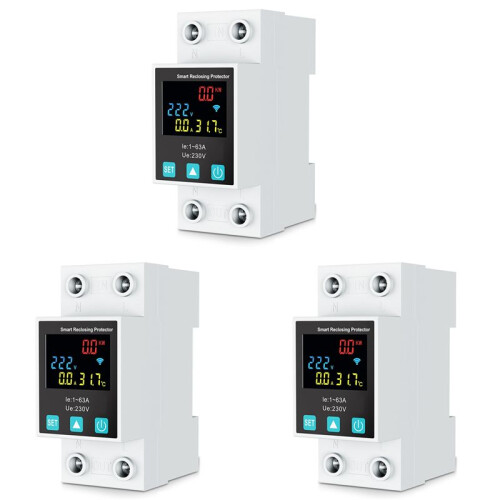

3X ZigBee TUYA 2P/63A Circuit Breaker Earth Leakage over Under Voltage Protection Protector Relay Meter

3X ZigBee TUYA 2P/63A Circuit Breaker Earth Leakage over Under Voltage Protection Protector Relay Meter Beskrivelse

Note:
1.The Zigbee Circuit Breaker must be successfully added to the app through a Tuya Zigbee hub/gateway, and the device can be controlled through a mobile phone
2.Power must enter from the top and must be a live + neutral (L+N)
3.This product does not have isolating function and short circuit protection function, and requires a circuit breaker to be configured at the upper part for use.

Note:
lf your voltage is 110VAC, the protector will over voltage protect when you first use.
Function:
Protocol: ZigBee
Control mode: APP remote control, manual
Protection setting method: APP setting, manual setting
Temperature protection:40-150C(adjustable)
Power protection:1KW-26KW(adjustable)
Over current protection:1A-63A (adjustable)
Over voltage protection:220V-265V (adjustable)
Under voltage protection:76V-240V (adjustable)
Electric leakage protection: 10mA-100mA(adjustable)
Rated working voltage range: 90V-320V
working voltage: 100-240V AC
Rated load: ordinary electrical appliances 13000W, motor 10400W
poles description: 1P+N (N pole pass-through), occupy 2P
other features: with metering function, leakage protection
control type: manual control/app remote control
alarm&protection setting type: manual setting/app setting
protocol: ZigBee 3.0(Wi-Fi 2.4GHz)
app: " Life"APP,"Tuya "APP
voice speakers: for Amazon Alexa, for Assistant, for Yandex Alice etc.
The actual object may have color difference due to different light or display
Color: White
Material: Plastic

Package Contents:
3 x Circuit breaker
