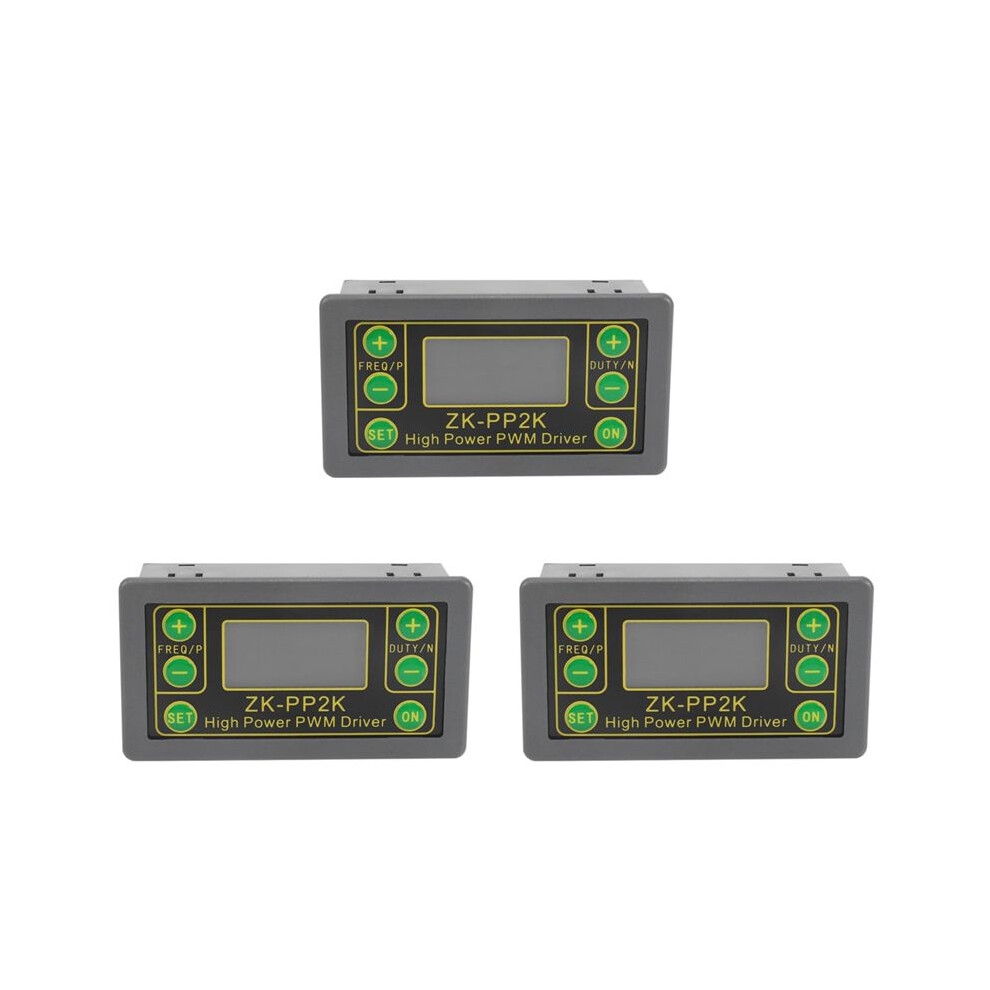

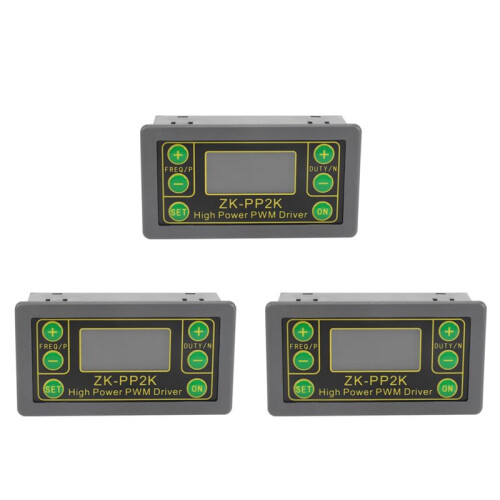

3X ZK-PP2K PWM 3.3-30V 12V 24V Motor Speed Controller Regulator 8A 150W Adjustable LED Dimmer Pulse Frequency

3X ZK-PP2K PWM 3.3-30V 12V 24V Motor Speed Controller Regulator 8A 150W Adjustable LED Dimmer Pulse Frequency Beskrivelse

LED brightness adjustment, frequency, duty cycle can be adjusted. Motor speed adjustment, frequency and duty cycle can be adjusted. Drive the solenoid valve to pull and release, automatic cycle, delay output, cycle number (or infinite loop) can be set. Control equipment to turn and off, do fatigue test, voltage sag and other tests to verify the reliability of customer equipment. Delay start load, delay can be set, after the delay, it will be turned or intermittently.
3.2 PWM mode (display has "%" for PWM mode) The factory default mode is PWM mode, FREQ+ and FREQ-key set frequency, DUTY+ and DUTY-button set duty cycle; short press STOP button control signal output or stop, stop output is 0, the screen displays "OUT" mark as There is output, otherwise it stops output; the default factory frequency is 1KHZ and the duty cycle is 50%.
If you want to to PULSE mode, long press the SET button (more than 6 seconds), do not release, you will see the screen change, "%" disappears, it is PULSE mode.
Colour: As shown. material: plastic
1. Highlights: 1.1 can directly drive LED, motor, solenoid valve and other loads

Two modes can be selected:
PWM mode - frequency (continuous), duty cycle. Note that the number of pulses cannot be set in this mode, and the pulse is always emitted.
PULSE pulse mode - positive pulse width , negative pulse width , power- delay start , and number of pulses are adjustable.
With start and stop button, can control the output and stop of the signal
Wide voltage input 3.3-30V, 5.08mm terminal wiring
2. Technical parameters:
2.1 Working voltage: 3.3~30V (note that the positive and negative poles should not be reversed, otherwise it may burn out)
2.2 Frequency range: 1Hz~150KHz, the accuracy is about 2%. Motor speed control generally chooses 20KHZ
2.3 d
