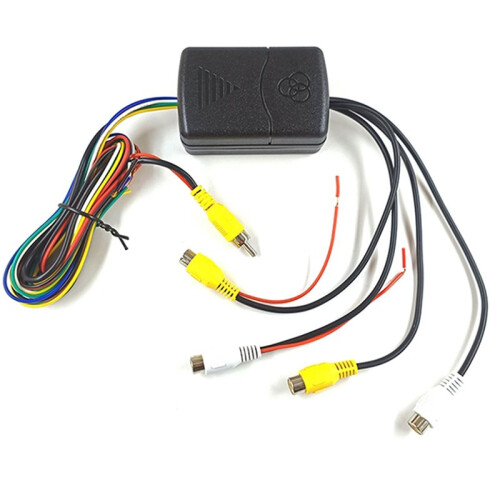

4-Way Car Camera Control Box - 360 Panoramic View Converter for Front/Rear/Left/Right Blind Spot Cameras

4-Way Car Camera Control Box - 360 Panoramic View Converter for Front/Rear/Left/Right Blind Spot Cameras Beskrivelse

Low cost, low power consumption, long lifespan, no reduction in image quality, strong adaptability (universal for CVBS/CCD/AHD videos, suitable for any screen as long as the AV plug is the same), fast response speed (screen switching speed<0.1 seconds), left/right two-way switching with a 2-second delay, and turn signal flashing does not affect
All cameras must use the same system, such as CCD or AHD.
The specific system can be determined based the vehicle's screen.
You can enter the settings menu the Android screen and check the system type in the camera options (if the camera does not belong to the same system, the image cannot be displayed, and the system of the camera mentioned above is also called signal format).
Suitable for all vehicles with 12V voltage, and RCA lotus (also known as AV) video plug for screen and camera.

Specification:

Red = + 12v (acc)

black = negative

= brake light fuse

White = backup light fuse

Green or brown = left turn light or fuse

Yellow = right turn light or fuse

Package List
Note:

1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color which is showed the pictures.

2. Please forgive 1 cm/0.39"-3 cm/1.18" measuring deviation due to manual measurement.
Color: As Shown
Material: Plastic+Metal

Package Contents:
1* 4-Way vehicle camera control box
