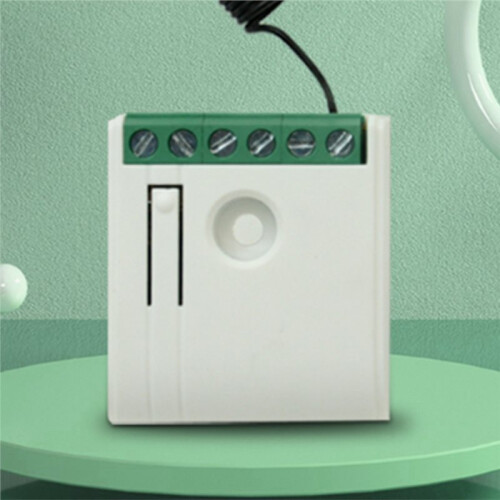

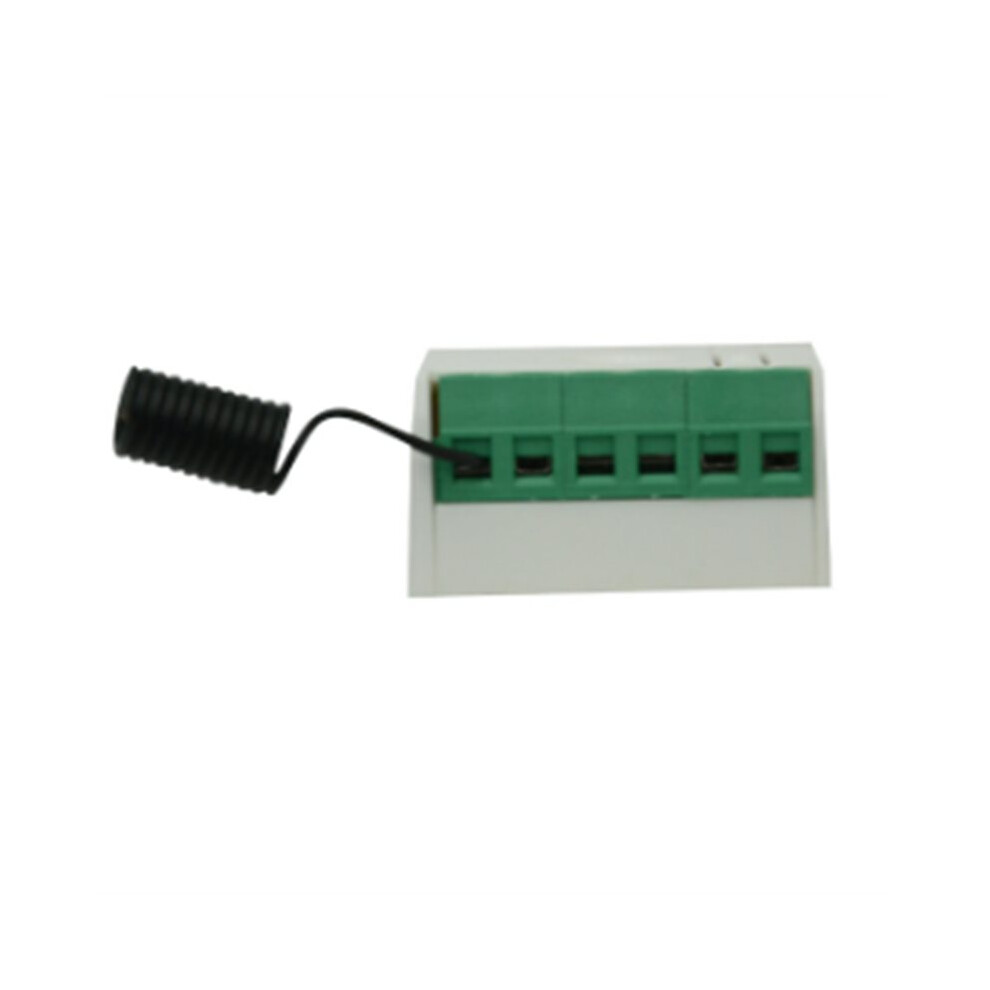

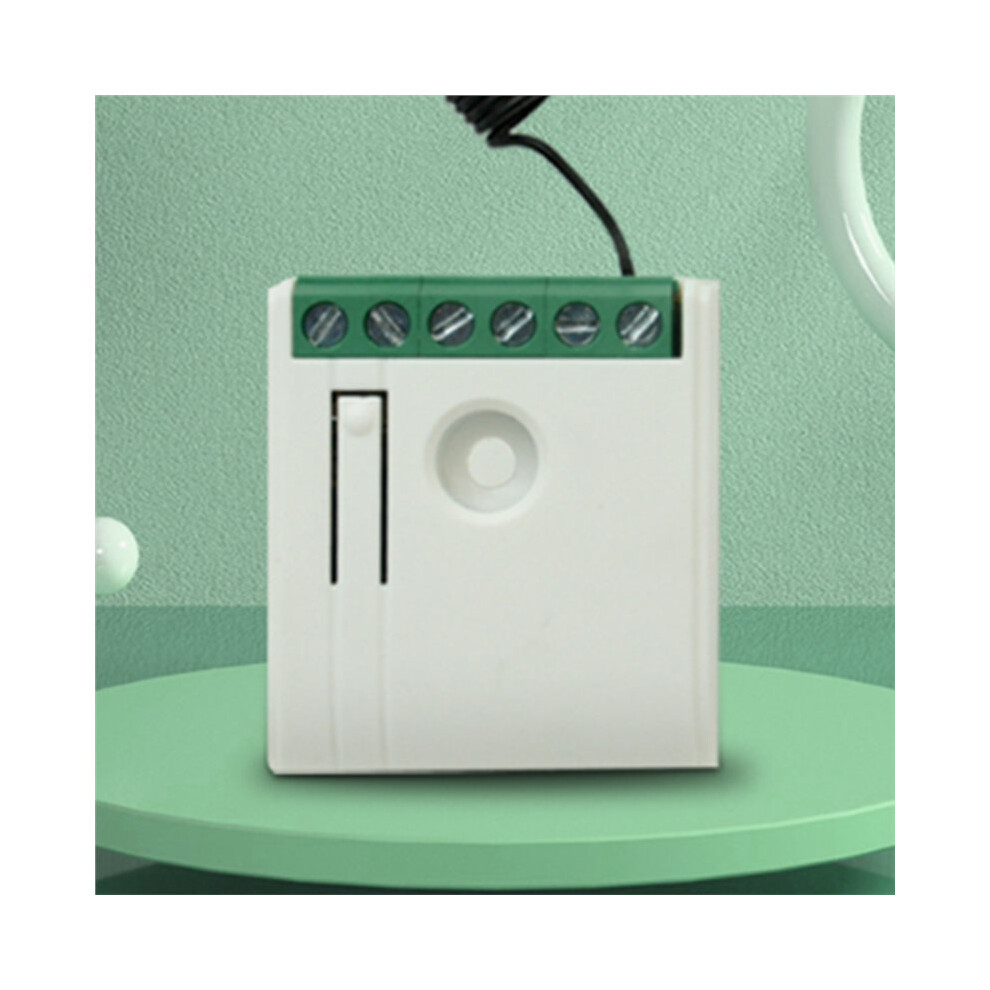

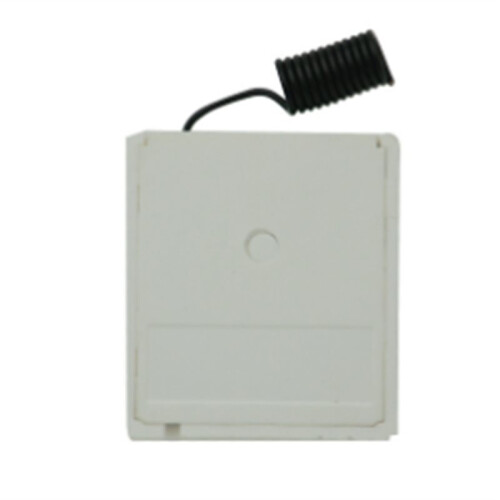

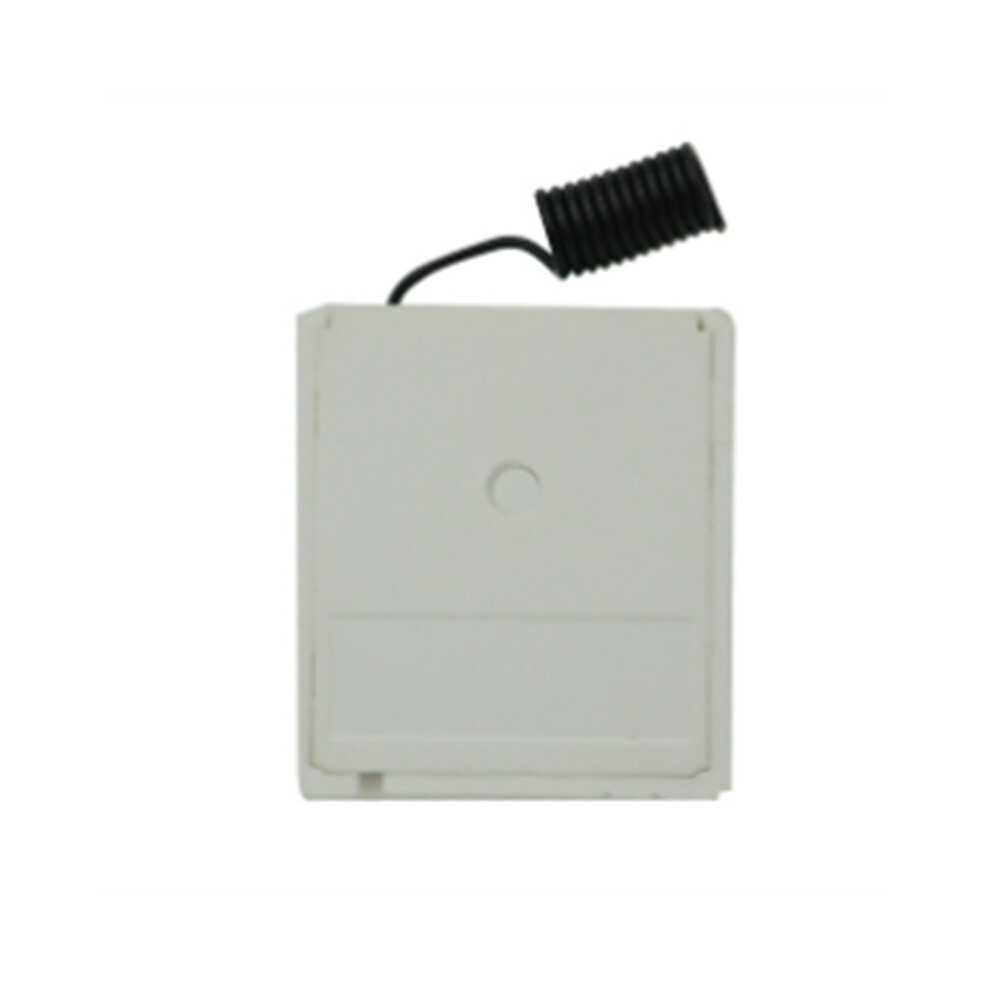

433.92mhz 9-24V /AC Relay 1 Channel Receiver for Fixed Code and Rolling Code Remote

433.92mhz 9-24V /AC Relay 1 Channel Receiver for Fixed Code and Rolling Code Remote Beskrivelse

1.Universal receiver,one-way control, relay contact output
2.Working voltage: 9-24V AC/
3.Can identify HS1527, PT2262, HCS301, HCS300,HS2240,CAME
remote controls and so
4.Store 400pcs remote controls

433.92mhz
Compatible fixed code &rolling code
Receiving Distance :100m
Channel:1
9-24v AC/
Memory:400pcs one button remote
Programming:
1. Erasing transmitter's codes:
Hold pressing learning key for more than 6 seconds until the LED light goes out and the buzzer sounds twice, all codes of receivers which had been stored are erased.
2. Learning transmitter's codes:
(1) After power , quickly press the learning button once to enter the remote control learning mode, and the control mode is set to "point start" control;
(2) Quickly press the learning button twice to enter the remote control learning mode, and the control mode is set to "self-locking" ;
(3) Quickly press the learning button 3 times to enter the remote control learning mode, and the control mode is set to "3-second output" ;
Enter the remote control learning state, press the button which you choose the receiver until the LED light flashes three times and the buzzer sounds three times, the receiver's code has been stored.Each button needs to be learned separately.
Color: White
Material: plastic

Package Contents:
1 x wireless receiver controller
