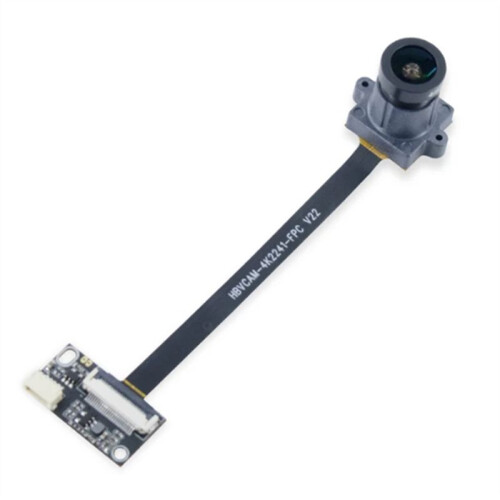

4K HD 8Mp IMX415 30FPS FPC Camera Module with Wide Angle(95)
Would you like us to let you know when it's back?
Oversigt
- Temperature (Operation):-30℃ to 70℃
- Temperature (Stable Image):0℃ to 50℃
- Assembly technique:SMT (ROSH)
- Focus:Fixed
- Object distance:30CM-infinity
4K HD 8Mp IMX415 30FPS FPC Camera Module with Wide Angle(95) Beskrivelse
Temperature (Operation):-30 to 70
Temperature (Stable Image):0 to 50
Assembly technique:SMT (ROSH)
Focus:Fixed
Object distance:30CM-
Module No.:HBVCAM-4K2241 V22
Resolution:600LW/PH (Center)
PCB printing ink:Black
interface:USB 2.0
Power suuply:USB bus power
Supply voltage: 5V5%
Maximum Power consumption:1330 mW
Operating system request:Win XP/win 7,8/vista/android 4.0/ /Linux with uvc
Sensor:IMX415 (1/2.8Inch)
Seneor Package:PLCC,Bare Die
Maximum resolution:3840*2160
Sensitivity:2000mV/(lux-sec)
Pixel Size:1.0µm x 1.0µm
S/N Ratio:46db
Max Dynamic Range:72db
Shutter type:Electronic rolling shutter
AGC/AEC/Whiter balance:Auto
Output Formats:YUY2/MJPEG
Microphone:Support
Lens Construction:5G
F/No:2.2
EFL:1.9 mm
TV Distortion:Less than 8%
Relative Illumination (Sensor):70%
IR Filter:65010nm
Module Package:Anti-electrostatic tray
FOV:95
Colour:Black
Material:Plastic+Metal
Size:Module Size:109.70mm x 26.00mm x 16.40mm0.5MM
Package Contents:
1 * camera module
Detaljer
| OPC | PTQ6P6W |
|---|---|
| Mærke | Tlily |
| Koder | 4712489099265 (EAN) |
Produktdata
| Height | 3cm |
|---|---|
| Width | 10cm |
| Length | 13cm |
| Weight | 0.024kg |
| Colour | Black |
| Size | 95° |
| Material | Plastic+Metal |
