4Pcs HX711 Load Cell AD Weight Pressure Sensor AD Module with Display 24-Bit Weighing Instrument Electronic Scal

4Pcs HX711 Load Cell AD Weight Pressure Sensor AD Module with Display 24-Bit Weighing Instrument Electronic Scal Beskrivelse

This module is designed for wide voltage, with a power supply range of 3-5.5V. There are two power supply methods. USB cable power supply or self wiring (with interface reserved)
The module should be connected to the pressure sensor first, and then powered for use. First with After connecting the pressure sensor, calibration is required. The board has peeling and calibration features Waiting for functions. The parameters have power-off saving and do not require recalibration for future use.

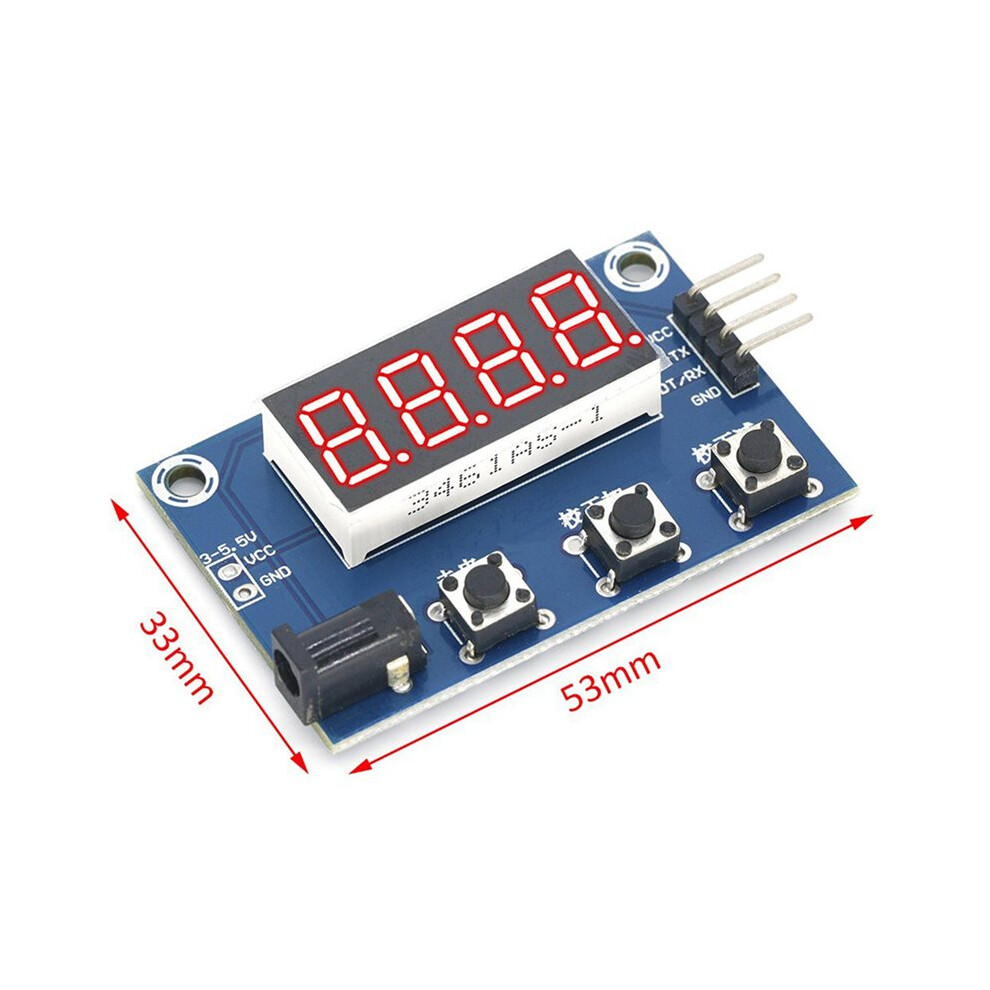

Using a 4-digit digital display, it can display to 9999g. Can handle commonly used pressures of 5KG or 10KG Sensors with a range of 5kg generally have an accuracy fluctuation of around 19. If the fluctuation is large, it may be caused by unstable power supply. Please try replacing the power supply and calibrate it after the first connection,
The module should be connected to the HX711 pressure sensor first, and then powered for use. After connecting to the HX711 pressure sensor for the first , calibration is required.

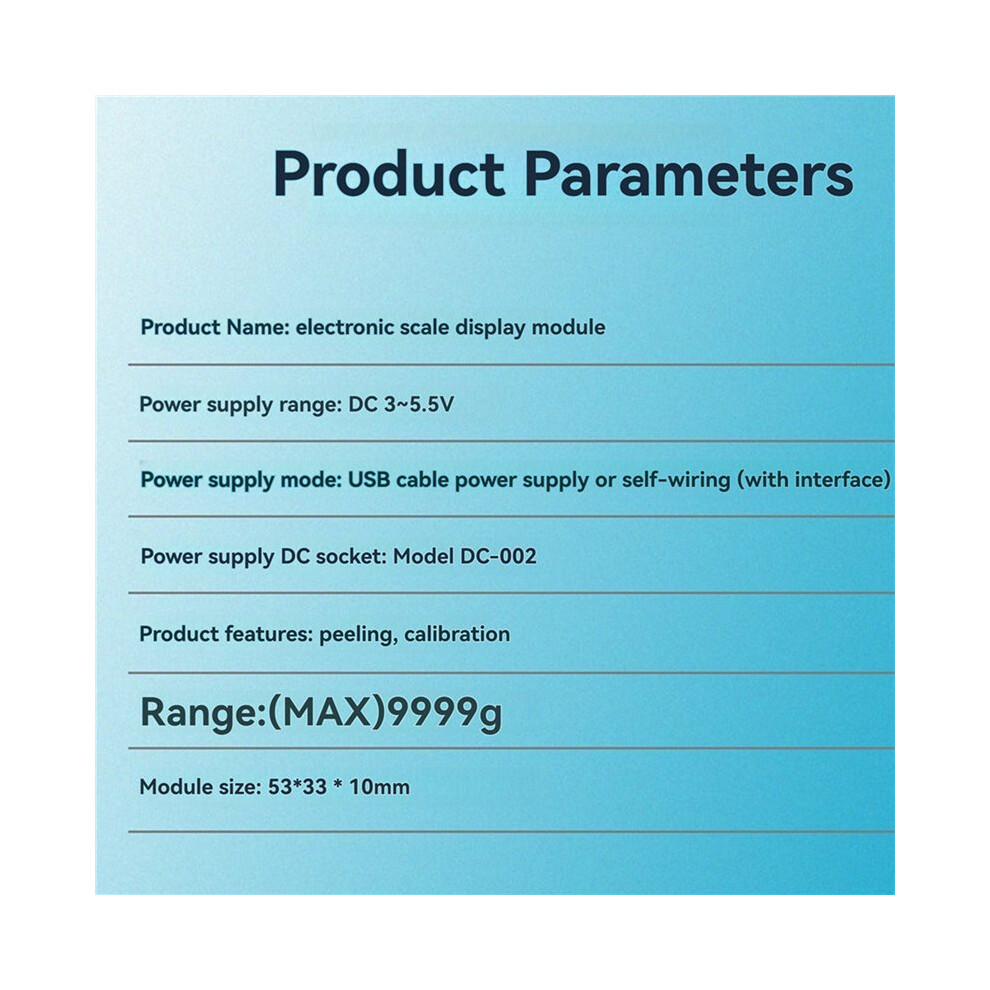

Product Name: Electronic Scale Display Module
Power supply range: 3-5.5V
Power supply method: USB cable power supply or self wiring (with interface reserved)
Power Supply Stand: Model -002
Product function: Peel off, calibrate
Range: (MAX) 9999g
Colour:As Shown
Material:PCB

Package Contents:
4 x Weighing electronic scale module
