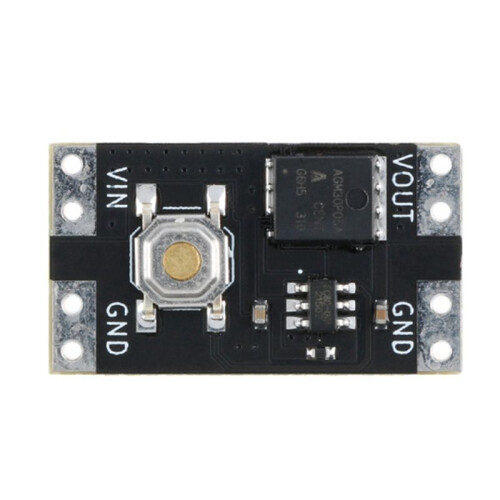

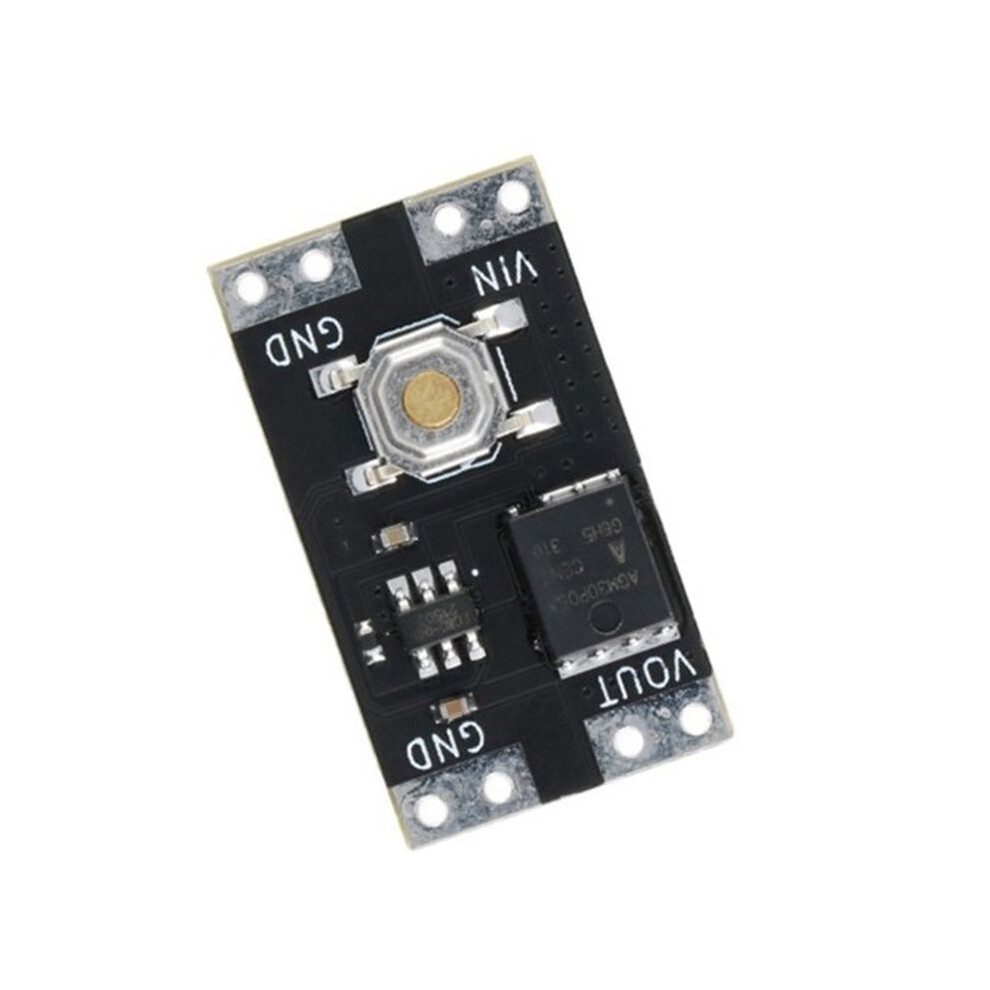

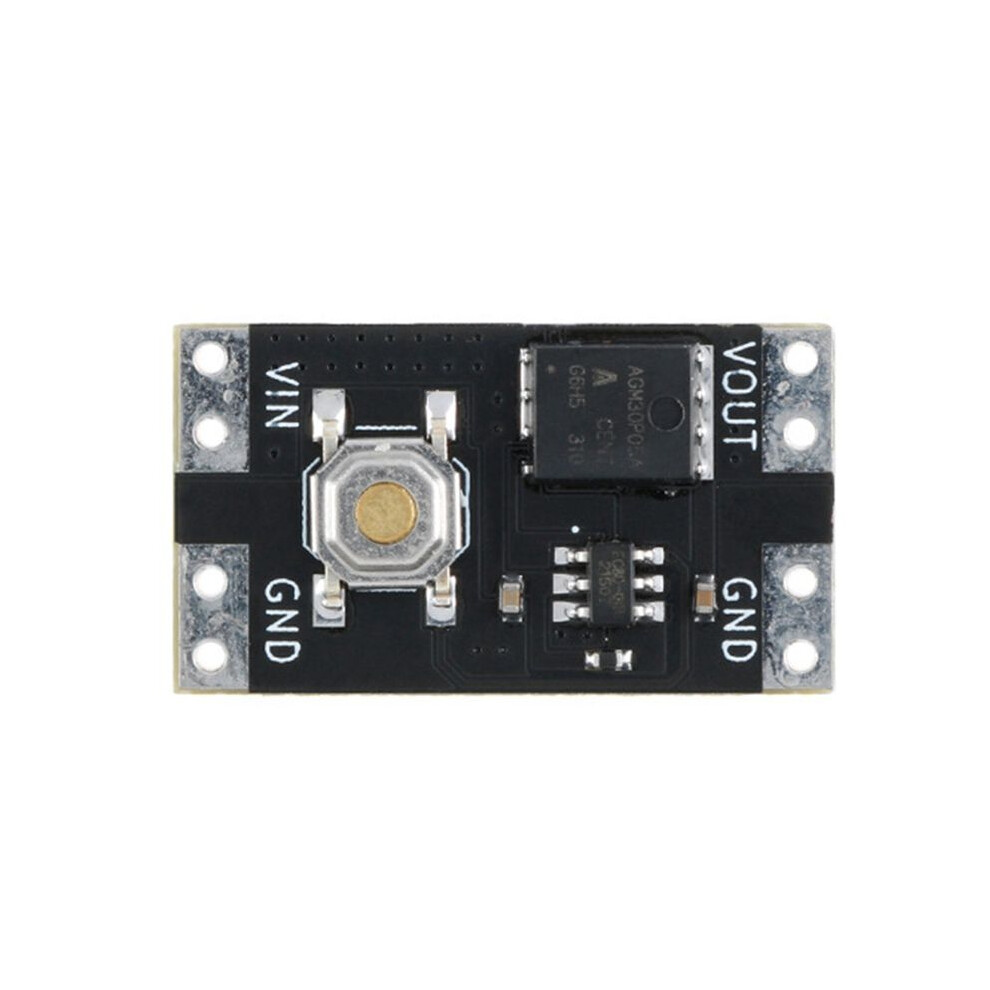

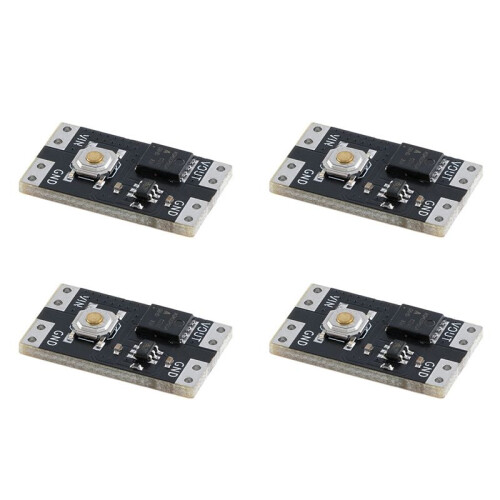

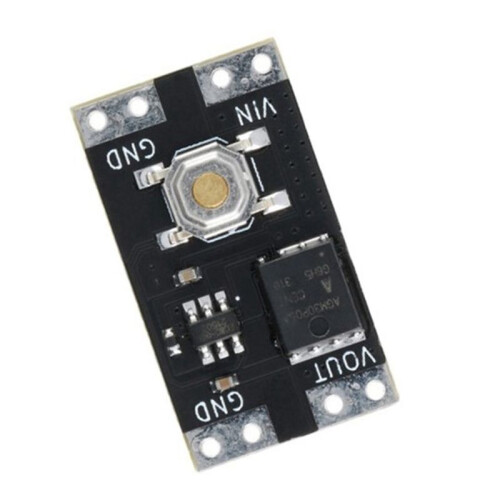

4Pcs XL-10AL Single Bond Button Bistable One Key Module 3.5-5.4V 300nA Load 10A Low Power

4Pcs XL-10AL Single Bond Button Bistable One Key Module 3.5-5.4V 300nA Load 10A Low Power Beskrivelse

The XL-10AL module can achieve the same function as the self-locking by touching the , so as to turn the power and off.
It can support loads with a maximum switching current of 10A, and can support operation at a voltage of 3.5-5V, and the static power consumption in the off state is about 300na.
The excellent performance of the module covers the operating voltage and operation required by most loads. The small size design will not take too much space your device.
For the button part, if you want to use other styles of buttons, you can also connect various other styles of touch buttons to our control board through wires.

Model: XL-10AL
Working voltage: 3.5-5.4V
Static power consumption: 300na (5V voltage measurement)
Load current: 10A (5V voltage test for 30 minutes)
Pressure drop: 130mv (5V 10A measurement)
Different batches may have different appearances, but will not affect the use
Colour:Black
Material:PCB

Package Contents:
4 x XL-10AL Module
