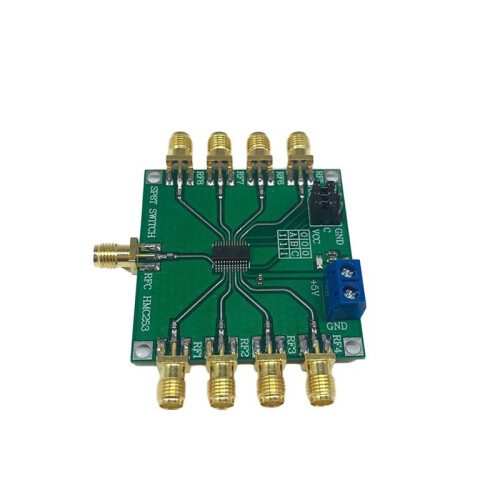

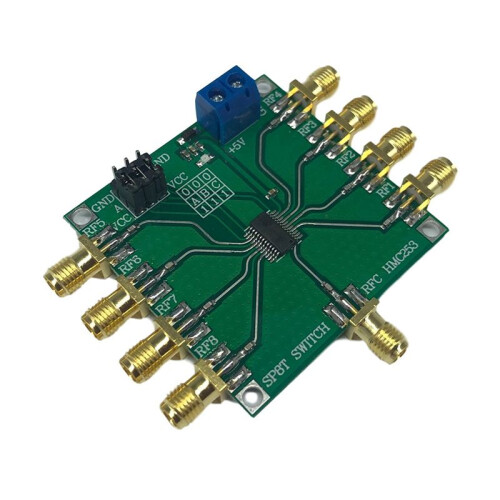

4X HMC253 -2.5 GHz Multifunction RF Single Pole Eight Throw Rf Channel Select Antenna Module

New

525,04 kr.

Would you like us to let you know when it's back?

Læg i kurv

Beskrivelse og detaljer

Oversigt

1. The HMC253AQS24E Is A Low-Cost Non-Reflective Sp6t Switch In A 24-Pin Qsop Package With Wideband Operation From Dc To 2.5 Ghz.
2. The Switch Offers Single Positive Bias And True Ttl/Cmos Compatibility.
3. A 3:6 Decoder Is Integrated On The Switch, Requiring Only Three Control Lines And A Positive Bias To Select Each Path
4. The HMC253AQS24E SP8T Can Replace SP4T And SPDT Mmic Switches And Logic Drivers In Multiple Configurations.
5. RF Single-Pole Eight-Throw Switch Rf Switch Antenna Selection Channel Selection Module

4X HMC253 -2.5 GHz Multifunction RF Single Pole Eight Throw Rf Channel Select Antenna Module Beskrivelse

1. The HMC253AQS24E Is A Low-Cost Non-Reflective Sp6t In A 24-Pin Qsop Package With Wideband Operation From To 2.5 Ghz.
2. The Offers Single Positive Bias And True Ttl/Cmos Compatibility.
3. A 3:6 Decoder Is Integrated The , Requiring Only Three Control Lines And A Positive Bias To Select Each Path
4. The HMC253AQS24E SP8T Can Replace SP4T And SPDT Mmic Switches And Logic Drivers In Multiple Configurations.
5. RF Single-Pole Eight-Throw Rf Antenna Selection Channel Selection Module

Function
1. Low Insertion Loss (2 Ghz): 1.0 dB
2. Single Positive Power Supply: Vdd = +3V To +5V
3. Integrated 3:6 Ttl Decoder
Application
1. Base Station
2. Catv/Dbs
3. Mmds And Wlan
4. Test Equipment
Circuit Description
Power Supply Voltage: 3V-5V
Frequency: -3GHZ
PVB Size: 50x50mm
Colour:green
Material:PCB
Size: about 7 x 5cm

Package Contents:
4 x Antenna Module
