5-100A 220V Meter Single Phase RS485 MODBUS Protocol LCD Backlit Display Din Rail Watt Meter Meter

5-100A 220V Meter Single Phase RS485 MODBUS Protocol LCD Backlit Display Din Rail Watt Meter Meter Beskrivelse

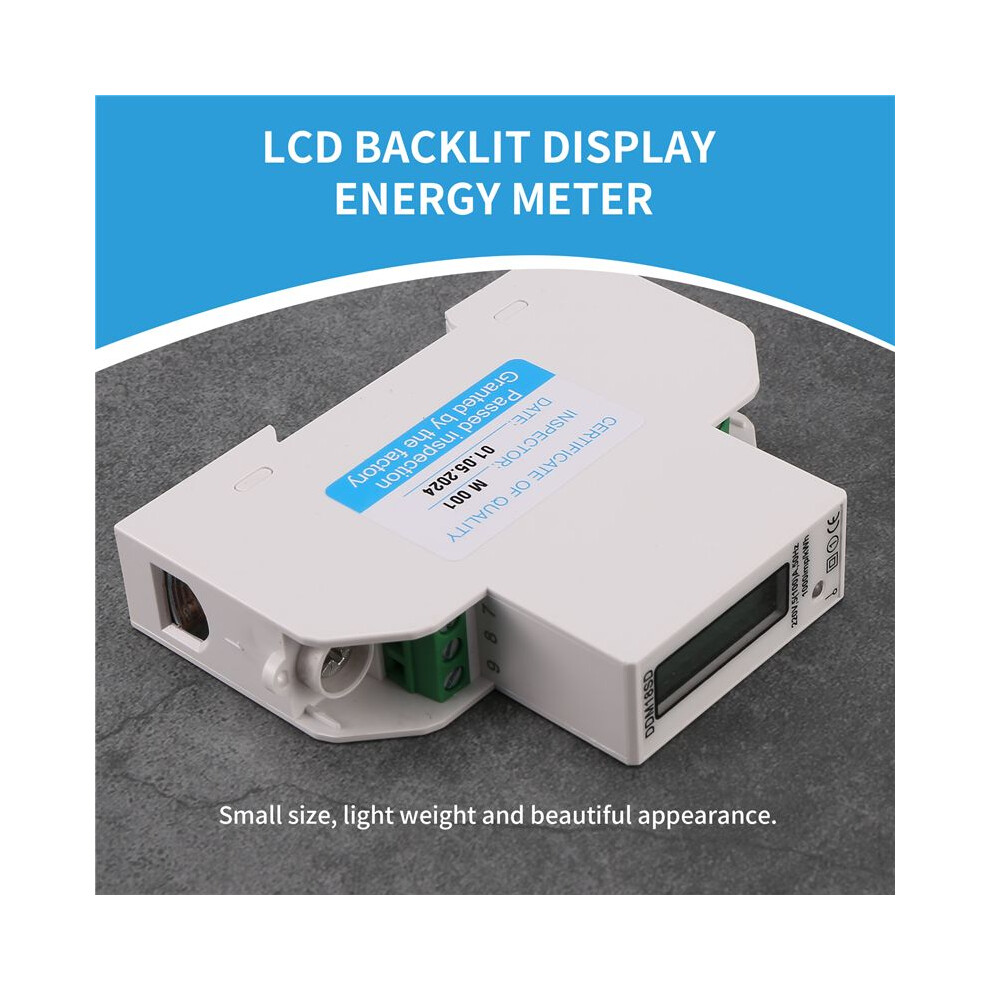

Small size, light weight and beautiful appearance
Good reliability and easy installation
35mm standard DIN rail mounting, in accordance with standard DIN EN50022.
Single pole width (modulus 18mm) in accordance with DIN43880.
The standard configuration 5+1 backlight LCD display (99999.1KWh)
Features:
1. RS485 (communication protocol Modbus-RTU) remote meter reading function.
2. Display and reading: electricity, current, voltage, frequency, power factor
3. Standard configuration pulse output passive (polarity), select remote pulse output passive (non-polar). It is easy to contact with various AMR systems and conforms to the standards IEC 62053-31 and DIN43864.
4. Double color LED indicates the power status (green) and the pulse signal (red).
5. Automatically detect the flow direction and command of the load current
6. One-way measurement of single-phase two-wire active power.
7. Direct S type connection
8. Extend the terminal cover to protect the use.
Specification:
Condition: New
Model: DDM18SD
Voltage Specification: 220V
Frequency: 50Hz
Current Specifications: 5(100)A
Communication Method: RS485
Screen Display: Multi-function Cycle Display
Accuracy Level: 1.0
Working Temperature: -10 Celsius- +50 Celsius
Installation Method: DIN Rail Mounting
Communication protocol: MODBUS-RTU, DL/T645-1997, DL/T645-2007 (optional)
Weight: Approx. 102g / 3.6oz
Colour:white
Material:plastic

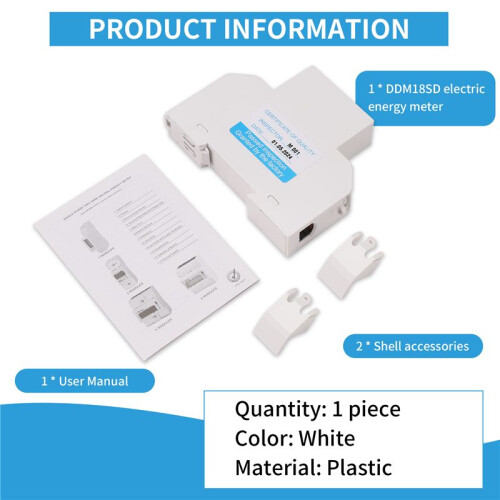

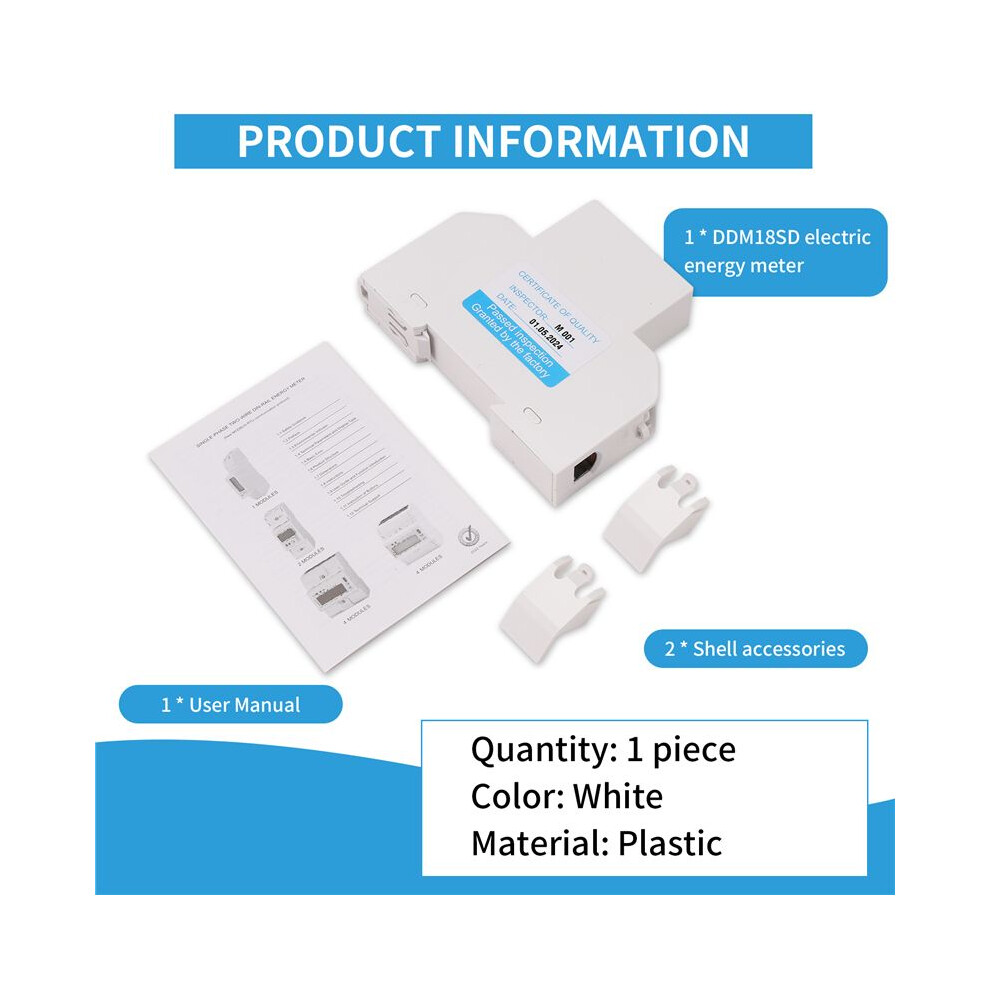

Package Contents:
1 * DDM18SD Meter

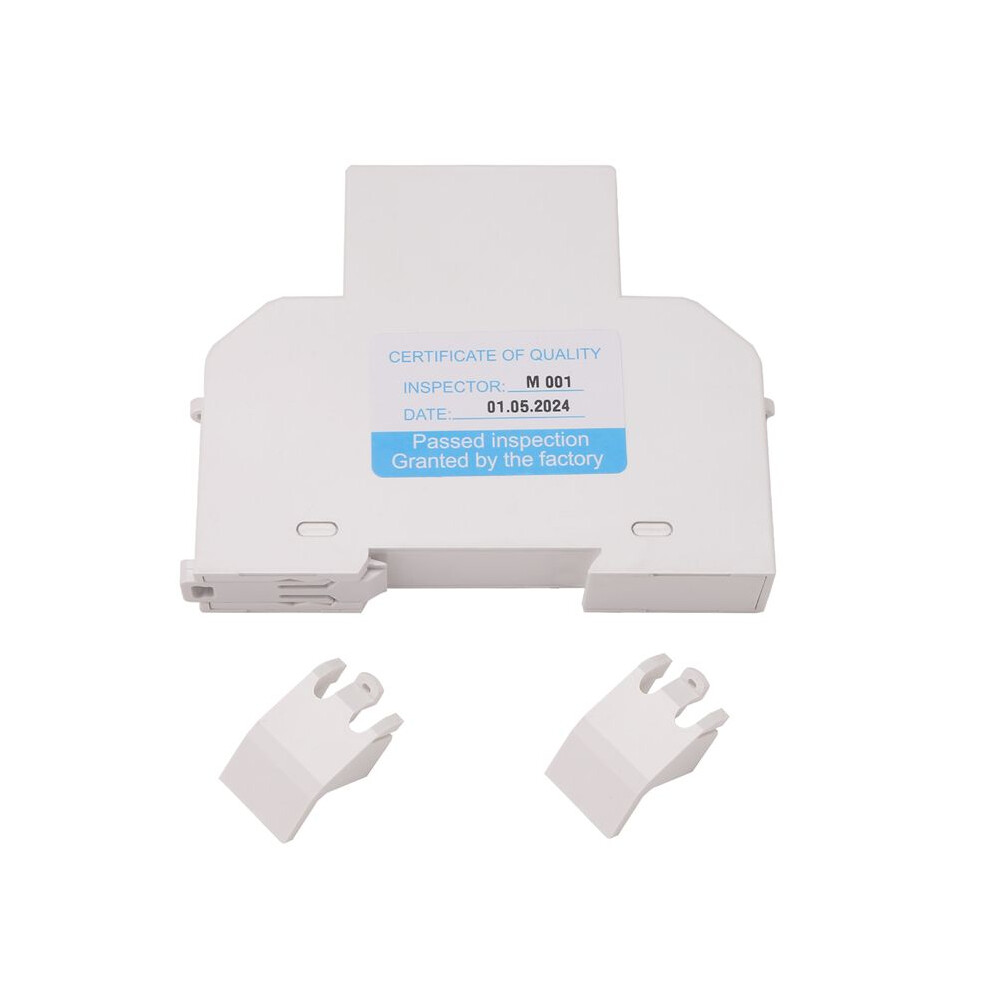

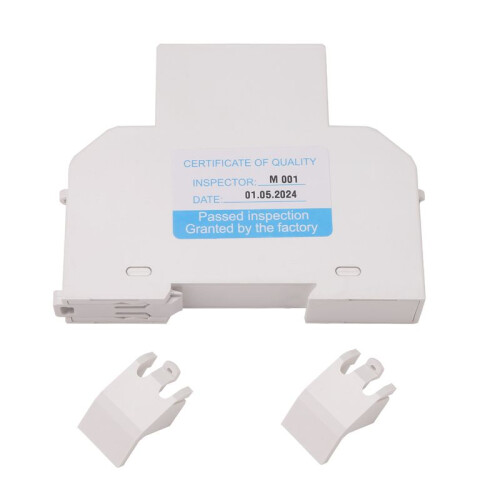

2 * Shell Accessories
1 * User manual
