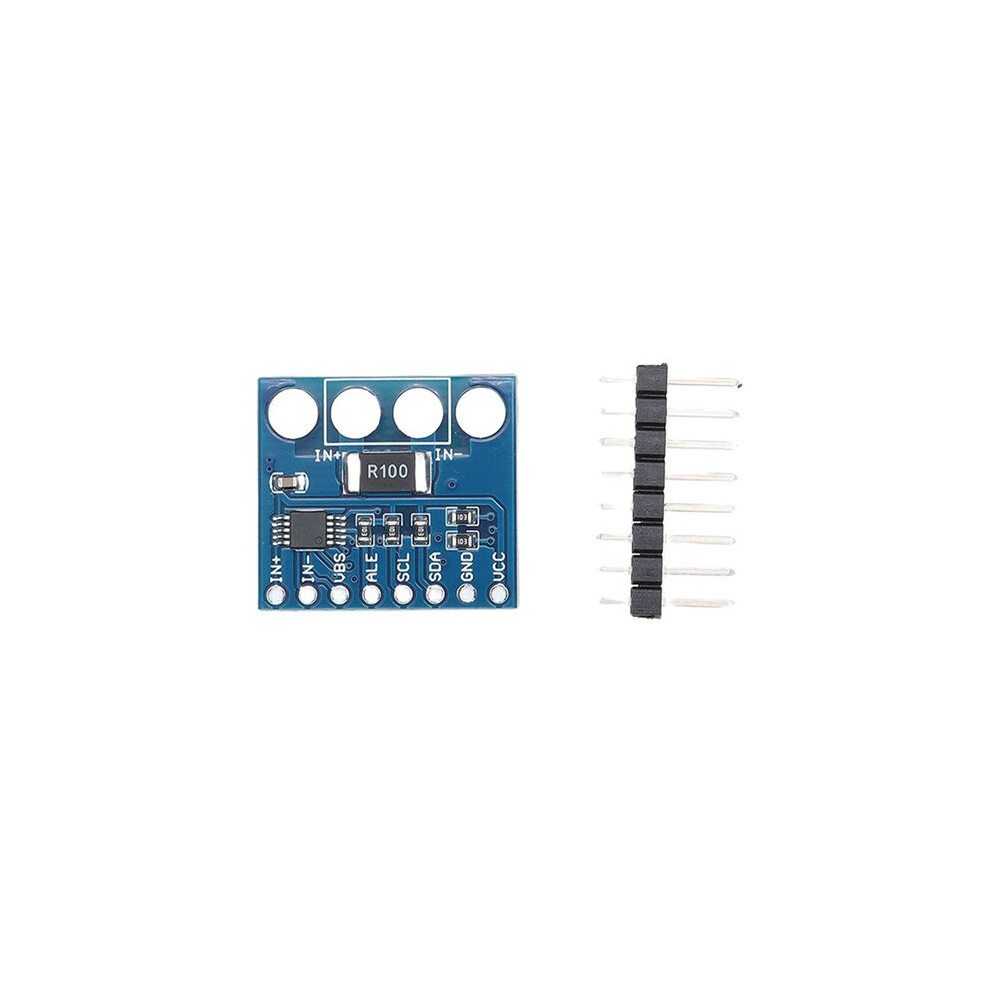

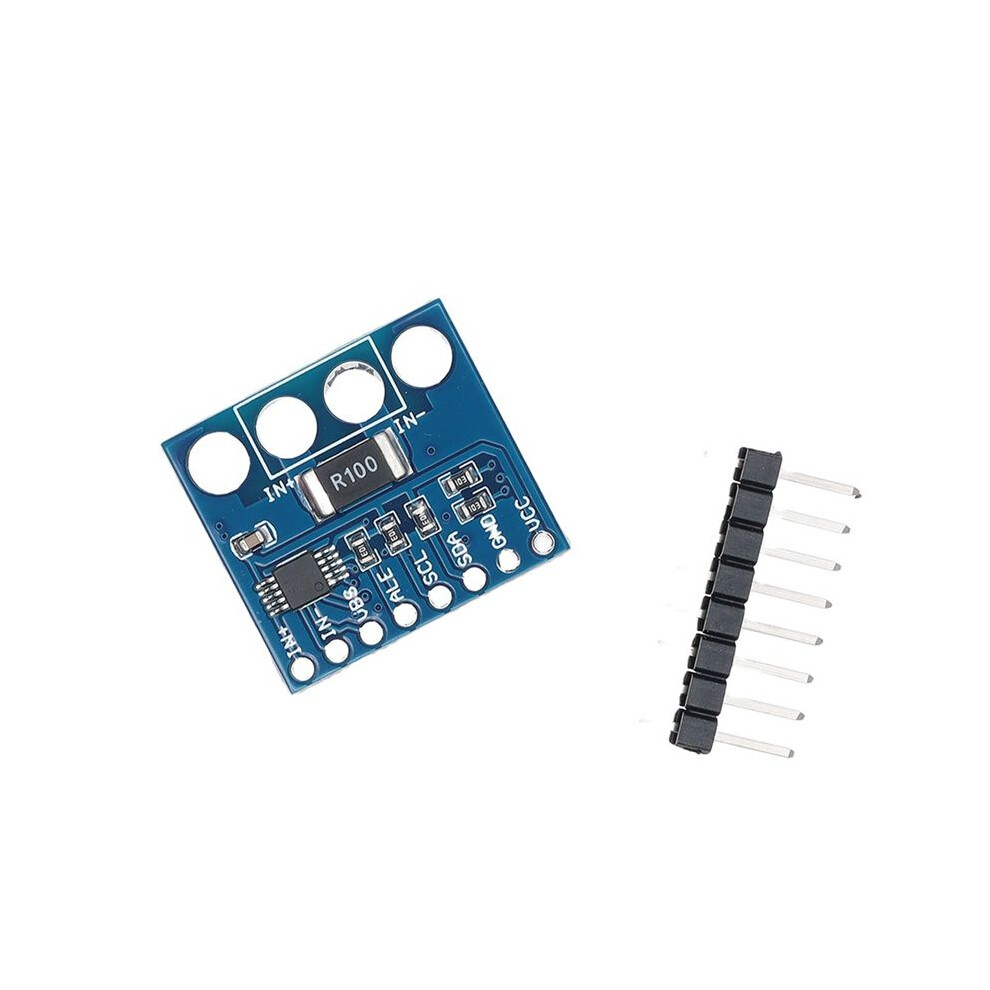

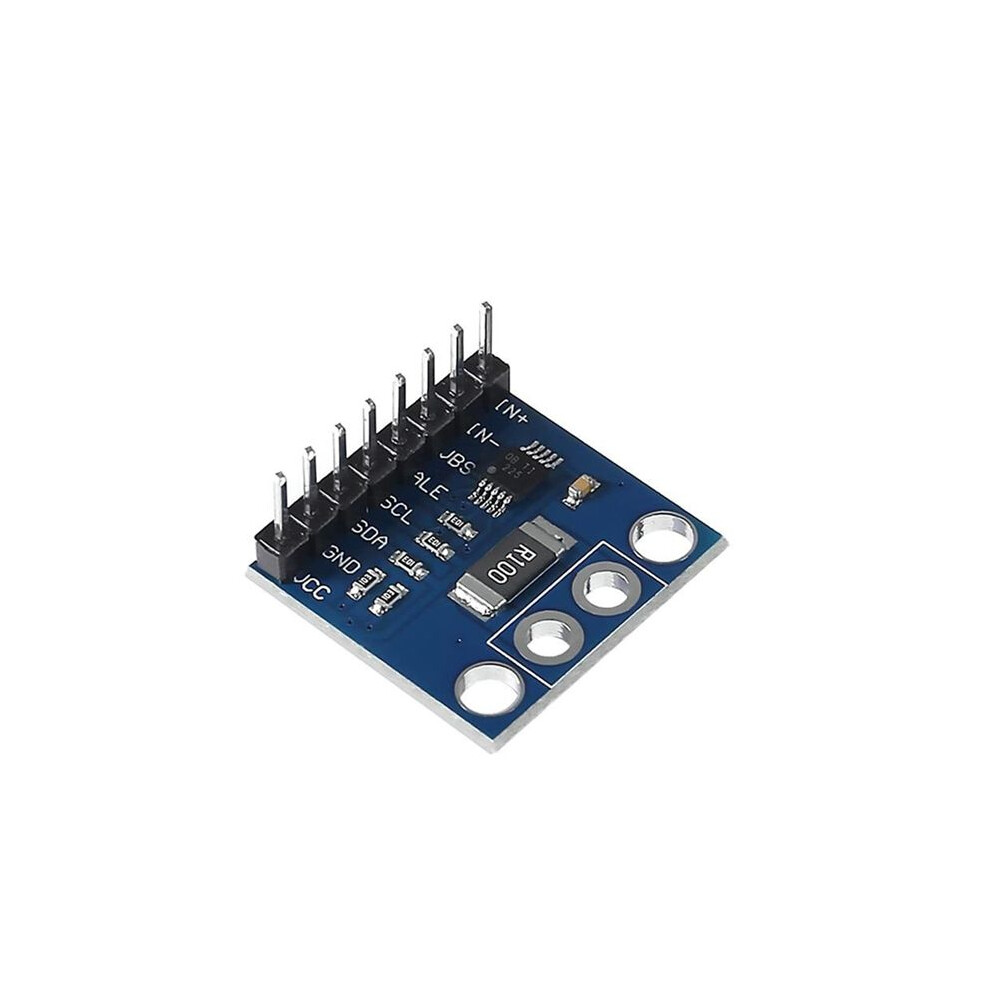

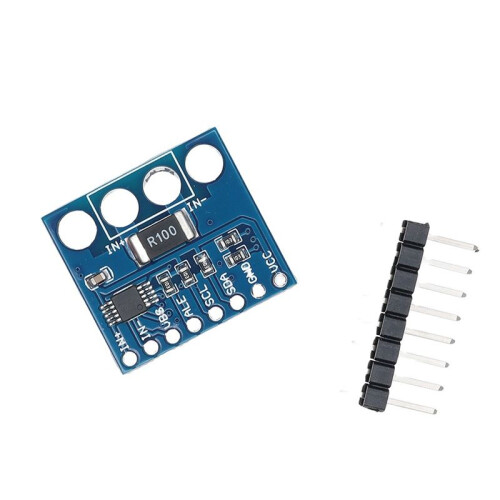

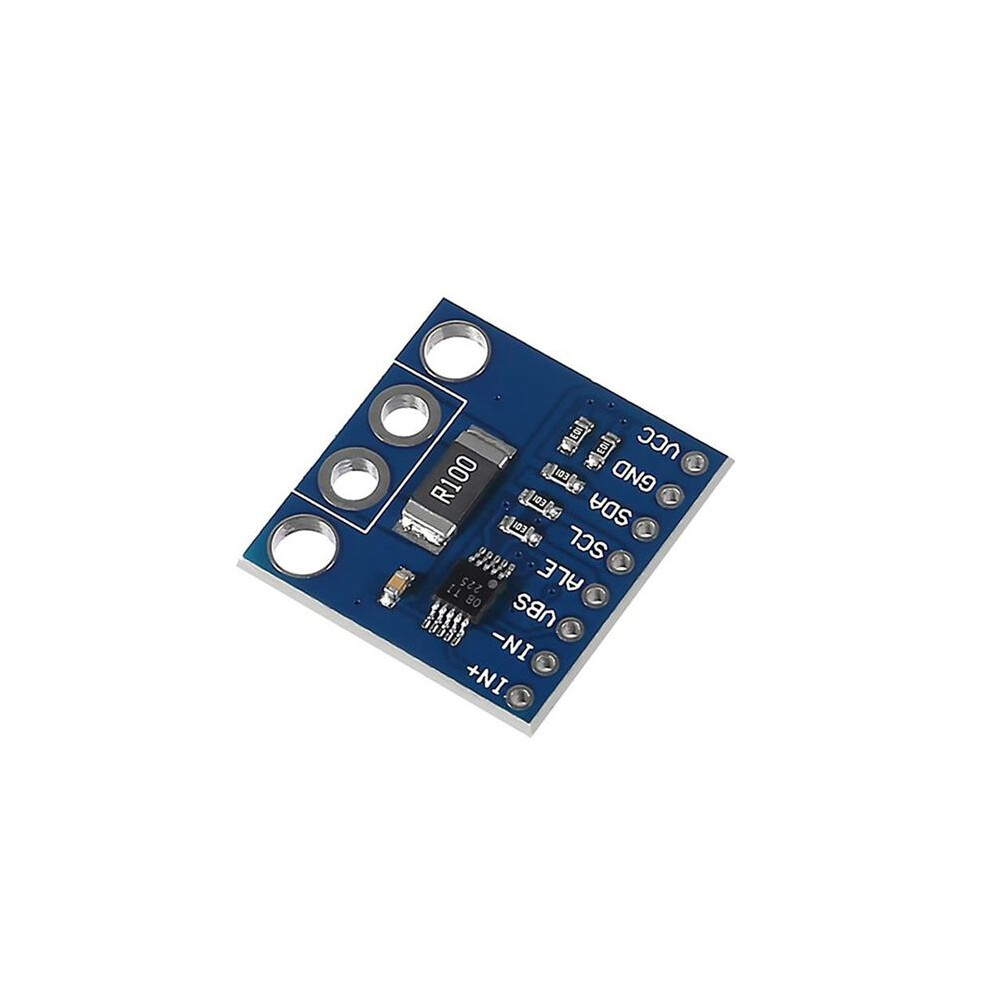

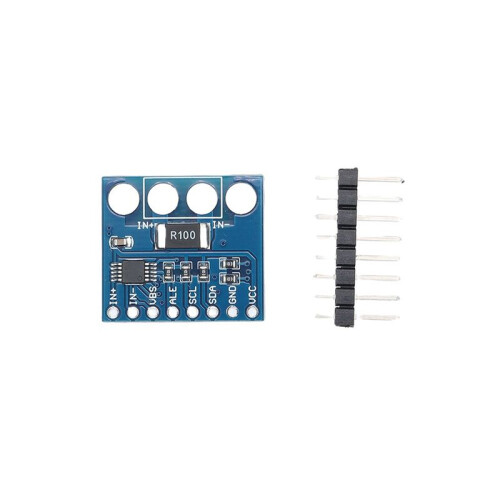

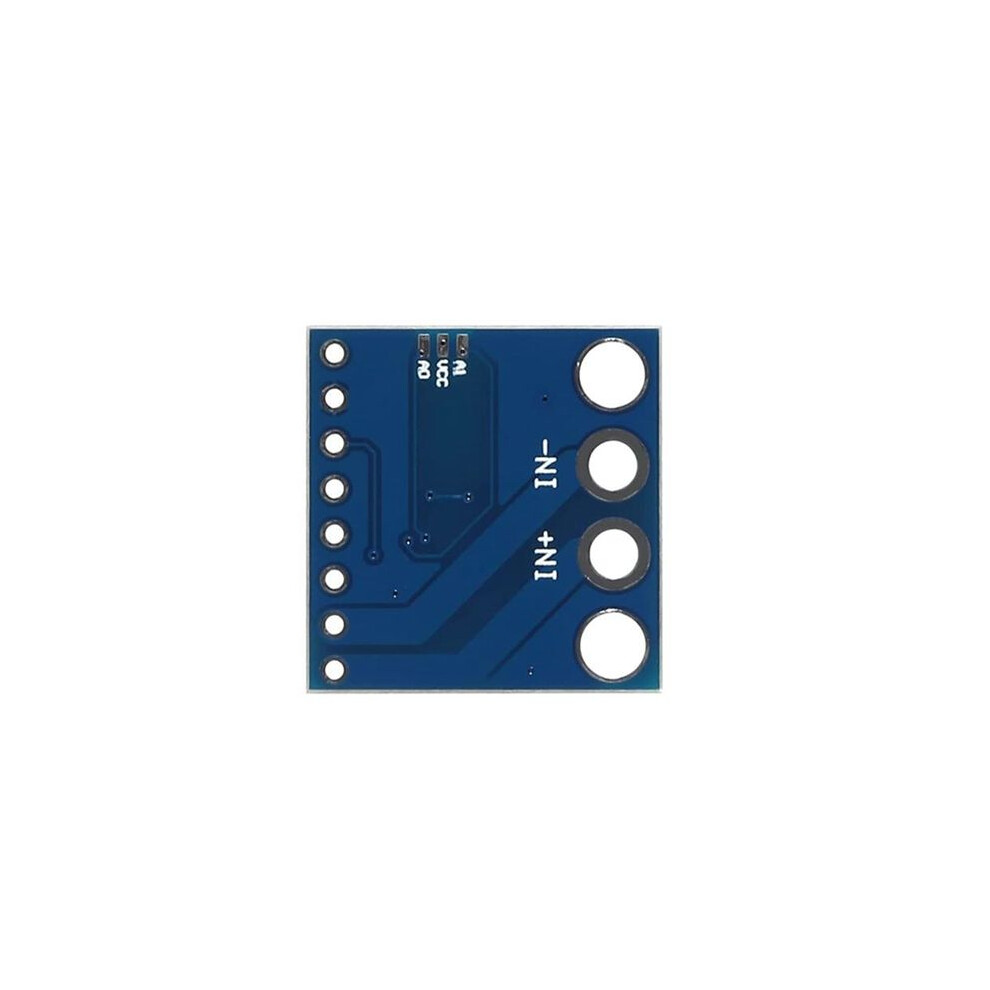

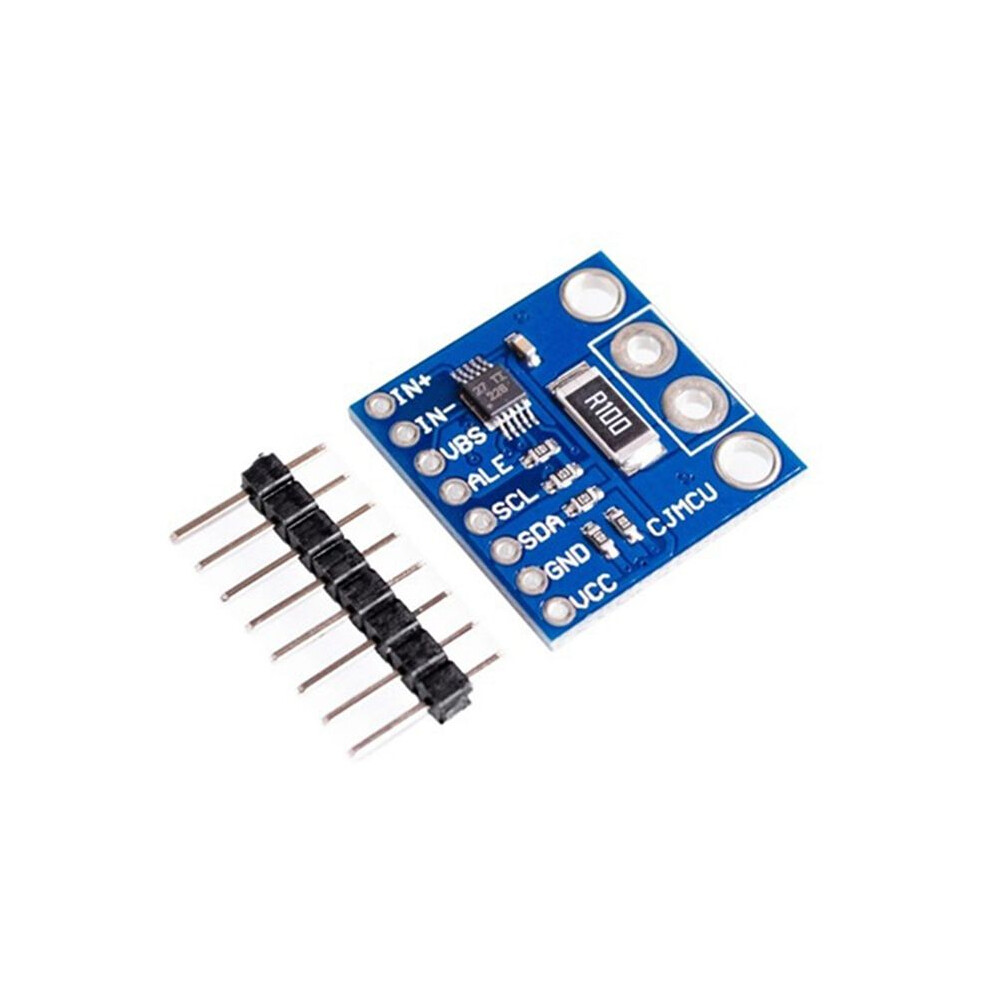

5PCS INA226 CJMCU-226 IIC I2C Interface Bi-Directional Current/Power Monitoring Sensor Module for

5PCS INA226 CJMCU-226 IIC I2C Interface Bi-Directional Current/Power Monitoring Sensor Module for Beskrivelse

The INA226 is a current shunt and power monitor with an I2C- or SMBUS-compatible interface. Thedevice monitors both a shunt voltage drop and bussupply voltage. Programmable calibration value,conversion times, and averaging, combined with aninternal multiplier, enable direct readouts of current inamperes and power in watts.
The INA226 senses current common-mode bus voltages that can vary from 0 V to 36 V, independent of the supply voltage. The device operates from a single 2.7-V to 5.5-V supply, drawing a typical of 330μA of supply current. The device is specified over the operating temperature range between -40C and125C and features to 16 programmable addresses the I2C-compatible interface.
CJMCU - 226 - support alarm function of the 36 v, bidirectional, high precision, low side and high side power monitor, I2C output current
The highest INA226 disturbance voltage of 10 microvolts (uV), the largest gain error is 0.1%, precision is 10 times higher than the industry leading competitive products. This device is a complete 16-bit single chip solutions, to number the I2C interface of current, voltage and power to provide comprehensive programmable measurement.
INA226 for servers, computers, telecommunications equipment, power management equipment and test equipment design staff with great advantages, can fully meet the requirements for the precise power measurement.

Factory printing batch number is different
Colour:
Material:PCB

Package Contents:

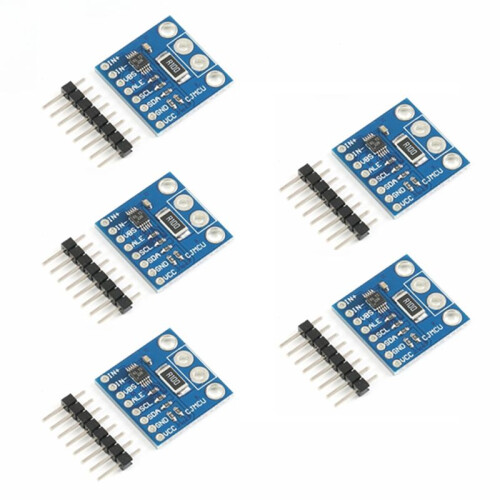

5 x Current Power Monitoring Sensor Module
5 x Pin
